Beckhoff KL2408 Digital Output Module 8 Channel 24VDC 0.5A Bus Terminal New

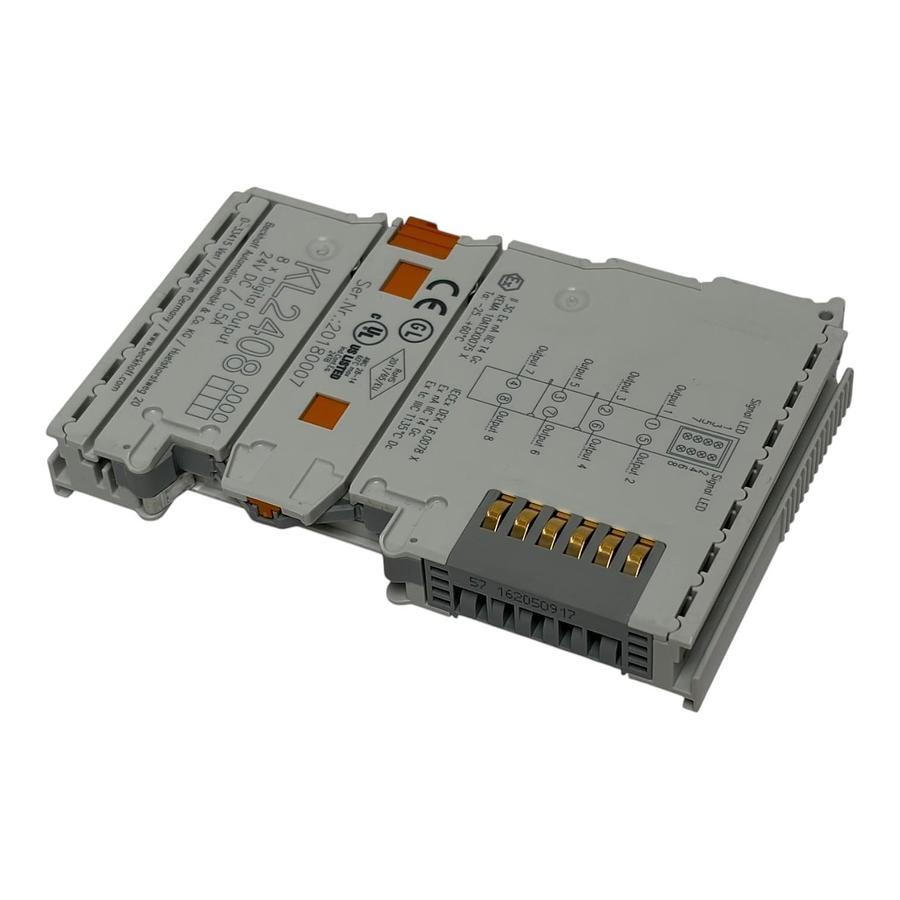

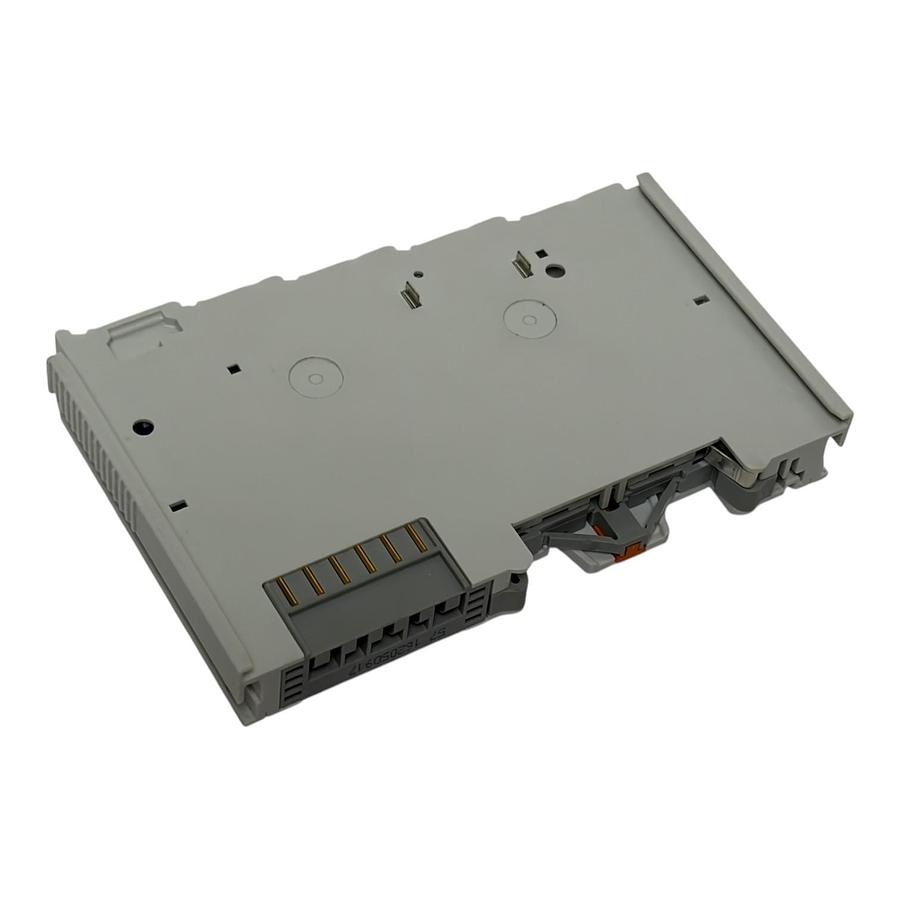

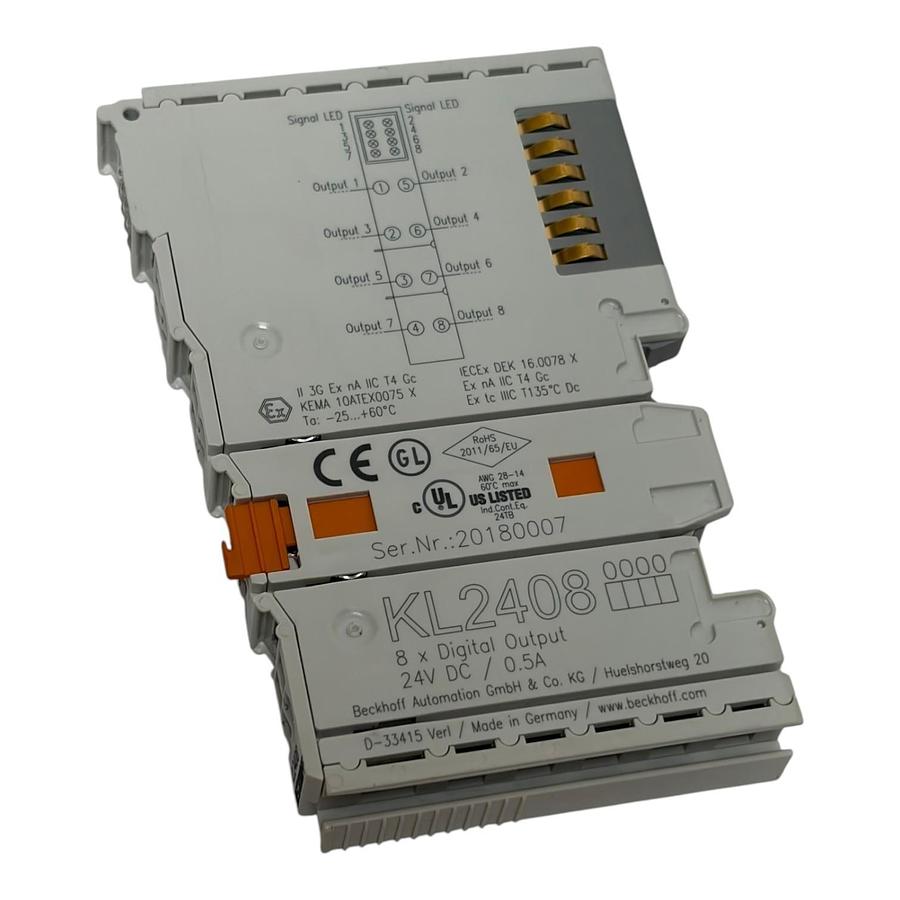

Beckhoff KL2408 Digital Output Module 8 Channel 24VDC 0.5A Bus Terminal New Surplus Up for sale is a genuine Beckhoff Automation digital output bus terminal module, part number KL2408 (Version 0000). This high-density automation block connects directly to Beckhoff Bus Couplers and embedded PCs, providing eight solid-state outputs to drive actuators, solenoids, contactors, and intermediate relay banks. It features a space-saving slice design with individual diagnostic signal LEDs for streamlined panel installation and troubleshooting. Technical Specifications - Manufacturer: Beckhoff Automation GmbH & Co. KG - Series: Bus Terminal System - Model Part Number: KL2408 - Version Extension: 0000 - Serial Number: 20180007 - Module Type: 8-Channel Digital Output Terminal Block - Number of Outputs: 8 Channels - Rated Nominal Voltage: 24 VDC (-15% / +20% range) - Maximum Load Current: 0.5 Amps Per Channel (Short-circuit protected) - Load Type Typology: Resistive, Inductive, Lamp Loads - Current Consumption from K-Bus: 15 mA Typical - Electrical Isolation Profile: 500 V (K-bus / Field Potential) - Wiring Termination Style: Cage Clamp Spring Connections (AWG 28-14) - Integrated Visual Indicators: 8x Green Signal Status LEDs - Structural Mount Format: Modular Slide-in Style for 35mm DIN Rail Systems - Operating Temperature Profile: -25 to 60 Degrees C - Standards Compliance: CE, GL, UL Listed (E172151 Ind. Cont. Eq.), ATEX (II 3G Ex nA IIC T4 Gc / KEMA 10ATEX0075 X), IECEx (DEK 16.0078 X) - Manufacturing Origin: Made in Germany Item Condition - Condition: New Surplus (Open Box / No Retail Packaging). This industrial automation module is an entirely unused facility replacement spare that was cataloged and stored safely inside a clean, climate-controlled warehouse facility. It has never been deployed, wired, or energized. - Storage Condition: Kept inside a protected warehouse environment to maintain immaculate housing surfaces, clean side-facing gold contact fingers, and untarnished terminal connectors. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2187
