Schneider Electric LRD340 TeSys Thermal Overload Relay 30-40A Class 10A EverLink
$89.95
Description
Schneider Electric LRD340 TeSys Thermal Overload Relay 30-40A Class 10A EverLink

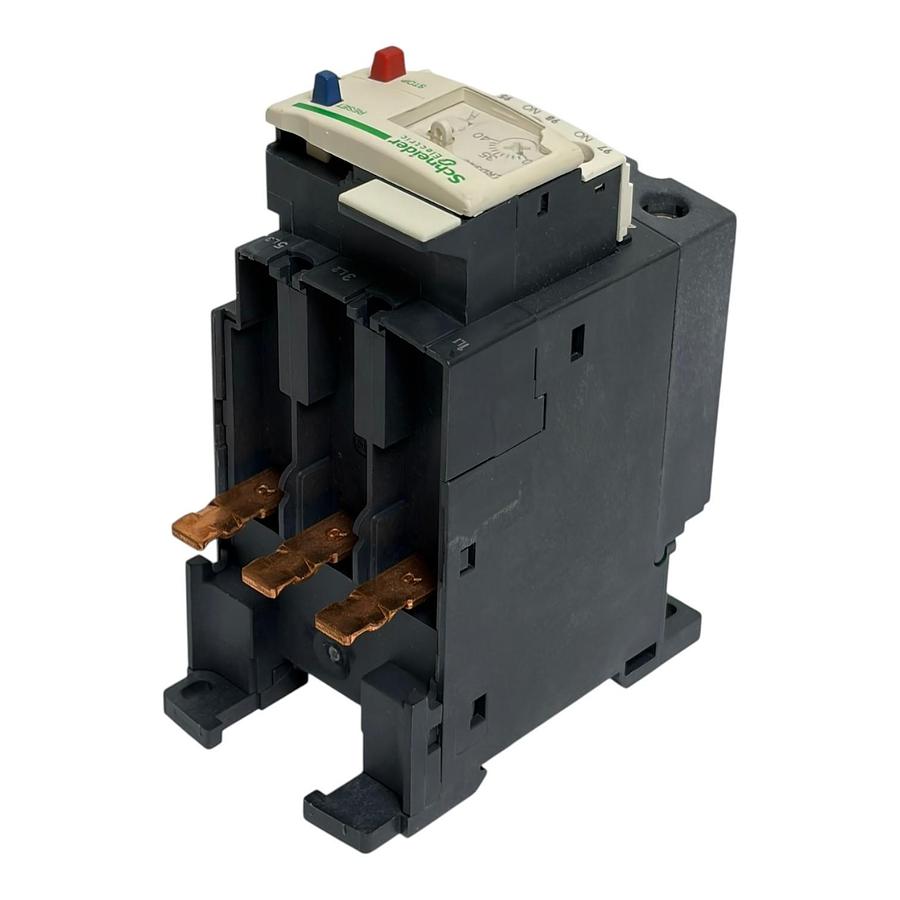

Up for sale is a genuine Schneider Electric TeSys LRD series thermal overload relay. This unit features EverLink power screw clamp terminals and is in brand new surplus condition without its original retail box. It is designed for direct mounting beneath LC1D40A through LC1D65A contactors to provide reliable motor overload and phase failure protection.
Brand: Schneider Electric
Product Line: TeSys Deca / TeSys LRD
Model Number: LRD340
Product Type: Thermal Overload Relay
Thermal Protection Adjustment Range: 30 to 40 Amps (30-40A)
Overload Tripping Class: Class 10A
Auxiliary Contacts: 1 NO + 1 NC (97-98 NO, 95-96 NC)
Connection Technology: EverLink BTR Screw Terminals
Mounting Support: Direct underneath contactor or independent rail/panel mount
Control Type: Red "STOP" push-button, Blue "RESET" push-button
Maximum Operating Voltage Ue: 690V AC (50/60 Hz)
Short Circuit Current Rating SCCR: Up to 100kA at 600V with Class J fuses
Certifications: cULus Listed (IND. CONT. EQ. 170M), CSA, CE, CCC, EAC, ATEX
Country of Manufacture: Made in France

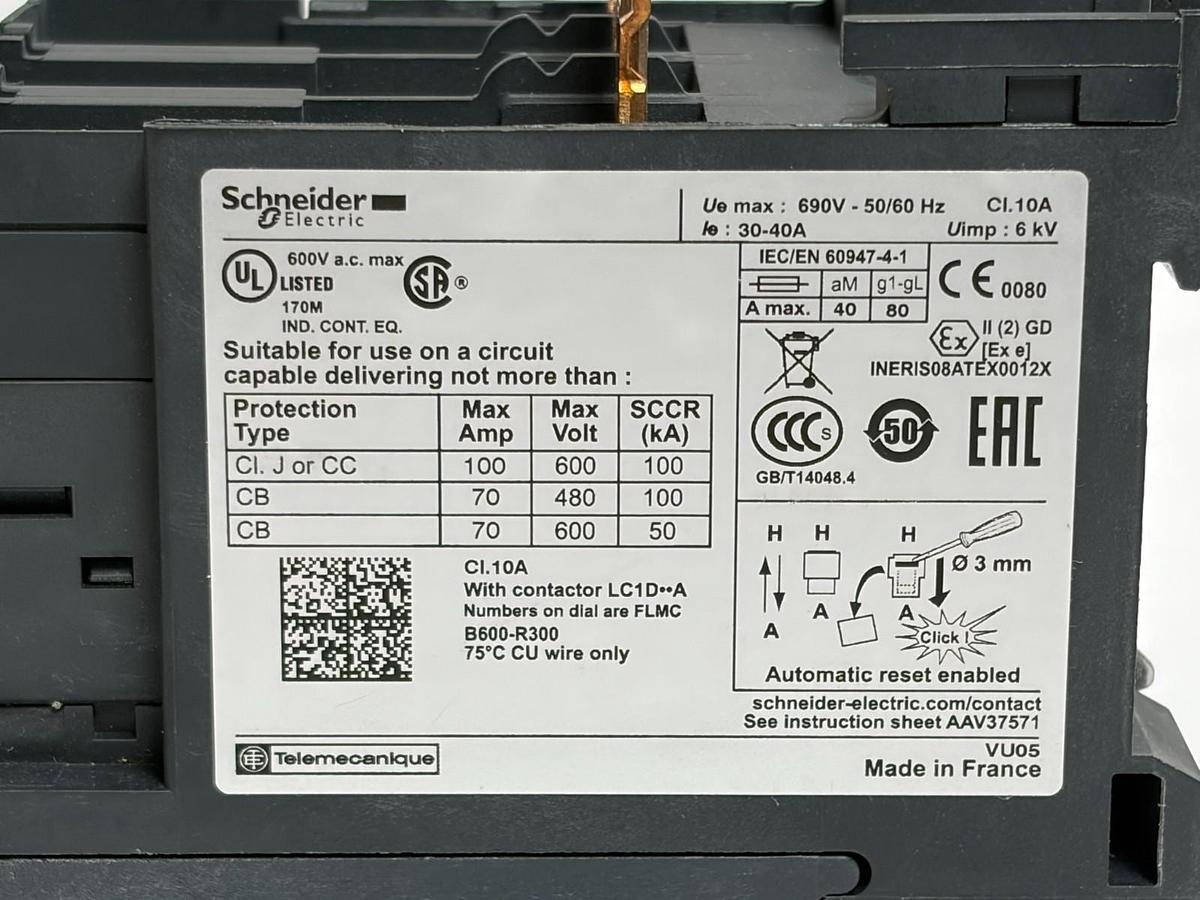

Condition Details: New surplus old stock condition. The component is physically flawless. The black composite casing, white terminal face, adjustment dial window, and push-buttons are completely immaculate with zero shelf dust or scratches. The rear copper terminal blades are clean, bright, and perfectly straight, showing no tool scoring or mounting marks. All side print technical diagrams and specifications are perfectly sharp and legible.
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
SELL YOUR SURPLUS
PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS
________________________________________________________________________________
2184
Specifications
| Manufacturer | Schneider |
| Model | LRD340 |
| Condition | Used |
| Stock Number | 366642157530 |
| Type | PLC Processor Module |
| Controller Platform | Automate |
| Country of Origin | China |
