Surplus Allen Bradley MPL-B320P-SJ72AA /A MP-Series Servo Motor 460V 5000RPM 2HP

$2,750

Description

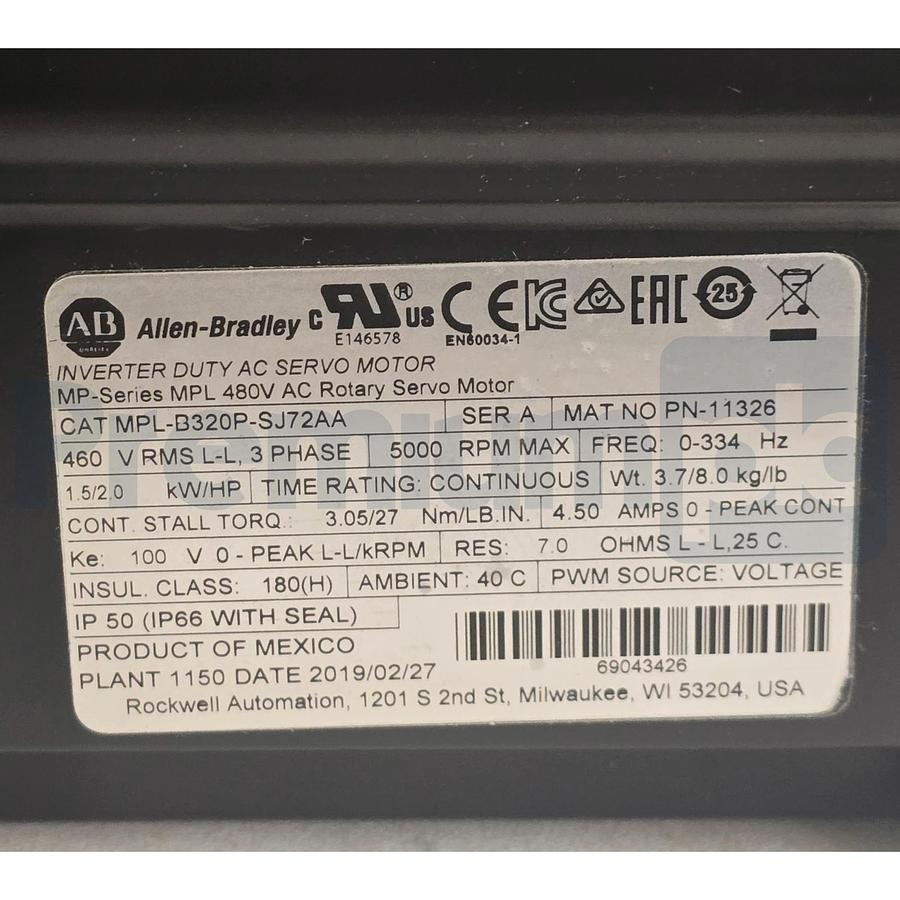

Surplus Allen Bradley MPL-B320P-SJ72AA /A MP-Series Servo Motor 460V 5000RPM 2HP Catalog Number: MPL-B320P-SJ72AA Product Family: MP-Series MPL 480V AC Rotary Servo Hardware Power & Speed Capacity: 1.5 kW (2.0 HP) | 5000 RPM MAX Series / Configuration: Series A (Material No: PN-11326) Condition Class: Pre-owned Un-Used Surplus No Manufacturer Package. Manufacturer's Warranties & Support DOES NOT apply Product Overview Up for sale is an original Allen Bradley MPL-B320P-SJ72AA (Series A) low-inertia brushless AC rotary servo motor. Engineered to supply exceptionally high performance tracking loops within demanding automation networks, this premium inverter duty servo operates on a 460V RMS 3-phase supply line. It outputs a continuous stall torque rating of 3.05 Nm (27 lb-in) and scales up to velocity boundaries of 5000 RPM at a continuous **2.0 HP / 1.5 kW** power threshold. Featuring premium class 180(H) thermal insulation and a compact physical footprint, it integrates seamlessly into automated packaging lines, multi-axis machine tools, robot limbs, and precision positioning cells. Product of Mexico. Technical Specifications - Brand / Manufacturer: Allen Bradley - Catalog Number / MPN: MPL-B320P-SJ72AA - Motor Type: Brushless AC Rotary Inverter-Duty Servo Motor - Series Configuration: Series A - Voltage Requirements: 460 V RMS Line-to-Line | 3-Phase Input - Frequency Range Bounds: 0 to 334 Hz - Continuous Power Output: 1.5 kW / 2.0 Horsepower (HP) - Maximum Velocity Bound: 5000 RPM Maximum - Continuous Stall Torque: 3.05 Nm / 27 LB-IN - Continuous Input Current: 4.50 Amps (0-Peak Continuous) - Voltage Constant (Ke): 100 V 0-Peak L-L/kRPM - Winding Resistance (RES): 7.0 Ohms L-L @ 25°C - Thermal / Enclosure Classes: Insulation Class 180(H) | IP50 Enclosure Base (Upgradable to IP66 with seal matrix) - Material Reference Number: MAT NO PN-11326 - Manufacturing Date Track: February 27, 2019 (Plant 1150) - Physical Weight: 3.7 kg / 8.0 lbs - Country of Origin: Product of Mexico Condition & Seller Guarantees - Item Condition: Pre-owned Un-Used Surplus No Manufacturer Package. Manufacturer's Warranties & Support DOES NOT apply. - Seller Warranty: We fully cover this industrial hardware unit with our comprehensive 120-Day Seller Replacement/Refund Warranty protecting your plant engineering and upgrade timeline against hidden mechanical or feedback component faults. Standard Shipping Logistics - Expedited Shipping: Same-day shipping is available on most orders made before 4:00 PM EST. Orders finalized after this cutoff time window will be processed and securely dispatched on the following business day to ensure minimum maintenance downtime for your manufacturing line. - Secure Parcel Packaging: Given the physical weight and precise mechanical shaft tolerances of this rotary servo, the unit will be wrapped safely in multi-layered cushioning and boxed securely inside a rigid corrugated outer box to prevent any shaft deflection or impact damage. - Collect Carrier Account Billing: We can ship collect using the buyer's corporate UPS or FedEx account! To coordinate collect billing, please send us a direct message containing your verified shipping carrier account details, preferred service tier (e.g., Ground, Priority Overnight), and billing zip code prior to checking out. __________________________________________________________________________________________ 1403 Sell Your Surplus – We Buy Industrial Equipment! Do you have industrial automation gear, manufacturing components, or electrical equipment sitting idle in your warehouse? Turn your excess inventory into cash! We buy a wide array of industrial surplus items, including: - Automation & Control: PLCs, HMIs, drives, and servo motors - Instrumentation & Sensors: Pressure transmitters, temperature controllers, and transducers - Electrical Supply: Circuit breakers, contactors, transformers, and switchgear - Pneumatics & Hydraulics: Valves, cylinders, pumps, and regulators Whether you have a single overstock part or an entire facility's worth of decommissioned inventory, we offer competitive cash offers and fast, hassle-free logistics. Send us a direct message today with your part numbers and photos to get an offer! Trademark Notice: All product names, logos, and brands are the property of their respective owners. Manufacturer names and model numbers are used strictly to identify the item and demonstrate compatibility. No Affiliation: The seller is an independent distributor of surplus equipment and is not affiliated with, authorized by, or endorsed by any original equipment manufacturer (OEM). Warranties: Because this item is sold as industrial surplus, any original manufacturer warranties may not apply or be transferable. Buyers should verify technical specifications independently.

Specifications

ManufacturerAllen-Bradley
ModelMPL-B320P-SJ72AA
ConditionUsed
Stock Number318764924946
LOCATION1403
Country of OriginMexico
Insulation ClassH (Max 356°F)
Stall Torque3.05/27 Nm/Lb In
Nominal Rated Input Voltage460 V
Actual Rated Input Voltage460 V
TypeServo Motor
Performance LevelLow Inertia
IP RatingIP50
