Marathon Electric 5KC36PNB429MN Explosion Proof Motor 1/6 HP 1725 RPM 115/230V

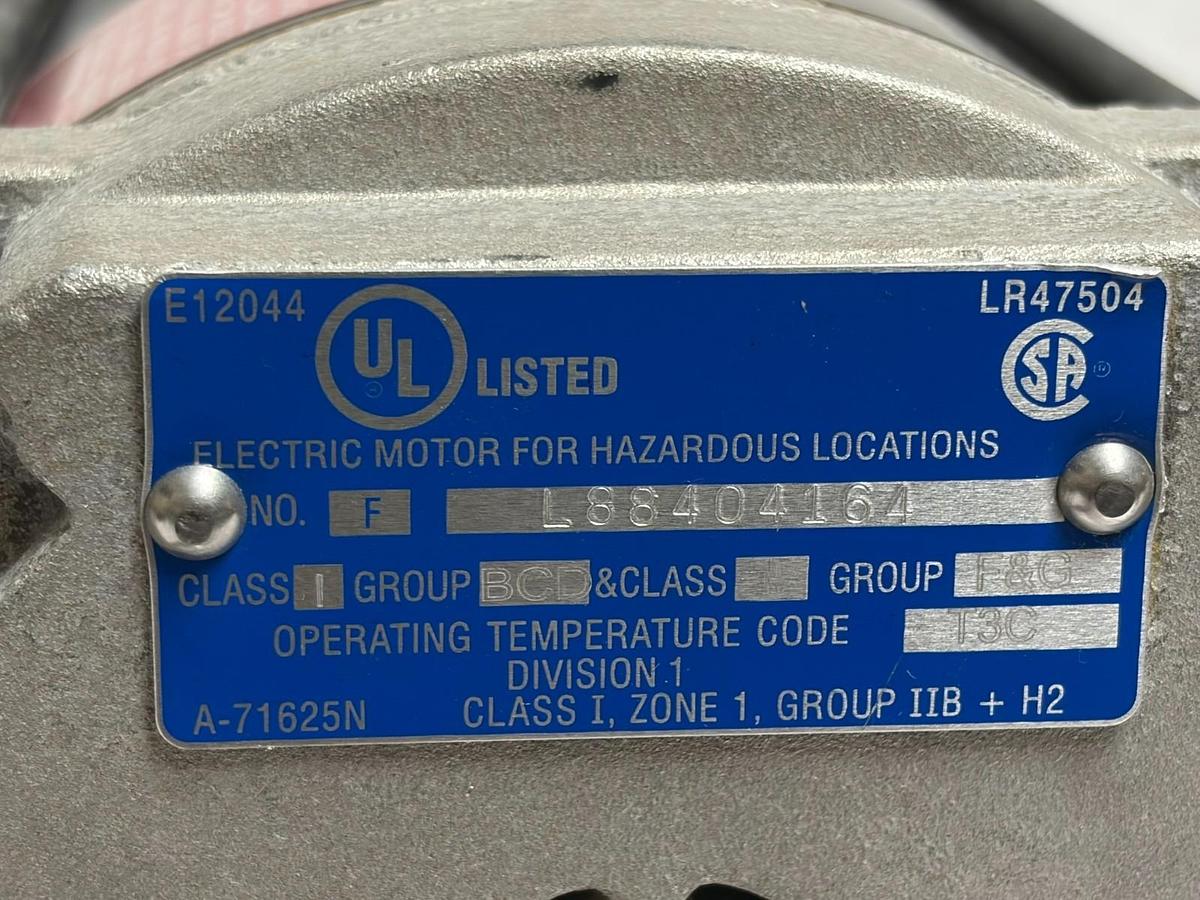

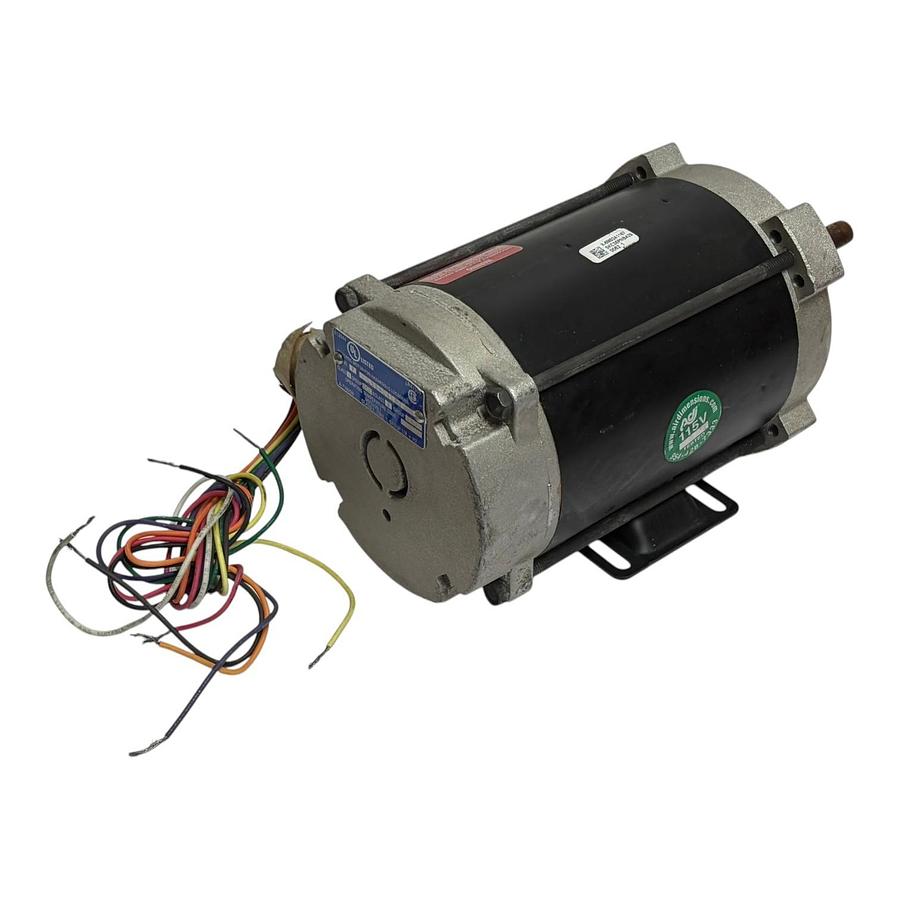

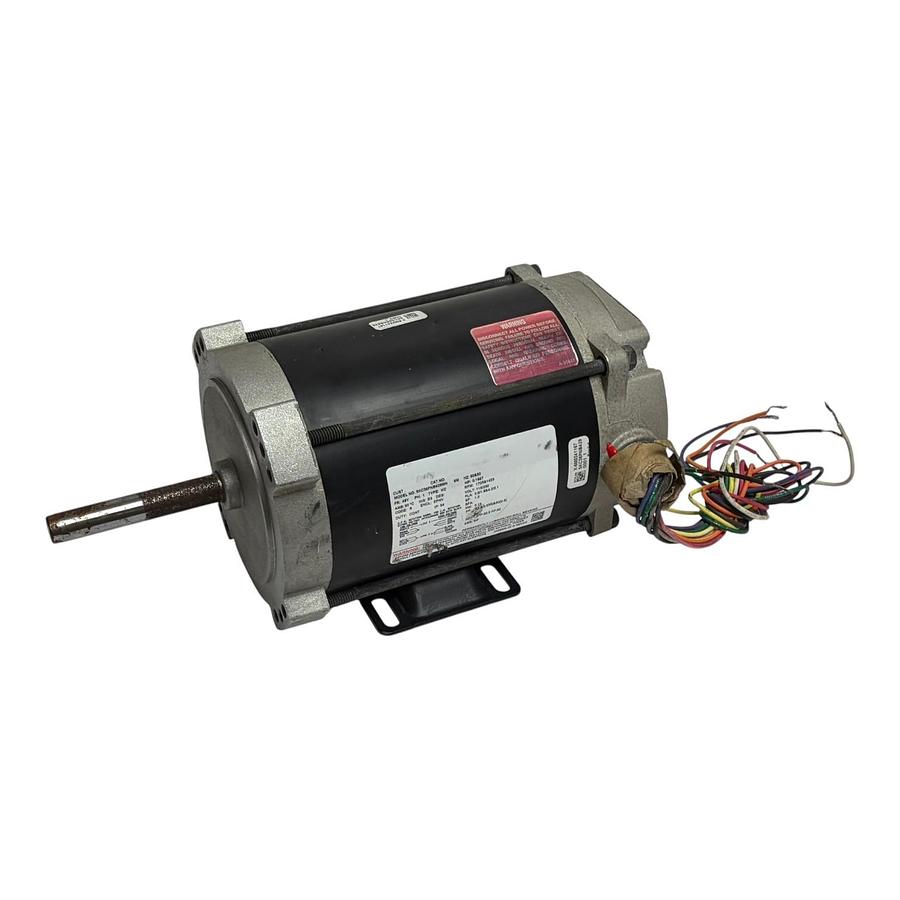

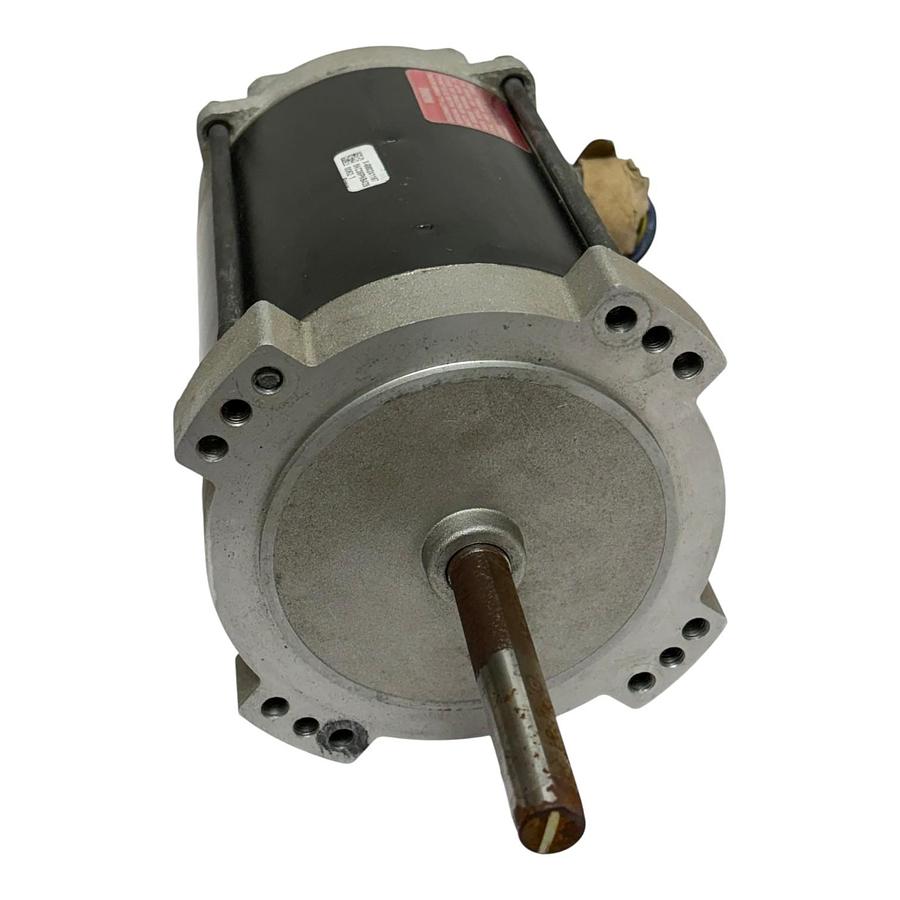

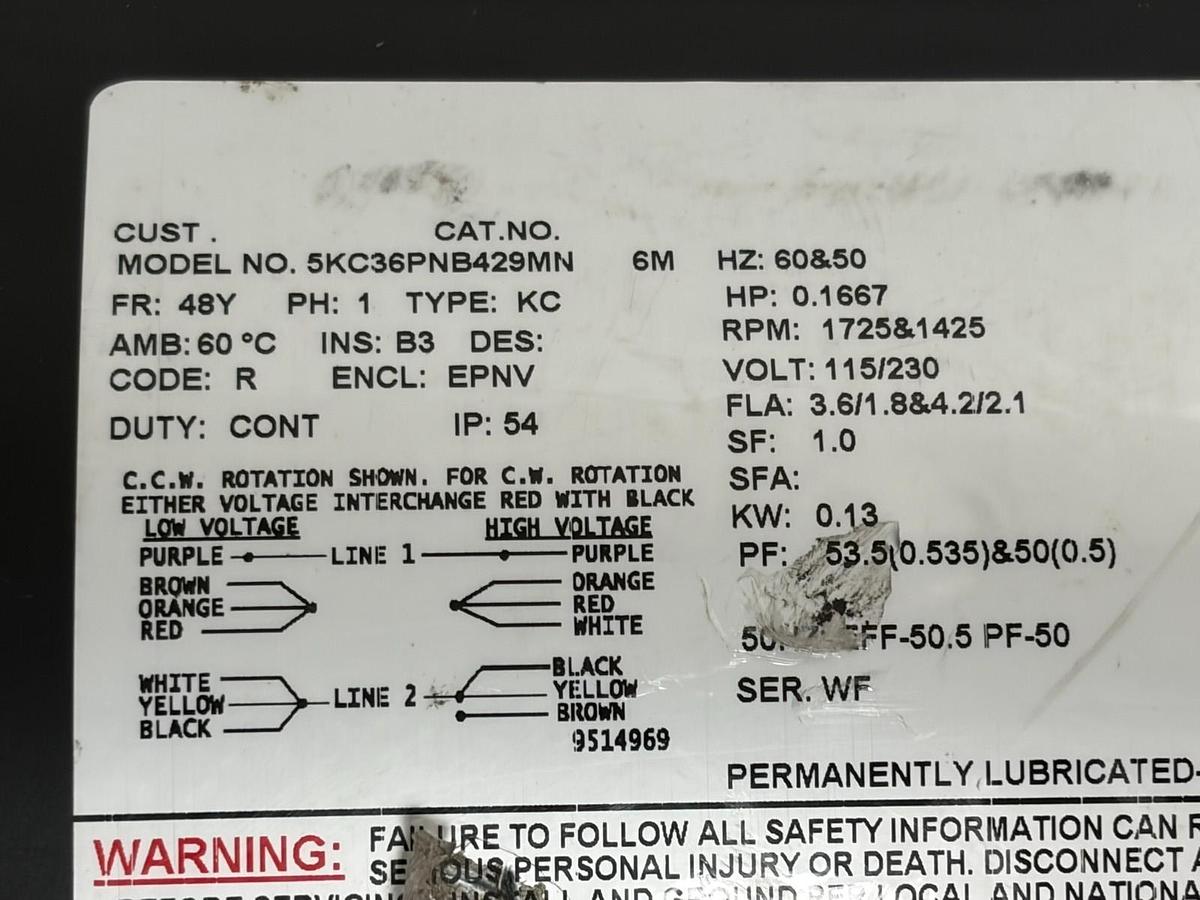

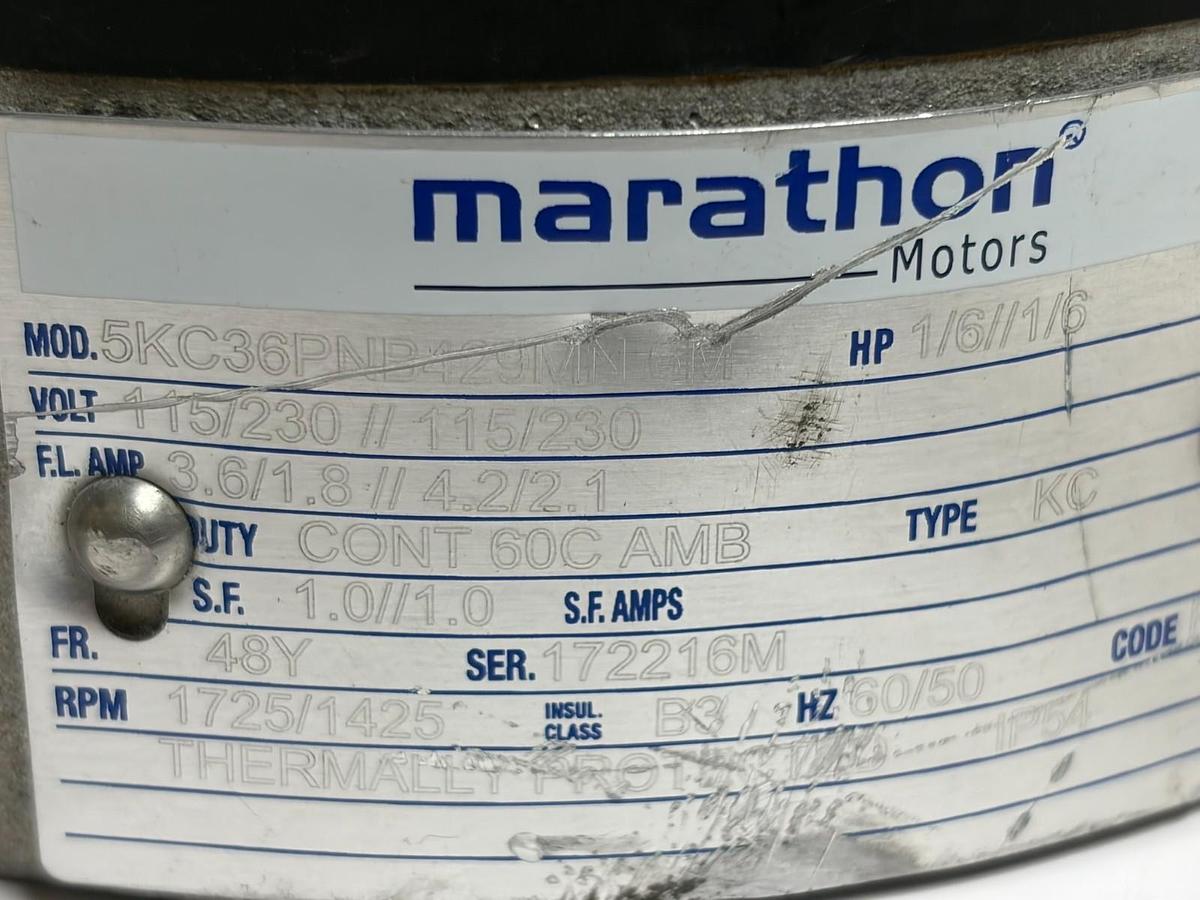

Marathon Electric 5KC36PNB429MN Explosion Proof Motor 1/6 HP 1725 RPM 115/230V 48Y Unused For sale is an un-deployed Marathon Electric industrial AC motor (Model No: 5KC36PNB429MN) [1.21]. This single-phase AC motor is engineered for hazardous environments, featuring a robust explosion-proof structure certified for Class I, Division 1, Groups B, C, and D applications. Built to run continuously, it operates at 1/6 HP and supports dual-voltage inputs (115/230V) across standard 60/50 Hz industrial power lines [1.21]. Specifications: - Brand: Marathon Electric / Regal Rexnord [1.21] - Model Number: 5KC36PNB429MN (SER. WF) - Horsepower (HP): 1/6 HP (0.1667 HP) [1.21] - Phase (PH): 1 Phase (Single Phase) [1.21] - Frame Size (FR): 48Y [1.21] - Voltage Rating (VOLT): 115 / 230 V [1.21] - Frequency (HZ): 60 / 50 Hz - Full Load Amps (FLA): 3.6 / 1.8 A (at 60Hz) & 4.2 / 2.1 A (at 50Hz) - Rotational Speed (RPM): 1725 RPM (at 60Hz) / 1425 RPM (at 50Hz) [1.21] - Enclosure Type (ENCL): EPNV (Explosion Proof Non-Ventilated) [1.21] - Ingress Protection Rating: IP54 - Duty Rating: CONT (Continuous Operation) [1.21] - Code Classification: R - Insulation Class: Class B3 - Service Factor (SF): 1.0 - Power Factor (PF): 53.5 - Hazardous Location Approvals: UL Listed (E12044), CSA Certified (LR47504) - Division/Zone Safety Ratings: Class I, Division 1, Groups B, C, D | Class I, Zone 1, Group IIB + H2 - Temperature Code: T3C - Lubrication: Permanently Lubricated Ball Bearings - Component Label Marker: Air Dimensions Incorporated sticker attached Condition Note: This item is in unused, open-box condition (New Old Stock Surplus). It was built up as a ready-to-deploy facility backup spare but was never wired up, bolted to equipment, or put into active field service. The motor body, mounting brackets, and drive shaft are structurally sound. Due to long-term open warehouse storage, it exhibits standard cosmetic shelf wear, light surface dust, and minor superficial rust staining on the bare metal drive shaft as shown in the pictures. The original packaging is not included; the item comes exactly as pictured with its full-length, factory-stripped wire leads intact. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ Shelf A8
