Filtec 28694 Rev. 0 Servo Controller / Motion Control Module RS485 IN/OUT USED

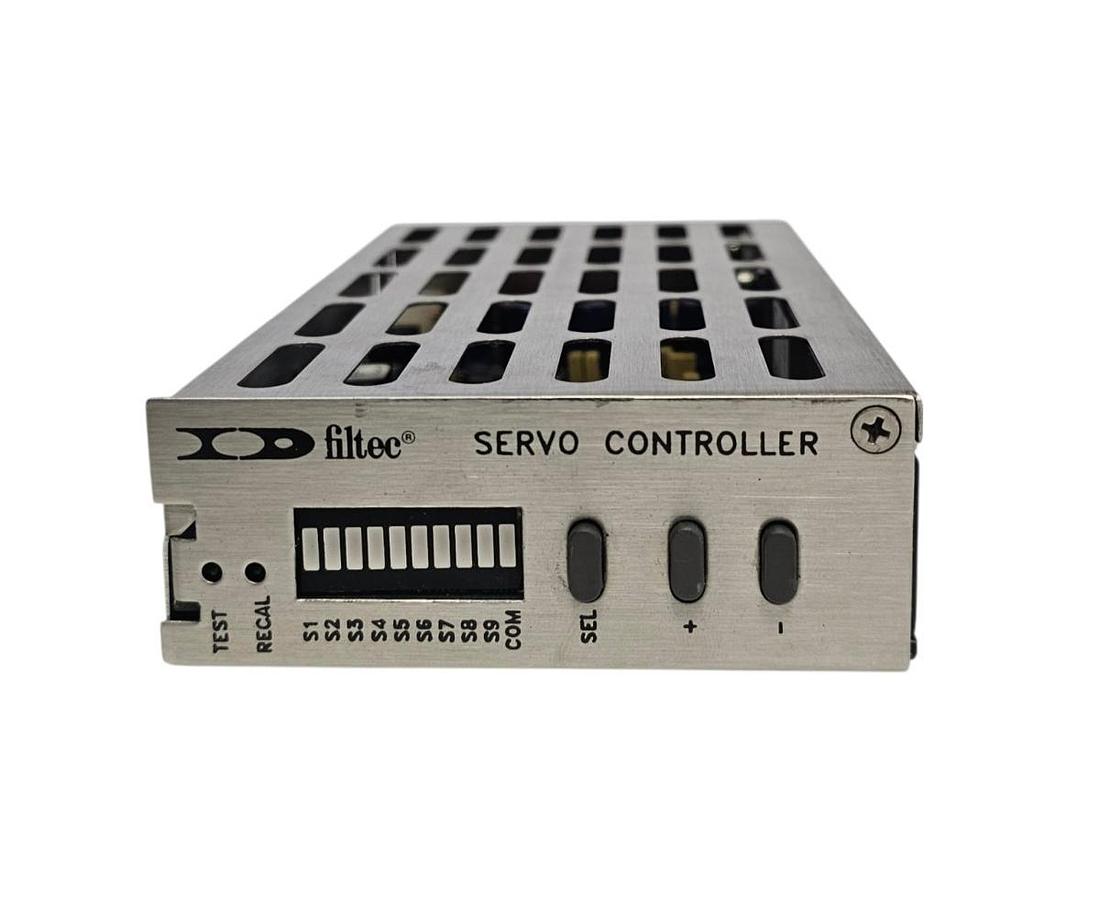

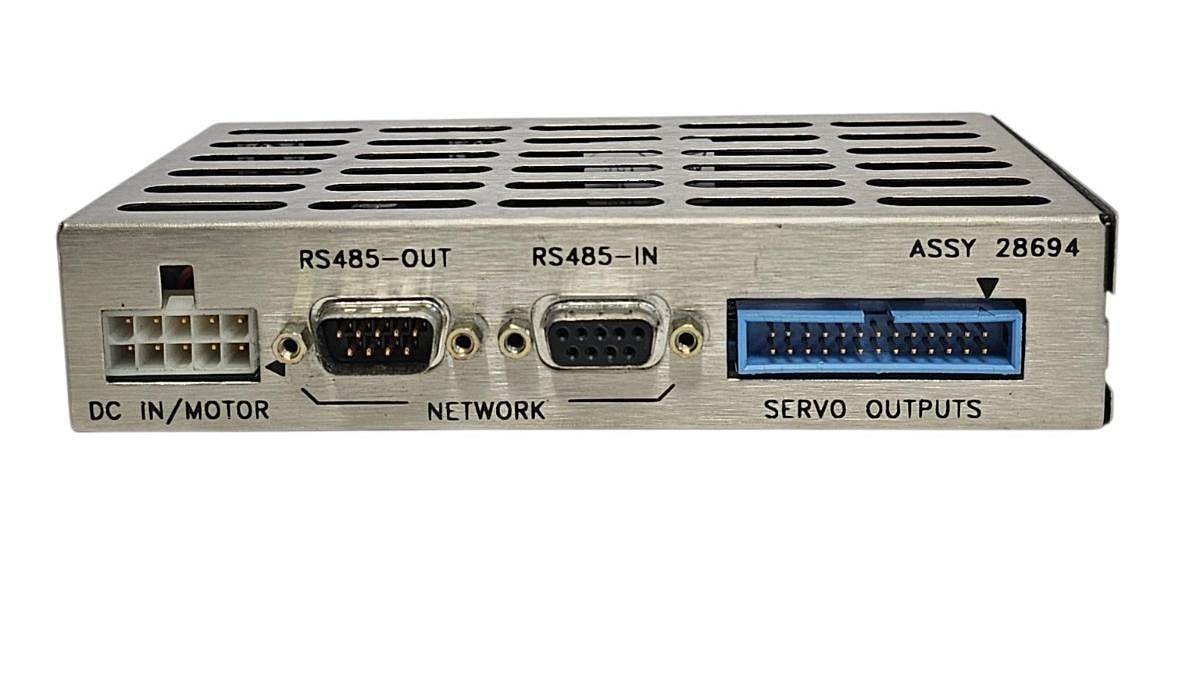

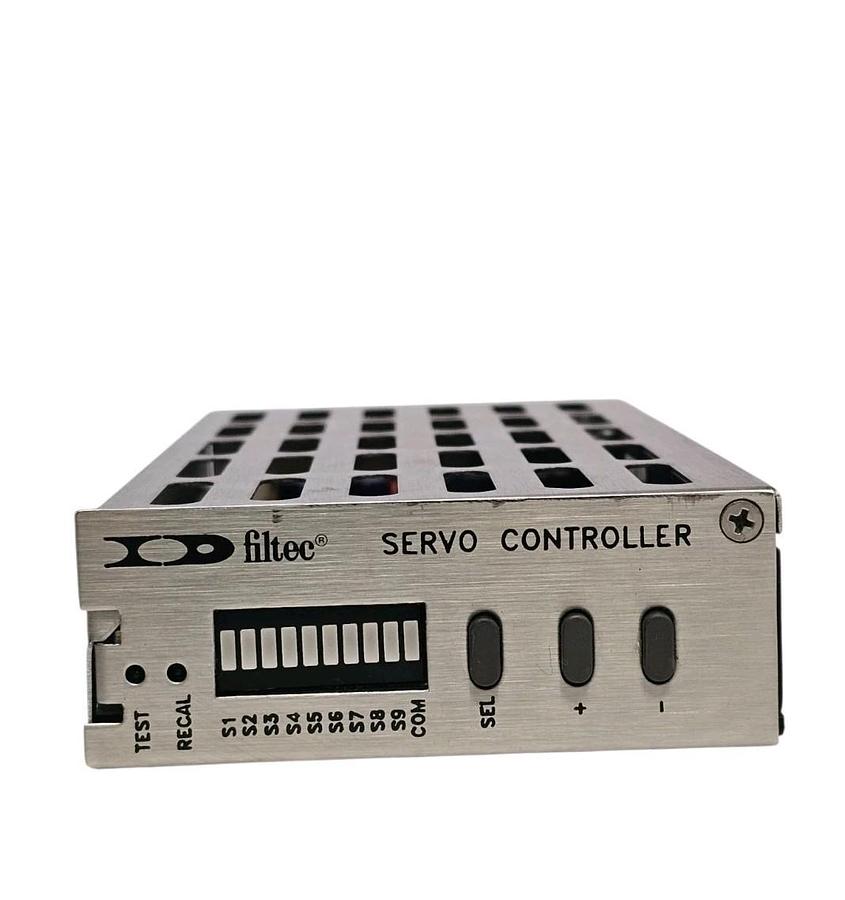

Filtec 28694 Rev. 0 Servo Controller / Motion Control Module RS485 IN/OUT USED ______________________________________________________________________ 2112 This module typically operates as a sub-system within larger [FILTEC Fill Level Inspection Systems](https://www.filtec.com/products/full-can/filtec-3-fill-level-inspection/). It receives tracking data from sensor arrays via the serial network and directly drives linear servos. These servos precisely position inspection heads, physical triggers, or automated [FILTEC Slat Rejectors](https://www.filtec.com/products/filtec-rejector-solutions/) to eject under-filled or improperly sealed containers safely from high-speed conveyor lines. Technical Specifications - Manufacturer: FILTEC - Assembly Part Number: ASSY 28694 - Network Interfaces: One RS485-OUT (9-pin male D-sub) and one RS485-IN (9-pin female D-sub) serial connection. - Servo Connections: A 26-pin blue headers interface dedicated to multi-channel servo outputs. - Manual Configuration: A 10-position DIP switch bank (labeled S1 through COM) paired with local selection, increment (+), and decrement (-) navigation buttons
