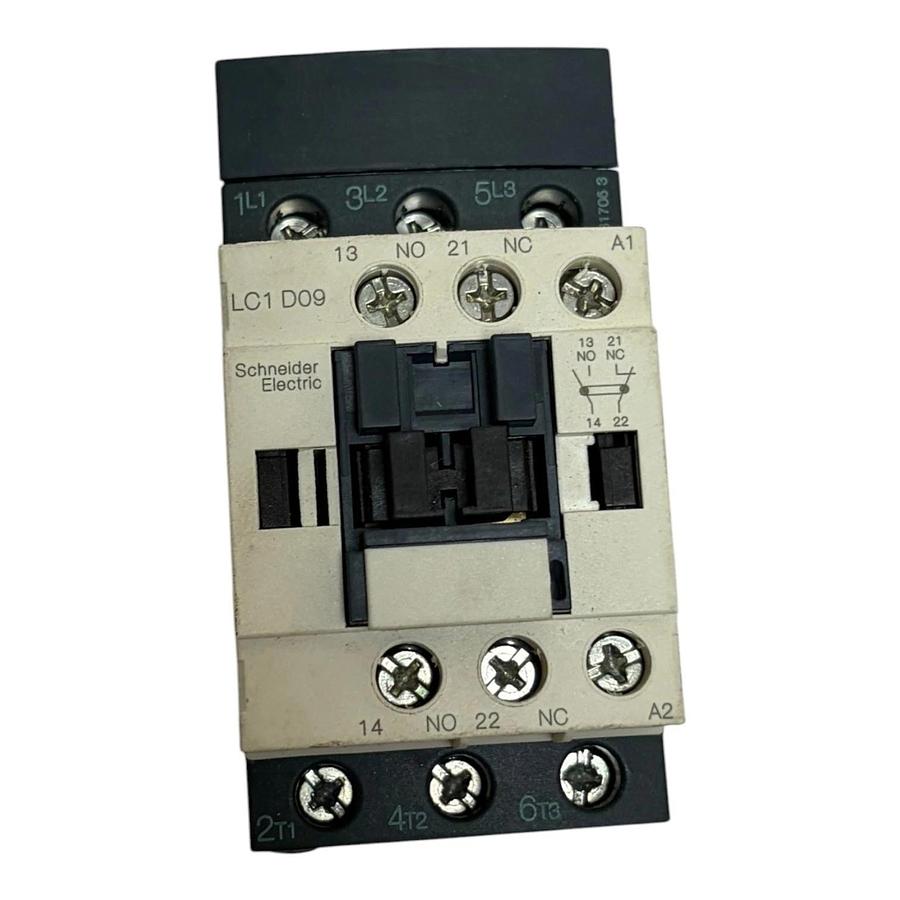

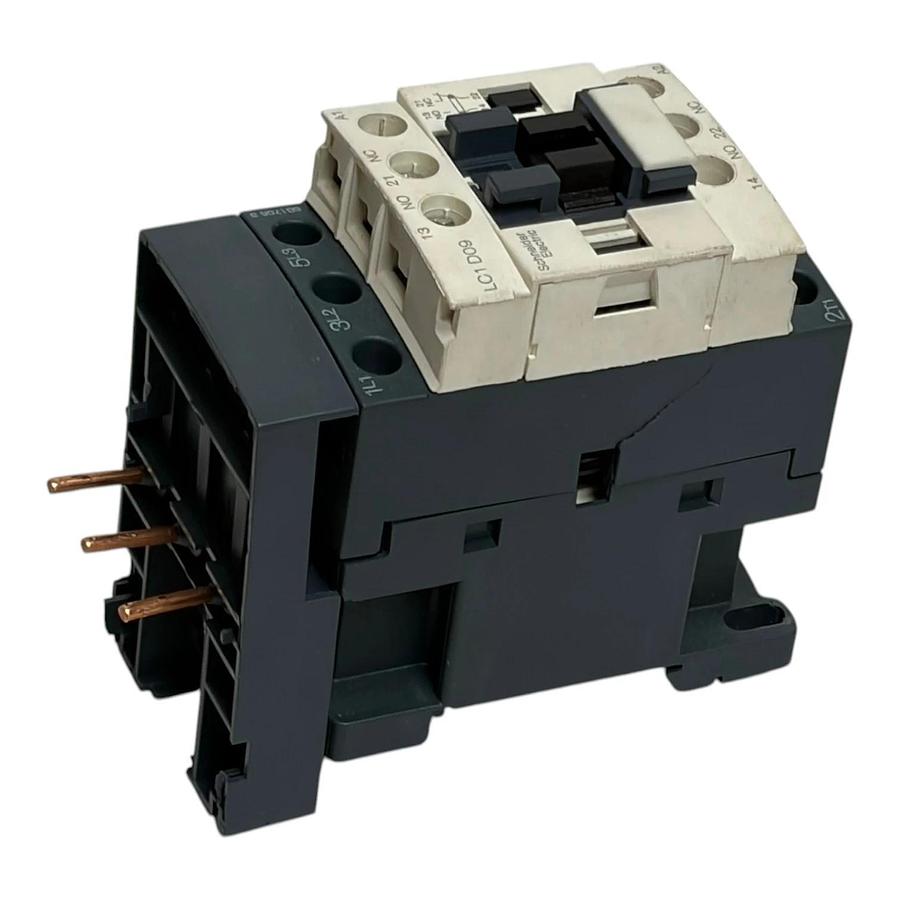

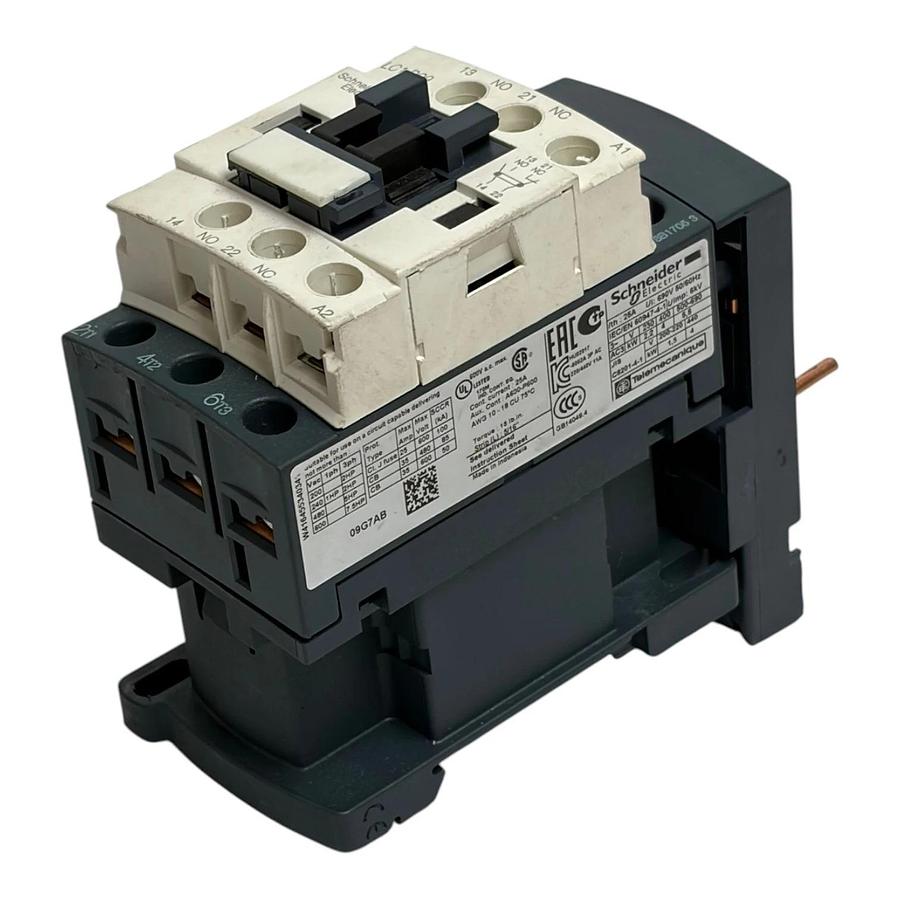

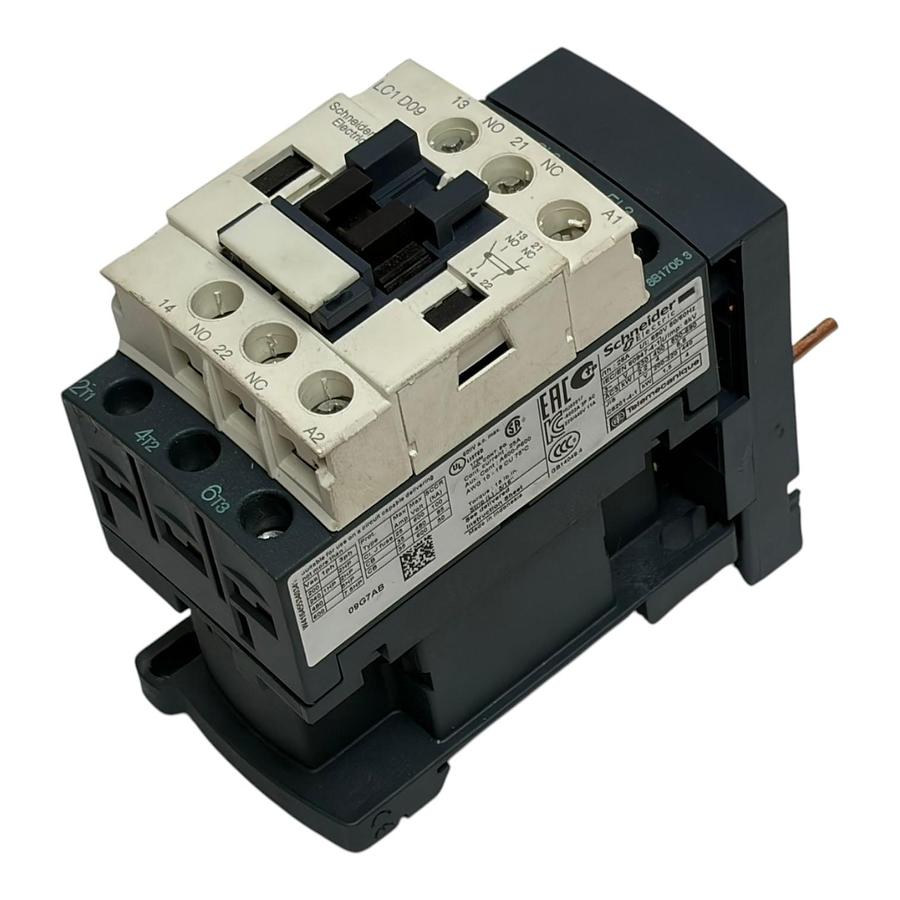

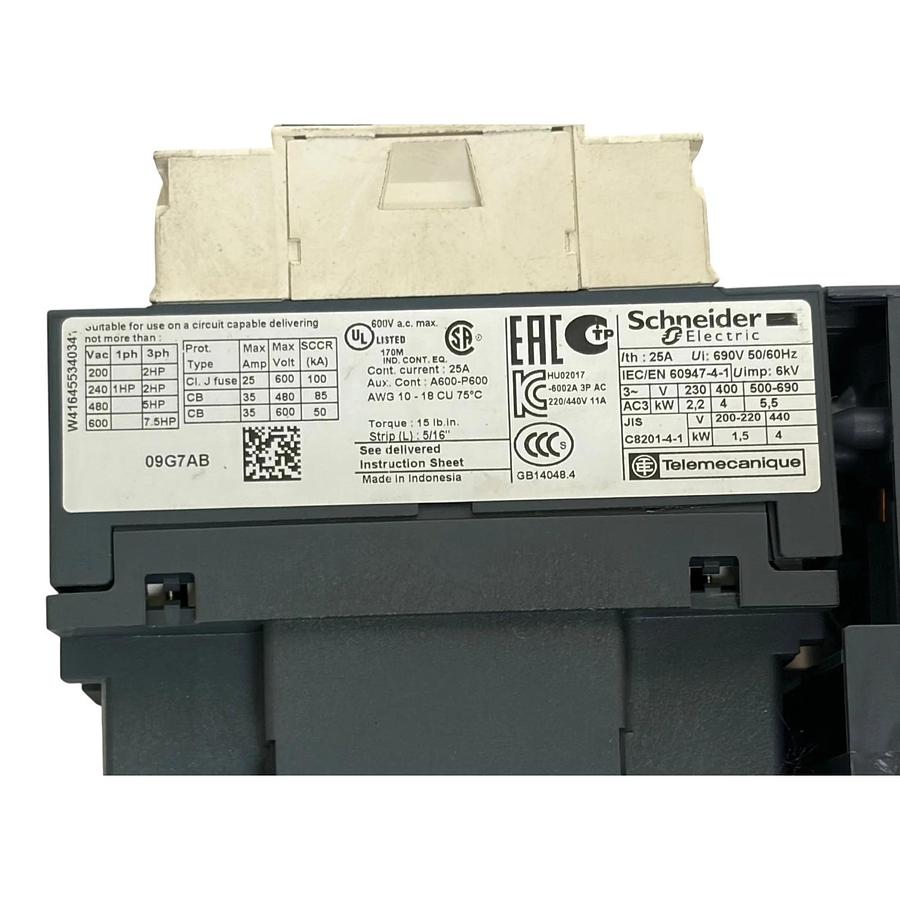

Schneider Electric LC1D09 TeSys 3-Pole Contactor with LAD4BB Adapter Used For sale is a used Schneider Electric (TeSys / Telemecanique) 3-Pole IEC Power Contactor (Model: LC1D09). This unit comes equipped with a pre-installed Schneider Electric LAD4BB cabling adapter block on the line side (L1/L2/L3), which features protruding solid copper pin terminals designed for direct, seamless integration into upstream manual motor starters or circuit breaker bases. The contactor features built-in auxiliary tracking contacts (1 NO / 1 NC). Specifications: Brand: Schneider Electric (TeSys / Telemecanique) Contactor Model / MPN: LC1D09 (LC1 D09) Attached Component: Schneider Electric LAD4BB Line-Side Cabling Adapter (with 3 copper plug pins) Component Type: 3-Pole IEC Power Contactor Assembly Main Contact Poles: 3 Pole (1L1, 3L2, 5L3 to 2T1, 4T2, 6T3) Integrated Auxiliary Contacts: 1 NO (Normally Open, 13-14) & 1 NC (Normally Closed, 21-22) Continuous Current (Ith): 25 Amps Max Operational Voltage (Ui): 690V Max (50/60 Hz) Impulse Withstand Voltage (Uimp): 6 kV 3-Phase Horsepower Ratings: 2 HP @ 200-240V | 5 HP @ 480V | 7.5 HP @ 600V 1-Phase Horsepower Ratings: 1 HP @ 240V Short Circuit Limits (SCCR): Up to 100kA @ 600V Max (protected by 25A Class J Fuses) Wiring Parameters: Use 75°C Copper (CU) Wire Only | AWG 10-18 | Torque: 15 lb-in Side Label Codes: 09G7AB | W416455340341 | 8B1705 3 Compliance Certifications: UL Listed (170M), CSA Certified, CE Approved, EAC, CCC Country of Origin: Made in Indonesia Mounting Profile: 35mm DIN Rail snap mount or surface panel chassis screw attachment Condition Note: This contactor assembly is in good, clean used condition. It was carefully decommissioned and removed as a functional system pull from a working industrial machinery control enclosure panel. The composite frame housing, terminal screw blocks, internal bus tracks, and the protruding solid copper pins of the LAD4BB block are physically sound and structurally intact with no signs of overheating. Faint cosmetic surface marks, minor scuffs, and very light warehouse dust are present from handling as shown in the images. CONDITION: USPI - Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ 2148
