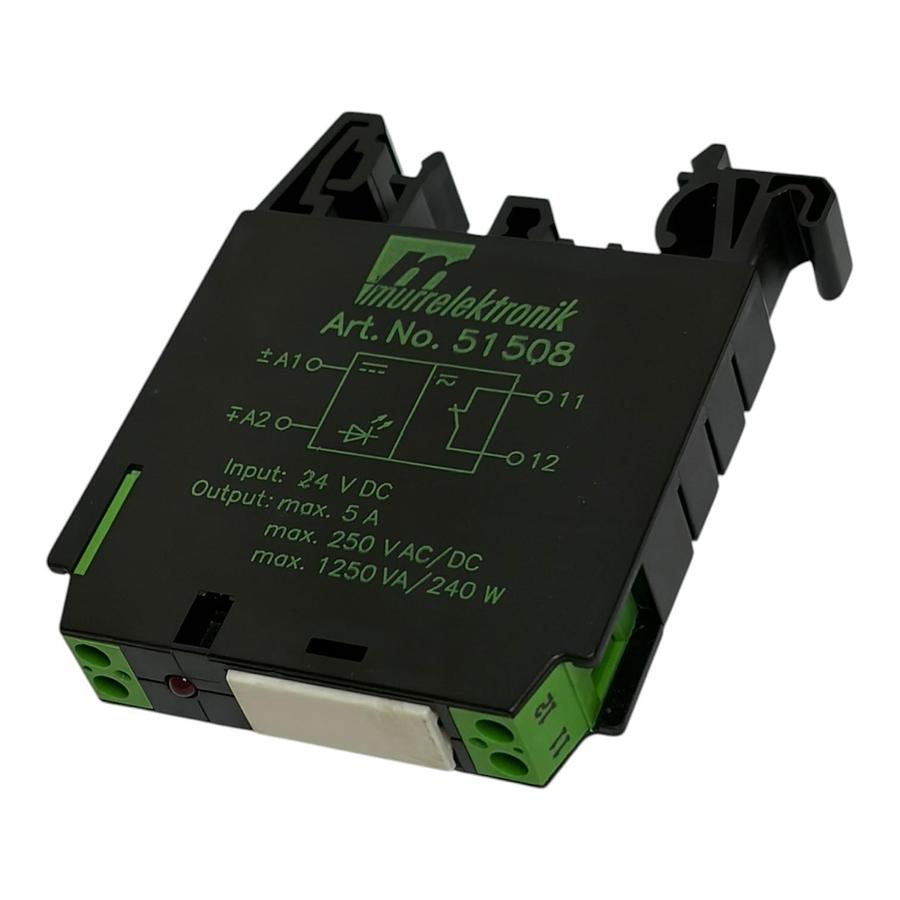

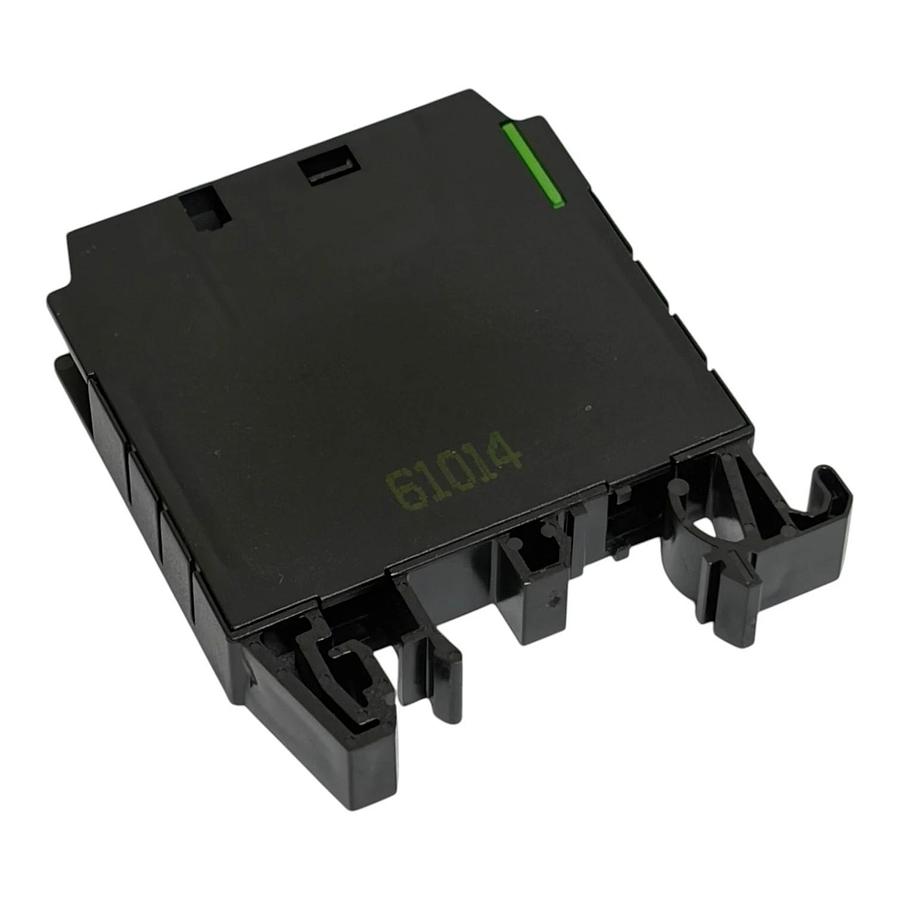

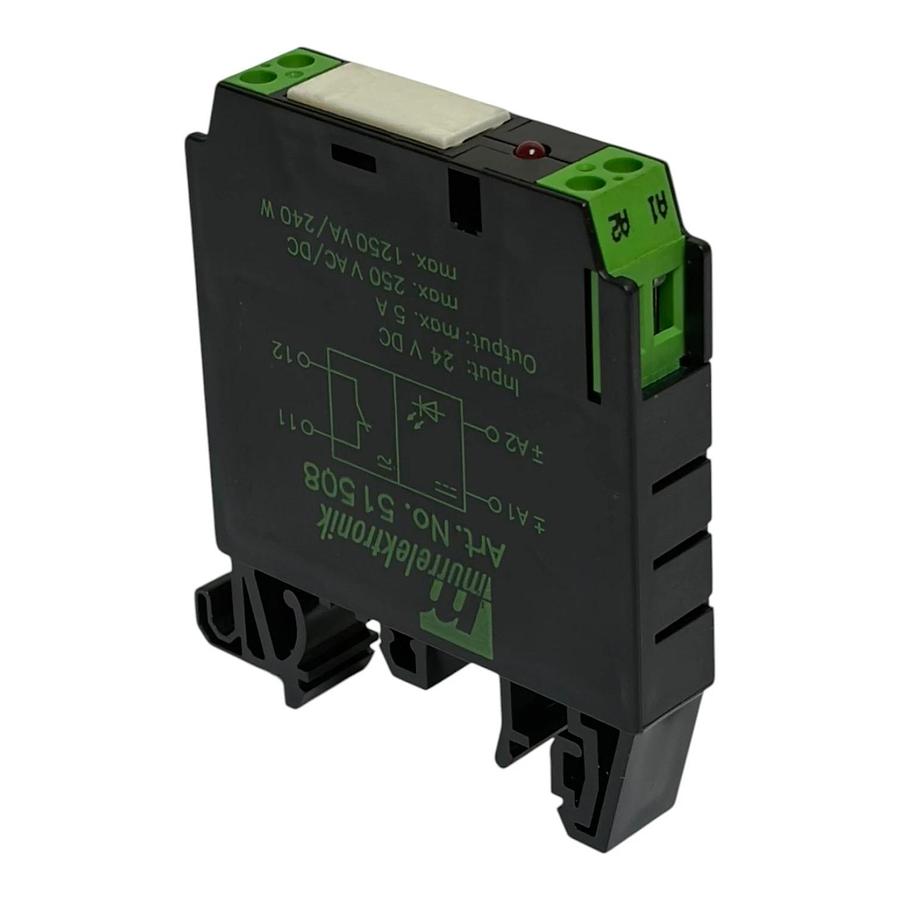

Murrelektronik 51508 RMMR 11/24 VAC/DC Slim Interface Output Relay Module

Murrelektronik 51508 RMMR 11/24 VAC/DC Slim Interface Output Relay Module Brand: Murrelektronik Series: Control Cabinet Relay Modules Model / Art. No.: 51508 Type Designation: RMMR 11/24 VAC/DC Output Relay Input / Coil Voltage: 24 VDC / VAC (Range 19.2 to 30 V) Input Current Draw: 15 mA Output Switching Current: 5 Amps Maximum Output Switching Voltage: 250 VAC / VDC Maximum Maximum Load Power Capacity: 1250 VA AC / 240 W DC Contact Configuration: 1 NC (Normally Closed / 1 Breaker Contact) Contact Material Set: Silver Nickel (AgNi) Mounting Profile Format: 35mm DIN Rail Mount TH35 or G32 Rails Connection Style: 12 mm Compact Screw-Type Terminal Blocks Diagnostic Indicators: Integrated Red Status LED Window Condition: New Other (See Details) For sale is a brand new industrial surplus Murrelektronik 24V interface output relay block module, catalog article number 51508. This ultra-slim 12mm panel component functions as a critical galvanic isolation link between sensitive low-voltage PLC logic networks and high-load field devices. Running on a universal 24V AC/DC input loop, it triggers a robust 1 NC (Normally Closed) circuit breaker path capable of driving electrical equipment thresholds up to 5A at 250V. The rugged black composite outer chassis features a screen-printed wiring schematic mapping diagram, a built-in red status diagnostic LED, finger-safe green screw terminal wiring tracks, and a heavy-duty snap-on lower foot clip designed to slot directly into standard 35mm TH35 or G32 DIN rail layouts. Ideal for custom motor control centers, factory material handling setups, CNC machinery nodes, and automated packaging infrastructures. New Surplus / Out of Box. This interface relay module is completely brand new and unused, safely preserved long-term within a climate-controlled corporate maintenance stockroom as an uninstalled backup spare. It has never been snapped onto a DIN rail frame, wired to an input bus, or put into active automation enclosure tracking loops. The outer black structural plastic block casing, green screw terminal ports, front identification insert strip, and upper DIN rail mounting foot clip are in absolute pristine, factory-fresh physical condition with zero wire torque scoring, tool marks, or installation scratches. All internal mechanical switching contacts are immaculate. The factory tracking graphics, schematic lines, and nameplate text values remain entirely bold, crisp, and legible on the side profiles. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2172
