Meltric DSN30 30A 250V 3-Phase Switch-Rated Metal Inlet Plug 63-38073

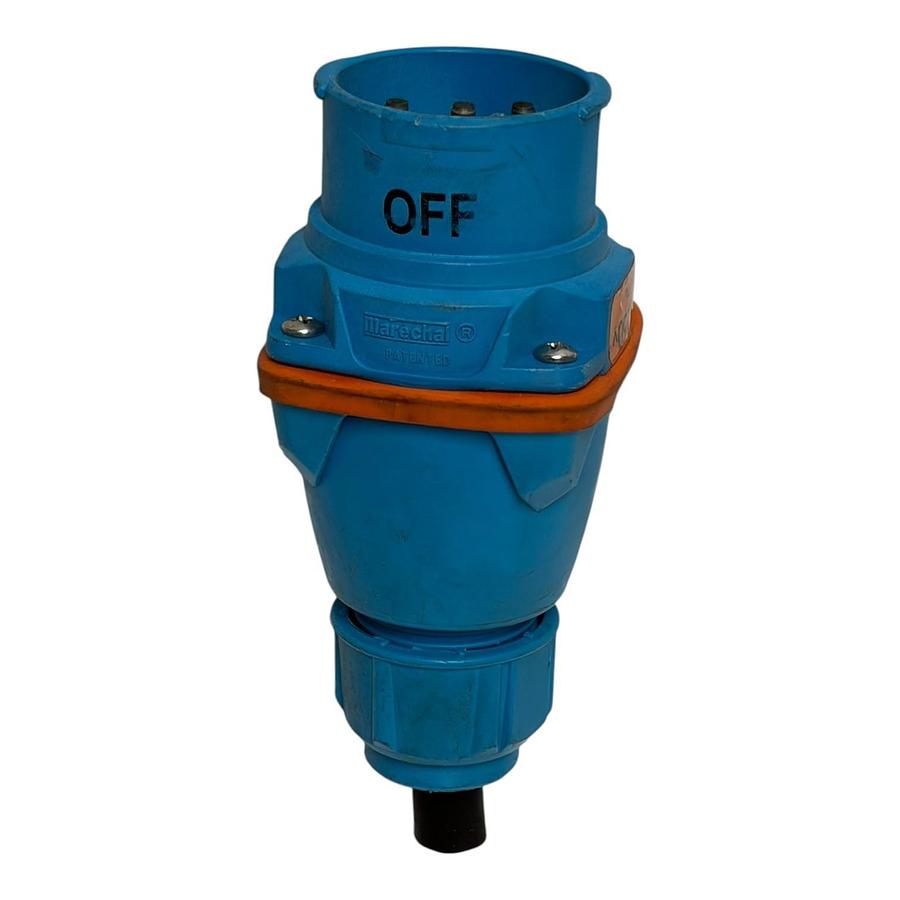

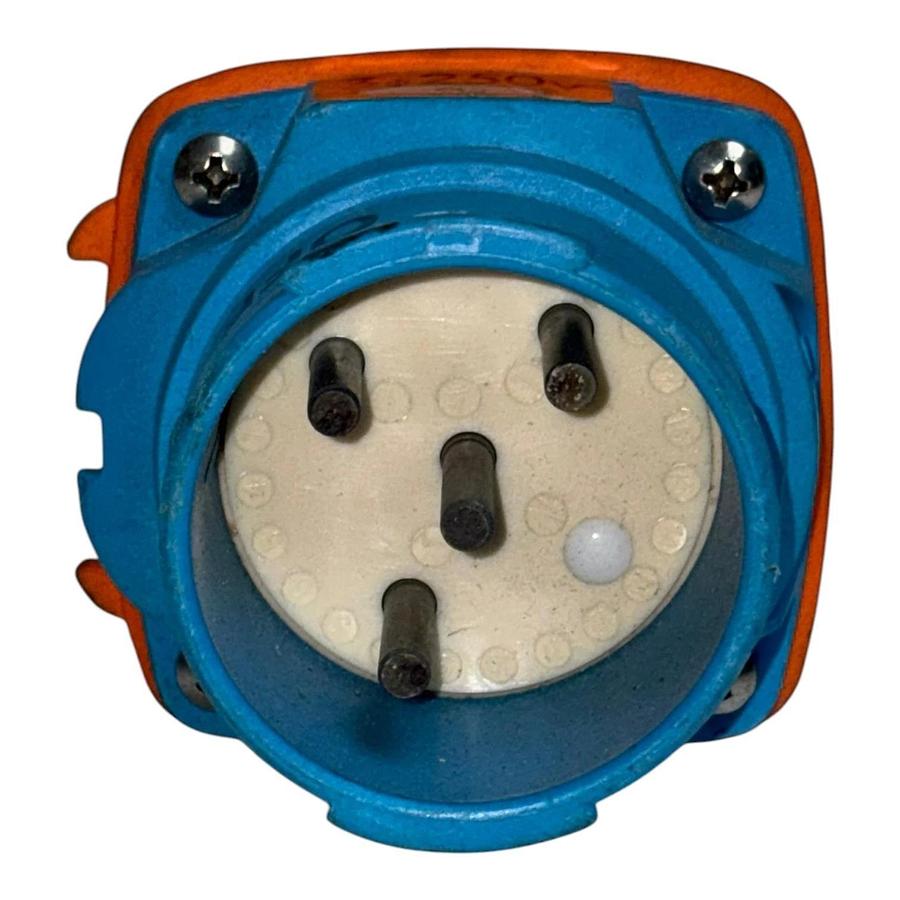

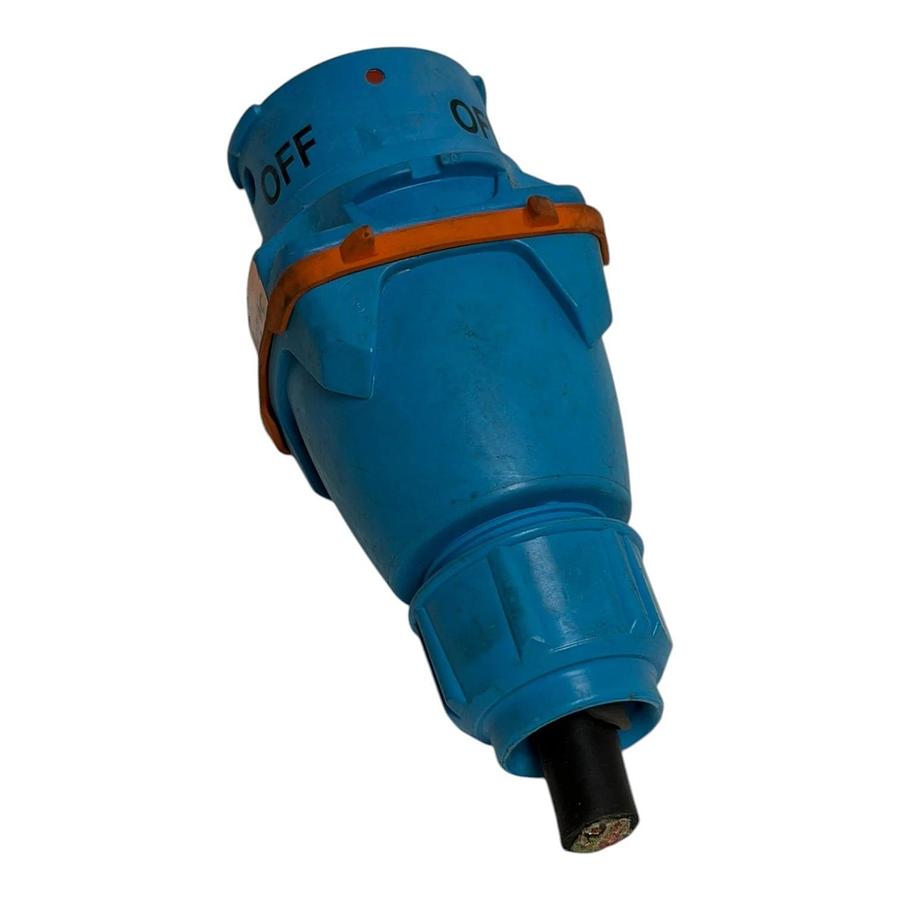

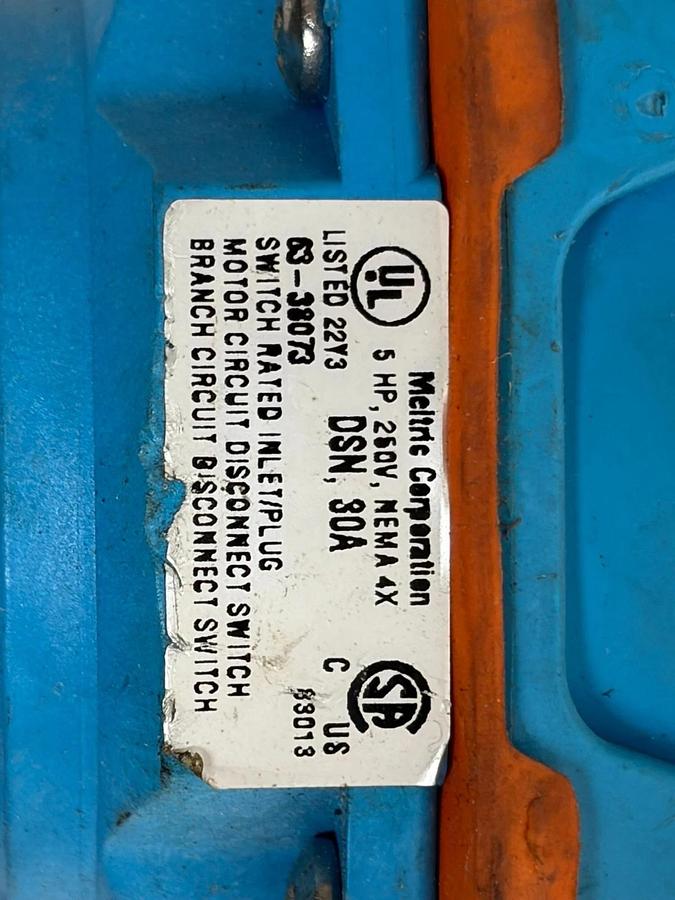

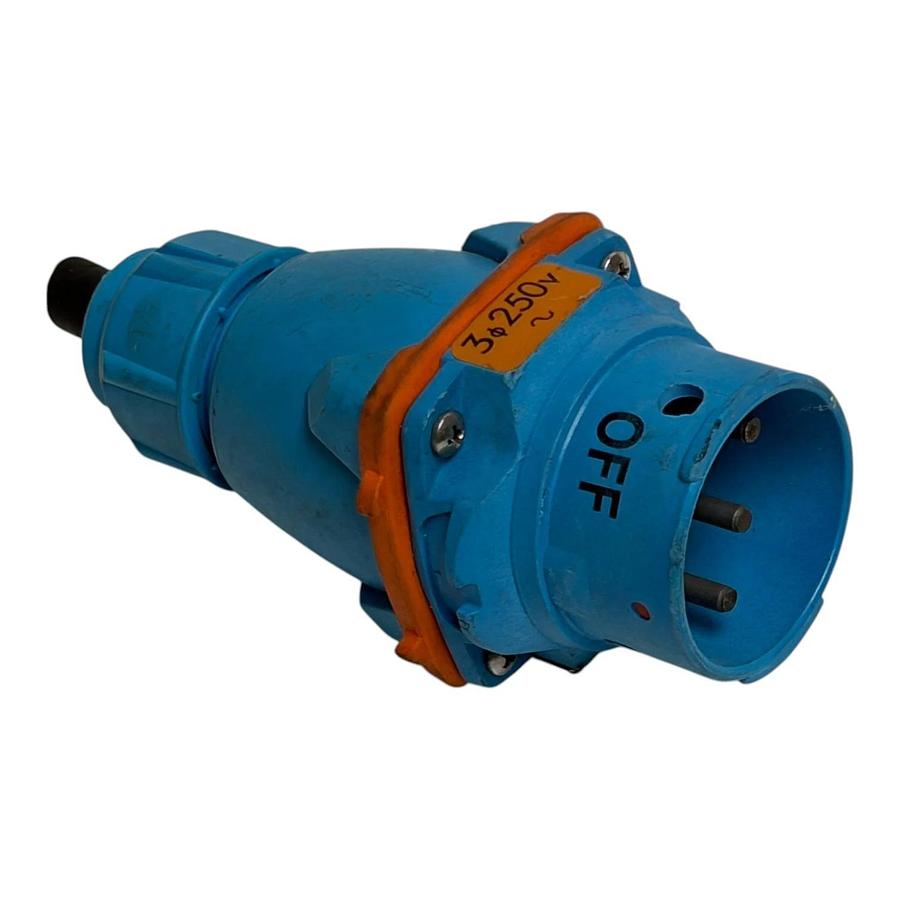

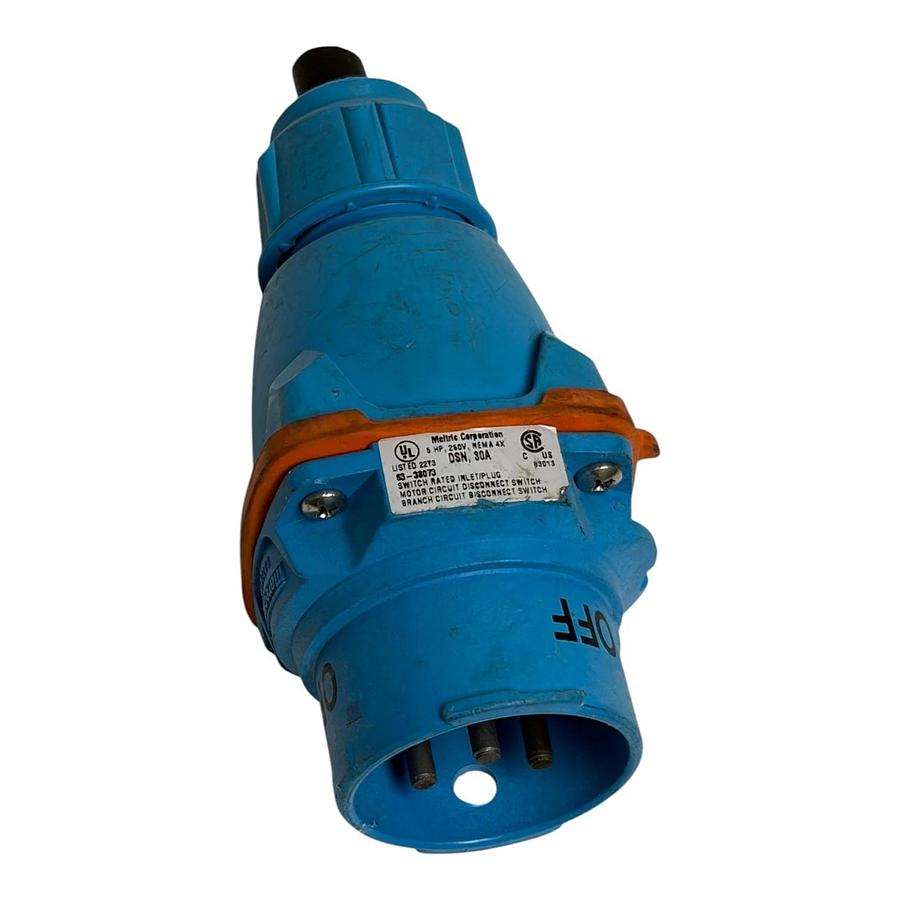

Meltric DSN30 30A 250V 3-Phase Switch-Rated Metal Inlet Plug 63-38073 Up for sale is a genuine, high-performance Meltric Corporation industrial power connection component: a DSN30 Decontactor Series switch-rated inlet plug, catalog part number 63-38073 . Precision-engineered in the United States under Marechal patented technology, this heavy-duty mechanical plug combines the functions of an electrical plug and a safety disconnect switch, enabling technicians to safely connect and disconnect motorized factory equipment under full load conditions. The unit features an ultra-rugged, impact-resistant blue poly housing with an integrated orange gasket flange ring providing a NEMA 4X weather-proof rating. The internal configuration is wired as a 4-pin contact layout rated for 3-Phase 250V AC networks , operating up to a 5 HP load threshold. The assembly comes pre-fitted with a threaded compression liquid-tight cable gland handle base clamping down on a section of heavy-duty multi-conductor industrial power cord. Product Details Manufacturer: Meltric Corporation (Marechal Patented Design) Product Line: DSN30 Decontactor Series Model / Catalog Number: 63-38073 (6338073) Component Category: Switch-Rated Inlet Plug / Motor Circuit Disconnect Switch Electrical Safety Ratings: 30 Amp Continuous (30A) / 250V AC / 3-Phase (3Ï 250V~) Motor Horsepower Rating: 5 HP Max @ 250V Environmental Ingress Rating: NEMA Type 4X / IP66 & IP67 Watertight and Dust-tight Contact Configuration: 4 Solid male contact pins (3 Poles + Ground layout) Chassis Markings: Engraved "ON" and "OFF" directional orientation paths along the locking collar barrel Auxiliary Labels: Stamped orange handwritten identification sticker reading "3Ï 250v ~" Regulatory Compliance: UL Listed (Issue 22Y3 / Standard 2682 Switch-Rated), CSA Certified (File 93013) Item Condition Used. This industrial power connector plug is an authentic maintenance asset in clean, stable field-used condition. It was carefully decommissioned from an operational machinery line during a plant automation upgrade project. The heavy-duty blue polymer casing retains total structural integrity with zero physical cracks, crushed framework gaps, or compromised sealing boundaries. The exterior surfaces show typical cosmetic signs of industrial field serviceâincluding shallow scuffs, surface scratches, minor tool marks on the housing screws, and light shop smudges. The internal solid male contact pins are perfectly straight, unbent, and free of electrical arcing, pitting, or severe oxidation. The trailing section of industrial black power cable has been cut cleanly. CONDITION: USPI - Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ 2154
