Conair Franklin 10747501 Rev E Integral Motor Loader Control Box 115V - Parts

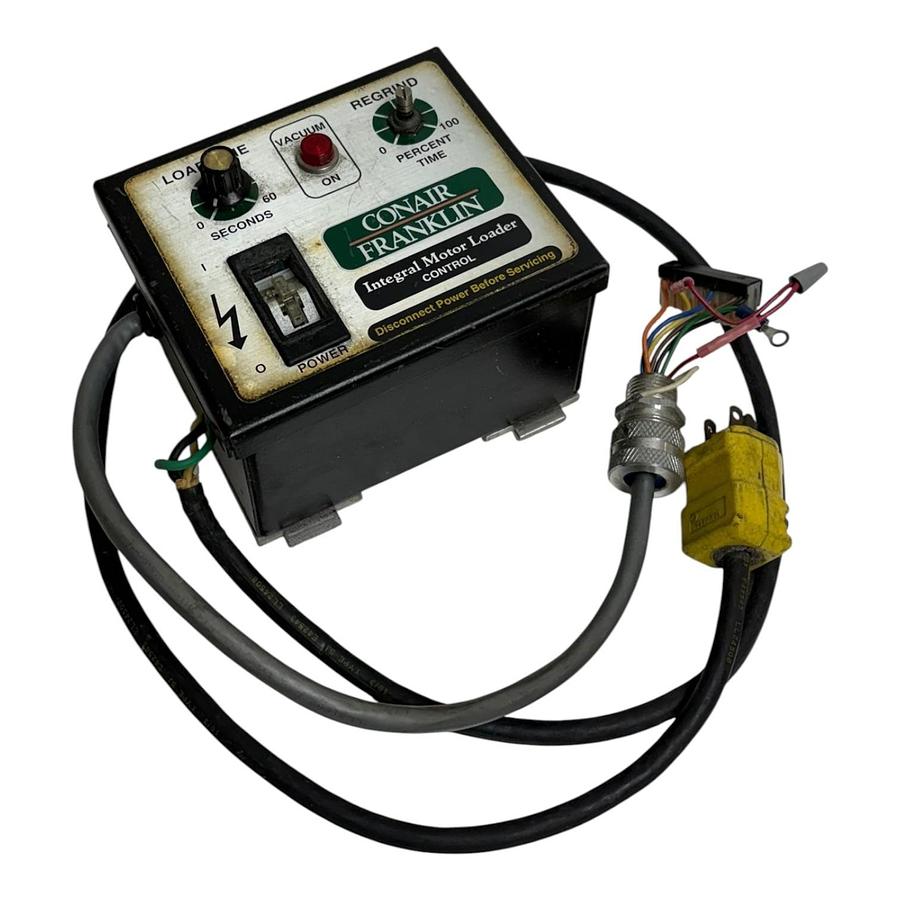

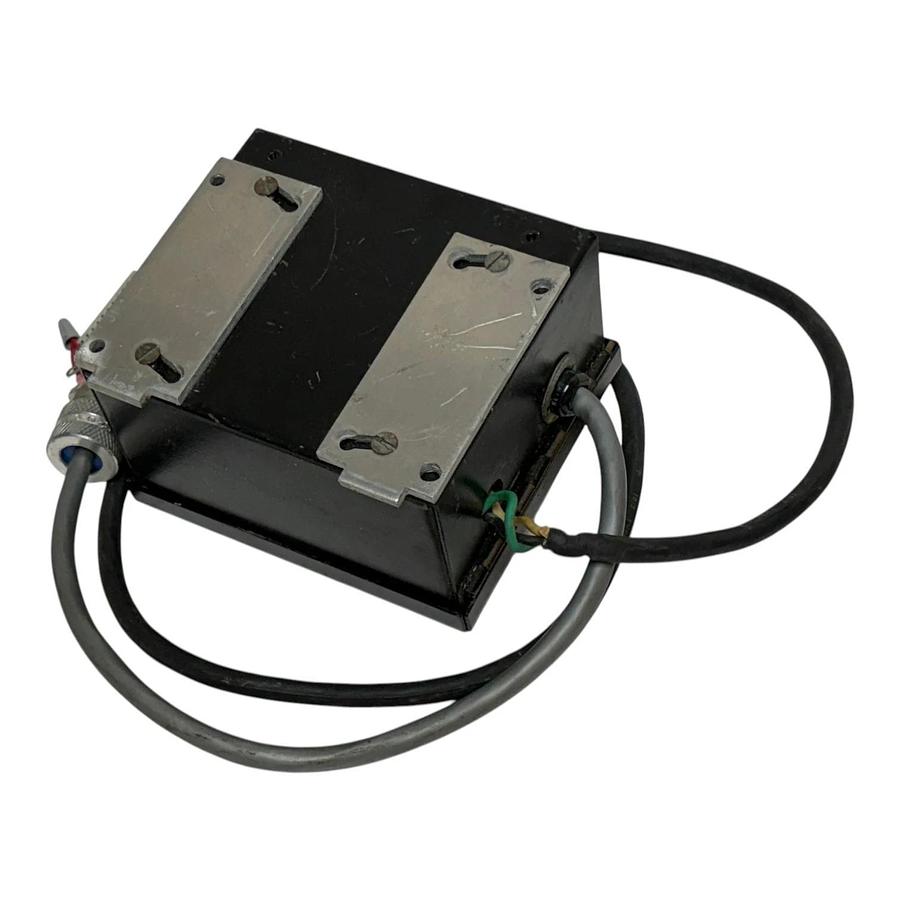

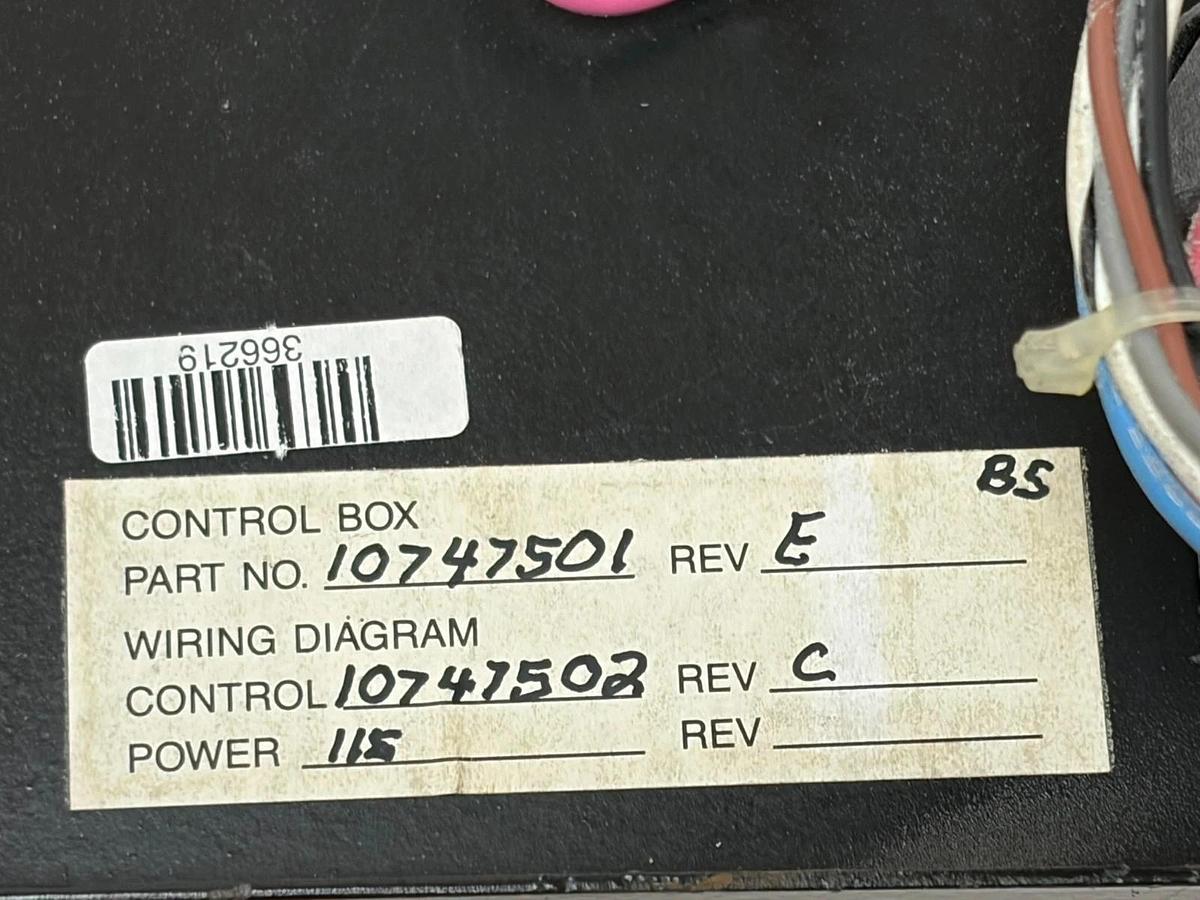

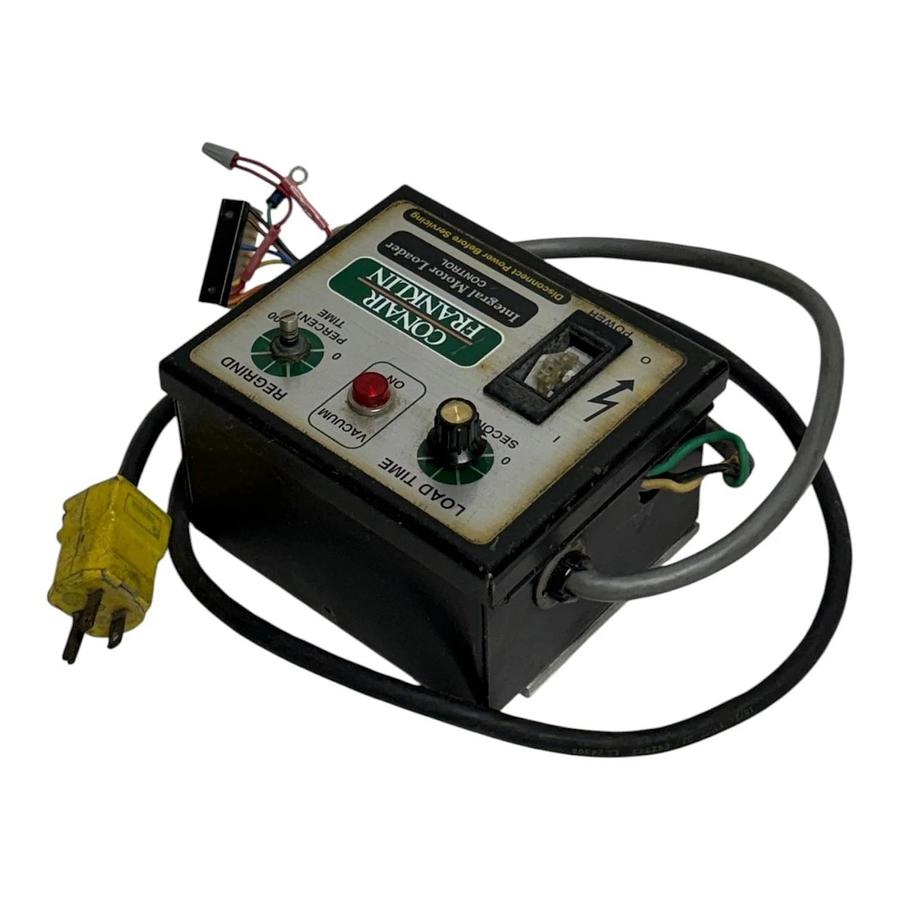

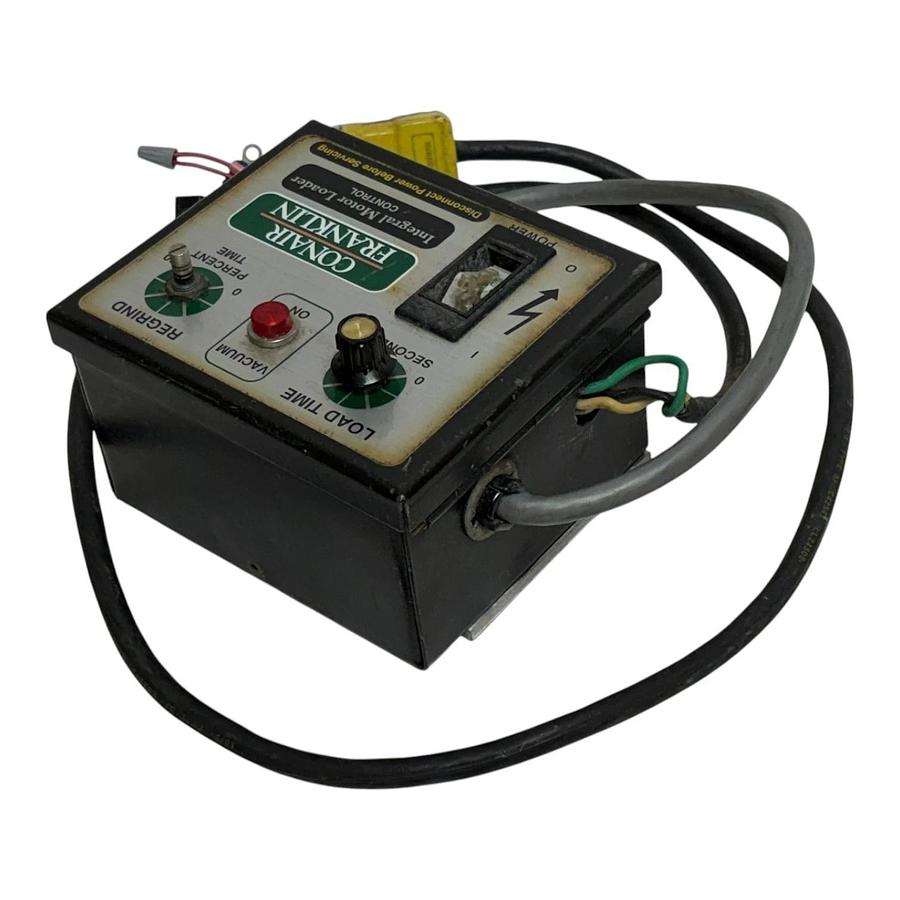

Conair Franklin 10747501 Rev E Integral Motor Loader Control Box 115V - Parts Up for sale is a genuine Conair Franklin industrial plastics automation component: an Integral Motor Loader Control Box, part number 10747501 Rev E . Precision engineered for raw material handling systems, this specialized controller manages vacuum cycles, material loading times, and regrind ratios for commercial plastic injection molding and extrusion machinery lines. The assembly is built inside a rugged, black-painted steel NEMA-style electrical enclosure featuring dual rear-mounted slide brackets for secure wall or machine frame mounting. The front control face features an on/off main power breaker toggle switch, a red VACUUM ON indicator pilot light, an analog LOAD TIME dial (calibrated from 0 to 60 seconds), and a REGRIND tuning potentiometer dial (calibrated from 0 to 100 percent time). Product Details Manufacturer: Conair Franklin / The Conair Group Part Number / MPN: 10747501 (Revision E) Wiring Diagram Code: 10747502 (Revision C) Power Supply Specification: 115V AC Phase 1 Operational Core (Power 115 Rev Stamped) Internal Barcode Tracking: 366219 / BS Mark Component Category: Plastic Processing Motor Loader / Vacuum Conveying Controller Front Panel Controls: 1x 0â60 Seconds Load Time Dial, 1x 0â100% Regrind Time Dial, 1x Main Power Switch, 1x Red Pilot Light Pre-Fitted Cabling Assemblies: Includes 1x heavy-duty black power input cable with a yellow 3-prong 115V male plug, and 1x multi-conductor gray communication cable terminating in a threaded metallic circular quick-disconnect connector hub Core Application Target: Plastics manufacturing automation, pellet vacuum loader networks, material blending hoppers, and factory equipment field maintenance Item Condition For parts or not working. This Conair Franklin control enclosure is being sold strictly as-is for parts, technical repair, component harvesting, or custom project rebuilding. The structural steel outer cabinet, mounting brackets, front dials, toggle switch, and multi-conductor cabling paths are physically intact and solid. However, the internal electronic timing control circuit board and power distribution components have been entirely stripped out , leaving the internal basin basin empty as shown in the open-case view. Additionally, the grey communication cable has been cleanly severed directly at the back panel entry point , with its loose grounding wire exposed, and the trailing segment wire harness ends are raw and stripped. The exterior finish exhibits normal cosmetic signs of industrial field service and long-term toolroom storageâincluding surface scuffs, shallow scratches, and paint wear. The factory data tracking labels inside the door remain crisp and fully legible. _________________________________________________________________________________________________________ 2160
