Custom Parallel Die Guide Fixture Compression Tensile Test Stand Base NO CELL

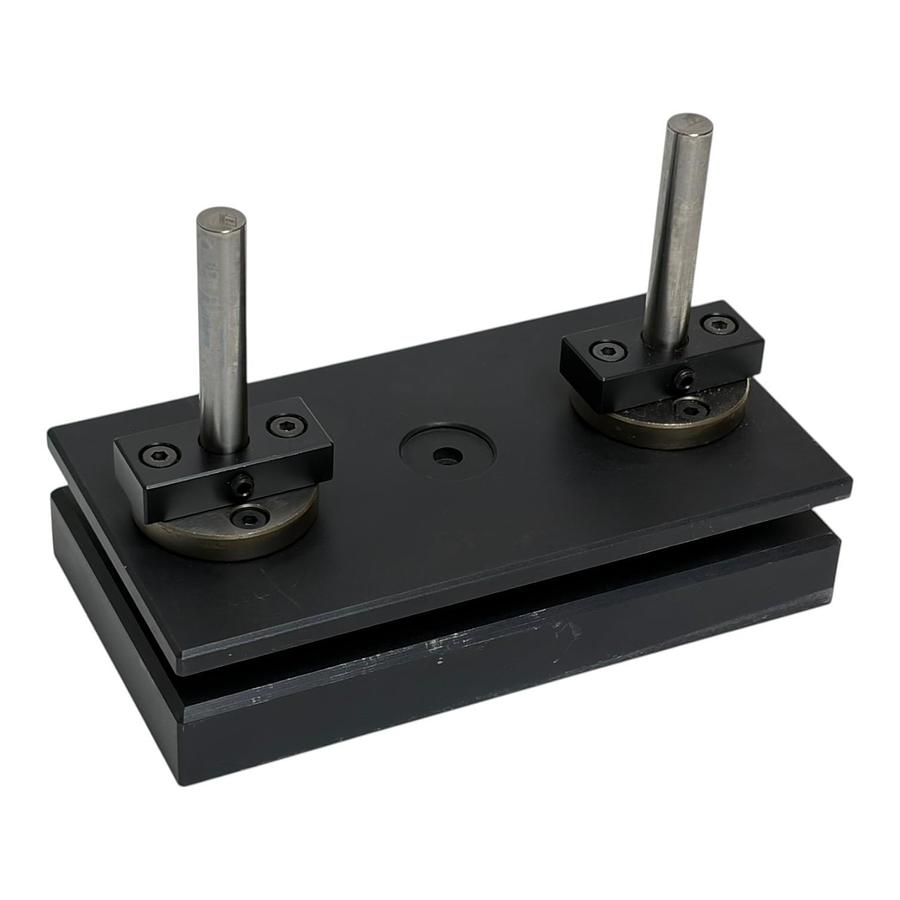

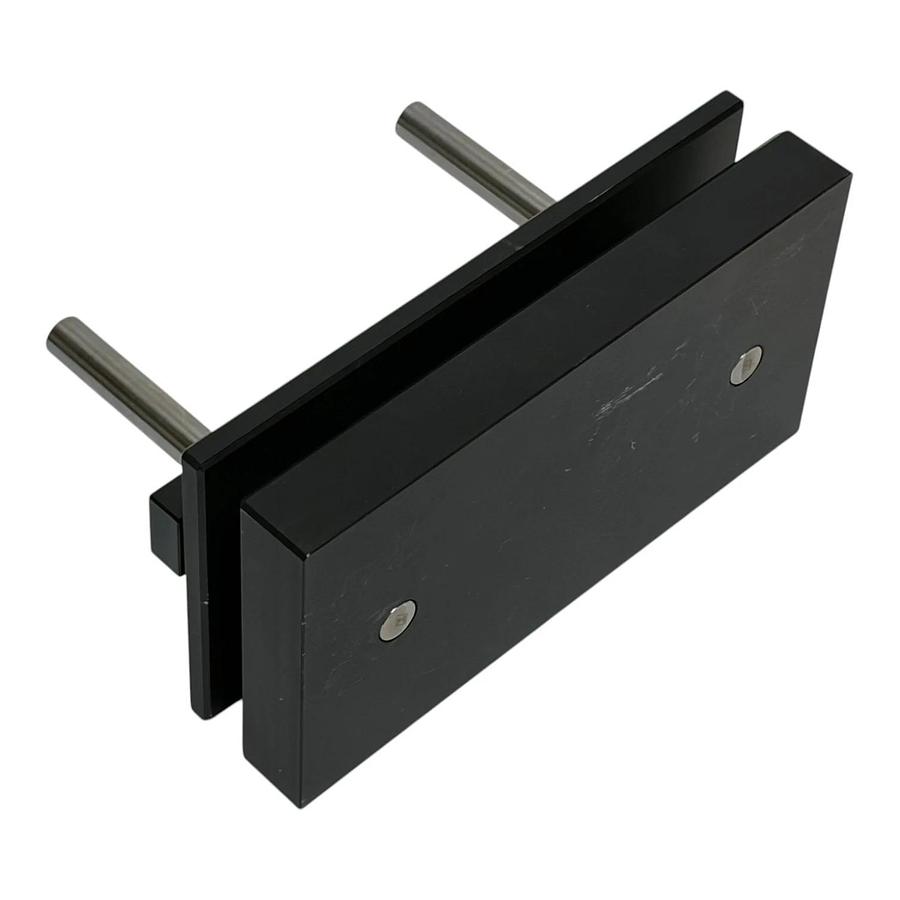

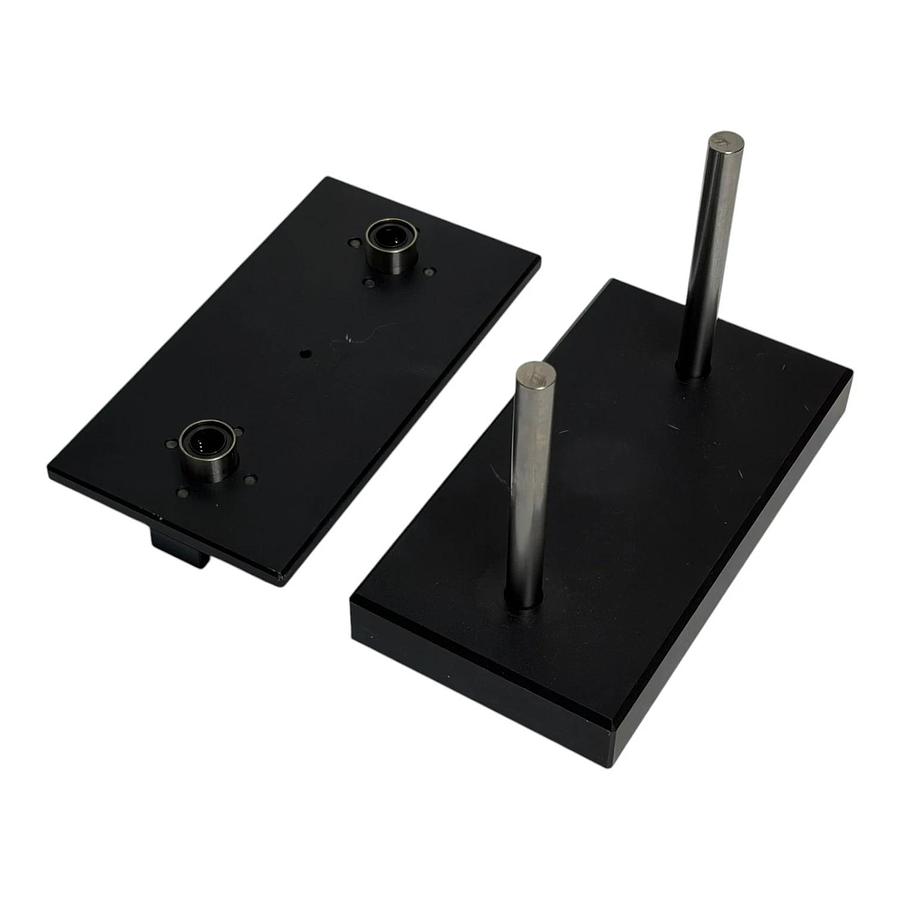

Precision Parallel Die Guide Fixture - For Compression / Tensile Testing (Chassis Only - No Load Cell) Up for sale is a precision-machined parallel guide die test fixture. Sourced from a high-end laboratory R&D cleanroom, this heavy-duty hardware assembly serves as a ultra-stable compression or miniature tensile alignment frame. â ï¸ CRITICAL BUYER NOTE - PLEASE READ CAREFULLY: This listing is for the BARE MECHANICAL CHASSIS ONLY . NO FUTEK LOAD CELL INCLUDED. NO USB Digital Signal Conditioners or electronics are present. This is the bare metal bracket, guide plate, and rod assembly exactly as pictured. Key Design & Hardware Highlights: Perfect Perpendicular Alignment: Designed with an extra-thick lower base block holding two rigid, polished vertical steel guide shafts to ensure zero twisting or off-axis tilting during force application. Smooth Pass-Through Bearings: The top crosshead slide plate features high-tolerance internal sleeve bearings that glide seamlessly up and down the vertical rods without binding. Adjustable Travel Stop Collars: Equipped with dual-bolt clamping collar locks on the reverse side to easily set physical height limits or mechanical travel stops. Central Mounting Points: Features factory countersunk center mounting points to easily thread in your own miniature S-beam load cell or testing pucks. Condition Profile: Surplus Status: Brand new and entirely unused lab inventory. It was never put into active testing production runs. Physical State: Clean, solid mechanical condition. The plates slide smoothly down the rods. The anodized black finish shows minor superficial scuffs and surface faint handling trails from unboxed warehouse shelf storage as pictured. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2144
