Industrial Power Supply Main Circuit Board Control Assembly 242029 244290

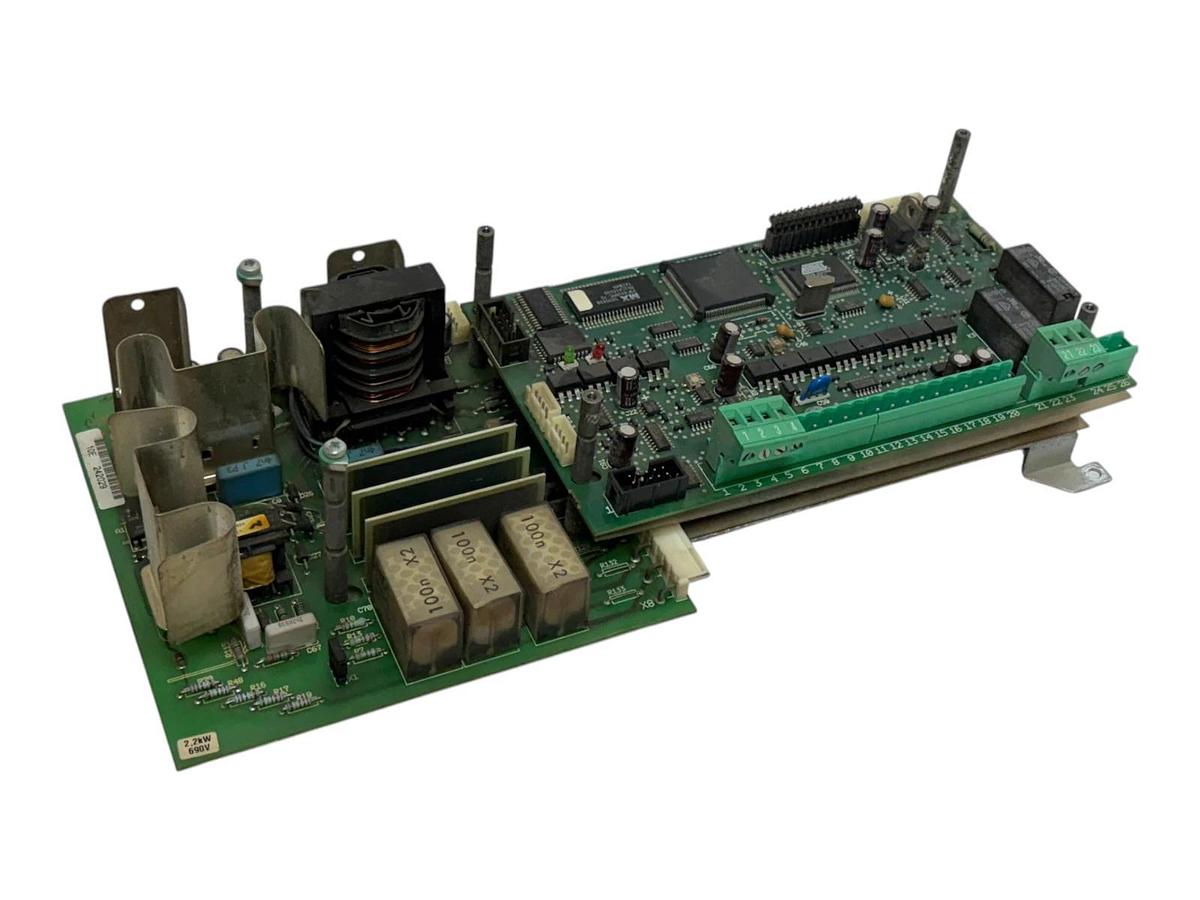

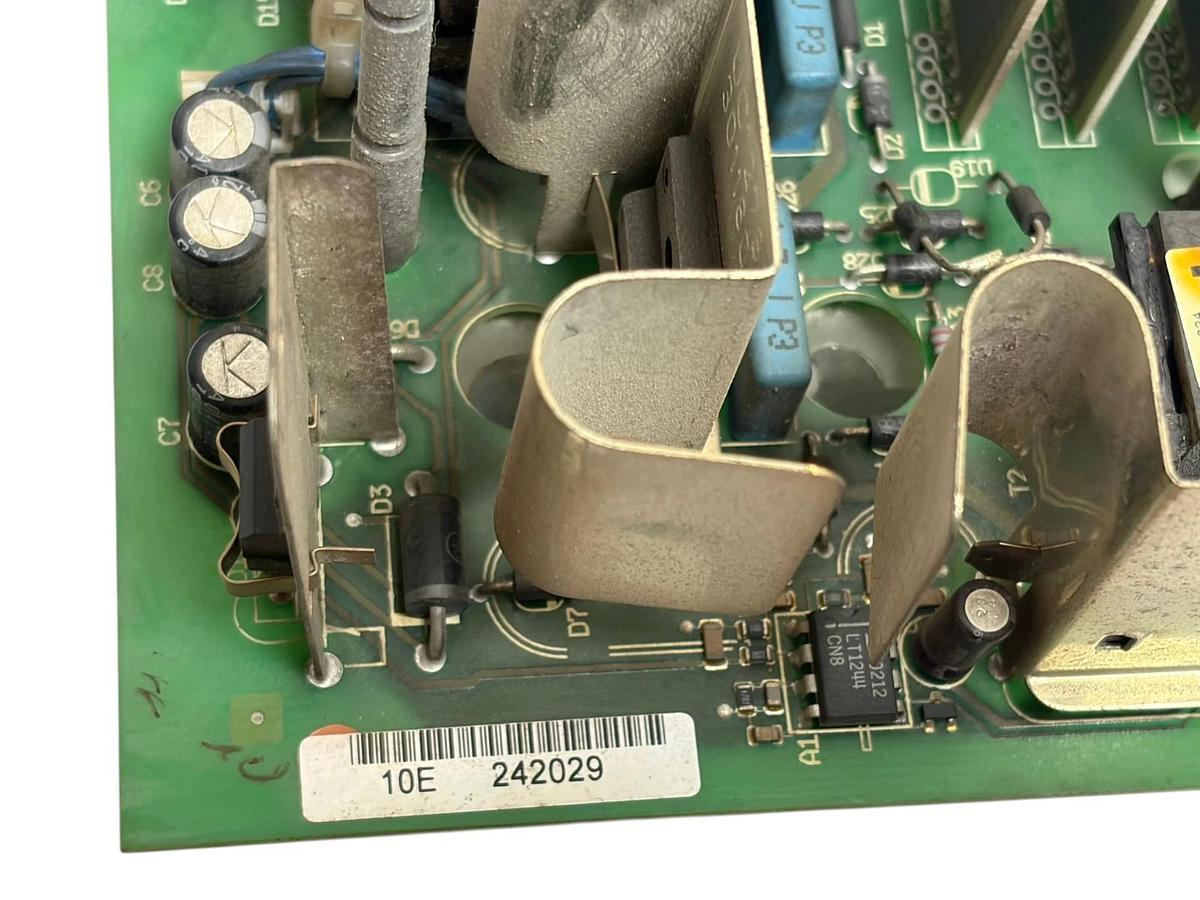

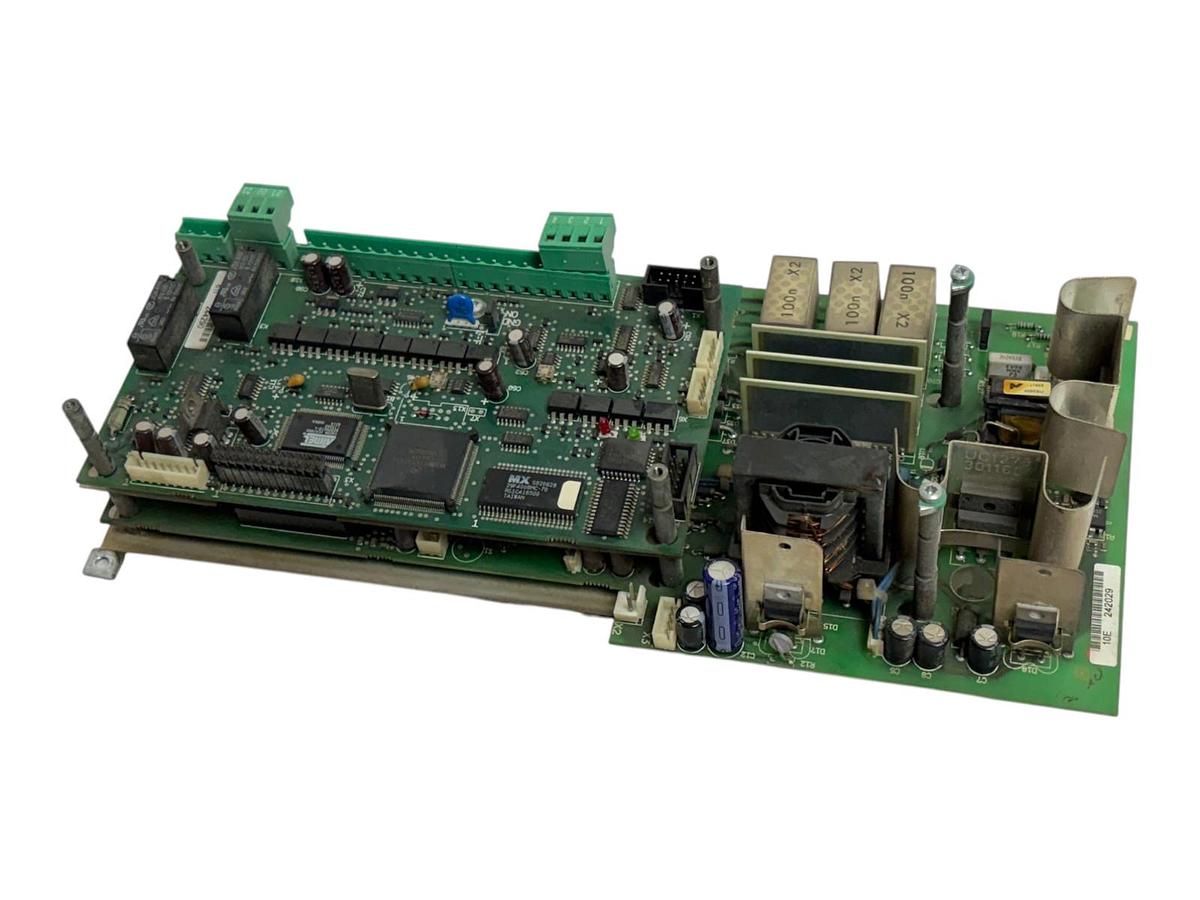

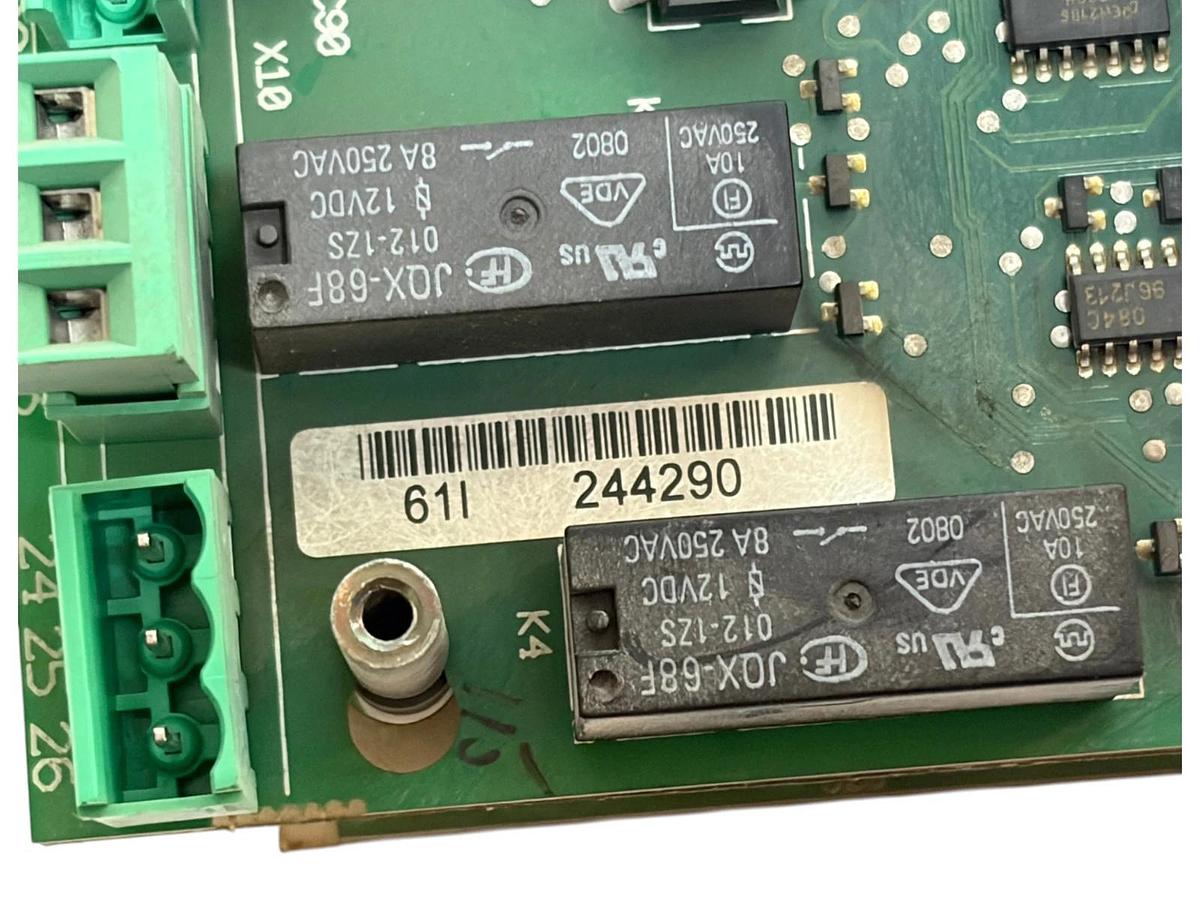

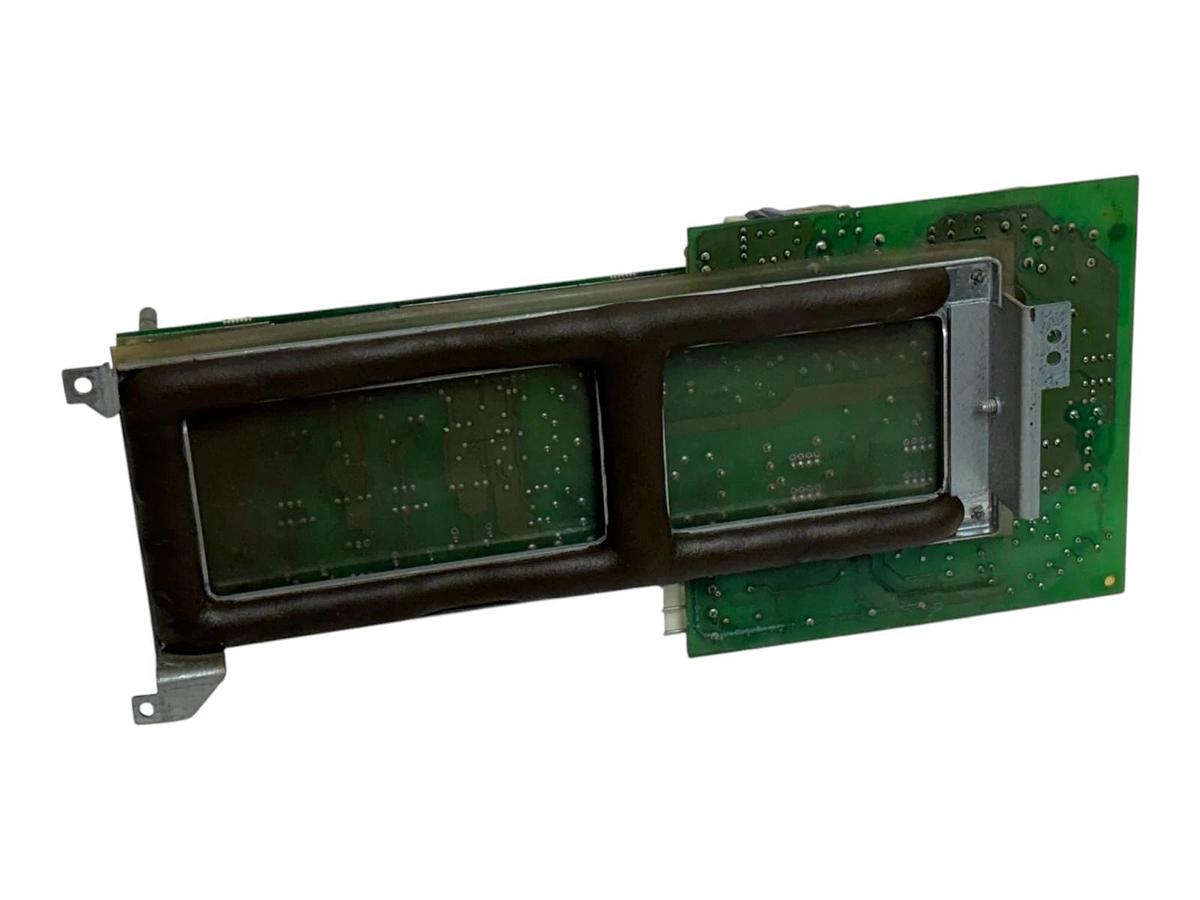

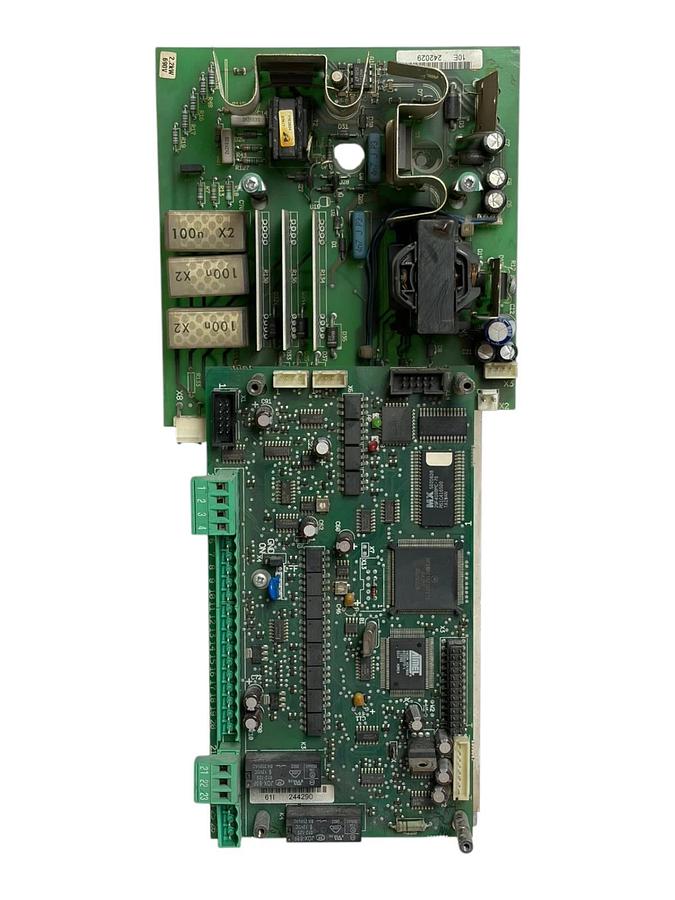

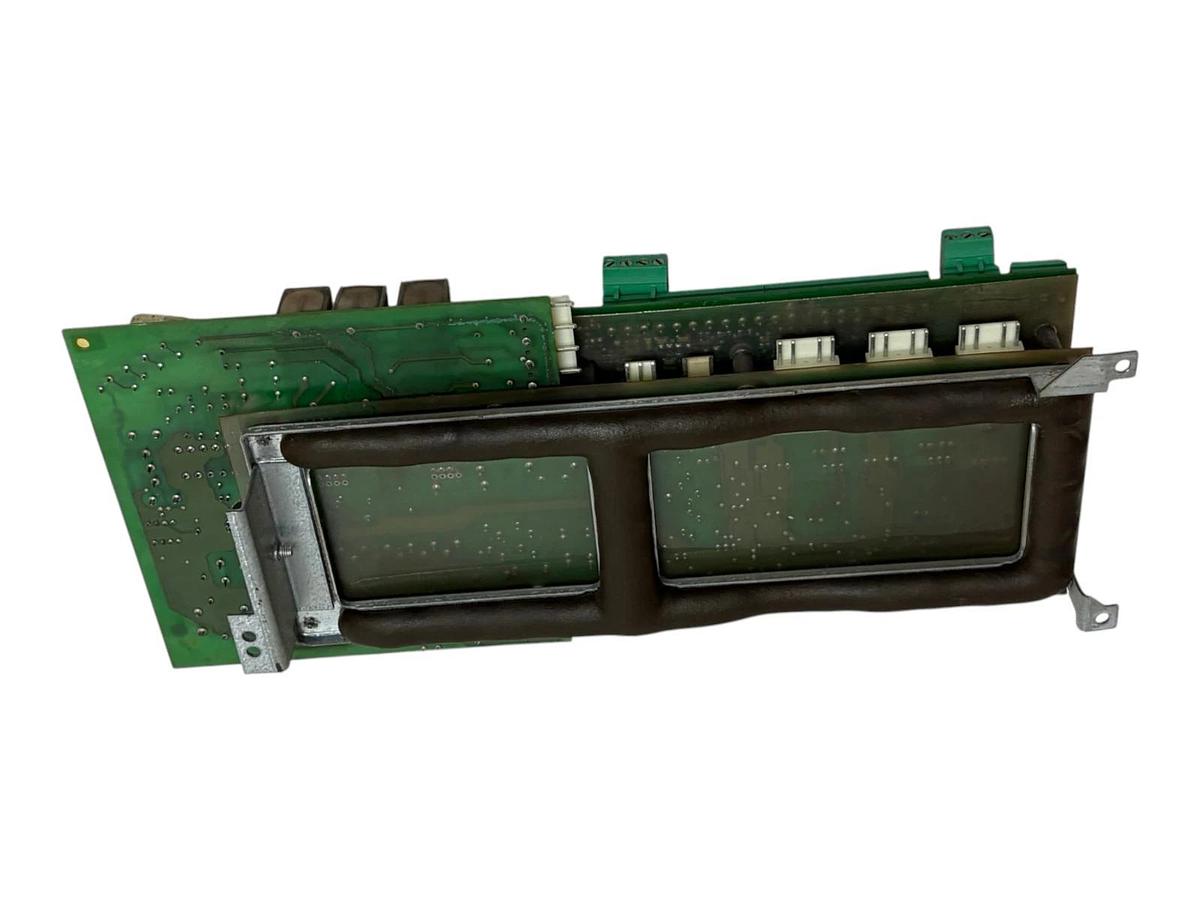

Industrial Power Supply Main Circuit Board Control Assembly 242029 244290 Up for sale is a high-capacity industrial power supply circuit board assembly, featuring a multi-layered design built for heavy-duty machinery. The top motherboard focuses on data processing and digital logic transmission, populated with premium IC chips, microcontrollers from Atmel and MX, and adjustable dip-switch arrays. The secondary power baseplate handles high-voltage management, integrating massive 100n X2 induction capacitors, specialized power transformers, and dual heavy-duty JQX-68F power relays. The rear frame features a robust aluminum backing support block lined with protective thick insulation padding, alongside standard plugin terminal blocks for direct system deployment. Product Details: Primary Board Barcode ID: 10E 242029 Relay Board Barcode ID: 611 244290 Relay Component Models: JQX-68F 012-1ZS (12VDC / 8A 250VAC) Main Capacitor Configurations: Three 100n X2 High-Voltage Suppressors Processing Chips: Atmel Microcontroller & MX Logic ICs Power Specifications: Markings indicate 2.2kW / 690V potential rating thresholds Physical Features: Heavy-duty aluminum heatsink rail bracket with insulation foam pads Used. This machine circuit board set was removed from decommissioned factory equipment. The overall component layout is exceptionally clean with no blown capacitors, burnt PCB trace paths, or terminal corrosion. The structural aluminum rear bracket remains intact, showing minor superficial mounting scuffs. CONDITION: USPI - Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ 2153
