Schneider Electric GV2-P10 TeSys Motor Manual Starter Circuit Breaker 4-6.3A

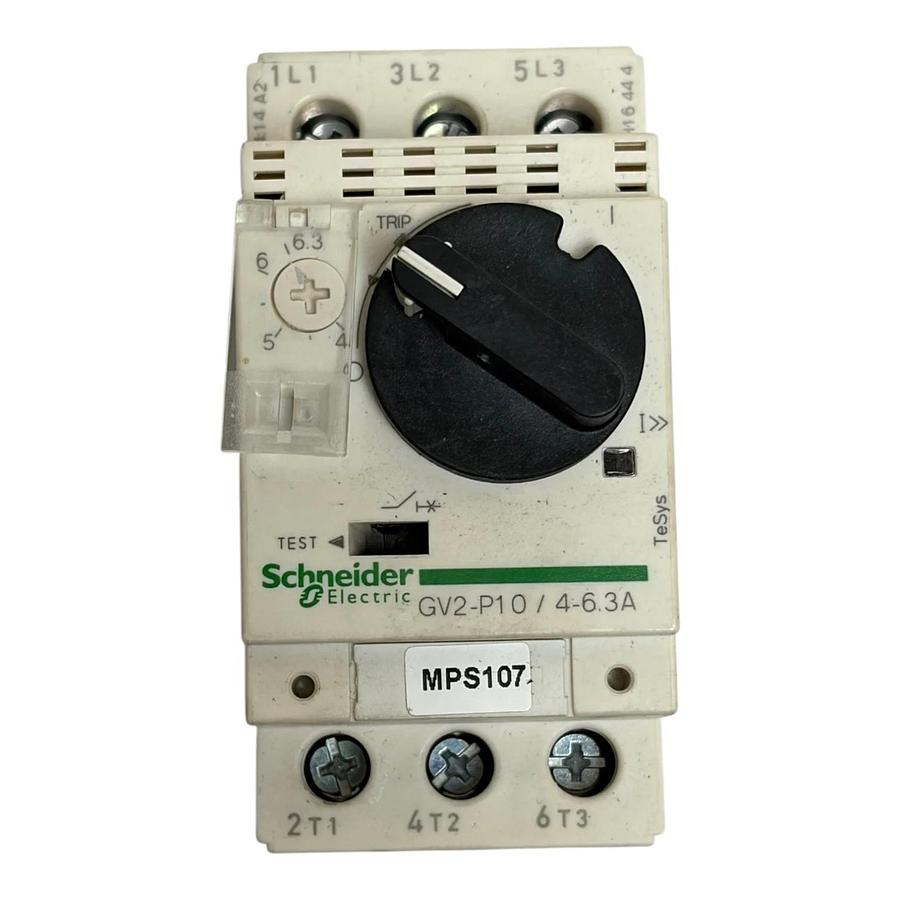

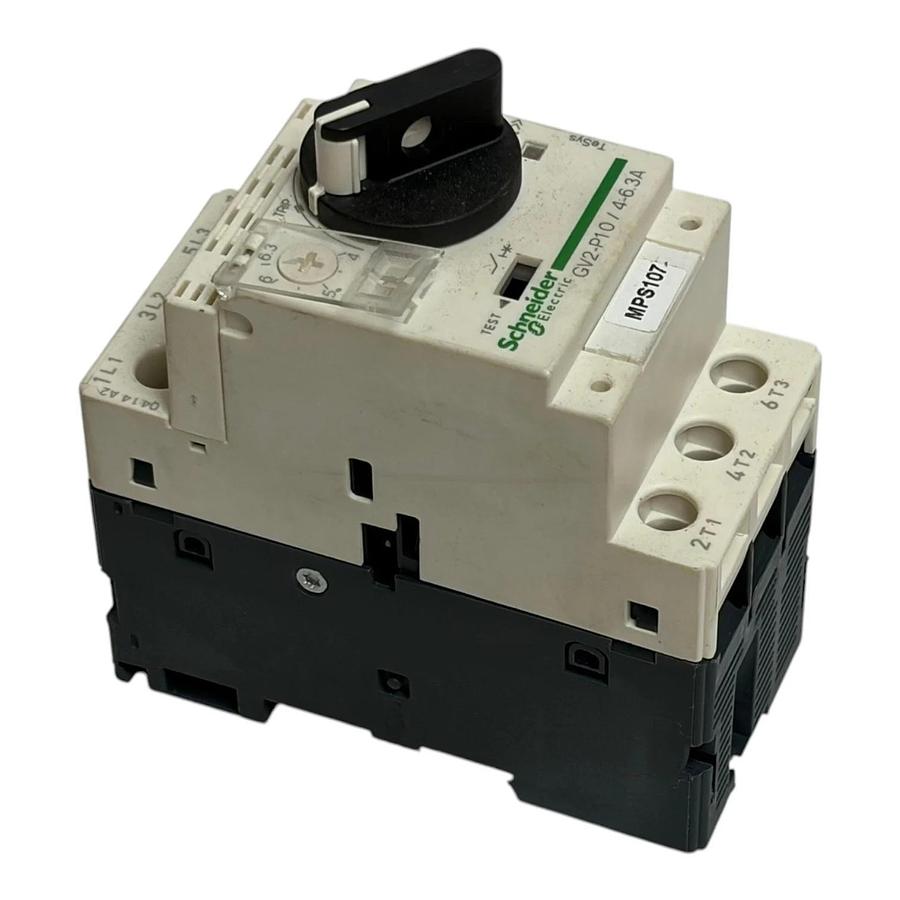

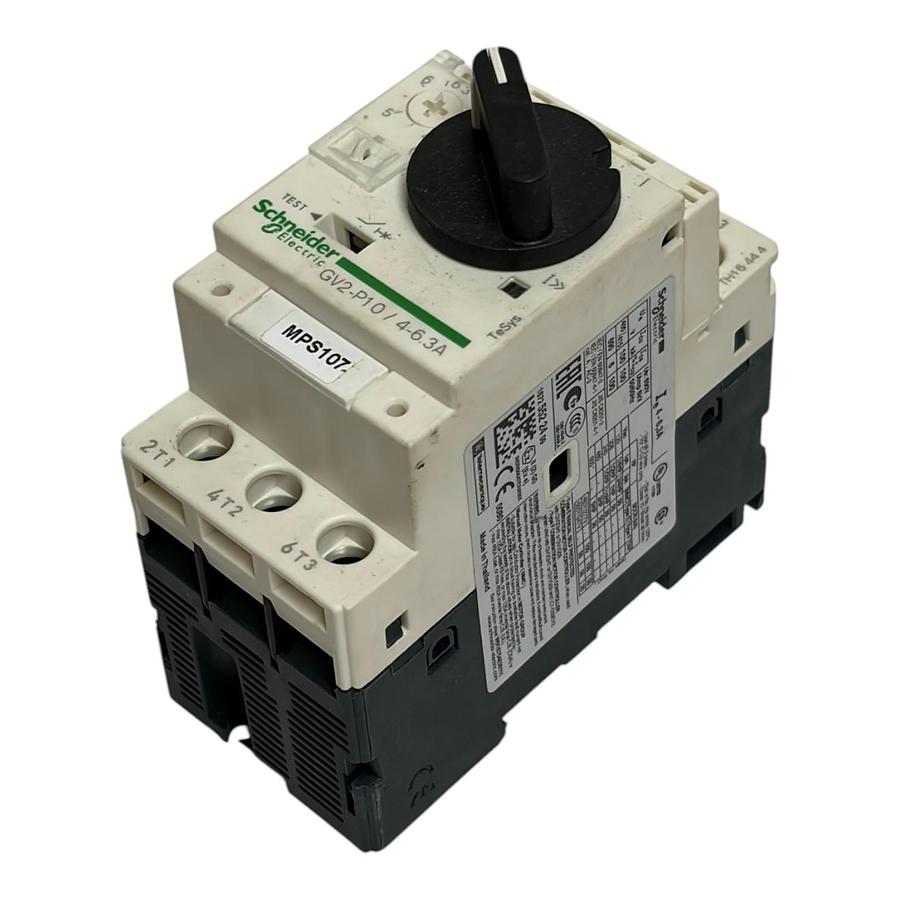

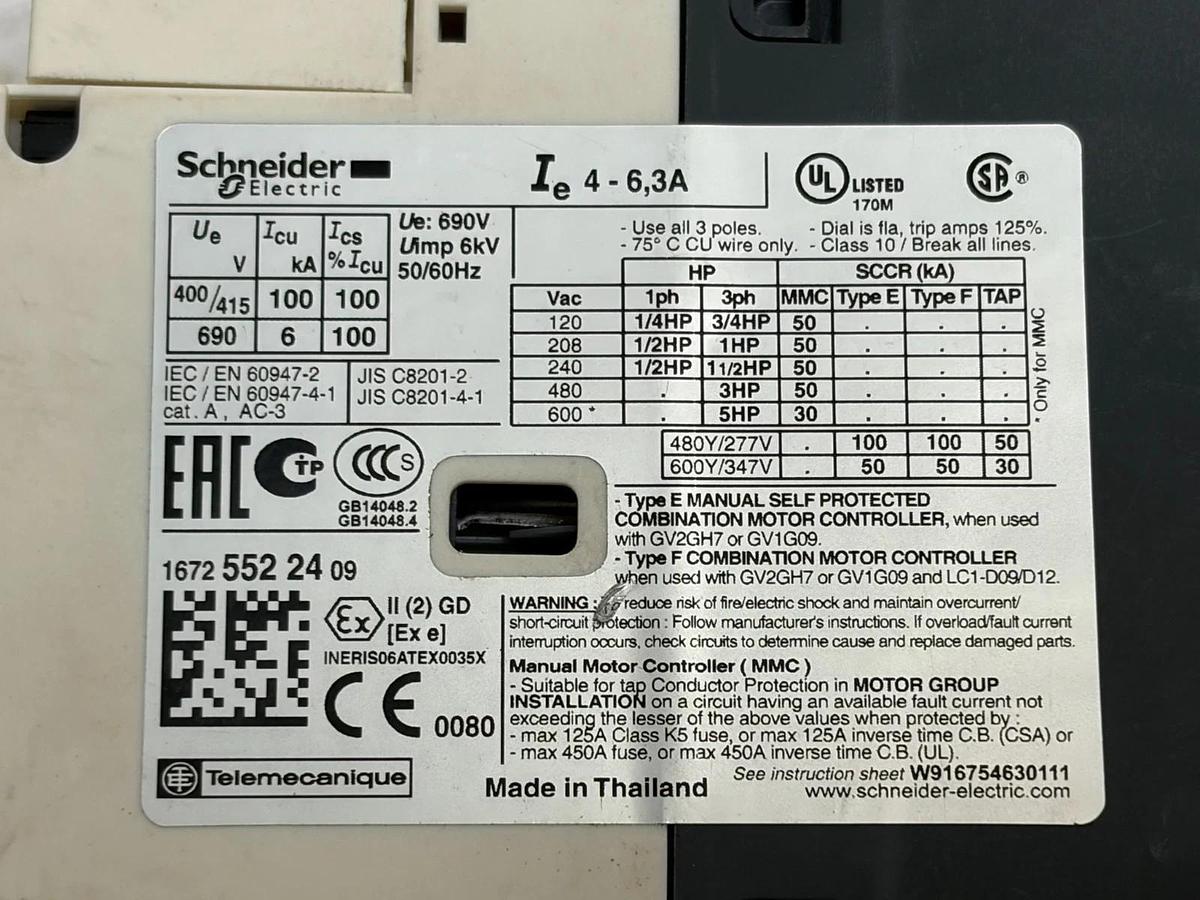

Schneider Electric GV2-P10 TeSys Motor Manual Starter Circuit Breaker 4-6.3A For sale is a used Schneider Electric (TeSys / Telemecanique) 3-Pole Manual Motor Starter and Protector Circuit Breaker (Model: GV2-P10). This industrial-grade thermal-magnetic motor circuit breaker provides control, short-circuit, and overload protection for single-phase or three-phase electric motors. It features a rotary knob operator interface and an adjustable thermal trip setting dial ranging from 4 to 6.3 Amps. Specifications: Brand: Schneider Electric (TeSys / Telemecanique) Model / MPN: GV2-P10 (GV2P10) Component Type: Manual Motor Controller / Motor Circuit Protector Adjustable Current Range (Ie): 4 to 6.3 Amps Number of Poles: 3 Pole (Use all 3 poles for single-phase or three-phase setups) Rotary Dial Settings: Adjustable overload scale (4A, 5A, 6.3A) with clear plastic protective cover flip door Operational Voltage (Ue): 690V Max (50/60 Hz) Impulse Withstand Voltage (Uimp): 6 kV 3-Phase Horsepower Ratings: 1-1/2 HP @ 208-240V | 3 HP @ 480V | 5 HP @ 600V 1-Phase Horsepower Ratings: 1/4 HP @ 120V | 1/2 HP @ 240V Short Circuit Current Rating (SCCR): Up to 100kA @ 240V-480V (Type E / Type F / MMC configuration dependent) Wiring Requirements: Use 75°C Copper (CU) Wire Only | Class 10 Trip Amps 125% Mounting Type: 35mm DIN Rail snap mount or surface panel chassis screw attachment Tracking / Date Details: 1672 552 24 09 | Marked "MPS107" on a clean faceplate inventory sticker Compliance Certifications: UL Listed (170M), CSA Certified, CE Approved, EAC, CCC Country of Origin: Made in Thailand Condition Note: This manual starter is in good, clean used condition. It was carefully decommissioned and removed as a working system pull from a functional industrial machinery enclosure panel. The plastic tracking structure, terminal screw blocks, internal bus connection ports, and front rotary switch lever are physically sound and operate with crisp mechanical action. Because it was deployed in a production facility environment, it exhibits light superficial scuffs, minor cosmetic smudges, and standard faint surface workshop dust exactly as shown. CONDITION: USPI - Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ 2150
