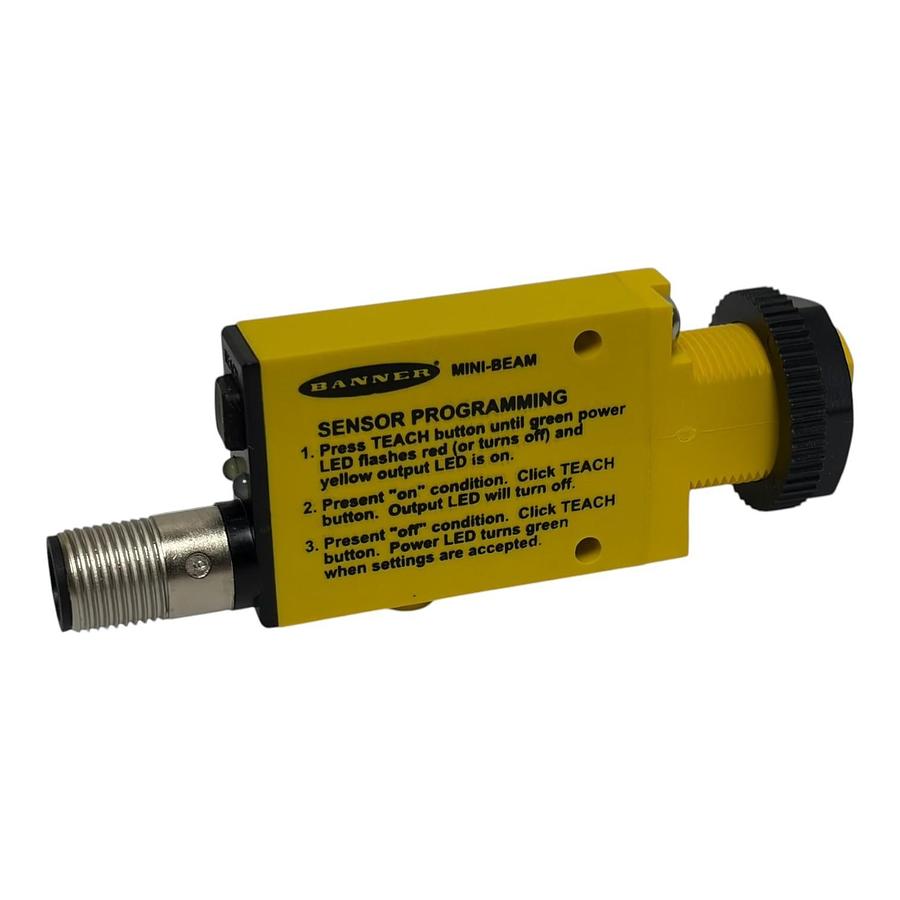

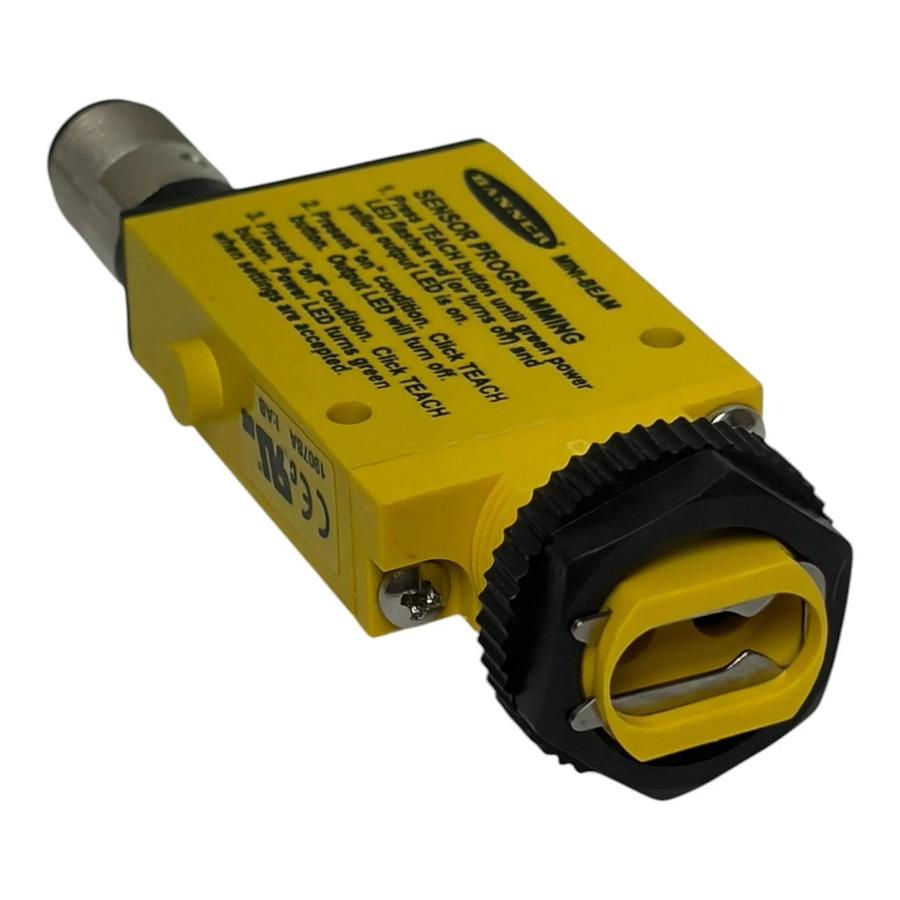

Banner Engineering SME312DQD Mini-Beam Expert Diffuse Photoelectric Sensor NSNP

Banner Engineering SME312DQD Mini-Beam Expert Diffuse Photoelectric Sensor Brand: Banner Engineering Model / MPN: SME312DQD Series: MINI-BEAM Expert Series Type: Compact Diffuse Mode Photoelectric Sensor Sensing Distance / Range: 380 mm (Max) Supply Voltage Range: 10 to 30 VDC Output Configuration: Bipolar (1 NPN and 1 PNP Output Transistor) Light Source / Sensing Beam: 880nm Infrared LED Connection Interface Type: 5-Pin M12 Euro-Style Integral Quick Disconnect (QD) Mounting Type: 18 mm Threaded Barrel Nose or Rear Side-Hole Mounts Adjustment / Setup Type: Push-Button TEACH Mode Setup Enclosure Rating: IP67 / NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 Washdown Rated Housing Material: Thermoplastic Polyester Body with Acrylic Lens Condition: New Other (See Details) For sale is a brand new industrial surplus Banner Engineering MINI-BEAM Expert Series compact diffuse mode photoelectric sensor, catalog model number SME312DQD. Engineered for high-precision, non-contact object and proximity tracking across automated industrial packaging lines, conveyor configurations, and material sorting systems, this self-contained DC sensor carries a maximum 380 mm infrared sensing matrix. It features a bipolar discrete architecture executing both NPN and PNP output switching paths simultaneously. The yellow thermoplastic housing incorporates a 5-pin M12 integral quick disconnect pin base, an 18mm threaded nose mount with a black retention locking nut, a rear-facing teach push-button switch, and a clear, screen-printed step-by-step programming instruction label on the chassis side profile. New Surplus / Open Box. This photoelectric sensor is completely brand new and unused, but was removed from its original manufacturer box and stored safely as a backup spare inside a labeled Ziploc bag in a facility parts room. It has never been mounted to an automated machine chassis, paired with a field cable harness, or put into active system monitoring operation. The outer yellow housing casing, M18 front nose threads, rear M12 quick disconnect pin sleeve, and push-button membrane are in absolute pristine, factory-fresh physical condition with zero tool scuffs, wire alignment marks, or handling grime. The front optical lens face is flawless and clear. All side text programming instructions remain perfectly legible. Please inspect the high-resolution product photos to verify the immaculate technical condition of this drop-in factory spare. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2168
