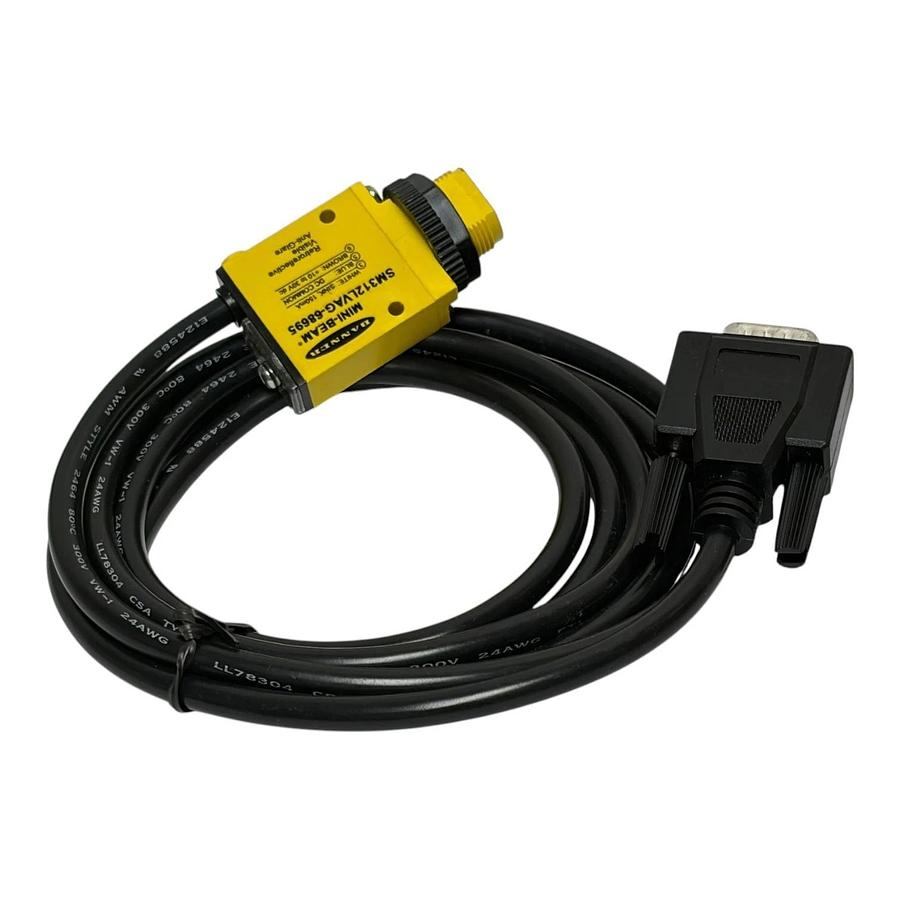

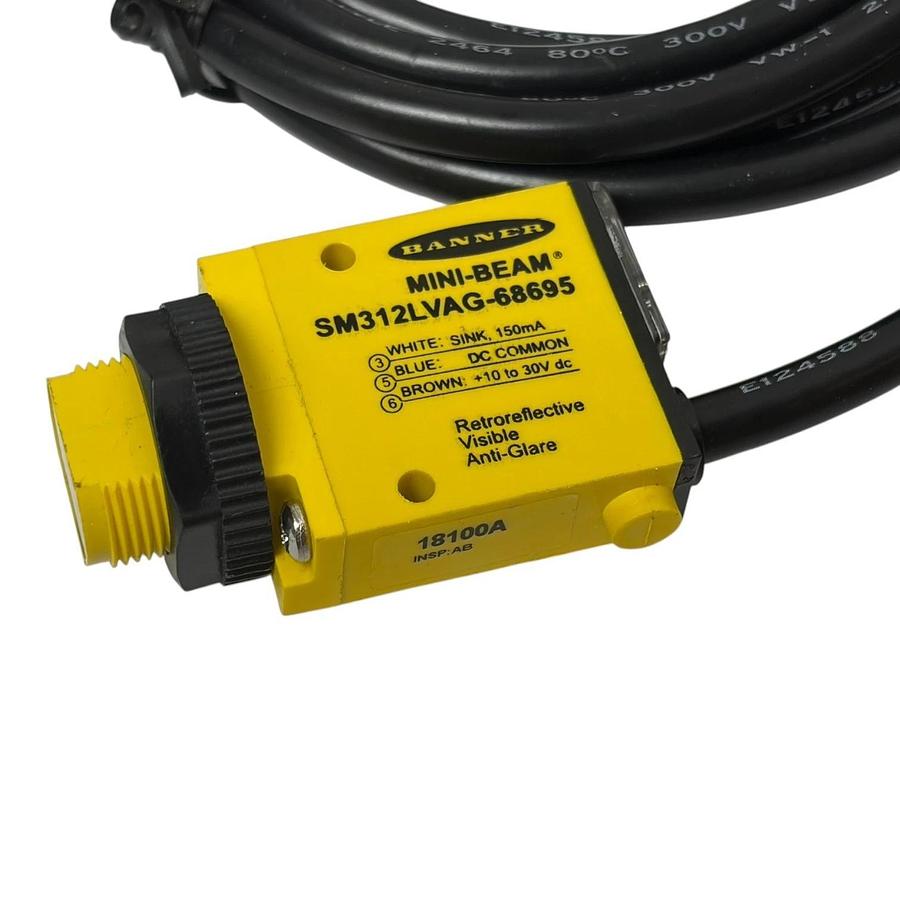

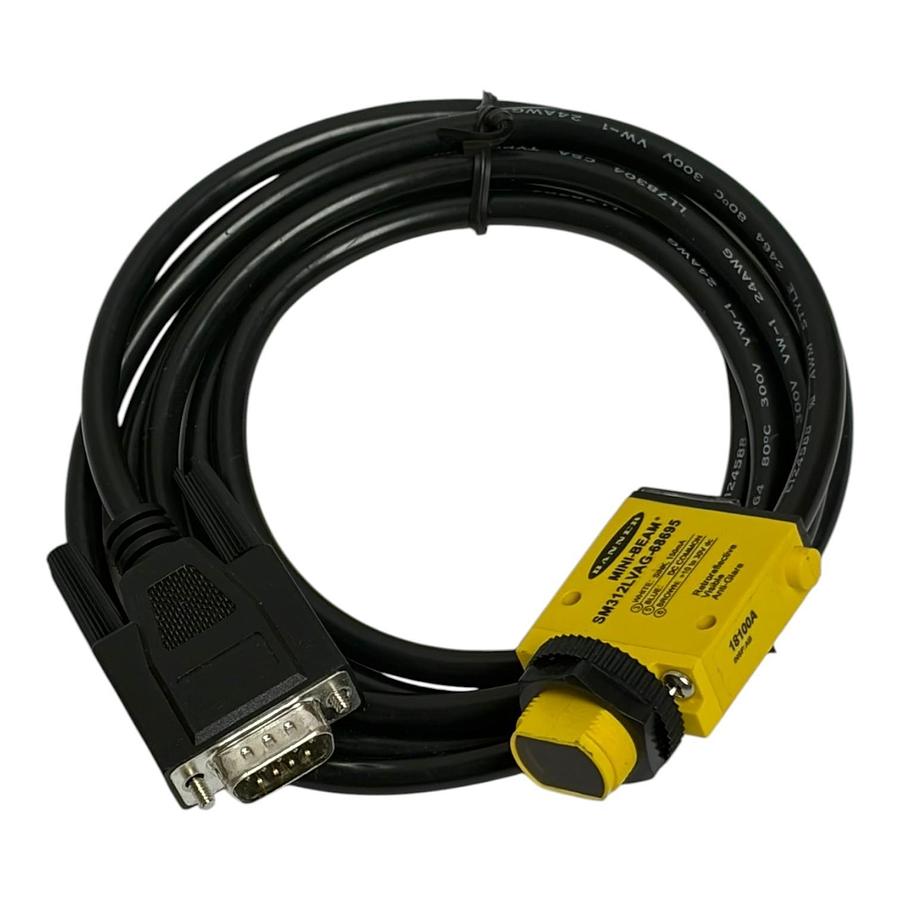

Banner Engineering SM312LVAG-68695 Mini-Beam Polarized Retroreflective Sensor

Banner Engineering SM312LVAG-68695 Mini-Beam Polarized Retroreflective Sensor New Brand: Banner Engineering Model / MPN: SM312LVAG-68695 Part Number (PN): 68695 Series: MINI-BEAM Series Type: Polarized Retroreflective Photoelectric Sensor Sensing Distance / Range: 55 mm to 2 m (Max 6.5 Feet) Light Source / Sensing Beam: Visible Red LED Supply Voltage Range: 10 to 30 VDC Output Type: Bi-Polar (1 NPN and 1 PNP Output Transistor) Output Rating: 150 mA Max (Sink) Output Response Time: 1 ms Connection Interface Type: Pre-Wired 6-Foot (1.8m) Pigtail Cable terminated with a 9-Pin Male D-Sub (DB9) Connector Pin Configuration Specification: Pin 3: White, Pin 5: Blue, Pin 6: Brown Mounting Type: 18 mm Threaded Barrel Nose or Side-Hole Mounting Tracks Adjustment / Calibration Type: Rear-Facing Top Potentiometer Screw Dial Enclosure Rating: IP67 / NEMA 1, 2, 3, 3S, 4, 4X, 6, 12 Washdown Protected Housing Material: Thermoplastic Enclosure Body with Acrylic Lens Condition: New Other (See Details) Country/Region of Manufacture: United States For sale is a brand new industrial surplus Banner Engineering MINI-BEAM Series polarized retroreflective photoelectric sensor, catalog model number SM312LVAG-68695 (Part No. 68695). Engineered for high-reliability target tracking across automated packaging lines, conveyor loops, and material handling systems, this self-contained DC sensor features an anti-glare visible red LED light beam capable of detecting objects up to 2 meters away when paired with a retroreflective target matrix. It executes a bi-polar discrete output profile providing an NPN and a PNP path simultaneously with a fast 1ms response speed threshold. The yellow thermoplastic rectangular housing incorporates an 18mm threaded nose mount with a black composite retention locking nut, diagnostics status LEDs, a rear-facing gain tuning potentiometer screw, and a factory-attached 6-foot cable harness ending in a heavy-duty 9-pin male DB9 connector. New Surplus / Out of Box. This photoelectric sensor is completely brand new and unused, but was removed from its original packaging and stored as a critical maintenance backup spare. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 3159
