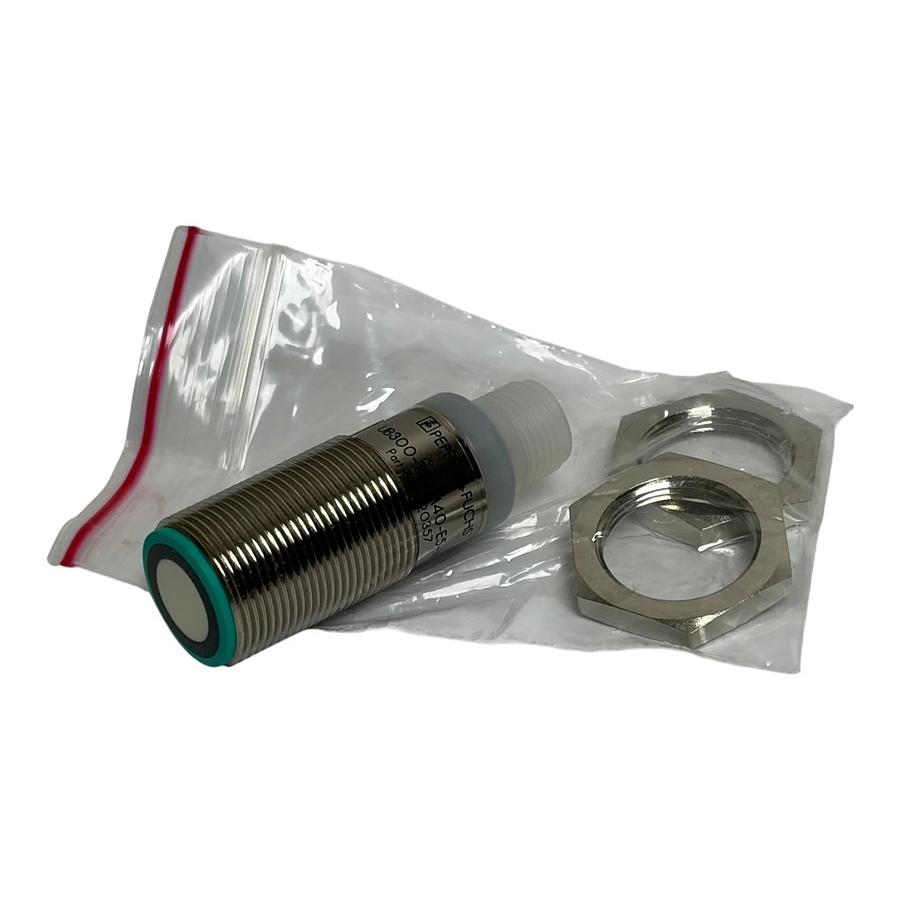

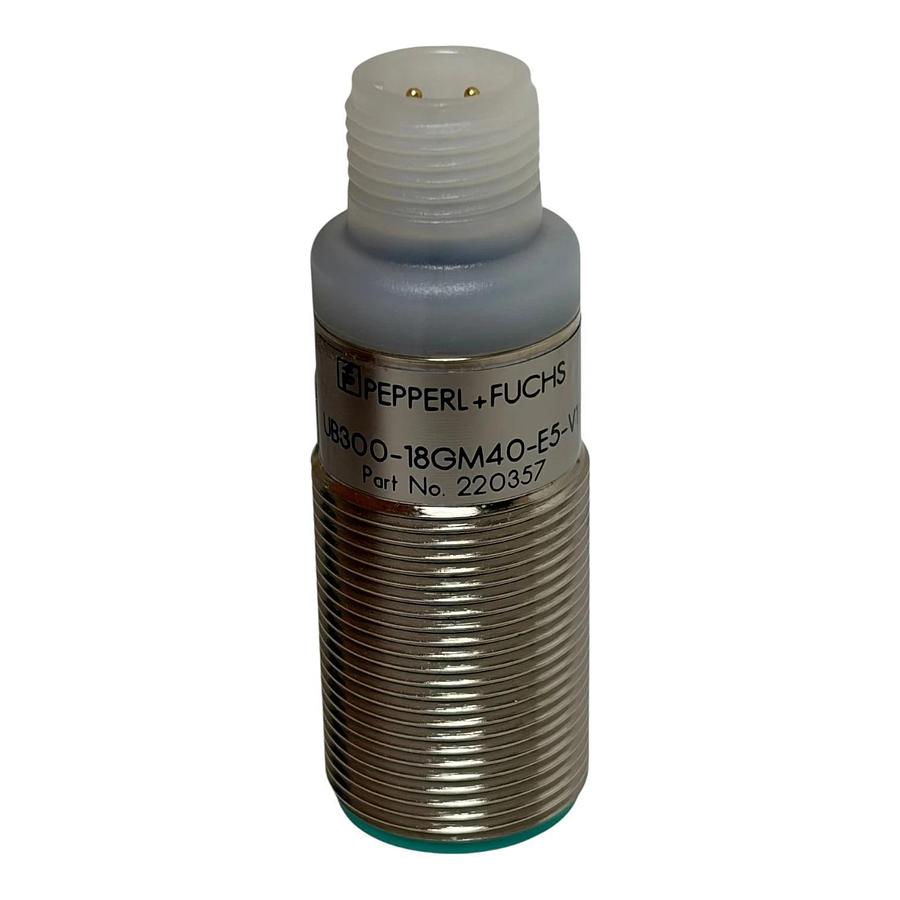

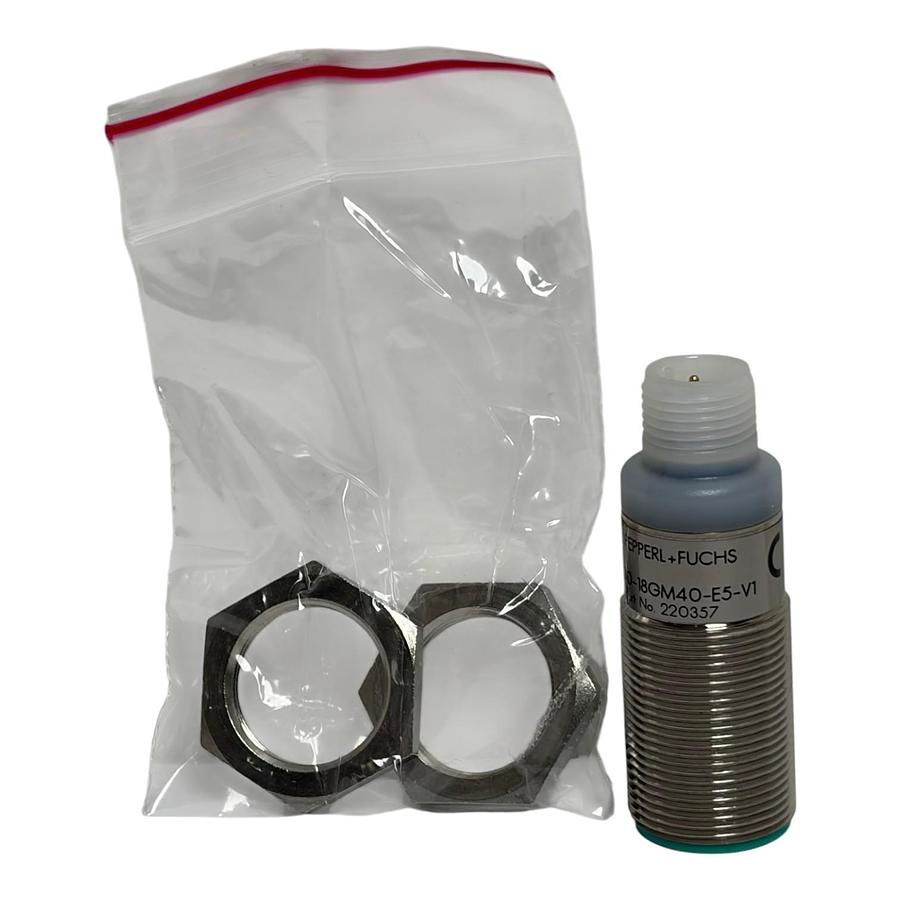

Pepperl+Fuchs UB300-18GM40-E5-V1 Ultrasonic Proximity Sensor M18 PNP New

Pepperl+Fuchs UB300-18GM40-E5-V1 Ultrasonic Proximity Sensor M18 PNP New Brand: Pepperl+Fuchs Model / MPN: UB300-18GM40-E5-V1 Part Number (Part No.): 220357 Type: Cylindrical Threaded Diffuse Mode Ultrasonic Sensor Sensing Distance / Measuring Range: 35 mm to 300 mm Adjustment Range: 50 mm to 300 mm Output Type / Switching Function: 1 Switching Output E5, PNP, Normally Open / Normally Closed (NO/NC) Programmable Supply Voltage Range: 10V to 30V DC Rated Operating Current: 200 mA max (Short-circuit and overload protected) Transducer Frequency: 390 kHz Switching Frequency: 13 Hz max Housing / Thread Size: M18 x 1 Threaded Barrel Body (Short Design, 40mm length) Connection Interface Type: M12 Eurofast Male 4-Pin Quick-Disconnect Connector Base Housing Material: Nickel-Plated Brass Cylinder Body Frame Ingress Protection Rating: IP67 Waterproof & Dustproof Condition: New Other (See Details) For sale is a brand new industrial surplus Pepperl+Fuchs compact cylindrical ultrasonic proximity sensor switch, model number UB300-18GM40-E5-V1 (Part No. 220357). Unlike standard inductive proximity options, this specialized high-performance diffuse-mode sensor utilizes a 390 kHz sonic transducer to accurately track objects, levels, or materials regardless of color, transparency, or surface finish. It delivers a programmable PNP NO/NC switching output across an adjustable 35mm to 300mm target window. The ultra-compact 40mm short body features an M18x1 threaded nickel-plated brass casing, high-visibility omnidirectional indicator status LEDs (Green for Power, Yellow for State), a dedicated teach programming input line, and an M12 4-pin quick-disconnect terminal plug interface. Ideal for liquid level tracking, filling hoppers, conveyor systems, and custom automation cells with space constraints. New Surplus / Open Bag. This ultrasonic proximity sensor is completely brand new and unused, safely preserved long-term within a climate-controlled corporate maintenance stockroom as an uninstalled factory spare backup tool. It has never been threaded into a machine panel cutout track, coupled to a live M12 field cable harness, or put into active technical system service. The nickel-plated barrel threads, rear M12 pins, translucent status collar, and front green transducer face cap are in absolute pristine, factory-fresh physical condition with zero tool scuffs, contact wear patterns, or storage layout blemishes. The package includes the core sensor unit alongside its original factory assembly hardware bundle consisting of two matching hexagonal mounting jam nuts, housed inside a clear parts room Ziploc inventory bag. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2172
