Phoenix Mecano SY1525 Electric Linear Actuator Cylinder QKB01BC010040

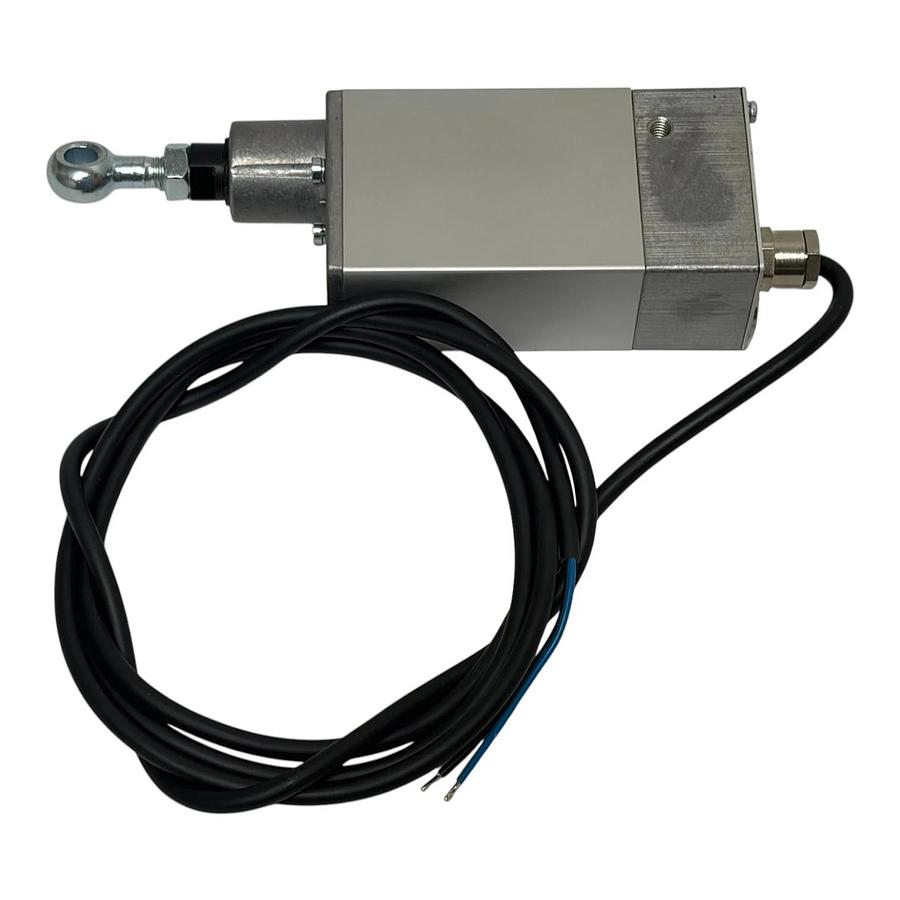

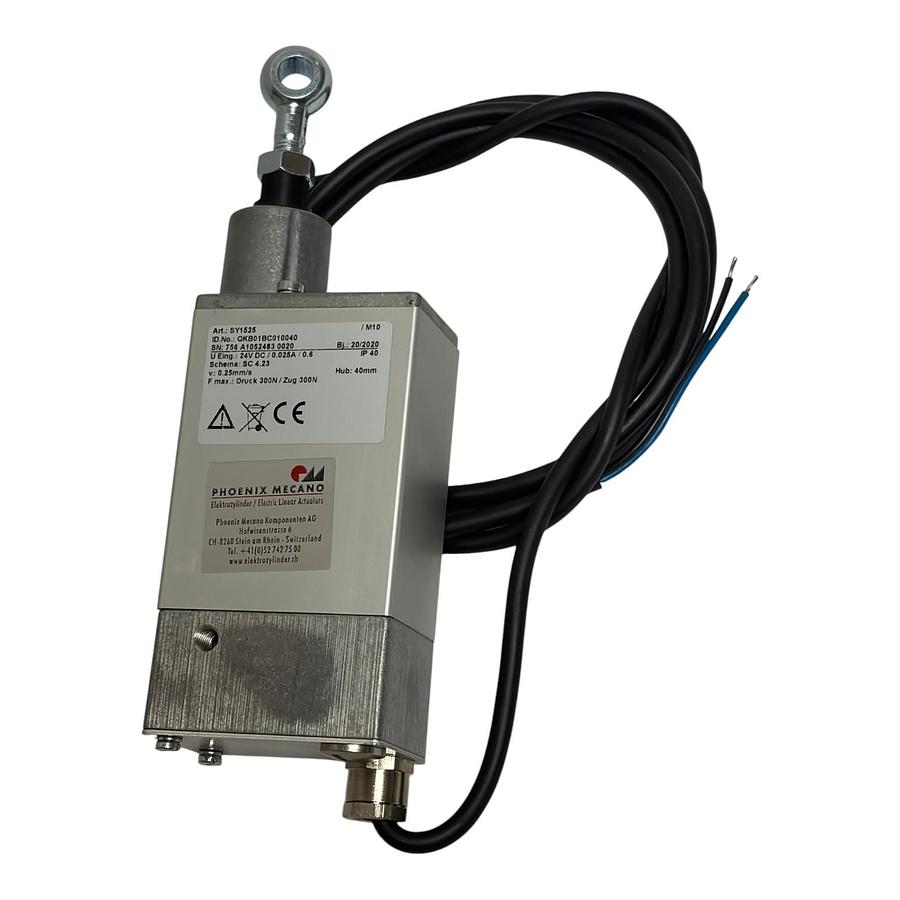

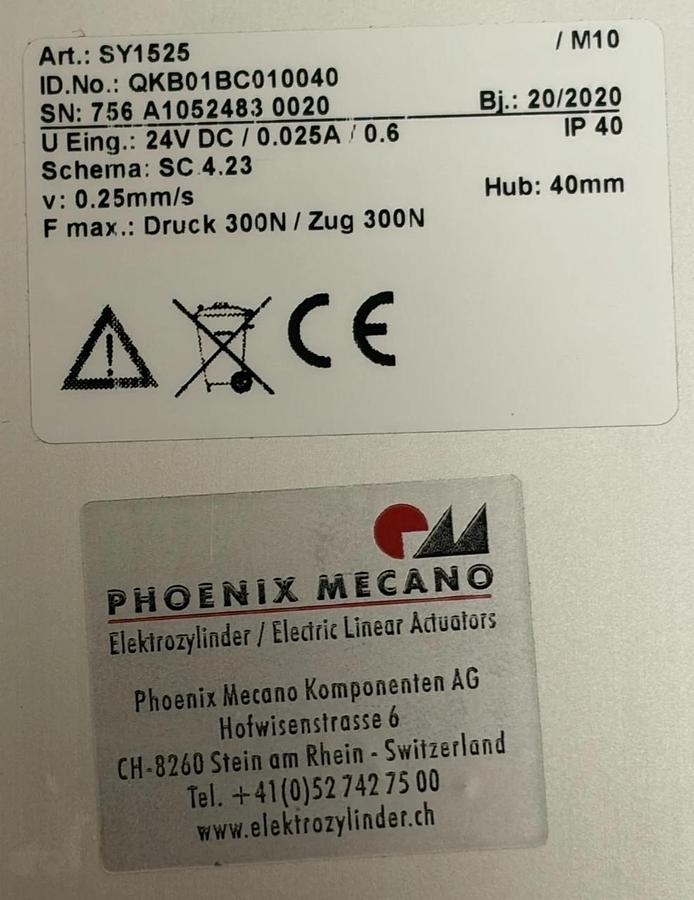

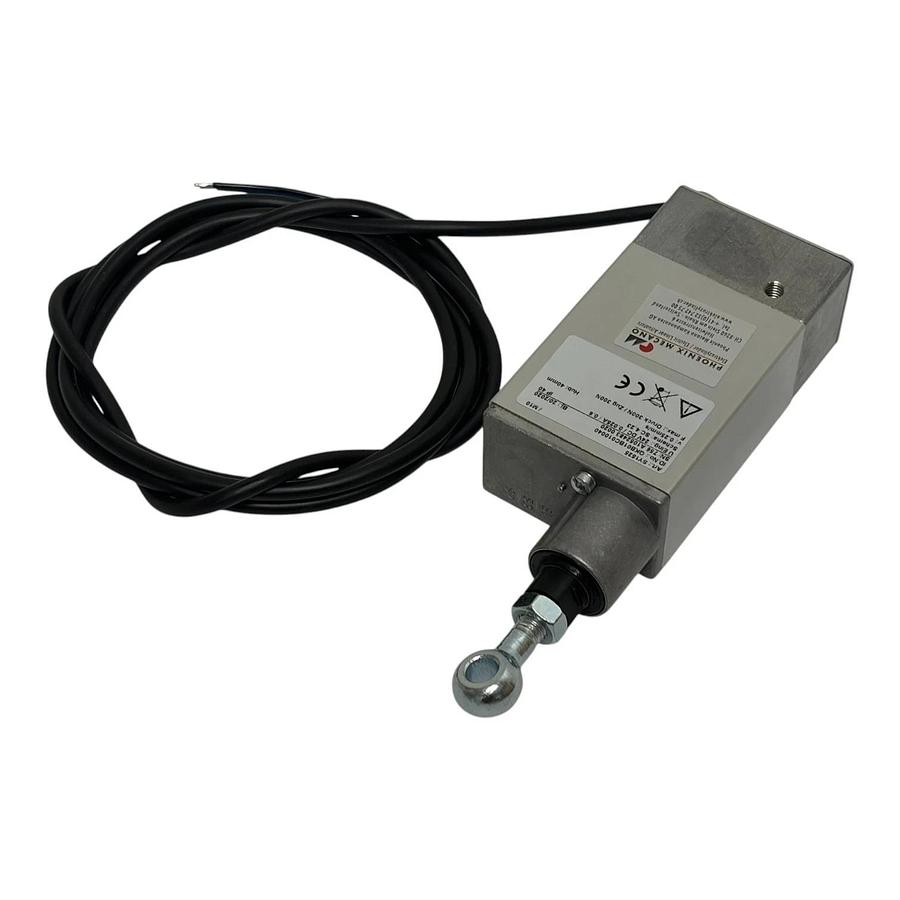

Phoenix Mecano SY1525 Electric Linear Actuator Cylinder QKB01BC010040 For sale is an unused Phoenix Mecano high-precision electric linear actuator cylinder, model SY1525 (ID No. QKB01BC010040, Serial Number 756 A1052483 0020). This premium component is a pristine facility surplus spare that was removed from its original outer cardboard retail carton and safely stored inside a parts room inventory. It has never been installed, wired up, or put into active factory production service. Engineered by Phoenix Mecano in Switzerland, this heavy-duty, self-locking industrial cylinder functions as a highly reliable alternative to pneumatic or hydraulic actuators. It features a compact 40 mm stroke displacement capability (Hub: 40mm) utilizing an M10 rod-eye connection end. Electrical parameters operate on a 24V DC input supply with a rated power Draw configuration of 0.025A / 0.6 Amps, a running velocity profile of 0.25 mm/s, and a maximum force capability threshold of 300 Newtons for both push and pull thrust operations (F max.: Druck 300N / Zug 300N). Built with a rugged, block-style aluminum-zinc alloy structure, it features an IP40 environmental casing rating, schema SC.4.23 wiring compliance, and internal integrated limit switches for precise end-of-stroke position tracking. Electrical connection is handled natively via an attached multi-conductor cable harness pre-stripped with bare open-ended wire leads. Perfect for medical automation tracking setups, ergonomic machinery repositioning, custom packaging systems, and robotic material handling lines. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2177
