Deluxe London Cap Code Master Controller with Two 062-01-01 Daughter Boards

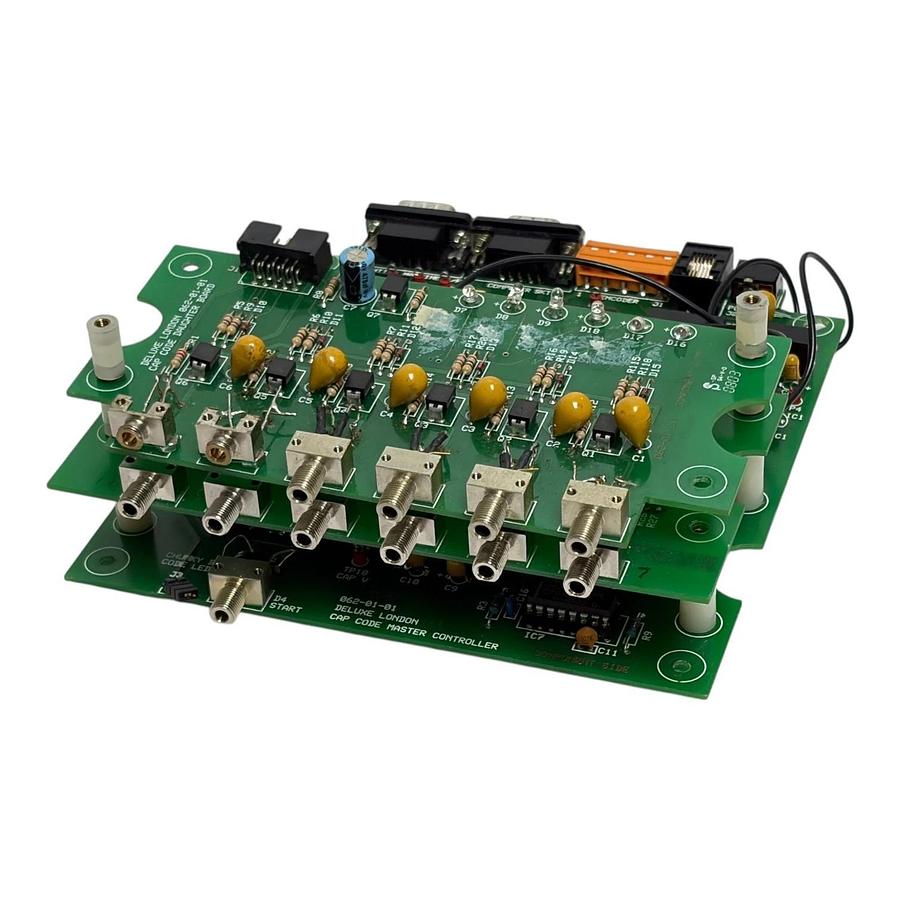

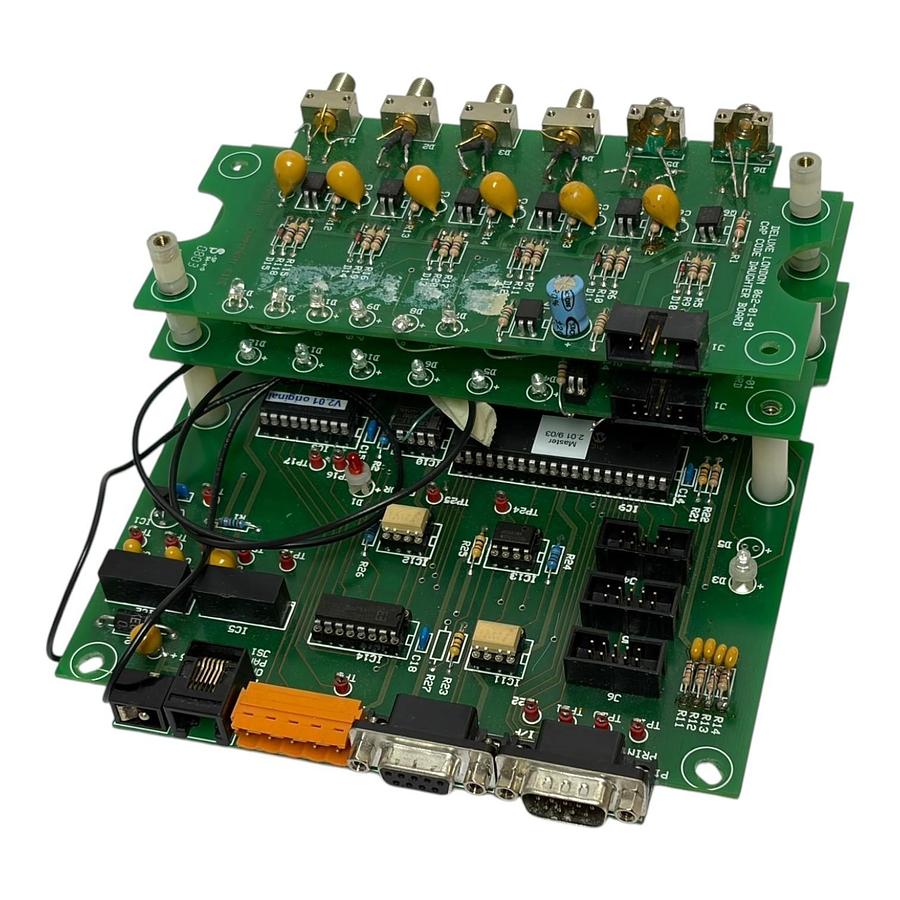

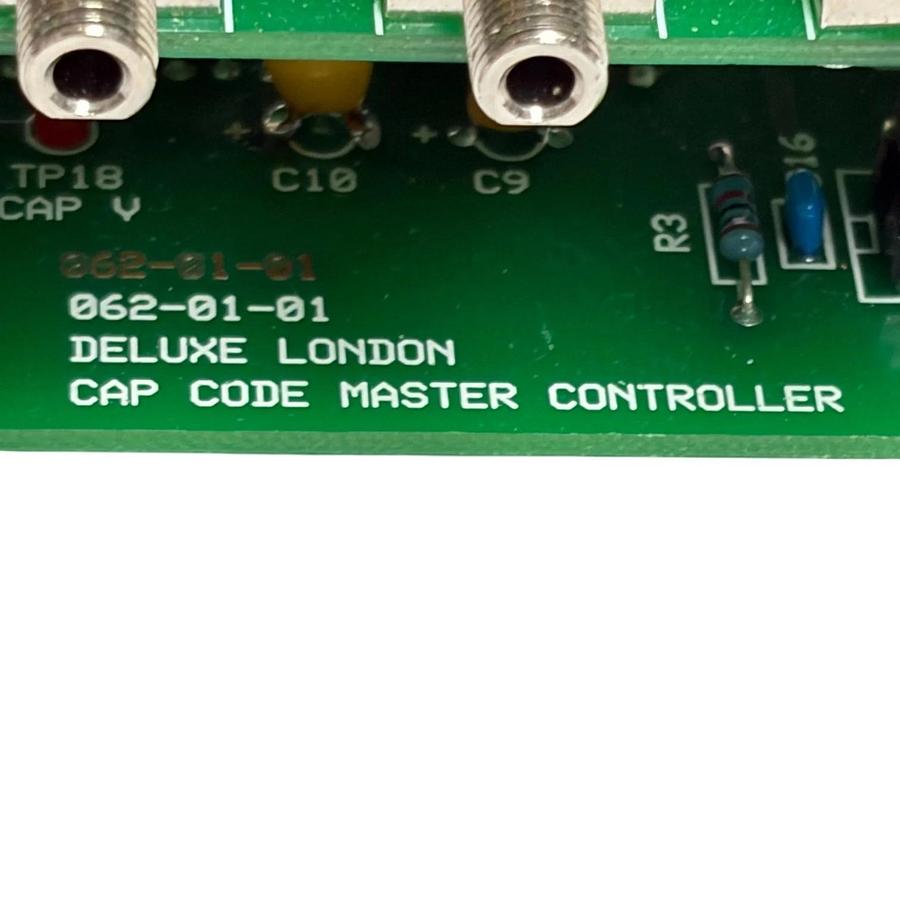

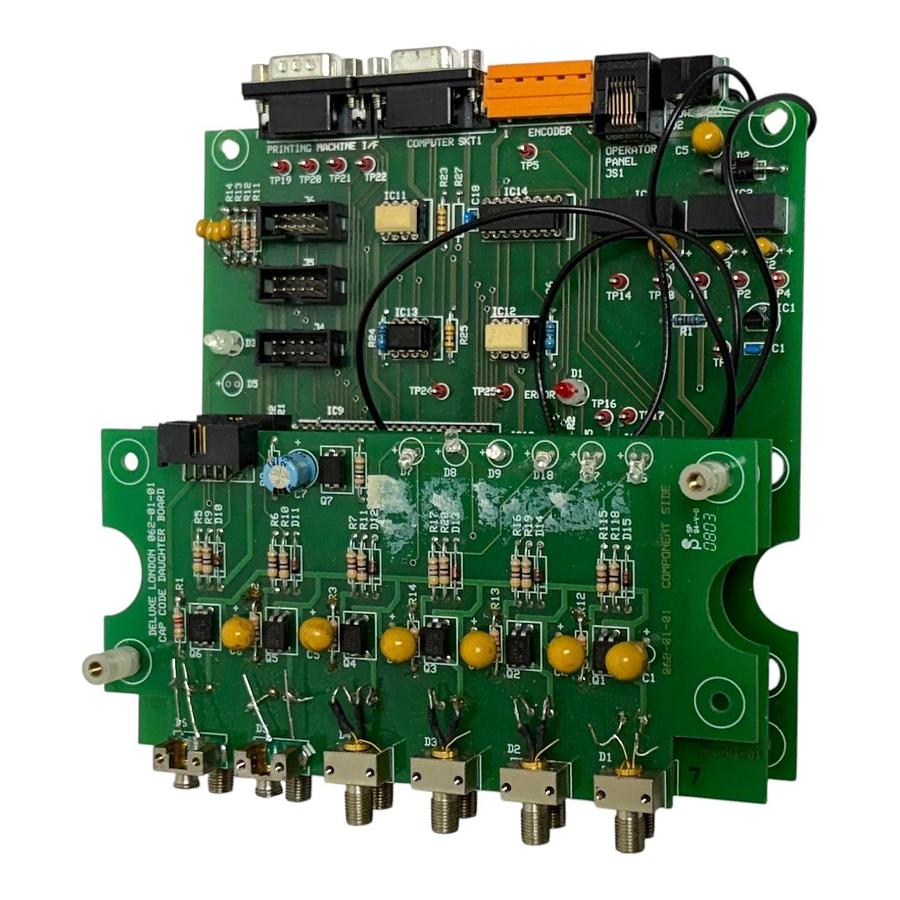

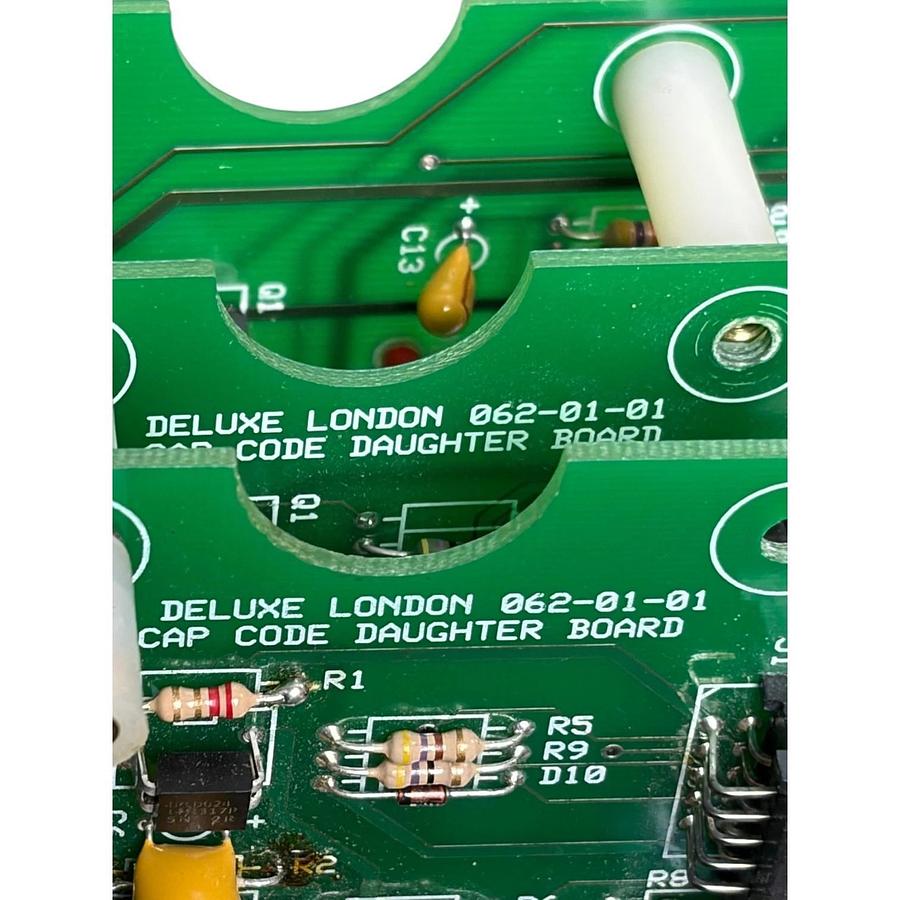

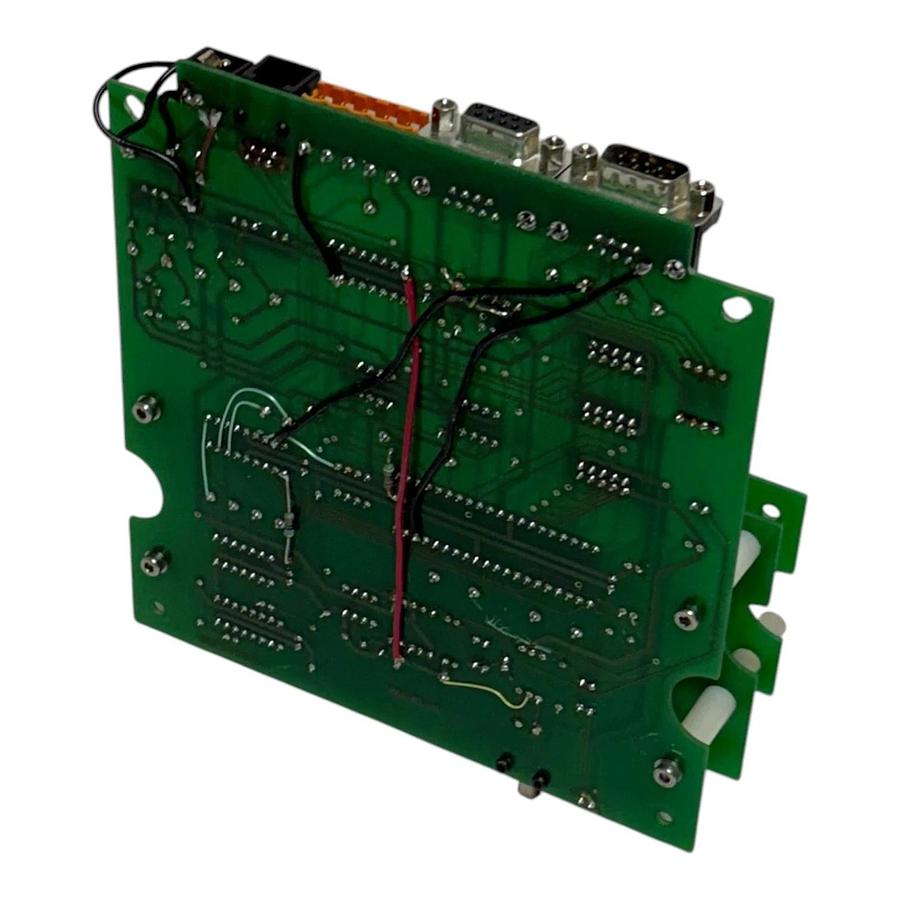

Deluxe London Cap Code Master Controller with Two 062-01-01 Daughter Boards For sale is a rare, multi-tiered legacy industrial electronic control stack manufactured for Deluxe London. This complete hardware sandwich consists of a base "Cap Code Master Controller" mainboard paired with two stacked "Cap Code Daughter Boards" (Model 062-01-01) secured via structural nylon standoffs. Outfitted with multiple communication ports and an extensive array of threaded RF coaxial interface channels, this system was engineered to drive automated process machinery or high-end film processing equipment. Specifications: Brand/Manufacturer: Deluxe London (Deluxe Laboratories) Lower Mainboard Identifier: Cap Code Master Controller (Model 062-01-01) Upper Daughterboard Identifiers: 2 x Cap Code Daughter Board (Model 062-01-01) Master Controller I/O Ports: 1 x 9-Pin DB9 Serial Port (Printing Machine I/F), 1 x 15-Pin High-Density DB15 Port (Computer SKT1), 1 x 4-Pin Encoder Connection Block, 1 x RJ45 Operator Panel Jack (JS1) Coaxial Interface Ports: 13 x total edge-mounted female threaded RF coaxial ports across the stack layers (labeled D1 through D6 on daughterboard tiers, alongside dedicated "Chunky Box Code LED" and "Start" ports on the master level) Main Processing ICs: Master 2.01 9/03, V2.01 Original, and socketed IC9/IC10 modules Assembly Features: Rigid 3-tier PCB stacked sandwich construction separated by non-conductive white nylon spacer pillars and integrated back-plane jumper modifications Manufacturing Origin: Made in Canada Condition Note: This stacked multi-board automation controller is in used condition, decommissioned and pulled from a previous commercial facility layout. The entire structural assembly is rigid and physically intact. Like the individual cards from this system batch, the boards feature extensive factory or facility-level circuit rework modifications, including black and red internal bridge wires, manual jumper leads, and added inline resistors on both sides of the green substrates. CONDITION: USPI - Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ 2147
