ITW Gema OptiStar Type CG06 Powder Coating Control Unit 17401.07129 Parts Repair

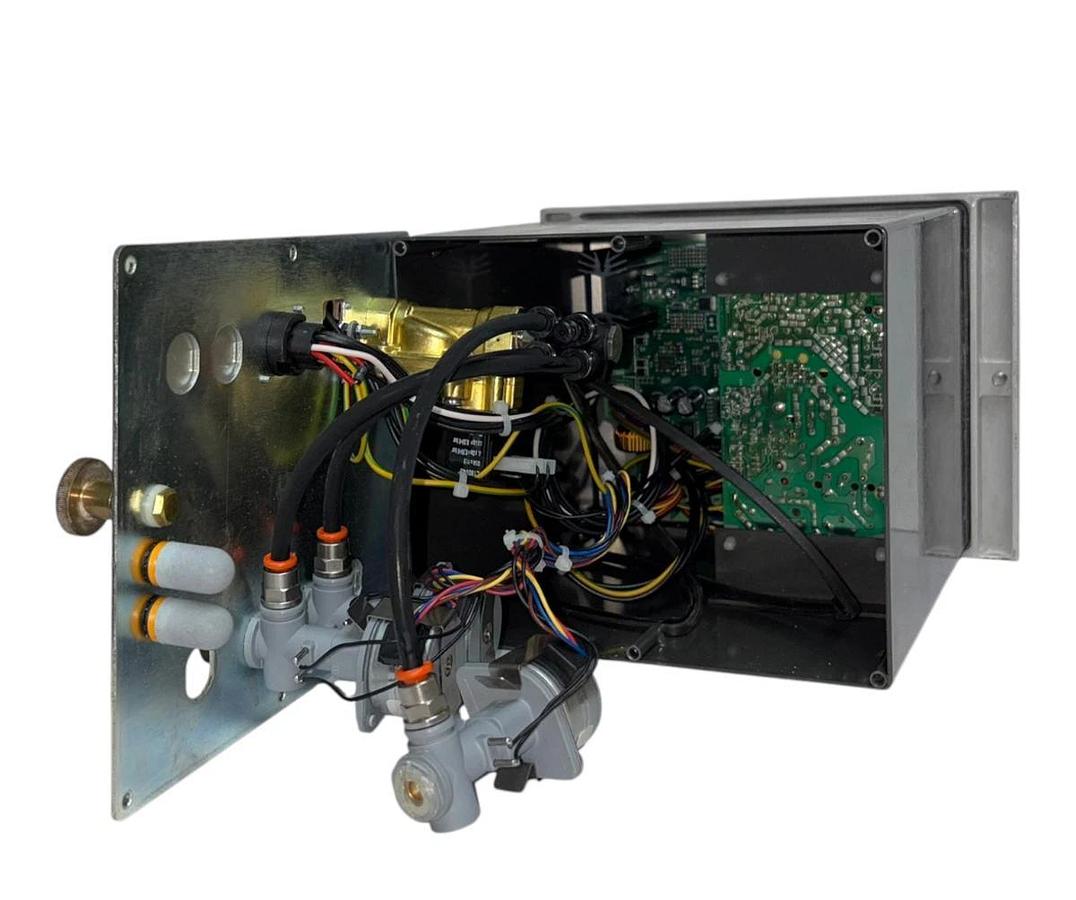

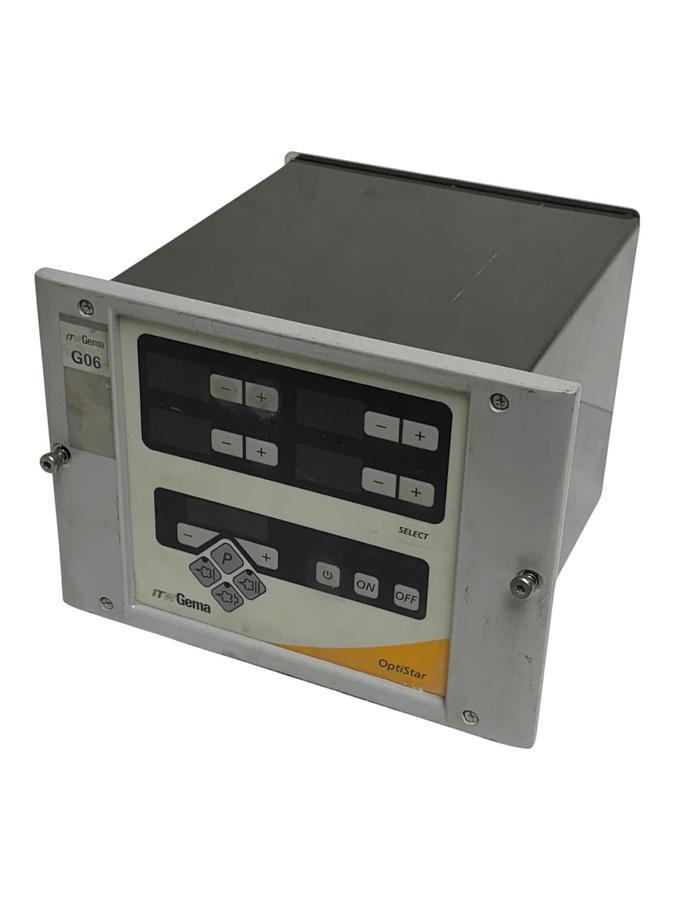

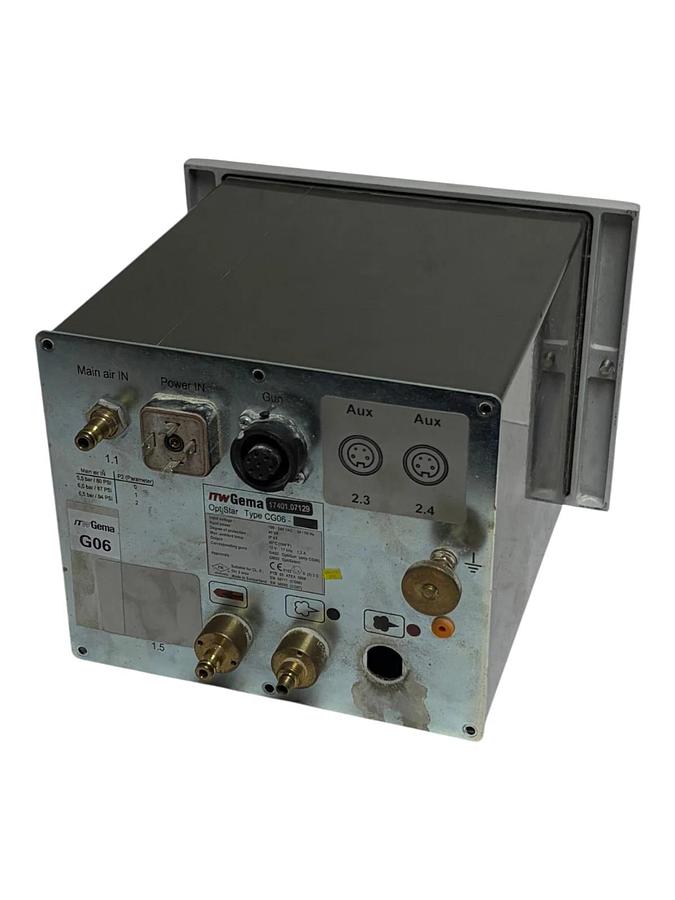

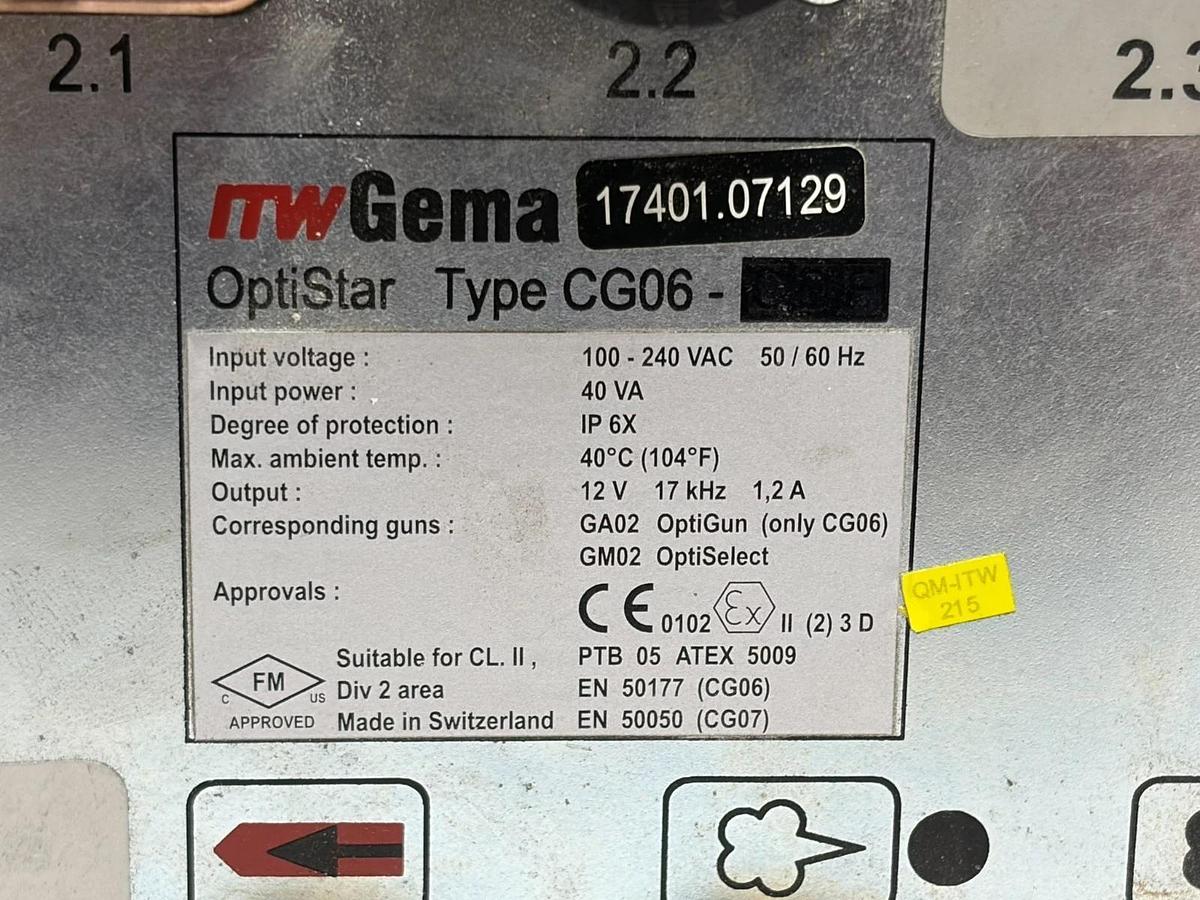

ITW Gema OptiStar Type CG06 Powder Coating Control Unit 17401.07129 Parts Repair Up for sale is an ITW Gema OptiStar Type CG06 industrial powder coating gun control module (Part Number 17401.07129). This Swiss-made control unit manages fluidization, atomization, and electrostatic voltage parameters for professional powder coating spray configurations. It is being sold strictly as-is for parts, recovery, or repair due to physical wear and missing hardware. Known Flaws & Missing Parts: One of the pneumatic air fittings has broken off inside the rear port opening on the back panel assembly. The factory retention screws securing the rear metal cover plate to the main chassis housing are missing. The rear metal backing plate is currently loose/unsecured due to the missing chassis screws. Key Features & Specifications: Brand: ITW Gema Model: OptiStar Type CG06 Part Number: 17401.07129 Input Voltage: 100 - 240 VAC, 50/60 Hz, 40 VA Output Rating: 12 V, 17 kHz, 1.2 A Compatible Gun Models: GA02 OptiGun (CG06 specific), GM02 OptiSelect Protection Rating: IP 6X Enclosure Rating Certifications: FM Approved (Class II, Div 2), CE 0102, ATEX PTB 05 ATEX 5009 Country of Manufacture: Made in Switzerland Internal Components: Includes internal Nanotec-Mueller stepper motor valve assembly (Model SP3575M0604-A, 5V, 1A, 50 Ohm). Cosmetic & Functional Condition: The front control display panel face membrane remains intact with light surface scuffs and typical industrial shop grime. The interior circuit boards and wiring pathways appear intact without obvious burn marks. Because of the broken pneumatic port housing fitting, missing enclosure screws, and lack of specialized testing equipment, this unit cannot be fully tested and is sold entirely as-is for parts value. ________________________________________________________________________________________________________ Shelf A9
