Panasonic M9MZ90GK4YGA Induction Motor with MZ9G15B Gear Head 90W 3 Phase

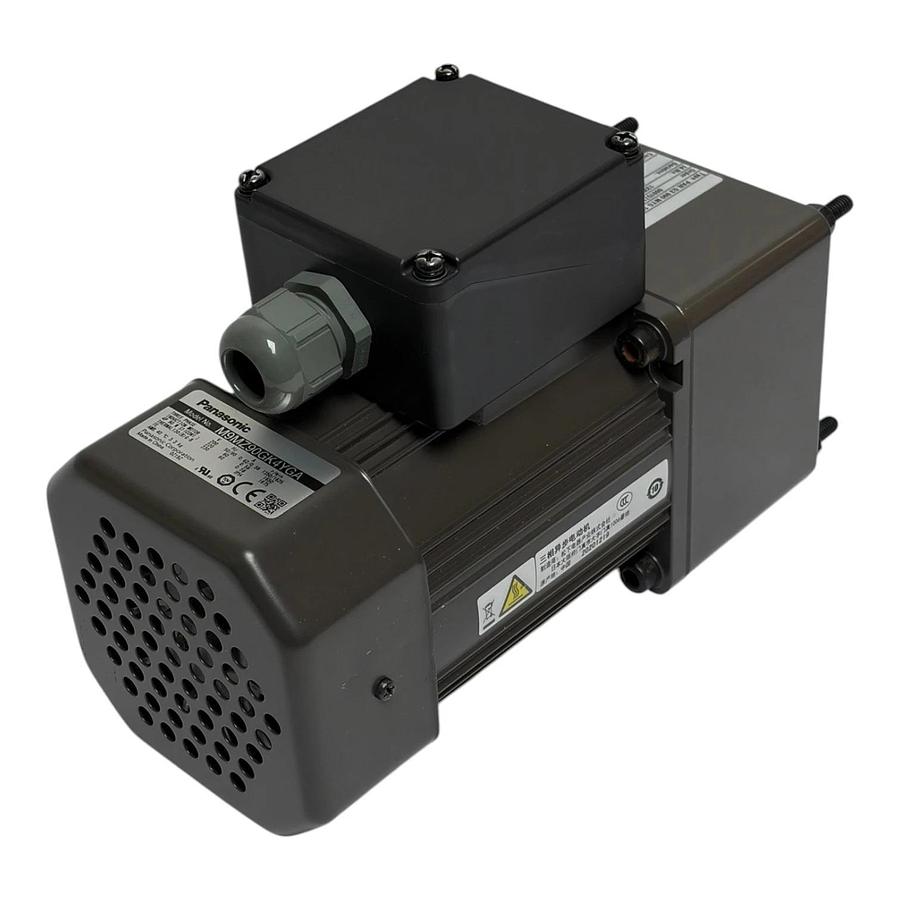

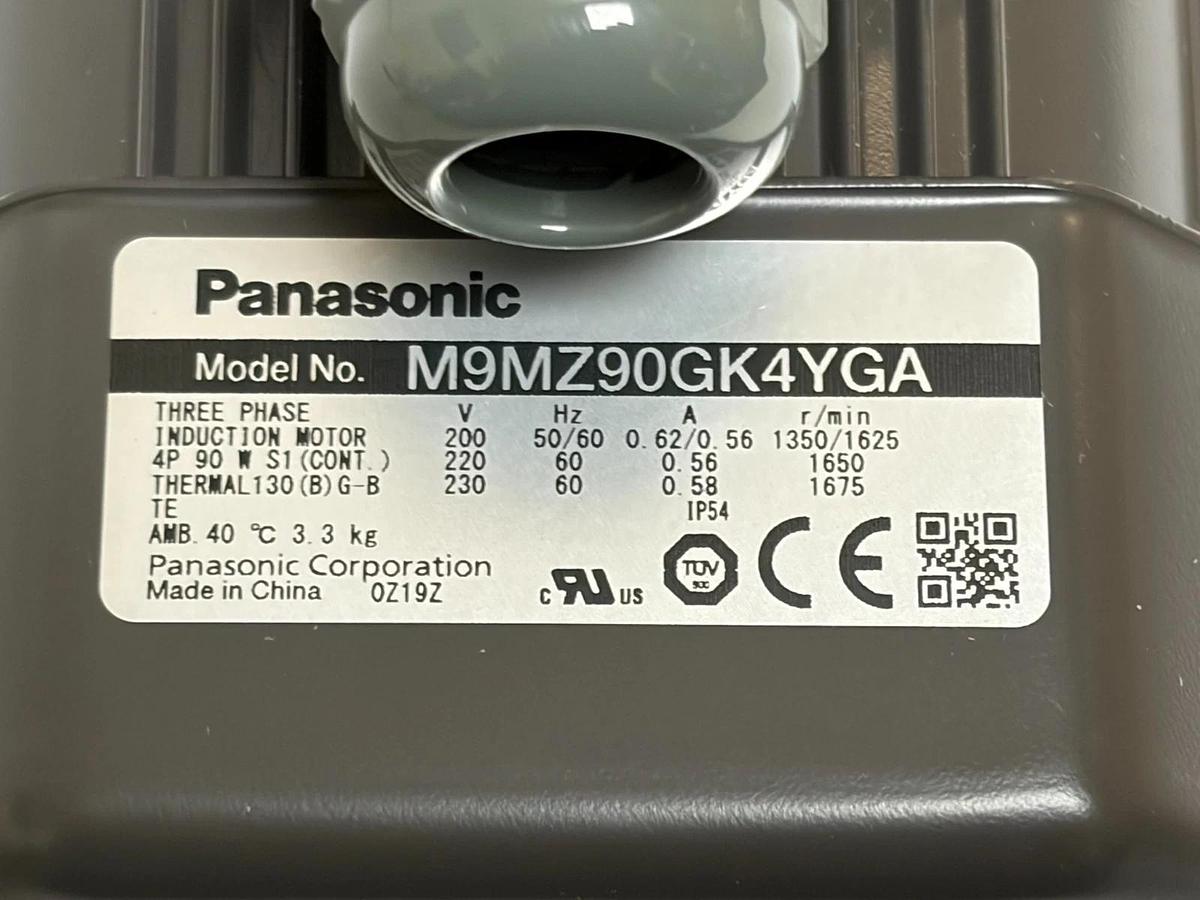

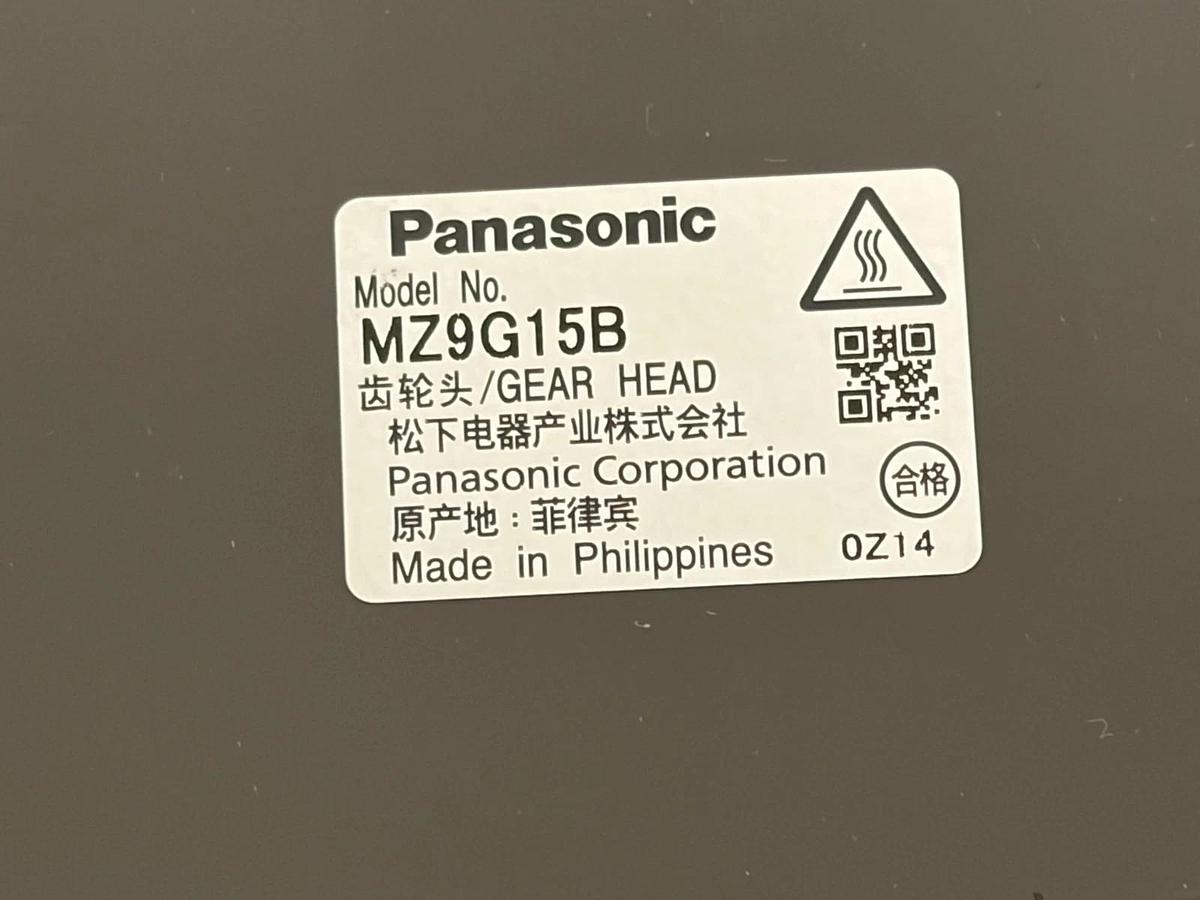

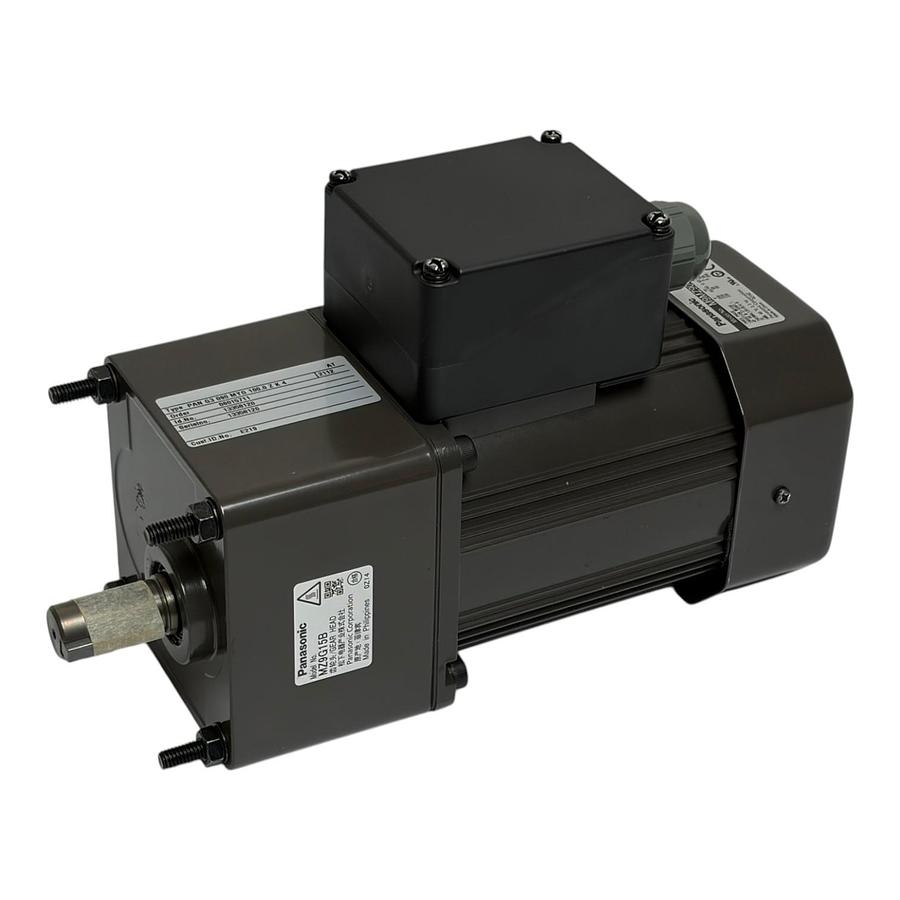

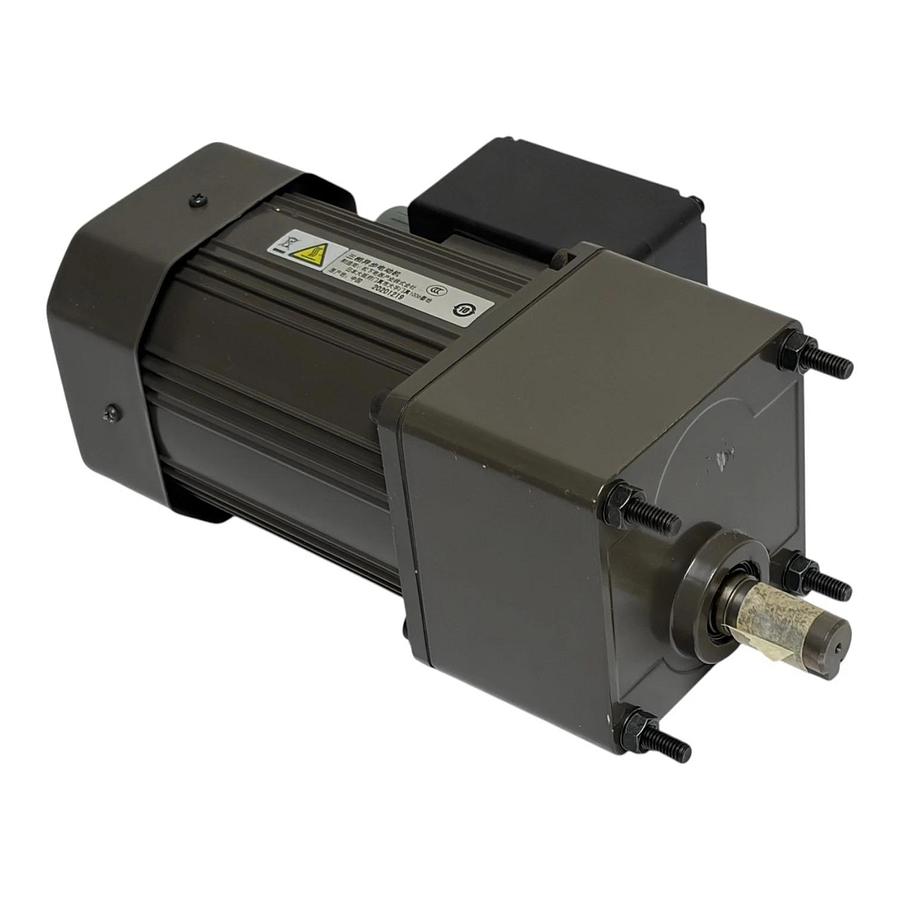

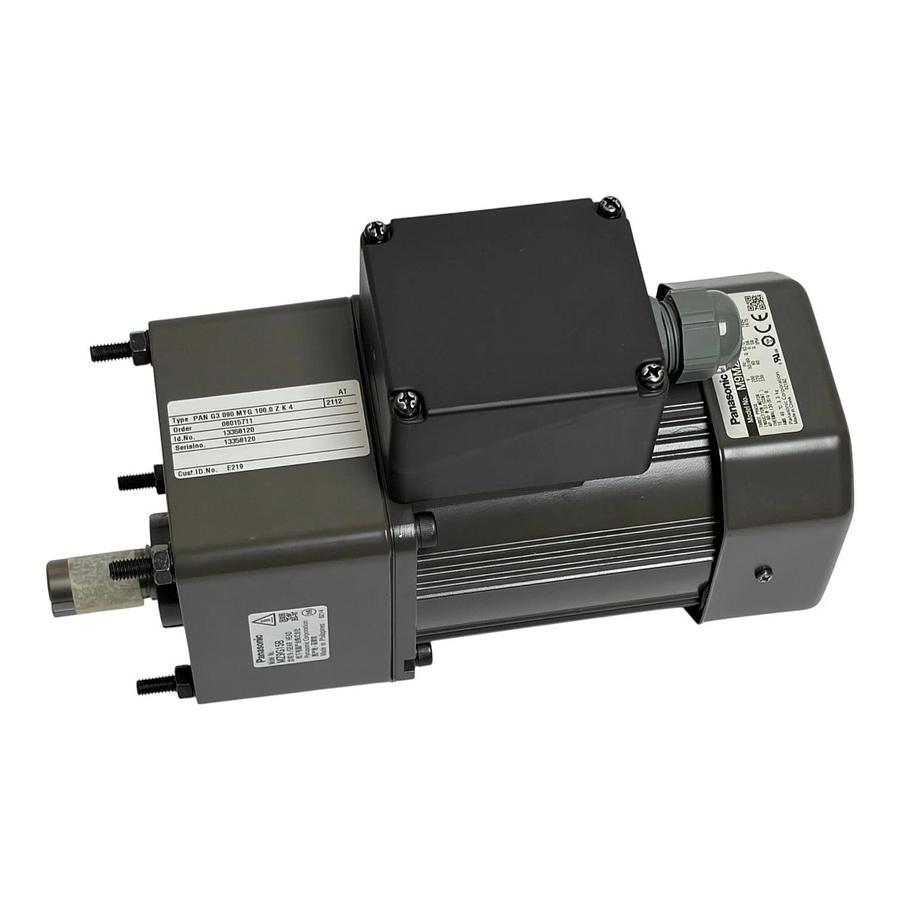

Panasonic M9MZ90GK4YGA Induction Motor with MZ9G15B Gear Head 90W 3 Phase For sale is a brand new, unused Panasonic continuous-duty industrial compact AC geared induction motor assembly. This high-efficiency unit consists of a 90W 3-phase pinion shaft motor paired with a heavy-duty parallel shaft spur gearhead. The assembly is clean, untouched, and has never been wired into an electrical grid or mounted into physical operation. It does not include its original factory box but has been safely stored as a critical machinery spare in a temperature-controlled facility. Motor Component Specifications: Manufacturer: Panasonic Corporation Motor Model Number: M9MZ90GK4YGA Series: Shin-G Compact AC Geared Motors Type: 3-Phase Induction Motor (4-Pole) Output Power: 90 Watts Voltage Configurations: 200V / 220V / 230V AC Operating Frequency: 50 / 60 Hz Amperage Draw: 0.62A / 0.56A / 0.58A Base Motor Speed: 1350 / 1650 / 1675 r/min Protection Class: IP54 (Dust and splash waterproof terminal box) Country of Origin: Made in China (OZ19Z) Gearhead Component Specifications: Manufacturer: Panasonic Corporation Gear Head Model Number: MZ9G15B Reduction Gear Ratio: 15:1 Frame Profile Size: 90 mm Square Bearing Configuration: High-capacity dual ball bearings Mechanical Interface: Output shaft with built-in keyway slot Country of Origin: Made in Philippines (OZ14) Supplemental Asset System Tracking Identification: Internal Fleet Type Label: PAN G3 090 MYG 100.0 Z K 4 Fleet ID / Serial Number Identification: 13358120 Fleet Order Protocol: 06015711 Fleet Customer ID Number: E219 The physical assembly is in flawless mechanical condition, displaying deep factory gray finishes, immaculate electrical terminal block pathways under the top junction cap, and a clean output shaft core with no oxidation or installation marks. This combined setup is universally trusted for industrial packaging conveyor transport, precision automation lines, dairy/ice cream machinery systems, and food processing lines. Please inspect all nameplate layout scripts and housing profiles in the close-up images to verify complete electrical system and space footprint compatibility before buying. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2175
