Perske VS31.09/4 Spindle Motor Housing Stator Windings 0.37kW 300Hz

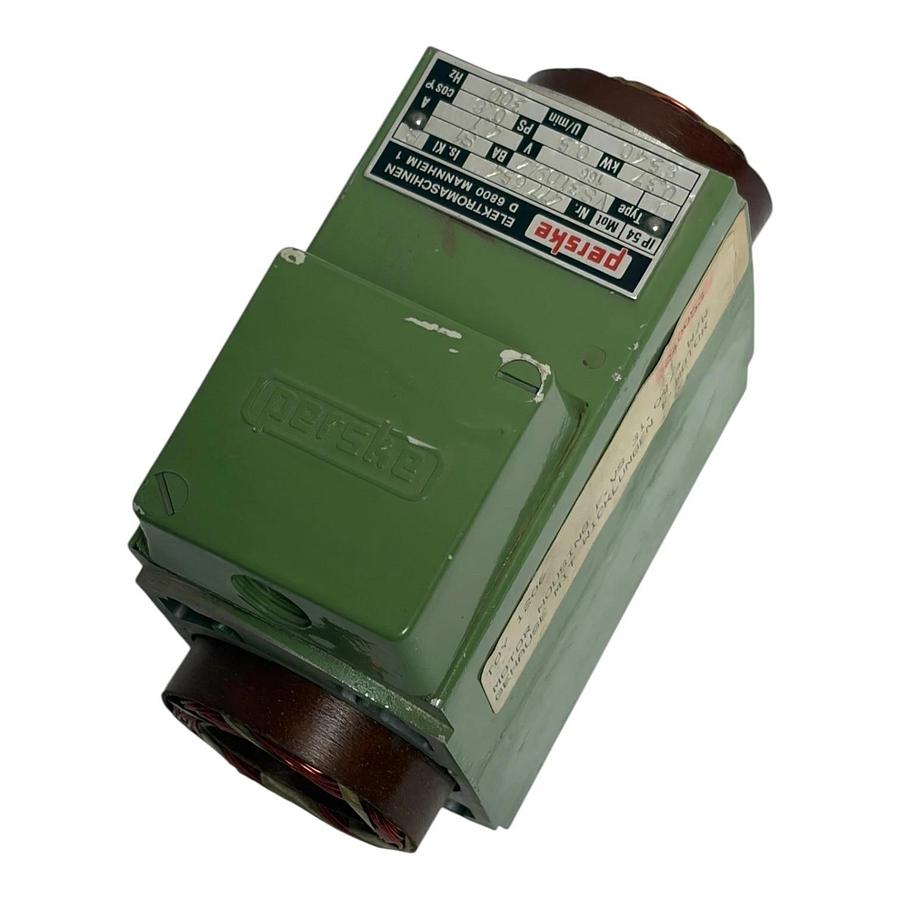

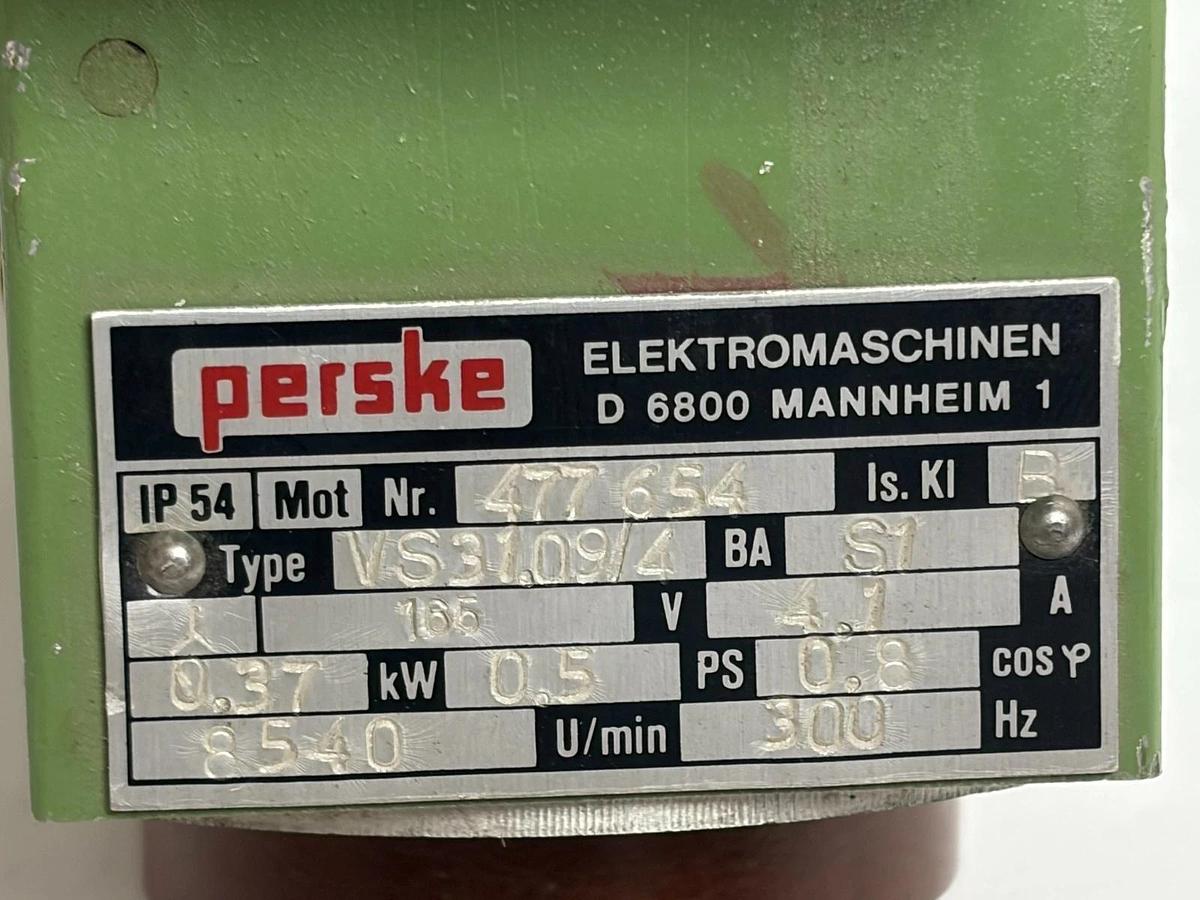

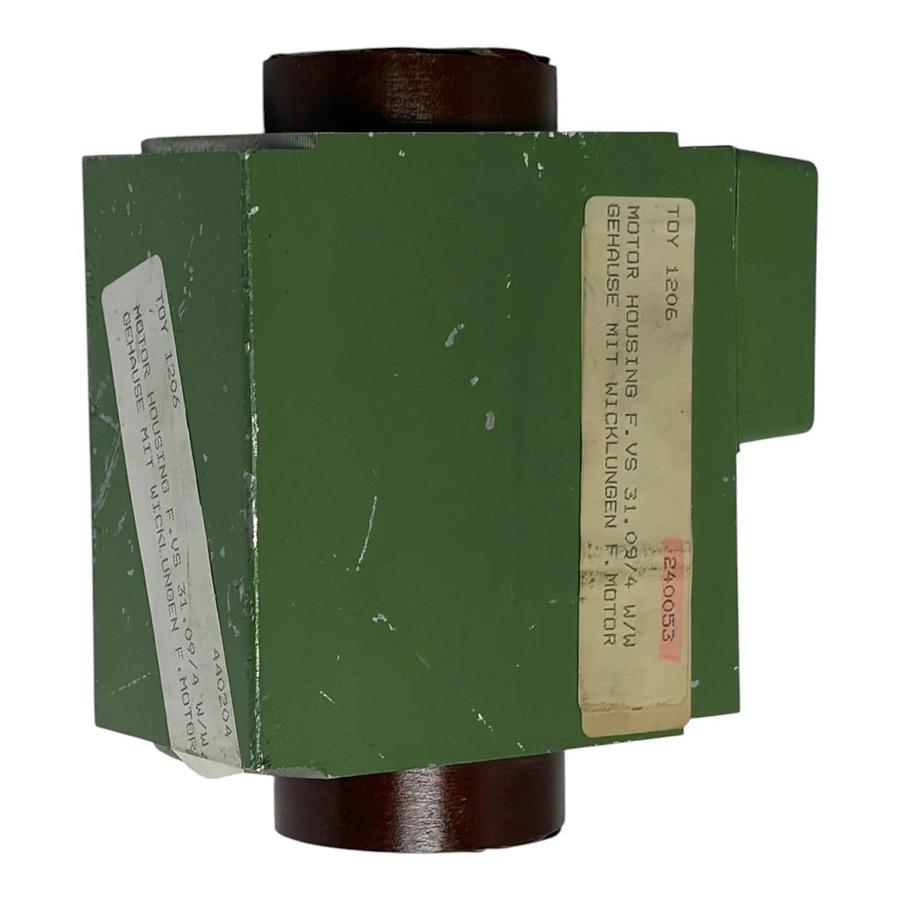

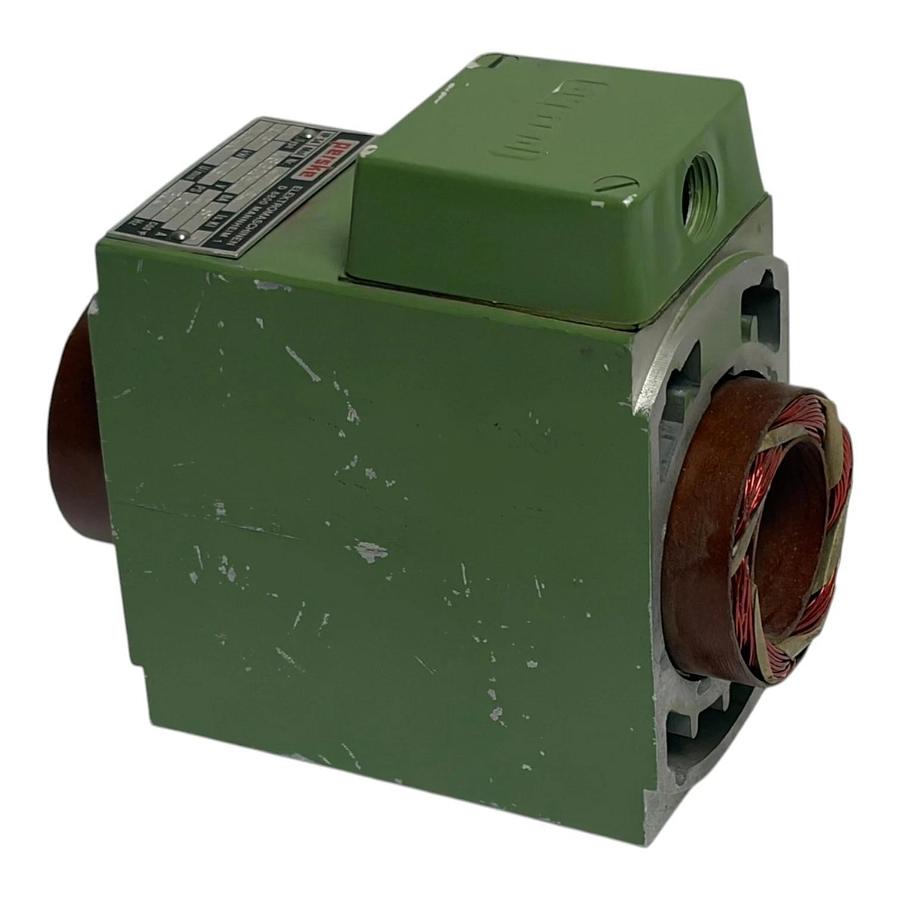

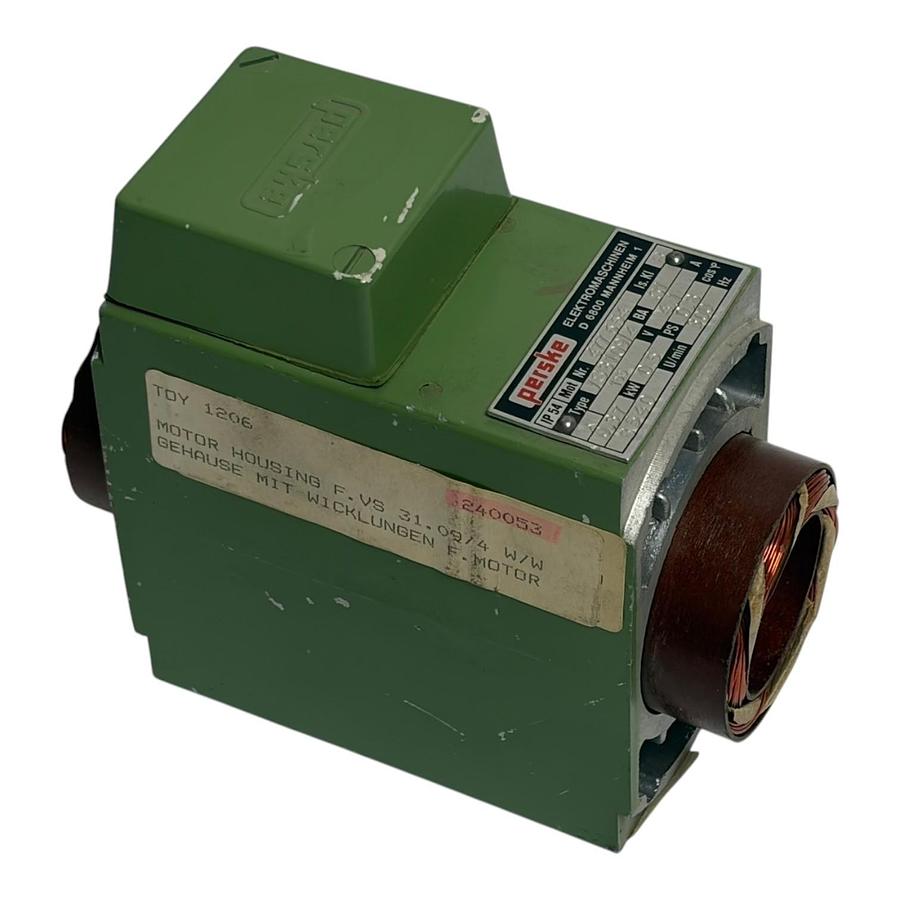

Perske VS31.09/4 Spindle Motor Housing Stator Windings 0.37kW 300Hz Unused Surplus Brand: Perske (Elektromaschinen D-6800 Mannheim 1) Model / Type: VS31.09/4 (VS 31.09/4) Motor Number (Mot. Nr.): 477 654 Type of Component: Motor Housing with Stator Windings (Gehäuse mit Wicklungen f. Motor) Power Rating: 0.37 kW (0.5 PS / Horsepower) Frequency: 300 Hz Synchronous Speed: 8540 U/min (RPM) Voltage Input: 165 V AC Current Rating: 4.1 A Power Factor: 0.8 cos phi Duty Cycle / Operating Mode: BA S1 (Continuous Duty) Insulation Class: Is. Kl. F Ingress Protection Rating: IP54 Internal Asset Tracking Tags: TOY 1206 / 240053 / 440204 Condition: New Other (See Details) Country/Region of Manufacture: Germany (West Germany / Federal Republic of Germany) For sale is a brand new, highly specialized industrial surplus Perske high-frequency spindle motor replacement housing assembly with pre-installed internal stator windings, type designation VS31.09/4. Precision manufactured in Germany by Elektromaschinen Perske Mannheim, this heavy-duty stator frame core is engineered specifically for high-speed machining applications, such as wood woodworking equipment, CNC milling machinery, and edgebanding routing systems (cross-referenced for specialized industrial machine lines). The internal high-frequency electromagnetic winding profile operates on an advanced 165V AC power threshold running at a high-speed 300 Hz frequency cycle, producing a powerful 0.37 kW (0.5 HP) continuous output capacity rated at an ultra-high 8,540 RPM operational speed. Encased within a durable, green-coated IP54 cast aluminum housing structure featuring an integrated top terminal wiring chamber block, this part functions as a complete replacement drop-in core station to fully overhaul or replace a burned-out or grounded stator section without requiring an entire machinery system retrofitting line. New Surplus / Shelf Wear. This high-frequency motor housing assembly is brand new and completely unused, safely stored long-term within a climate-controlled corporate spare parts room environment as an uninstalled factory warehouse backup. It has never had a rotor shaft inserted, been plumbed into a production cell assembly, or hooked up to live electrical power tracking grids. The internal copper wire coils and insulated sleeve wraps are in pristine, dry, factory-fresh physical condition with absolutely no field heat discolorations or resistance tracking damage. Because it was stored loosely on an open warehouse shelf alongside other components, the external green-painted metal casing exhibits common paint chips, superficial scratches, and minor shelf-scuff wear blemishes as visible in the photos. The original metal specification data plate is perfectly intact and entirely legible, and the paper facility asset tracking labels remain attached to the side casing walls. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 3159
