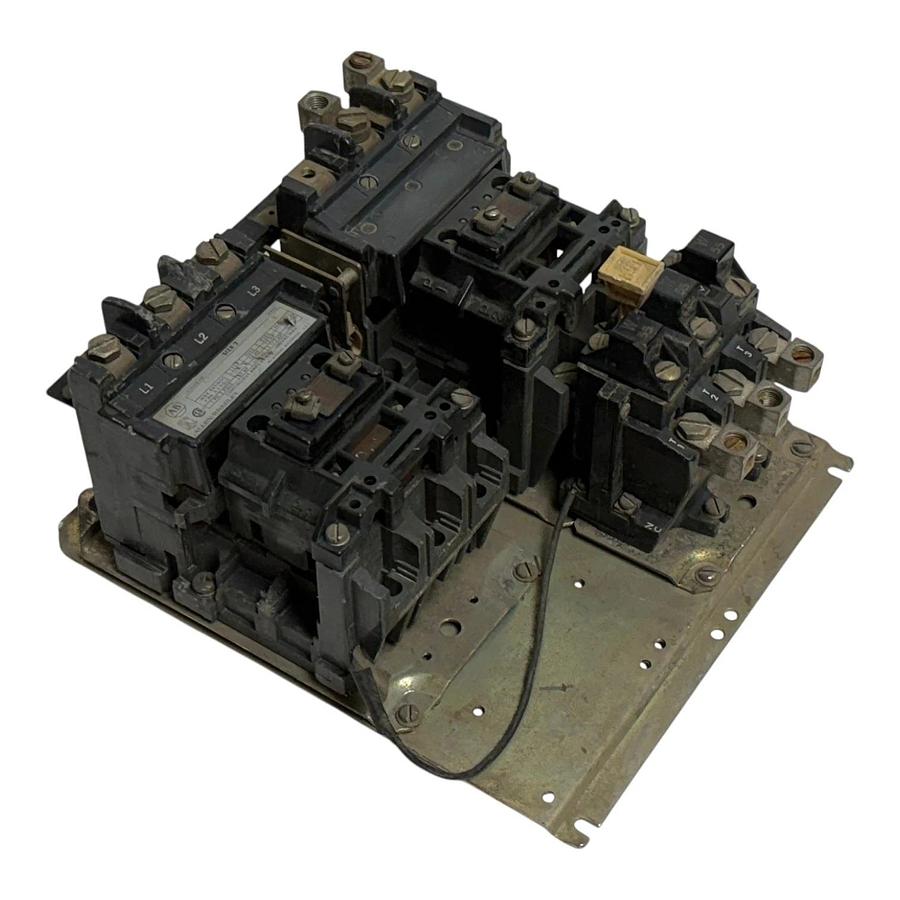

Allen-Bradley 505-C0D NEMA Size 2 Reversing Starter 45A 120V Coils

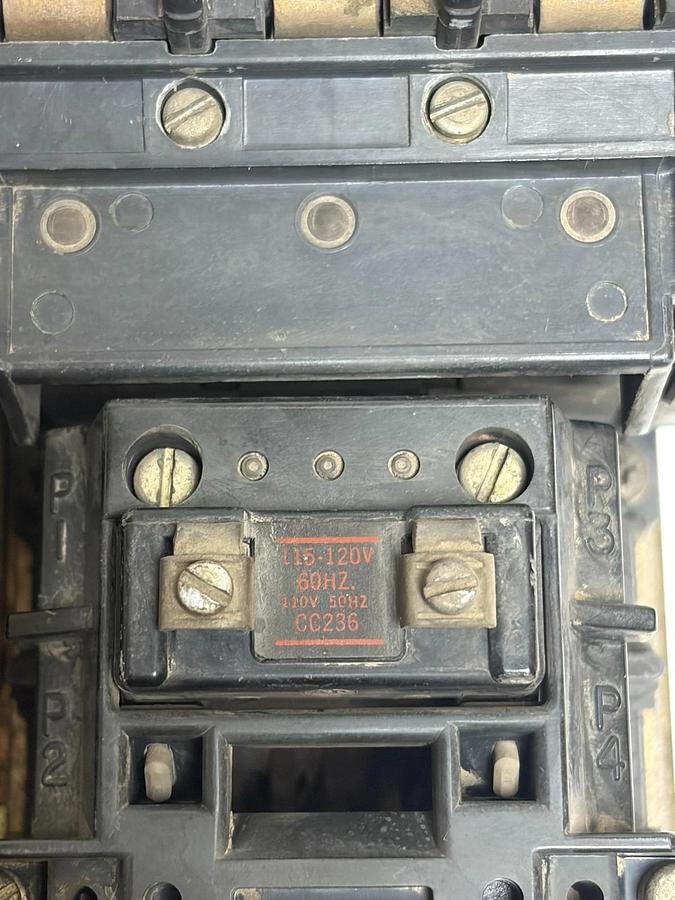

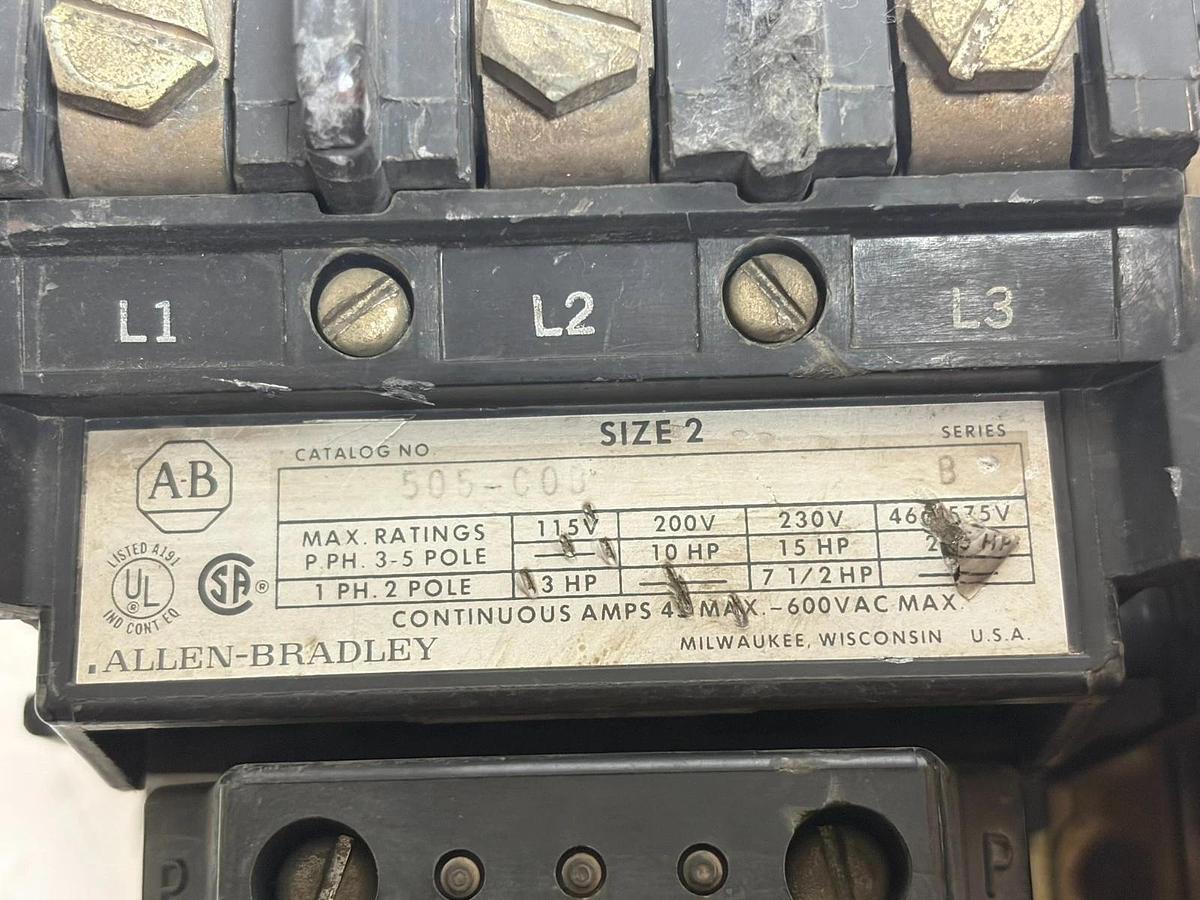

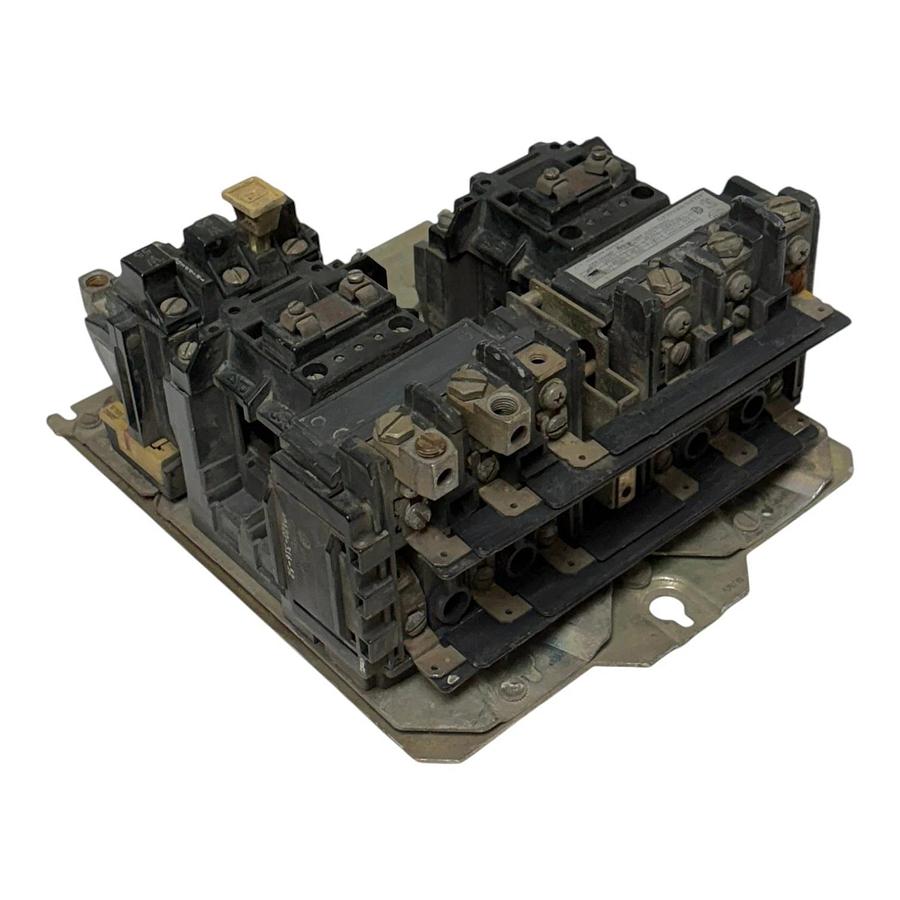

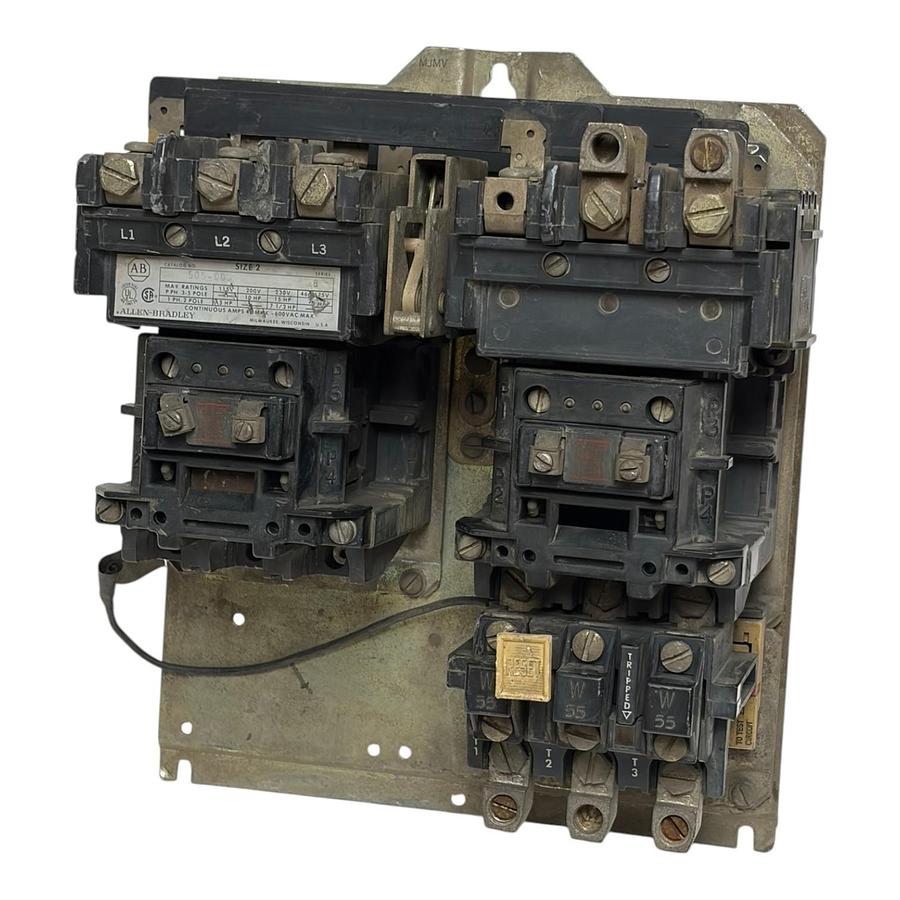

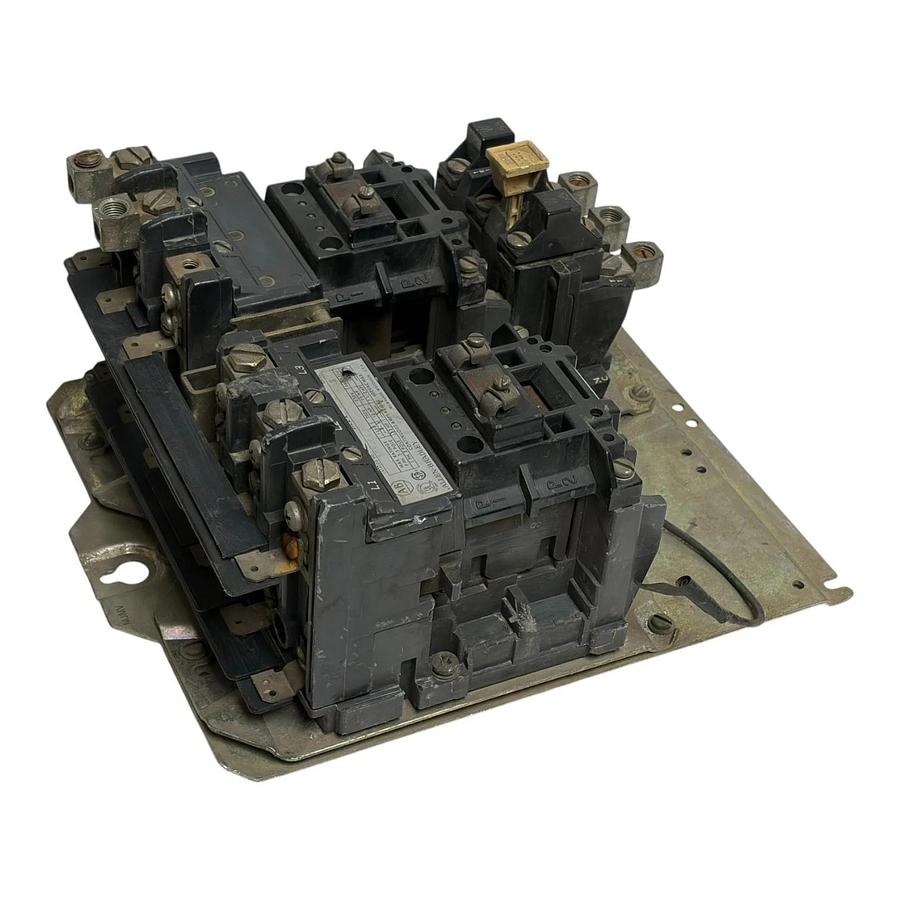

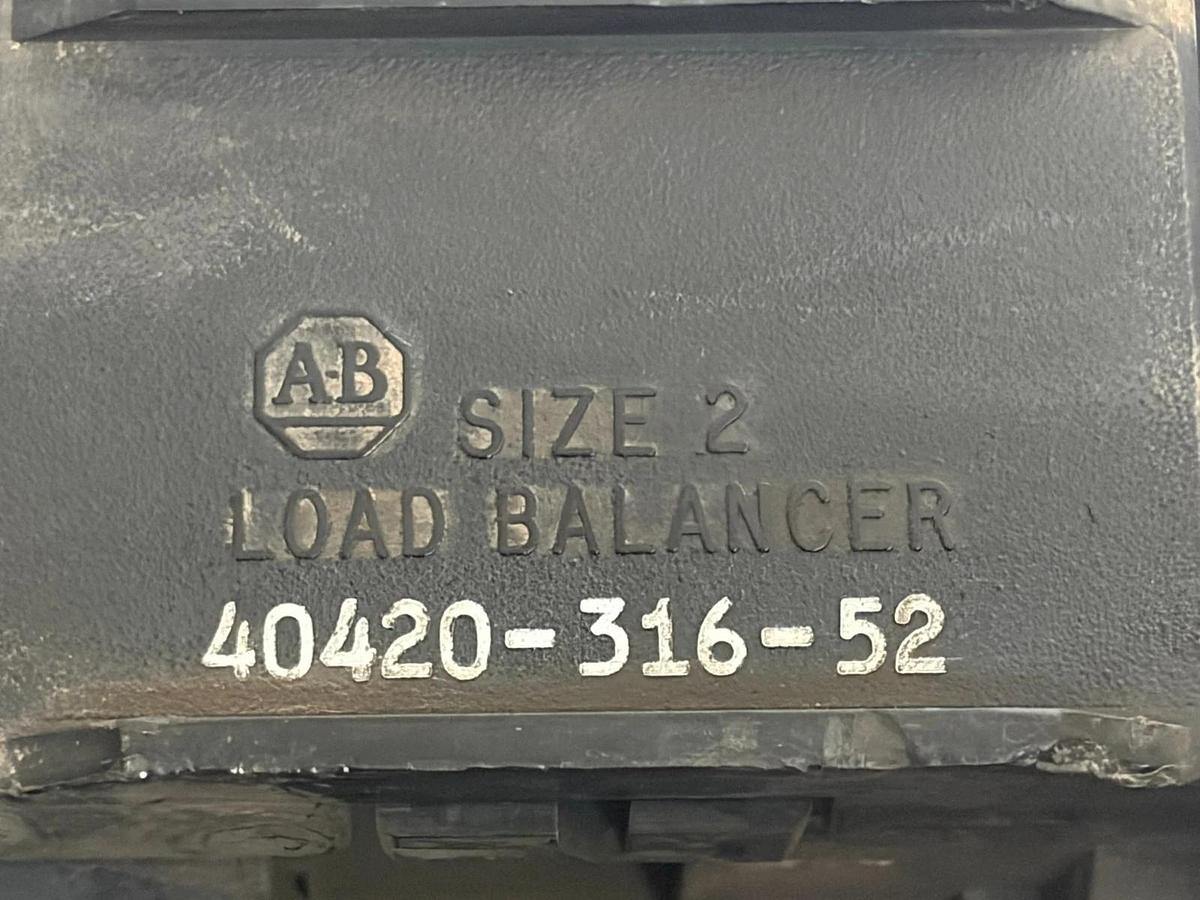

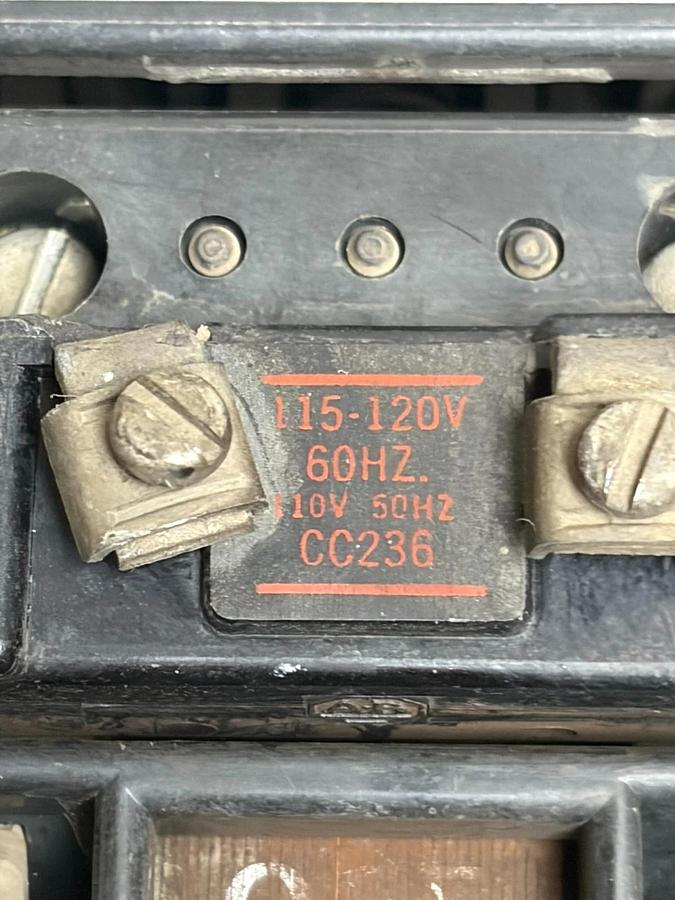

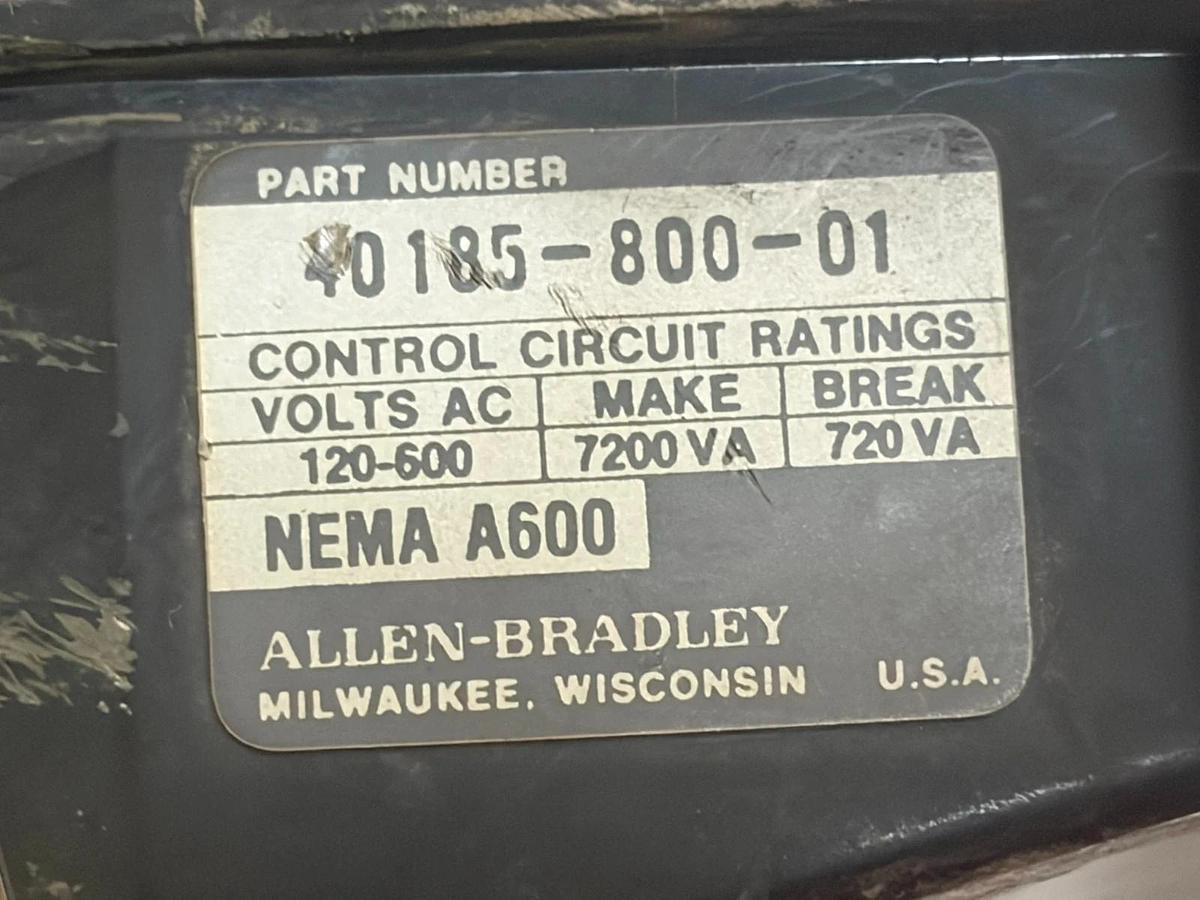

Allen-Bradley 505-C0D NEMA Size 2 Reversing Starter 45A 120V Coils Used Brand: Allen-Bradley (Rockwell Automation) Product Line: Bulletin 505 Reversing Magnetic Motor Starters Catalog Number: 505-C0D (Label shows 505-C0D with minor surface wear) Series: B Size Classification: NEMA Size 2 (SIZE 2) Part Number Assembly: 40420-316-52 Load Balancer Core Configuration Pole Configuration: 3-Pole Dual Contactor Layout (Polyphase 3-5 Pole Max Ratings) Amperage Rating: 45 Amps Continuous Max (CONTINUOUS AMPS 45 MAX) Voltage Rating: 600VAC Max Coil Specifications (Both Coils Matching): 115-120V 60HZ 110V 50HZ Coil Code / Part: CC236 Auxiliary Control Circuit Block Part Number: 0185-800-01 (NEMA A600 Rating, 120-600V, Make 7200VA, Break 720VA) Overload Relay Base: Includes 3 installed Type W55 thermal heater element blocks (W 55) with a manual tan RESET button and mechanical TRIPPED status indicator pointer window Maximum Horsepower Ratings (Polyphase 3-5 Pole): 200V: 10 HP 230V: 15 HP 460-575V: 25 HP Maximum Horsepower Ratings (Single Phase 2 Pole): 115V: 3 HP 230V: 7-1/2 HP Included Mounting Hardware: Pre-mounted to a custom heavy-duty steel backplate panel chassis Wiring Harness: Includes a factory black control jumper loop link routed between the dual contactor blocks Standards & Safety Approvals: UL Listed A191, CSA Certified Country of Manufacture: Made in U.S.A. (Milwaukee, Wisconsin) Condition: Used / Untested Take-out Condition Details and Notes for the Buyer: This heavy-duty Allen-Bradley industrial reversing motor starter is a pre-owned electrical panel pull-out item. The structural black thermoset composite contact blocks, terminal barrier walls, interlocking mechanism components, and mechanical reset housing are completely intact and solid with no physical cracks, breaks, or heat melting. The side-mounted component tracking placards and the silver technical specification faceplates show typical superficial handling marks, light scuffs, scratches, and warehouse dust from past active service, but all electrical metrics and part numbers remain entirely legible. The heavy steel base panel chassis is structurally sound, showing standard installation oxidation patina. All screw contact terminal blocks, bus connectors, and the three installed W55 heater block elements are clean with unstripped screw heads. CONDITION: USPI - Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ T106
