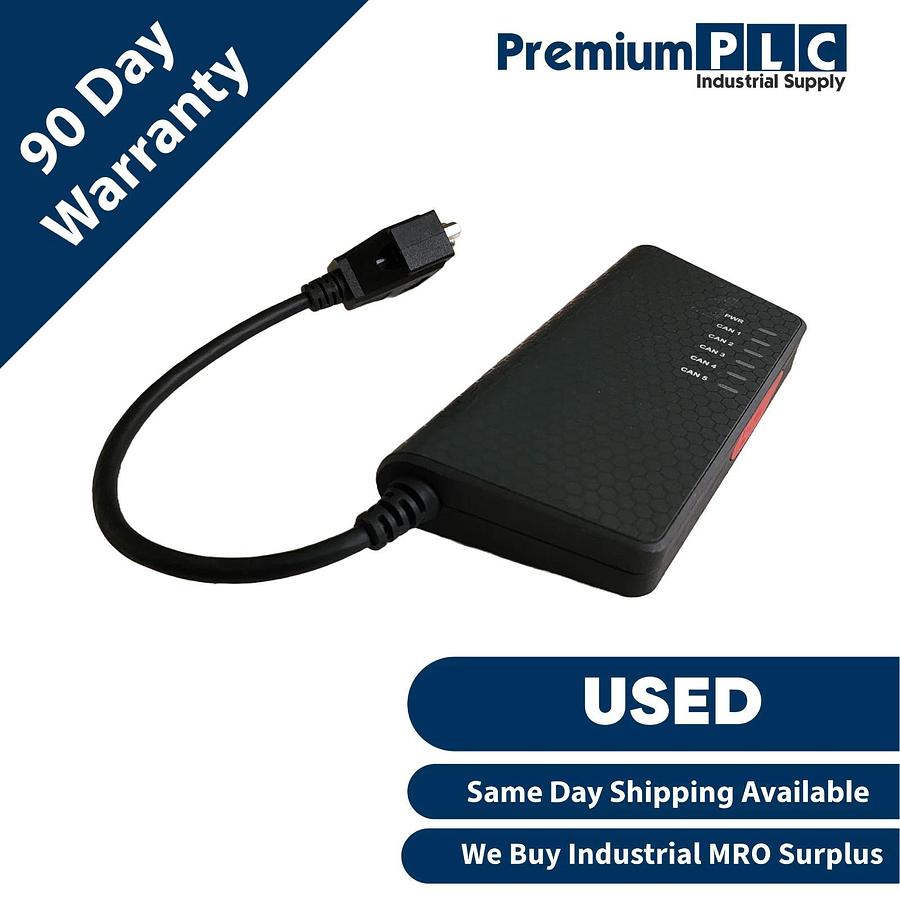

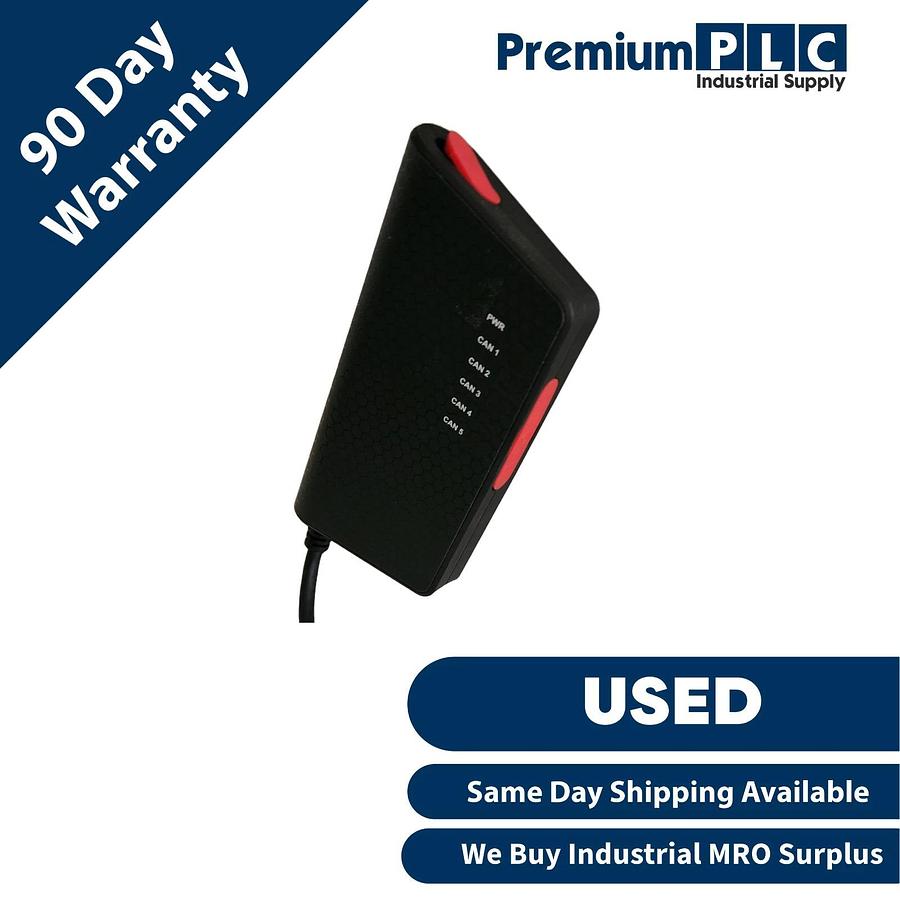

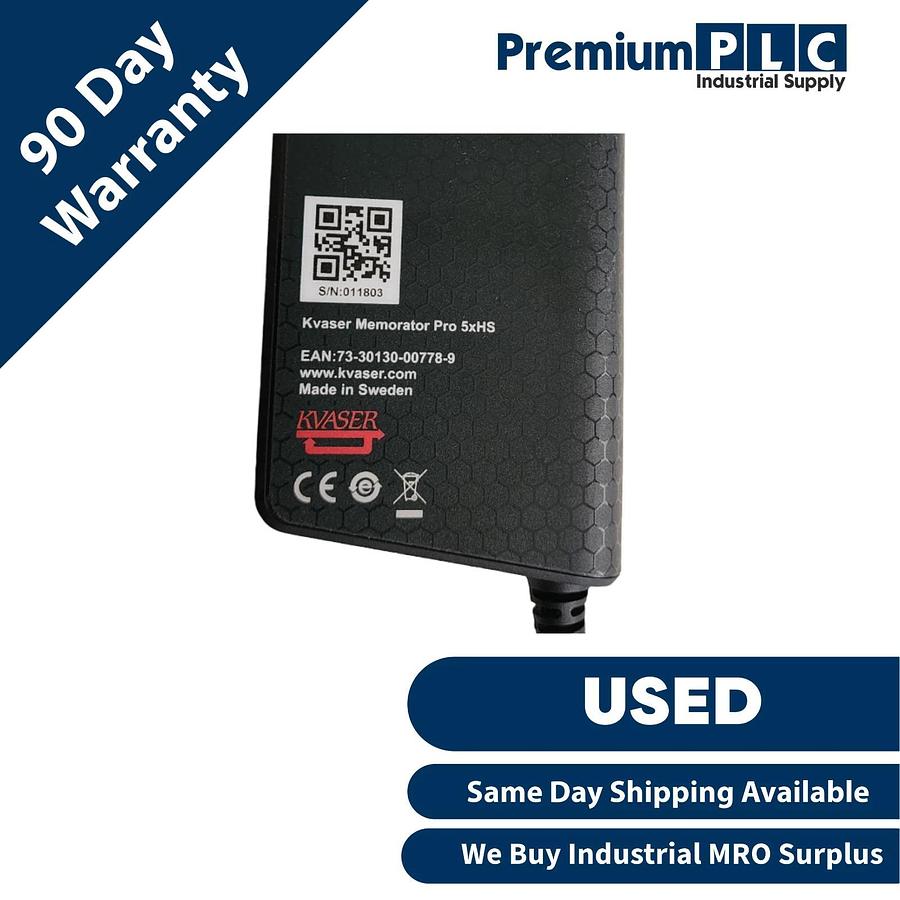

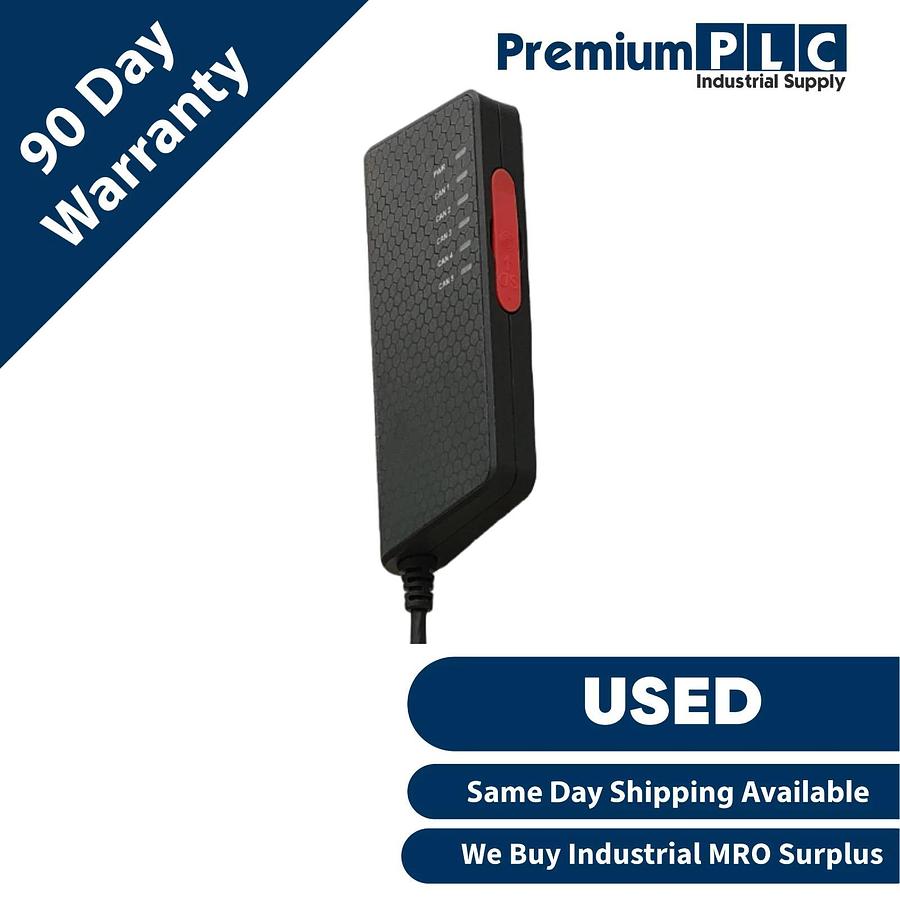

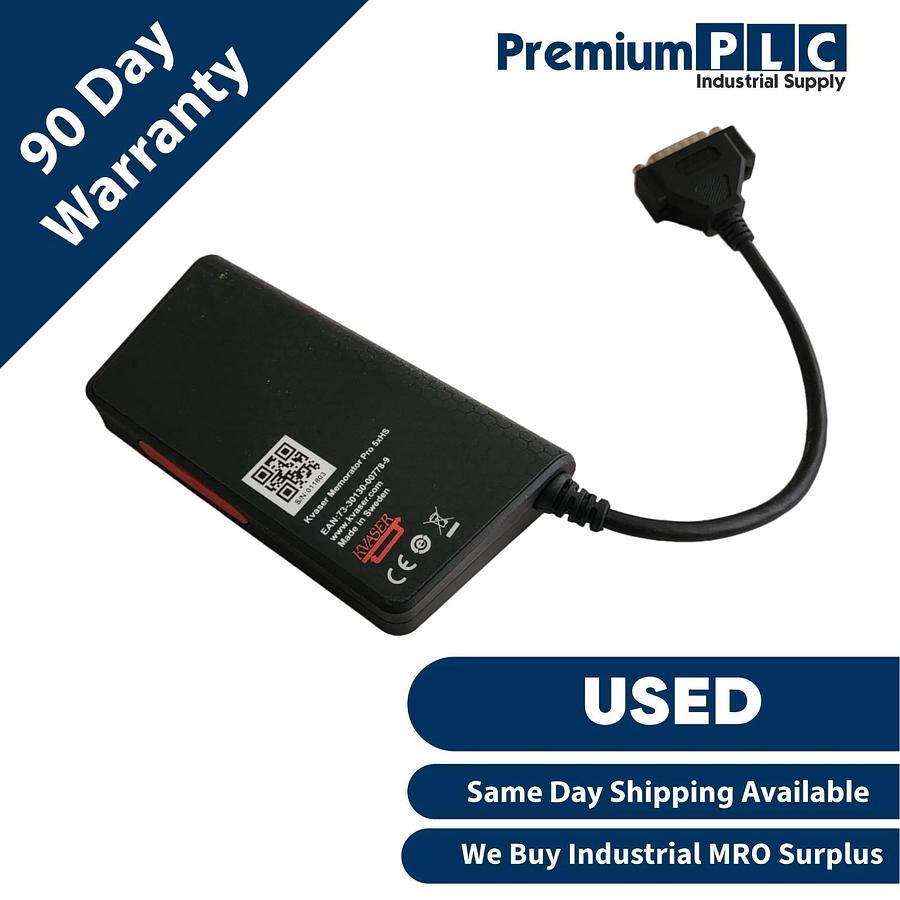

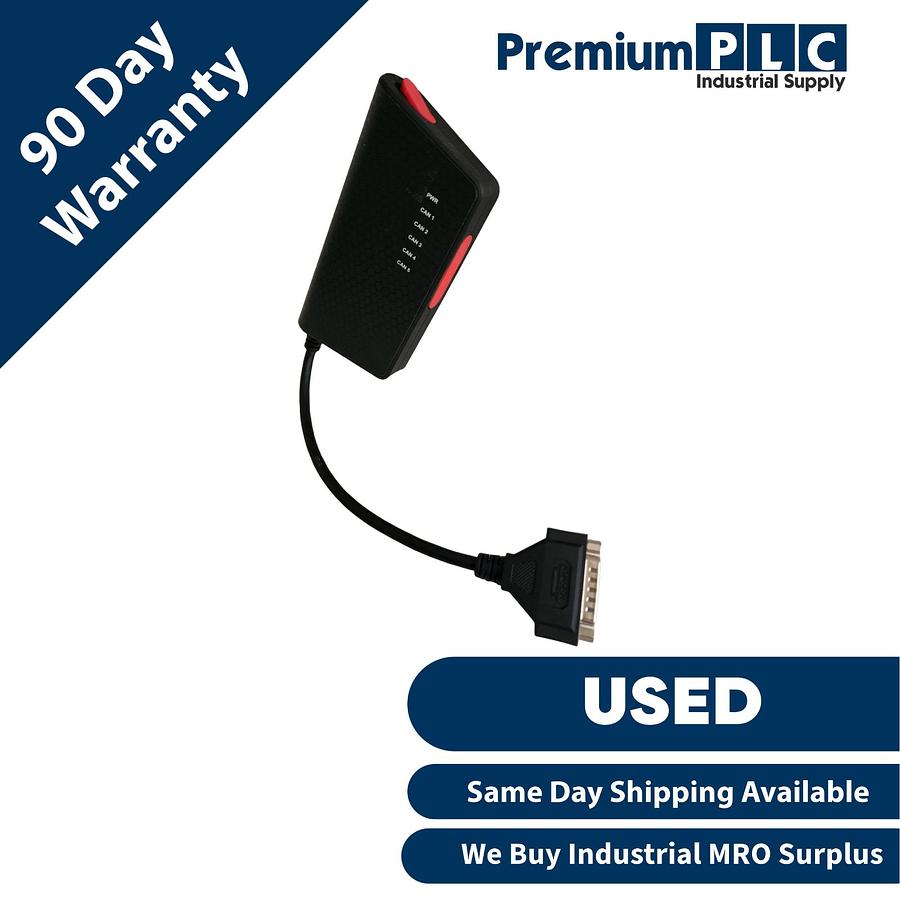

USED KVASER MEMORATOR PRO 5xHS 5-CHANNEL CANbus DATALOGGER 73-30130-00778-9

USED KVASER MEMORATOR PRO 5xHS 5-CHANNEL CANbus DATALOGGER 73-30130-00778-9 Kvaser Memorator Pro 5xHS is a five channel, high performance, CAN (controller area network) bus interface and standalone datalogger that allows users to monitor and collect data from up to five CAN channels using just one device. Standalone mode logs data to an SD card; interface mode connects to the PC via USB. This device supports CAN FD. Configurable using Kvaser's Memorator Config Tool, Memorator Pro 5xHS is also capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is supplied. TECH SPECS: Bitrate 40-1000 kbps CAN FD Bitrate Up to 8 Mbit/s Categories Hardware, Dataloggers Certificates CE, RoHS Channels 5 Connectors 26-pin HD D-SUB Current Consumption Up to 3W Error Counters Reading Yes Error Frame Generation Yes Galvanic Isolation Yes Height 68 mm Included Card Size 16GB Interfaces USB Length 170 mm Material PA66 Max Card Size 64+ Messages Per Second Receive 20000 mps Messages Per Second Sending 20000 mps OS Linux, Win 7, Win 10, Win 8 Silent mode Yes Sound No Temp range -40 °C to +85 °C Timestamp Resolution (µs) 1 µs Weight 150 g CONDITION: USED COMES AS SHOWN IN PHOTOS WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________
