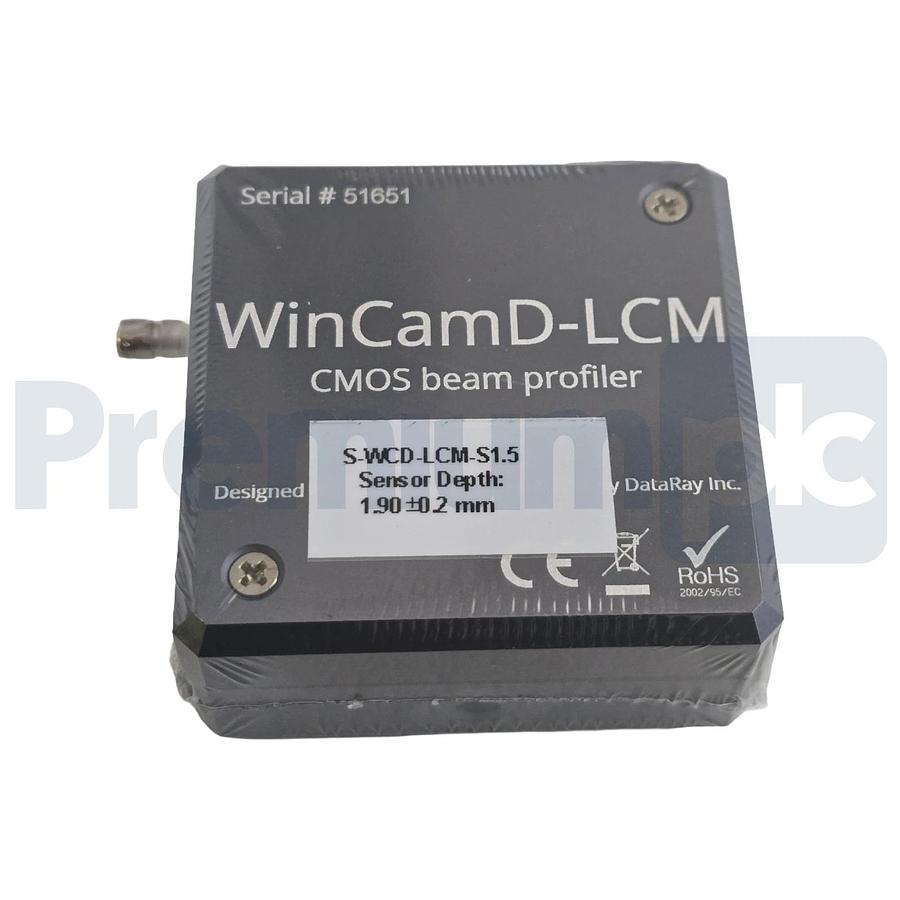

DataRay WinCamD-LCM CMOS Beam Profiler S-WCD-LCM-S1.5 2048x2048 Pixels USB3 NSMP

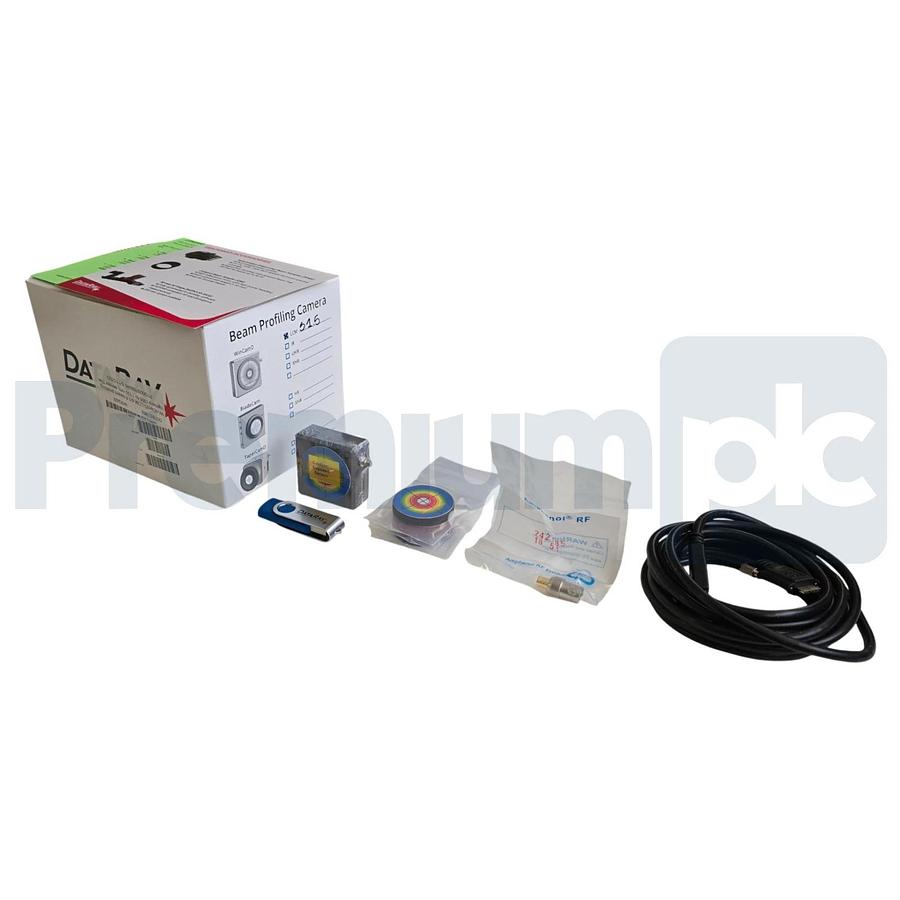

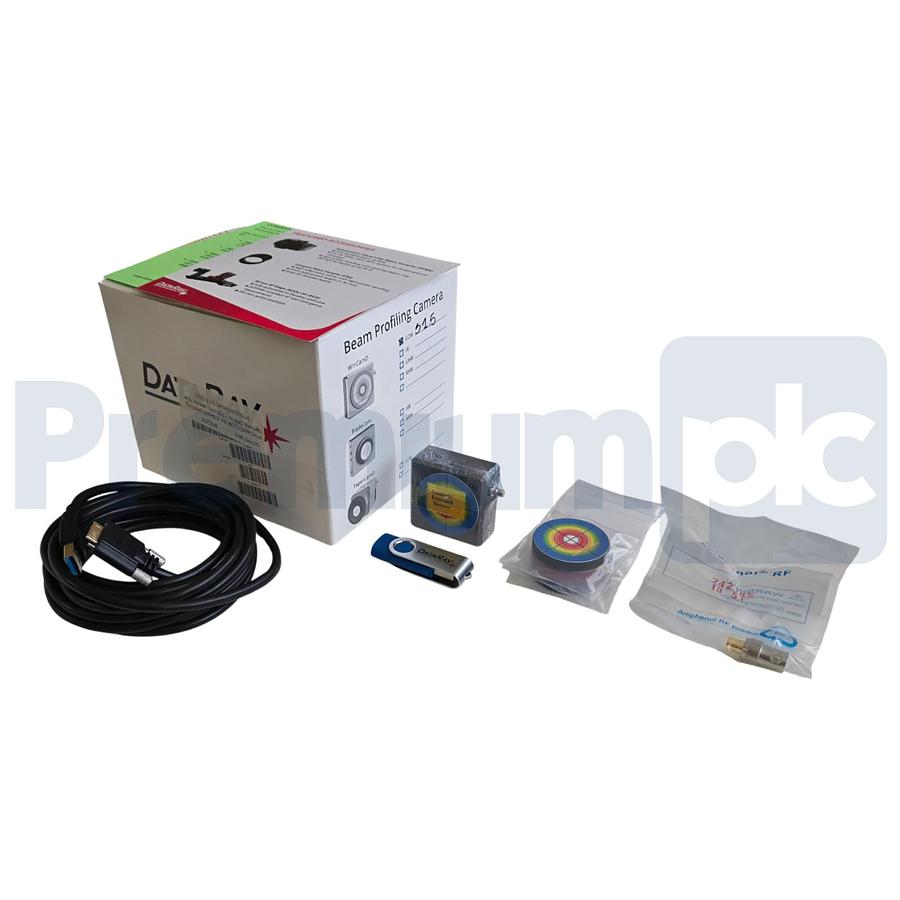

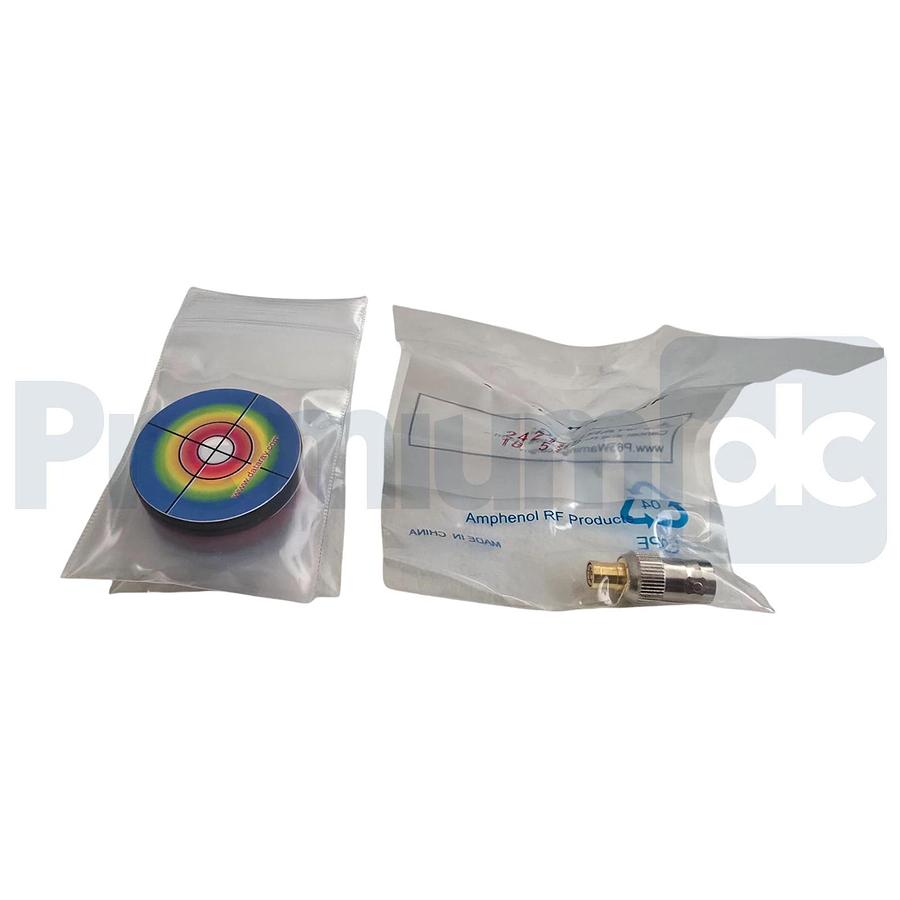

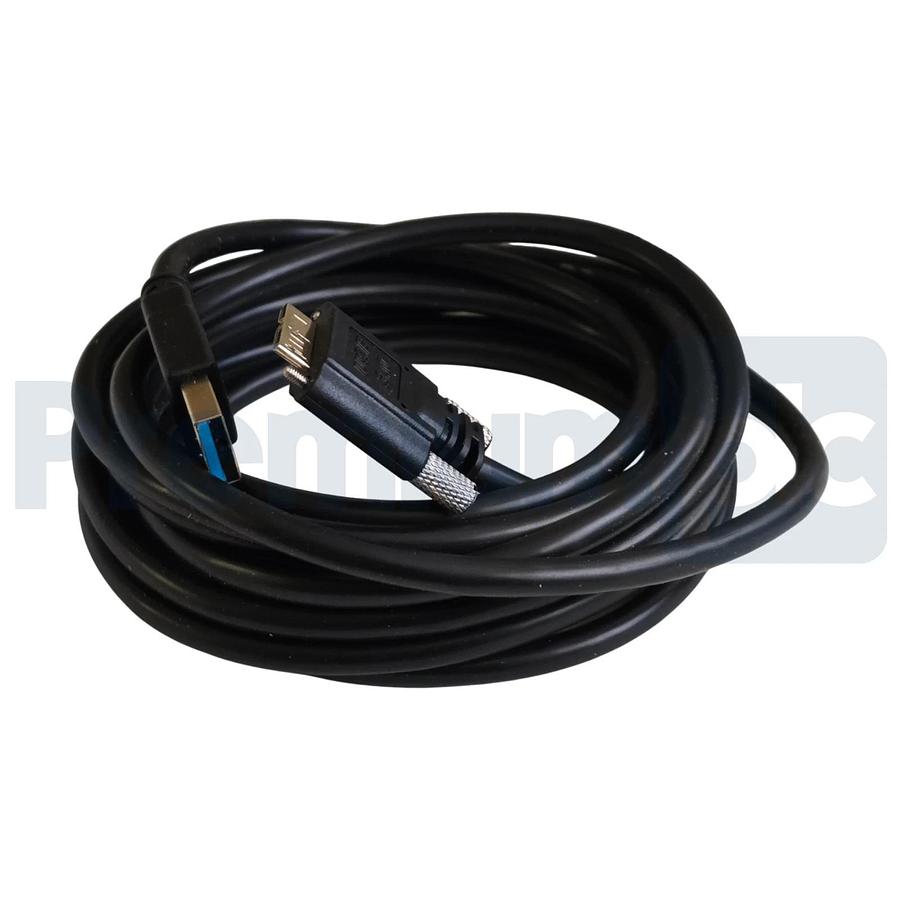

DataRay WinCamD-LCM CMOS Beam Profiler S-WCD-LCM-S1.5 Wavelength 355-1150nm Sens or Depth: 1.90 +/-0.2mm 2048x2048 Pixels USB3 NSMP DataRay Beam Profilers provide excellent solutions for beam analysis of both continuous wave and pulsed laser sources. The integrated CMOS sensor eliminates comet trailing for higher resolution output and allows for update rates of 60+ Hz. Sensors are available with active sizes of 6.6, 11.3, and 25mm horizontals, enabling measurement of large beam diameters. DataRay Beam Profilers have the added advantage of a free, robust software with analysis features such as M² measurement, beam wander and logging, and instrument alignment. These profilers are USB3.0/2.0 powered and include a 3m flexible screw locking cable. Neutral density filters with optical densities of 1.0, 2.0, and 4.0 are included. Key Features 355 to 1150 nm, standard CMOS detector TEL sensor options for 1480 to 1610 nm UV and 1310 nm options available 4.2 MPixel, 2048 x 2048 pixels, 11.3 x 11.3 mm active area 5.5 µm pixels 60 fps @ 512 x 512, 30 fps @ 1024 x 1024, 12 fps @ 2048 x 2048 Port-powered USB 3.0 HyperCal ⢠â Dynamic Noise and Baseline Correction software MagND⢠stackable magnetic ND filters or C-mount filters 2,500:1 Signal to RMS Noise Global shutter with TTL trigger Electronic auto-shutter, 85 µs to 2 sec (44 dB) 12-bit ADC Isolated pulse triggering Parallel capture on multiple cameras Field-replaceable image sensors Relative power level display Window-free sensors standard for no fringing ISO 11146 M² option â beam propagation analysis, divergence, focus Available in specialized beam profiler systems Industrial Laser Monitoring System (ILMS) Large Beam Profiling System (LBPS) Line Laser Profiling System (LLPS) Example Applications CW & pulsed laser profiling Field servicing of lasers and laser-based systems Optical assembly & instrument alignment Beam wander & logging M² measurement with available M2DU stage * requires UV reflective ND filters CONDITION: NSMP - New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________
