NEW TELEDYNE DALSA PIRANHA HS-40-04K40 HIGH SENSITIVITY LINE SCAN CAMERA W/ LENS
$5,250
Description

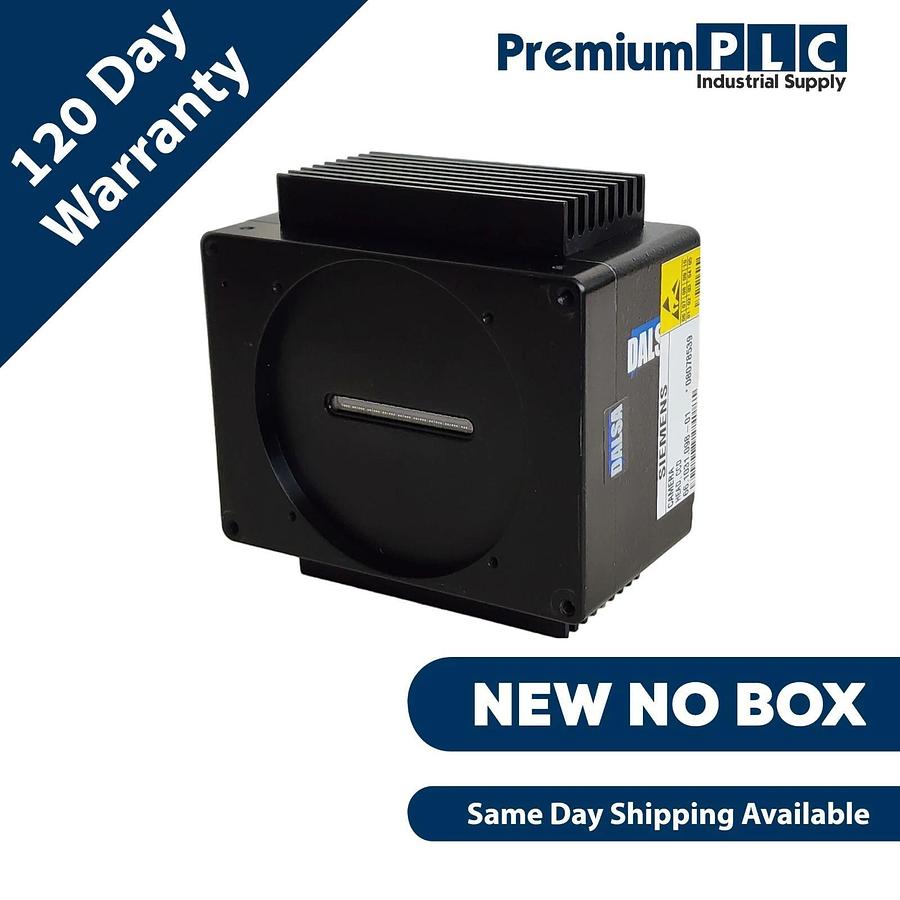

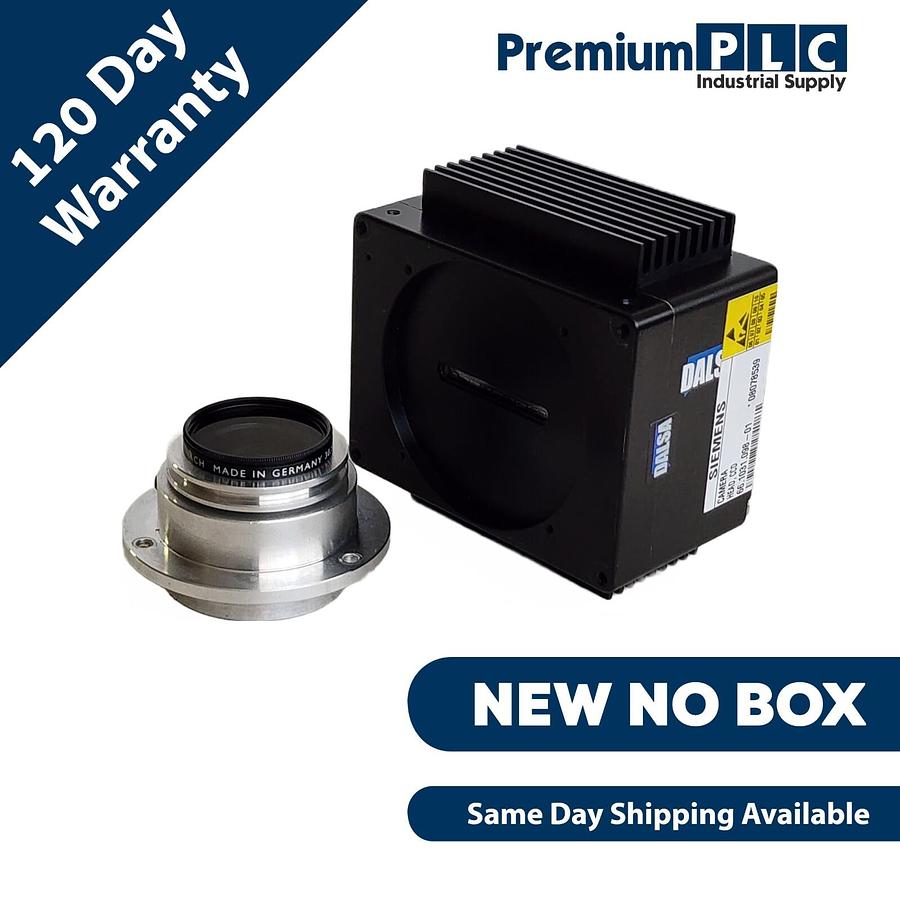

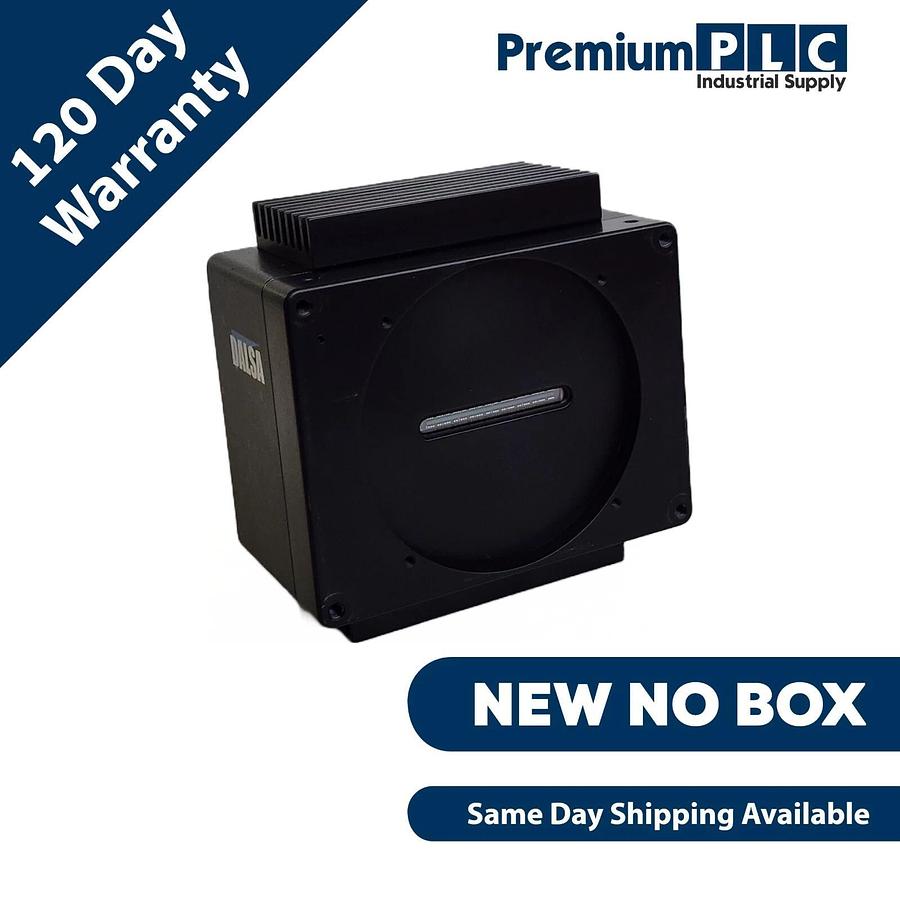

NEW TELEDYNE DALSA PIRANHA HS-40-04K40 HIGH SENSITIVITY LINE SCAN CAMERA W/ LENS

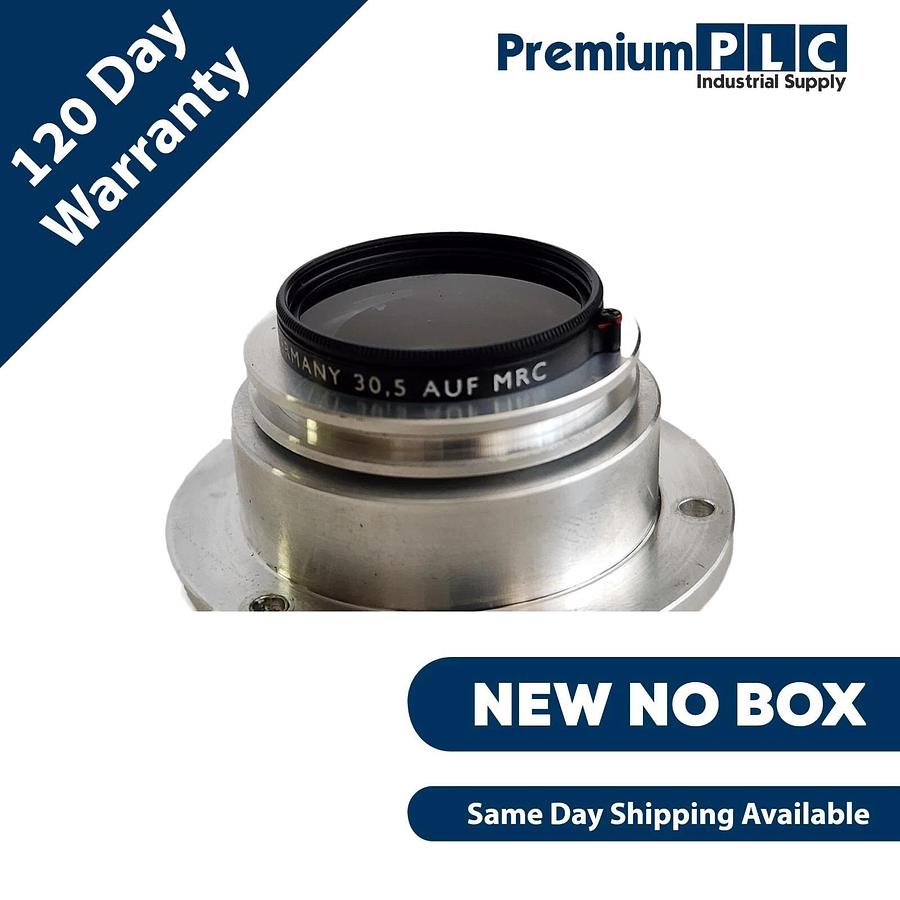

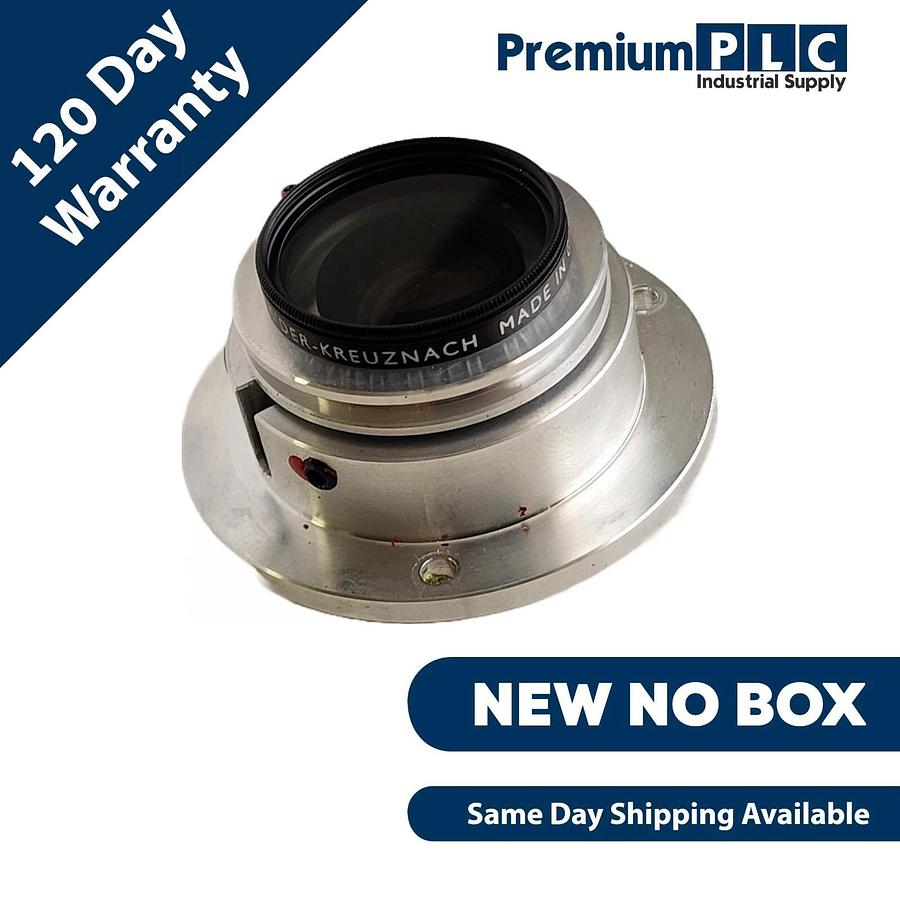

LENS: SCHNEIDER-KREUZNACH 30.5 AUF MRC
Specifications
Resolution: 4096 x 96
TDI
Data Rate: 160
megapixels/second, selectable
Max. Line/Frame Rate: 36 kHz
Pixel Size: 7 μm
Data Format: 8 , 12
bit
Output: Base, Med
Camera Link
Lens Mount: M42 x 1,
F mount
Responsivity: 1170
DN/(nJ/cm²)broadband,8 bit,10 dB
Dynamic Range: 63 dB
Nominal Gain Range: ±10 dB
Size: 85 mm x 85 mm x
55.4 mm
Mass: < 500 g
Operating Temp: 0 °C
to 50 °C
Power Supply: 12 V to
15 V
Power Dissipation: <10 W
Regulatory Compliance: CE and RoHS (pending)

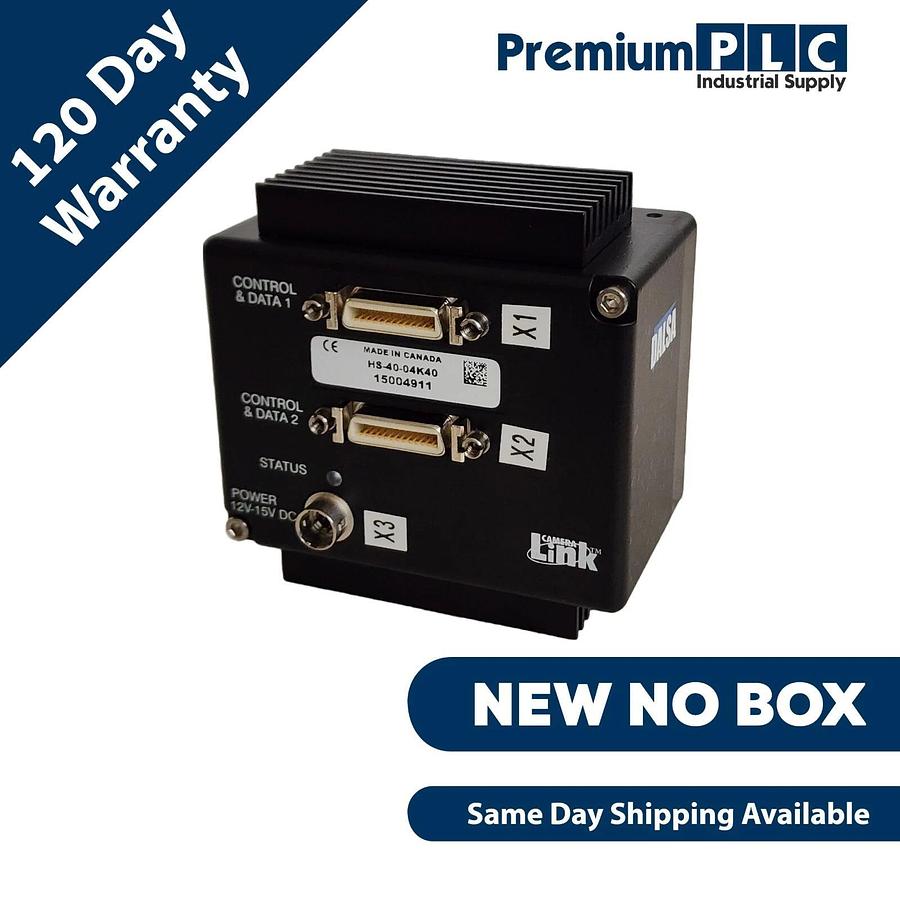

Control: MDR26 Camera
Link
Data: Shared with
Control
Power: Hirose HR10 6
pin

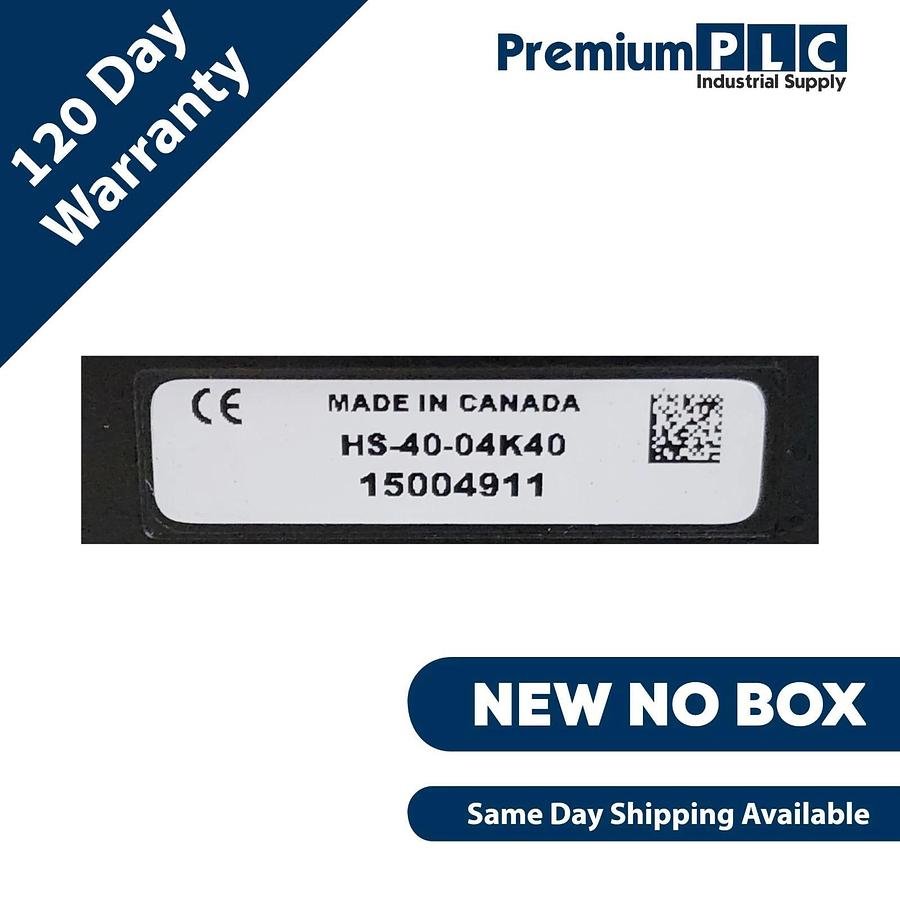

Example Part Number: HS-40-04k40
CONDITION: NEW NO BOX. WAS MOUNTED BUT NEVER PUT INTO OPERATION.
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
_________________________________________________________________________________
1064
Specifications
| Manufacturer | Dalsa |
| Model | HS-40-04K40 |
| Condition | New |
| Country of Origin | Canada |
| Type | High Sensitivity Line Scan Camera |
