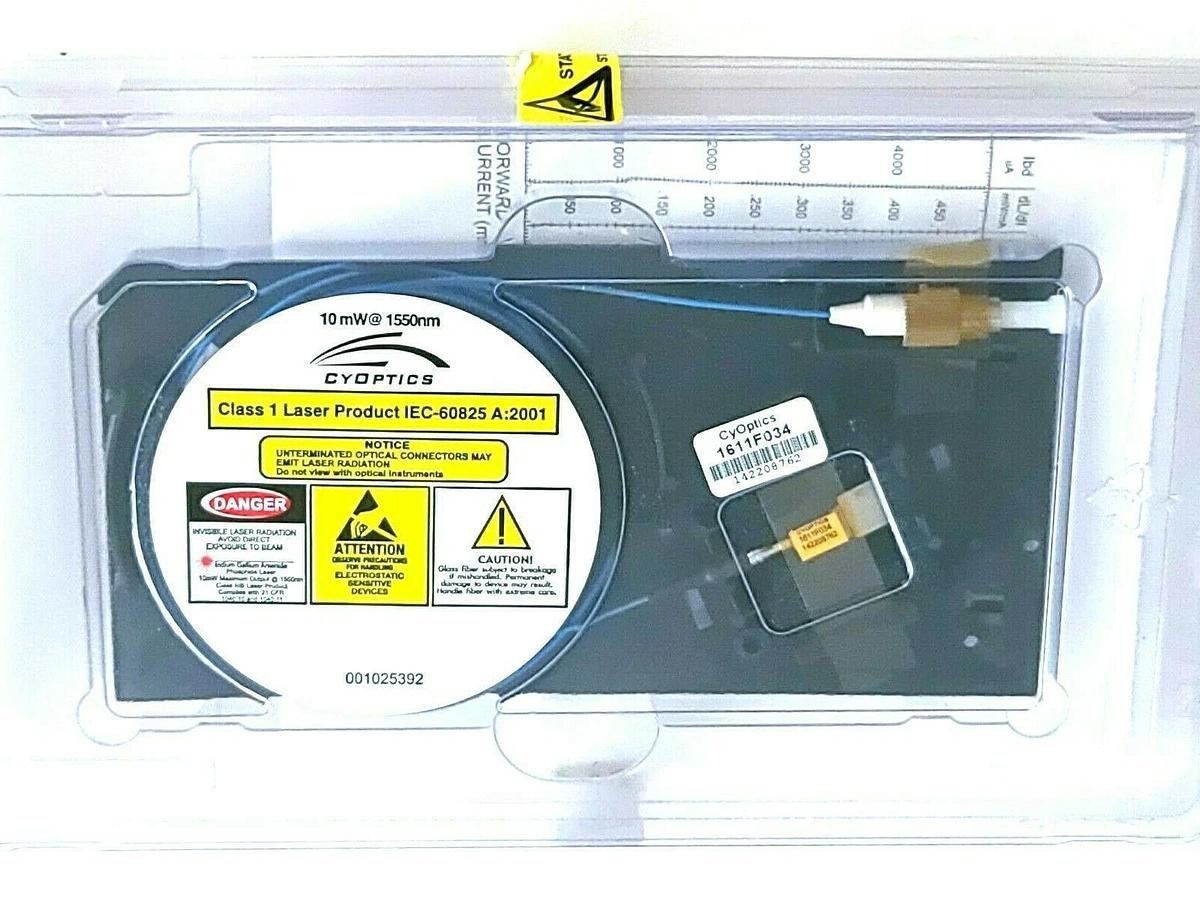

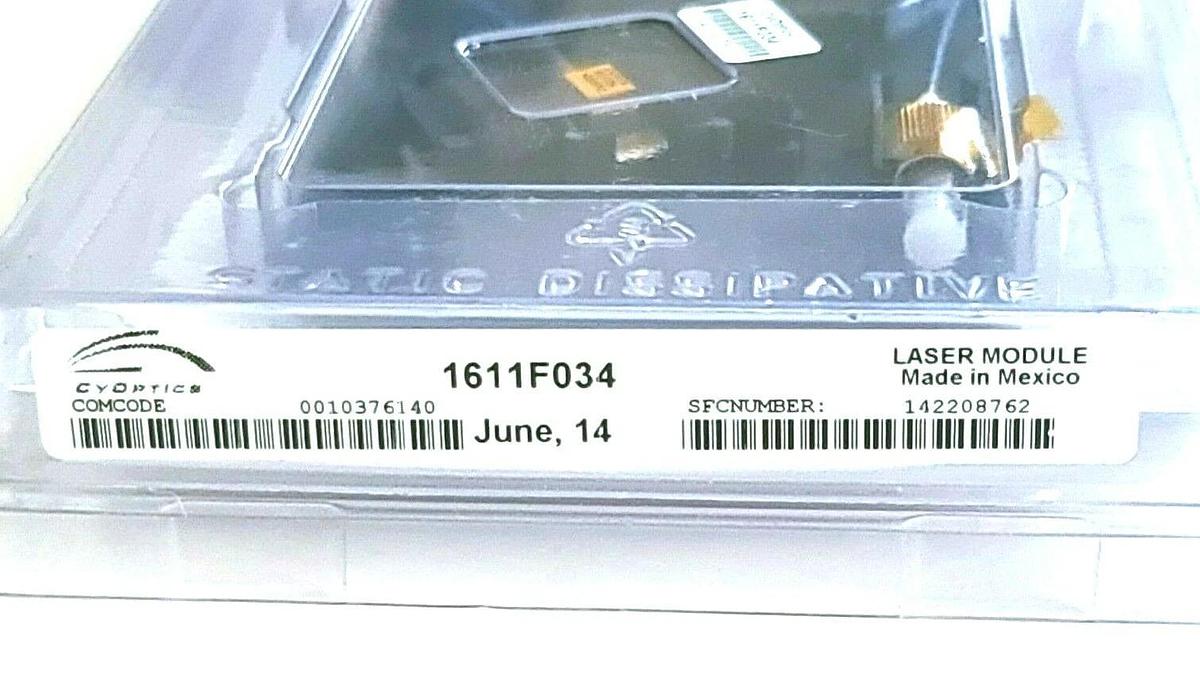

CYOPTICS 1611F034 193.4 THz 1610-SERIES MSA-COMPATIBLE 2.5 GB/S COOLED DFB TOSA

CYOPTICS 1611F034 193.4 THz 1610-SERIES MSA-COMPATIBLE 2.5 GB/S COOLED DFB TOSA Description The 1610/11-Series 2.5 Gb/s transmitter optical subassembly (TOSA) integrates a high-speed laser, a monitor photodiode and a micro-TEC in a small form-factor metallized ceramic package. It is designed for use in small form-factor pluggable (SFP) transceivers and other types of optical modules for high-speed telecommunication and data applications including WDM SONET OC-48, SDH STM-16, Fiber Channel and Gibabit Ethernet. The 1610/11-Series is available in the full range of C band ITU-T wavelengths operating at 2.5 Gb/s per channel. The device exhibits excellent wavelength stability, supporting operation at 100 GHz channel spacing over 15 years (assuming an end-of-life aging condition of <±90 pm), with low hazard rates (~100FIT wearout over 20 yrs.). Features: ⢠Ultra small form factor 9-pin MSA DFB TOSA ⢠Data rates up to 2.7Gb/s ⢠For use up to 200 km (4000 ps/nm) at 2.5 Gb/s ⢠+6 dBm typical optical output power (200km version) ⢠Wavelength selectable to ITU-T grid wavelengths, C band and L band wavelengths ⢠Suitable for use in 100GHz channel spacing DWDM systems ⢠Temperature stabilized; can also be operated in partially cooled mode for CWDM applications ⢠Maximum power consumption less than 0.2W ⢠LC receptacle or pigtailed versions available ⢠25W single-ended data input ⢠Case operating temperature ranges: -5 to +75°C (standard) -40 to +85°C (extended) Applications: ⢠SFP Transceivers for DWDM, CWDM and SONET/SDH, GbE & Fibre Channel ⢠Line cards #1 (2)
