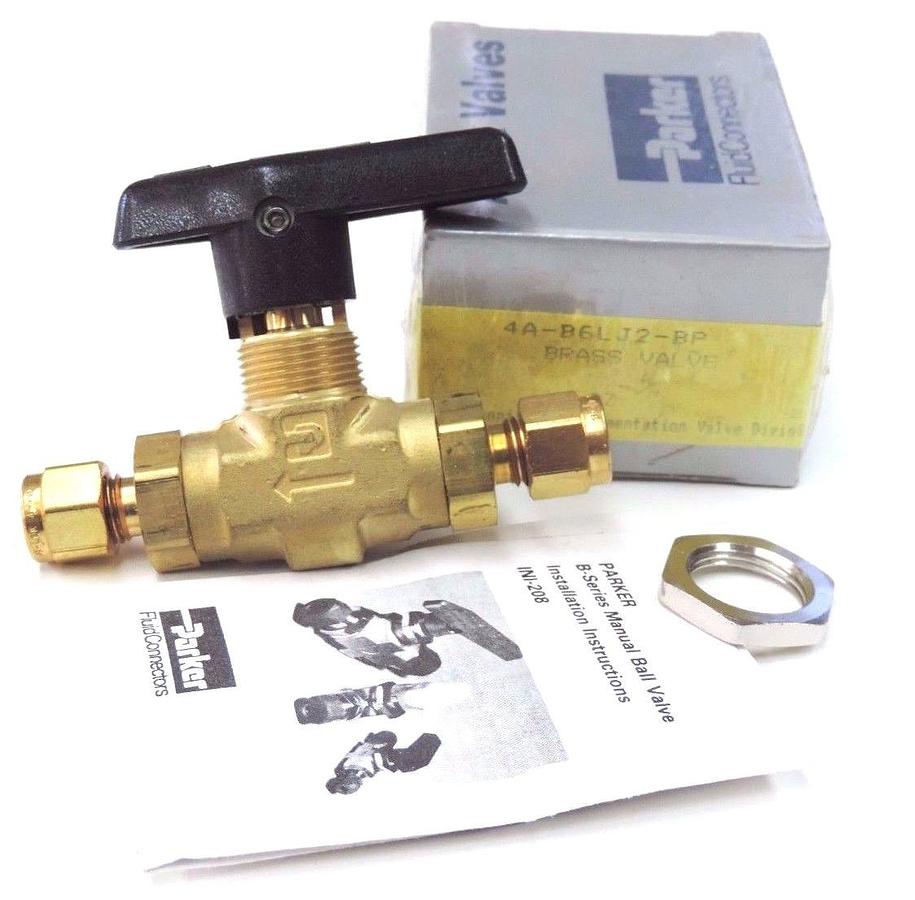

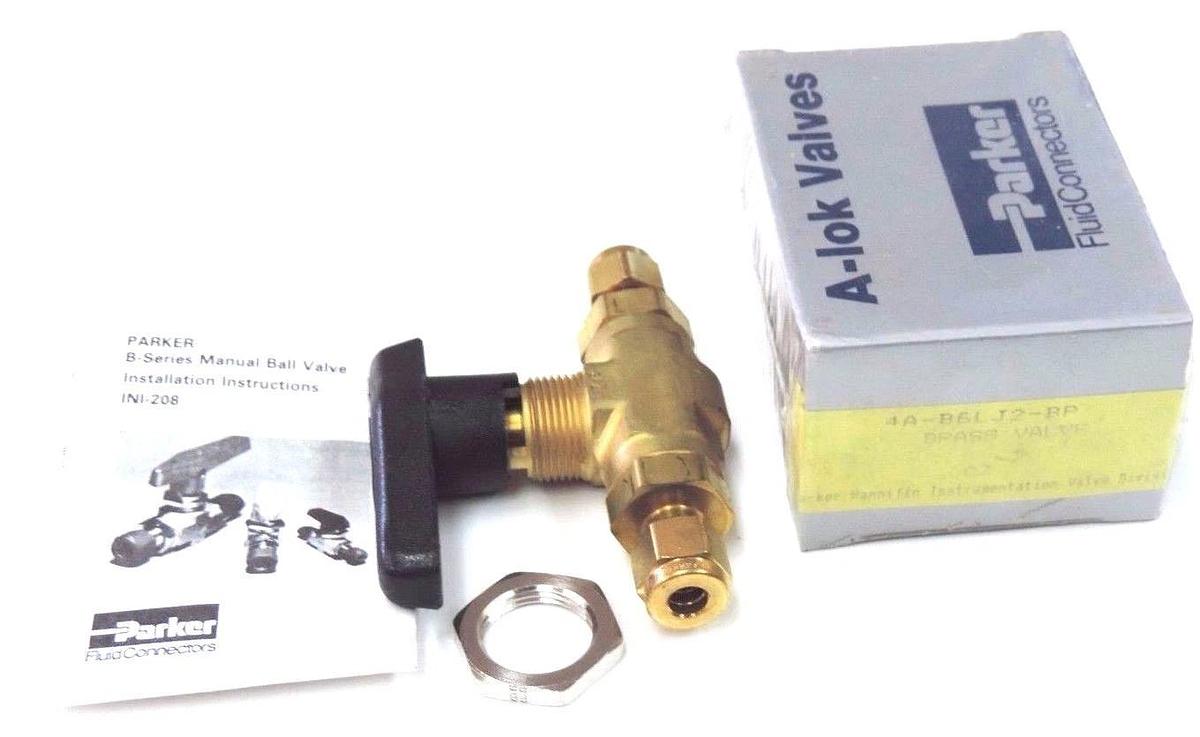

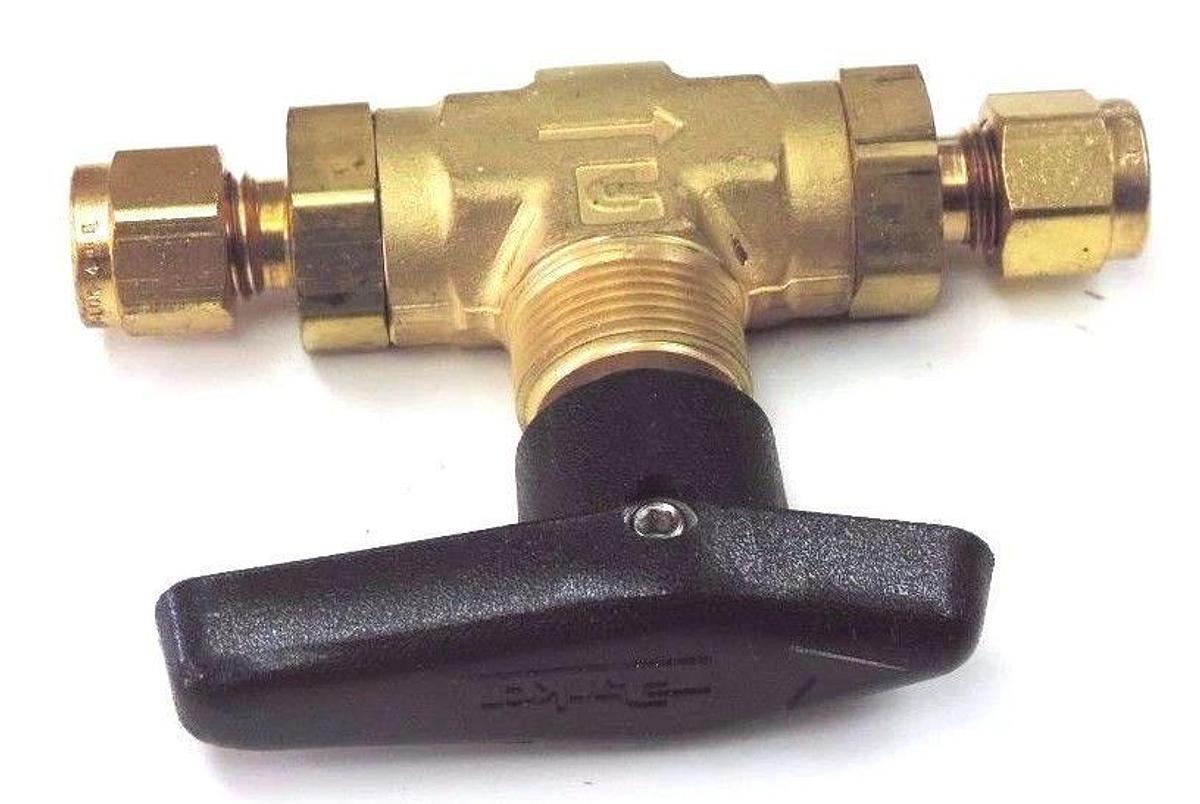

NIB PARKER 4A-B6LJ2-BP 1/4" TWO-WAY B SERIES BRASS BALL VALVE 4AB6LJ2BP
$72.50
Shipping: Free 2-4 day delivery
Description
NIB PARKER 4A-B6LJ2-BP 1/4" TWO-WAY B SERIES BALL VALVE 4AB6LJ2BP
Body Material:
BP - Brass
Port:
4A - 1/4" A-LOK
Dimensions G Inches (mm):
1.88 (47.8)
Seal Material:
Blank - PTFE
Dimensions C Inches (mm):
0.33 (8.4)
Dimensions H Inches (mm):
0.58 (14.7)
Dimensions I Inches (mm):
0.13 (3.3)
Dimensions D Inches (mm):
0.33 (8.4)
Dimensions E Inches (mm):
0.94 (23.9)
Dimensions F Inches (mm):
0.75 (19.1)
Flow Data Cv:
0.93
Flow Data XT:
0.43
Flow Data Orifice Inch:
0.165
Flow Data Orifice mm:
4.2
Dimensions B inch (mm):
1.48 (37.6)
Dimensions A Inches (mm):
1.48 (37.6)
Seat Material:
J2 - PCTFE
Valve Series:
B6L
Colored Lever Handles:
Black = Standard
Pressure Ratings CWP:
3000 psig (207 bar)
Pressure Ratings with PTFE Seats:
1500 psig (103 bar)
___________________________________________________________________________________________________________________________________________________________
C6
Specifications
| Manufacturer | PARKER |
| Model | 4A-B6LJ2-BP |
| Condition | Used |
| Country of Origin | United States |
