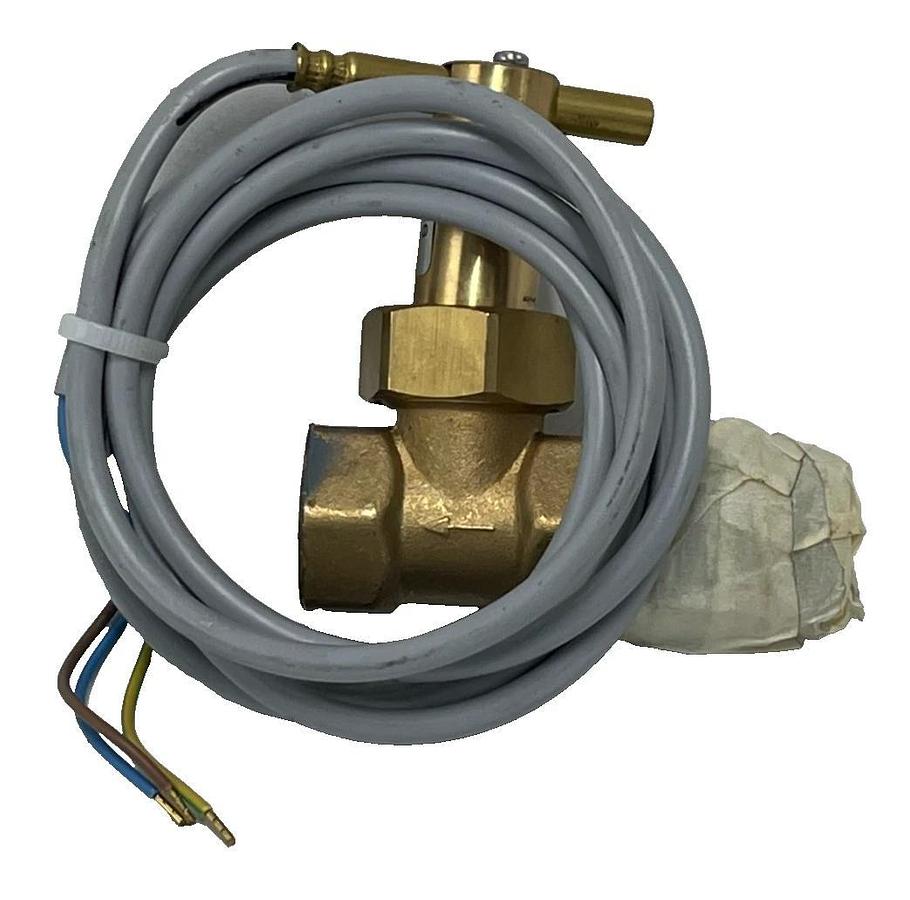

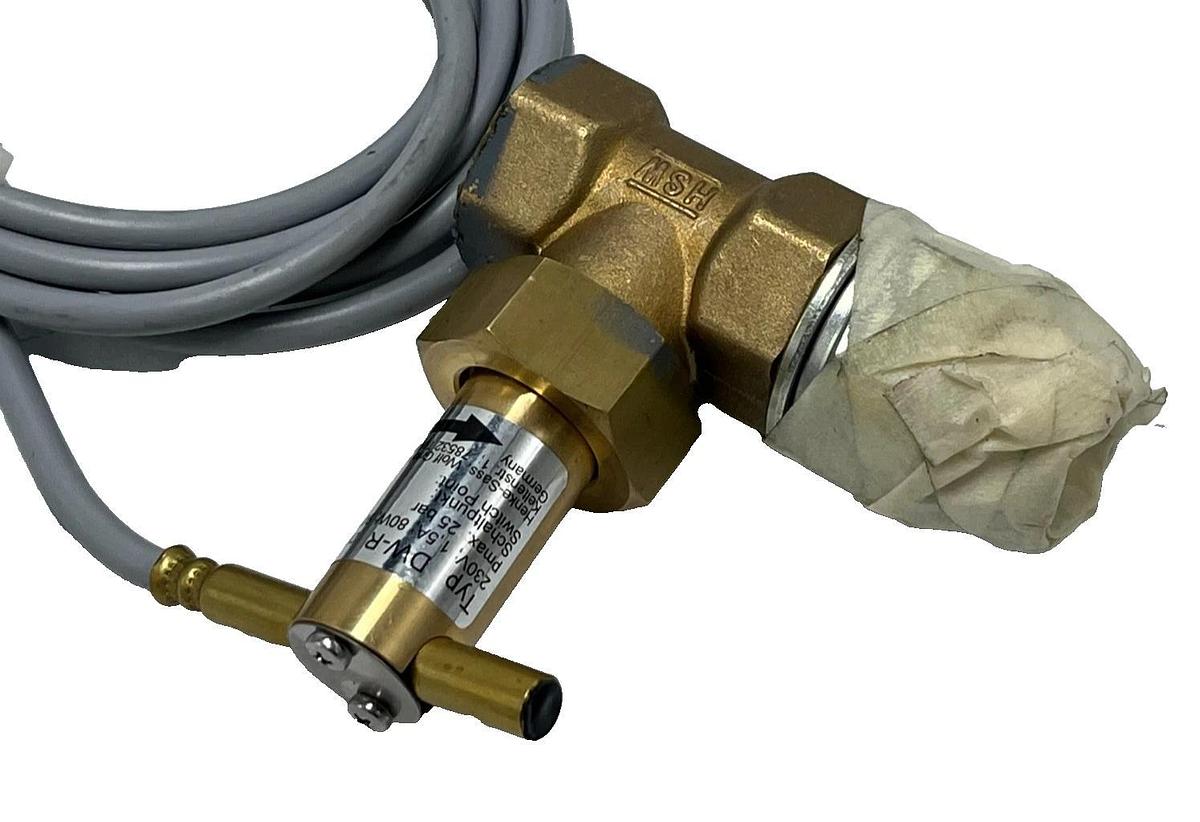

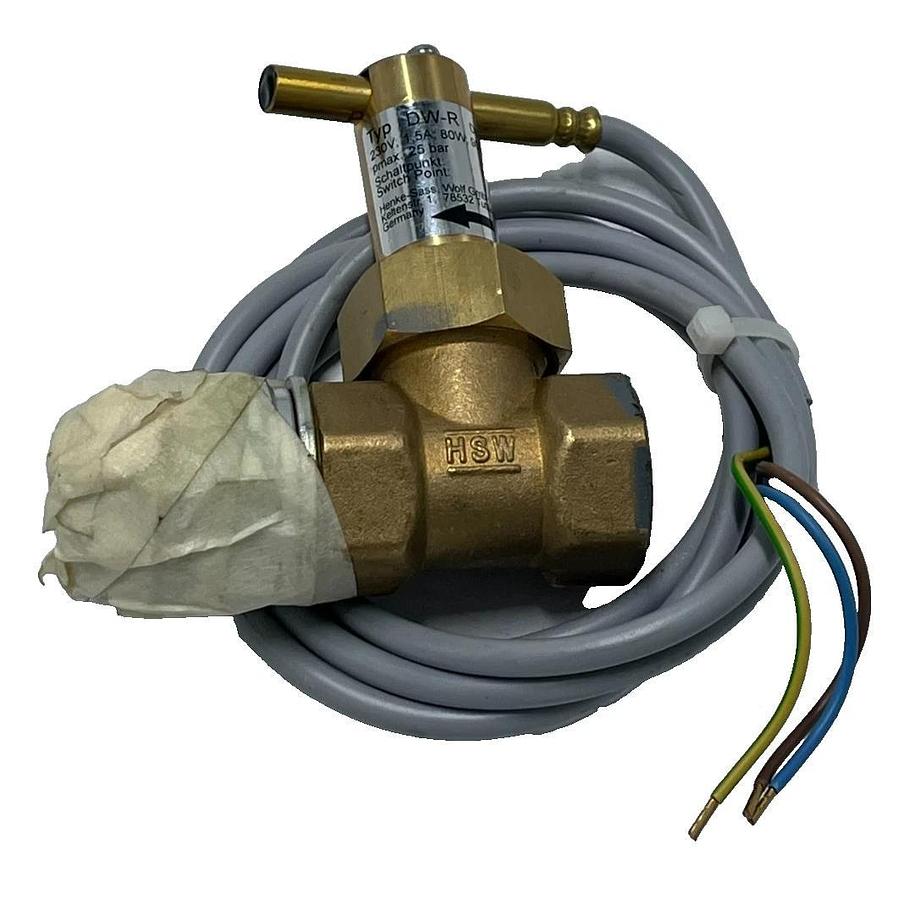

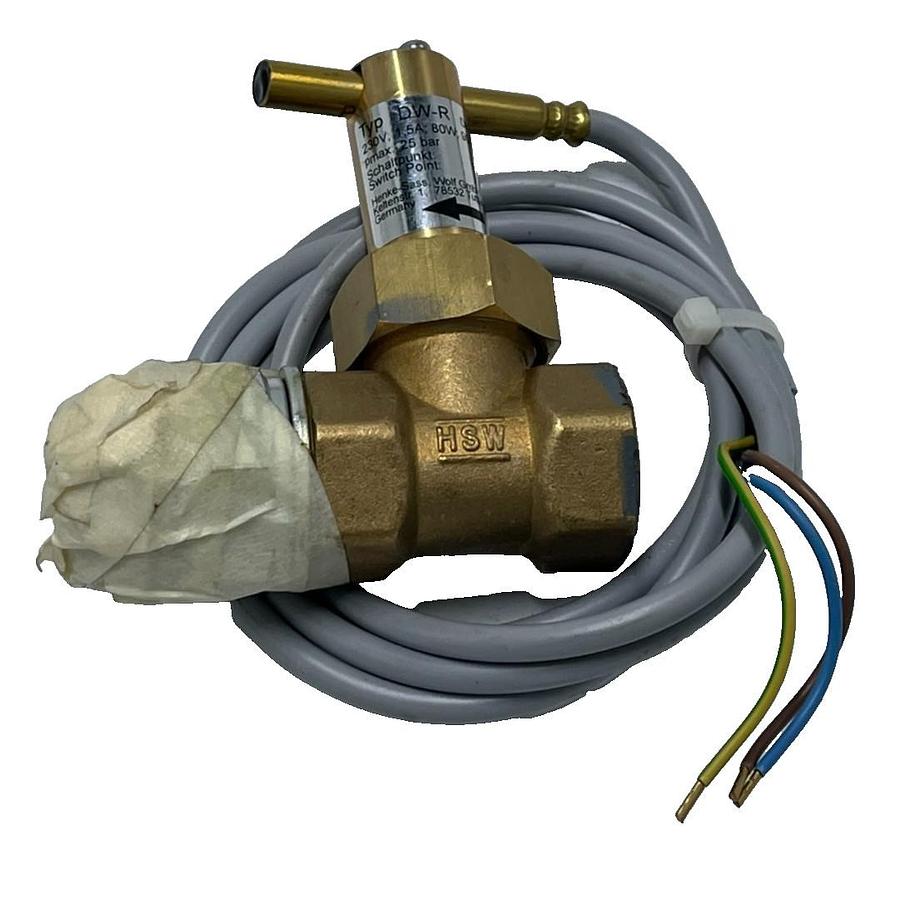

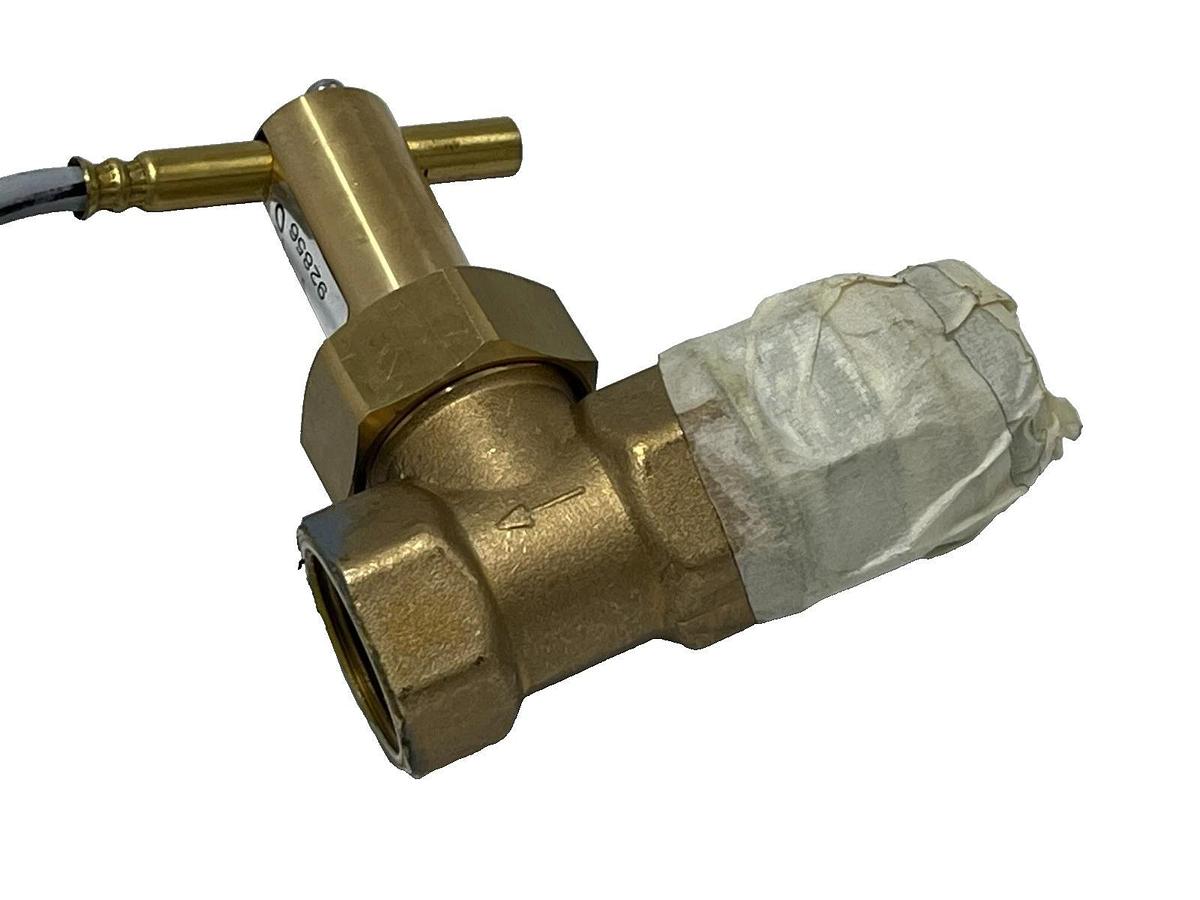

Henke Sass DW-R-20 Flow Switch HSW NW20 3/4" NPT 25 Bar 230V 1.5A

Henke Sass DW-R-20 Flow Switch HSW NW20 3/4" NPT 25 Bar 230V 1.5A NICE CLEAN VALVE IN GOOD CONDITION Brand: Henke Sass (HSW - Henke-Sass, Wolf GmbH) MPN: DW-R-20 Model: DW-R (Type DW-R NW 20) Type: Flow Switch / Flow Monitor Nominal Diameter (NW): 20 mm (3/4") Maximum Pressure (PN): 25 bar (approx. 362 psi) Connection Type: 3/4" NPT external thread Voltage: 230 V AC Max Current/Power: 1.5 A / 80 W / 90 VA Media Type: Liquid (e.g., Water, Coolant, Lubricant) Material: Brass (Standard Type A housing) Max Temperature: 100°C (212°F) Description Overview This listing is for a genuine Henke Sass DW-R-20 Flow Switch , a robust and reliable component used for monitoring fluid flow in industrial pipelines. Manufactured by Henke-Sass, Wolf GmbH, this unit operates on the non-contact pendulum principle, making it insensitive to polluted media and calcification (except magnetic particles). Key Features & Benefits Reliable Monitoring: Uses a proven way deflection system to monitor flow accurately with low pressure loss. Durable Construction: Features a robust brass housing and stainless steel pendulum system suitable for harsh industrial environments. Versatile Use: Can be used as either a normally closed or normally open contact, depending on wiring. High Specifications: Rated for a maximum pressure of 25 bar and medium temperatures up to 100°C . Simple Maintenance: Designed with a divided structure, allowing the upper part and pendulum system to be removed quickly for cleaning without adjustment. Technical Specifications Brand: Henke Sass / HSW Wolf GmbH Model: DW-R-20 Pipe Connection: 3/4" NPT External Thread (NW 20 mm) Max Operating Pressure: 25 Bar (362 psi) Power Supply: 230 V AC Max Load: 1.5 A, 80 W max Protection Type: IP 65 Approx. Weight: 0.4 kg Fluid: Designed for water/liquids (gases on request with manufacturer) CONDITION: USPI -  Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 2020
