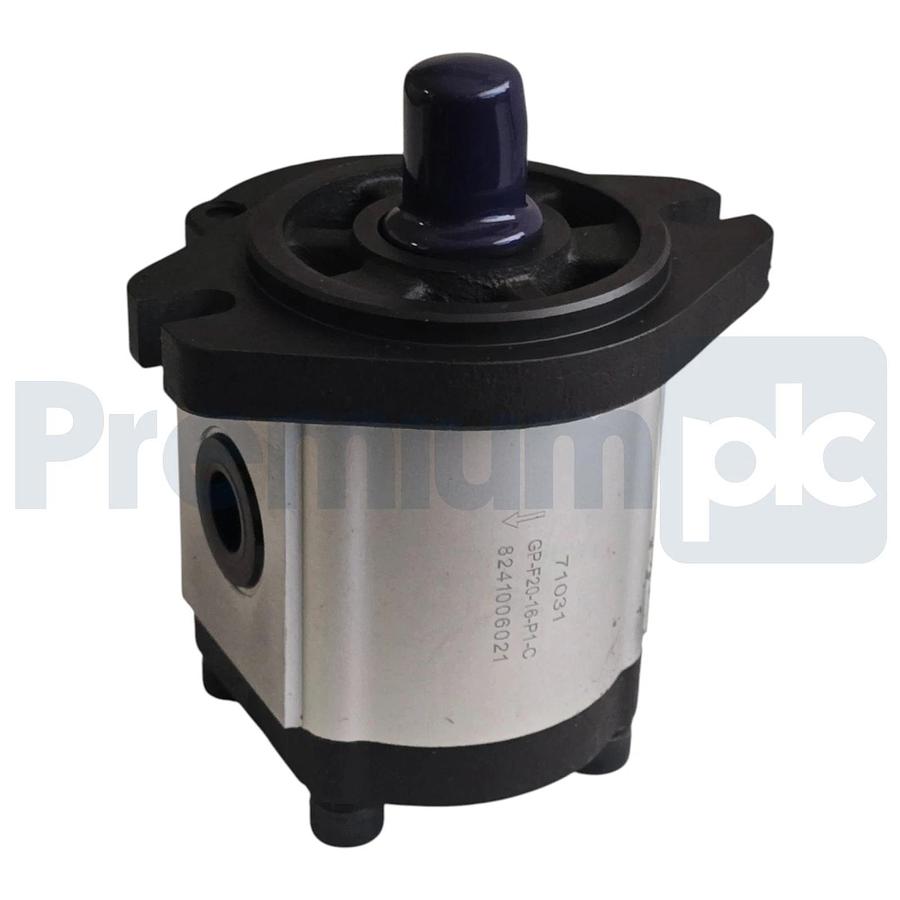

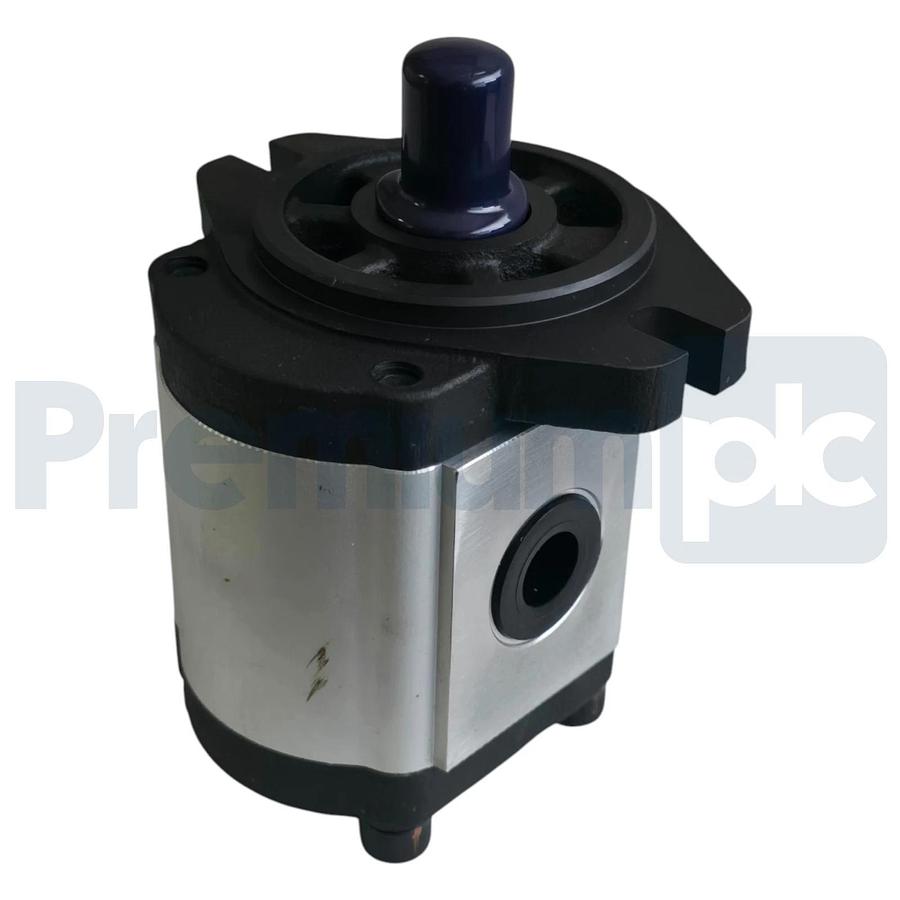

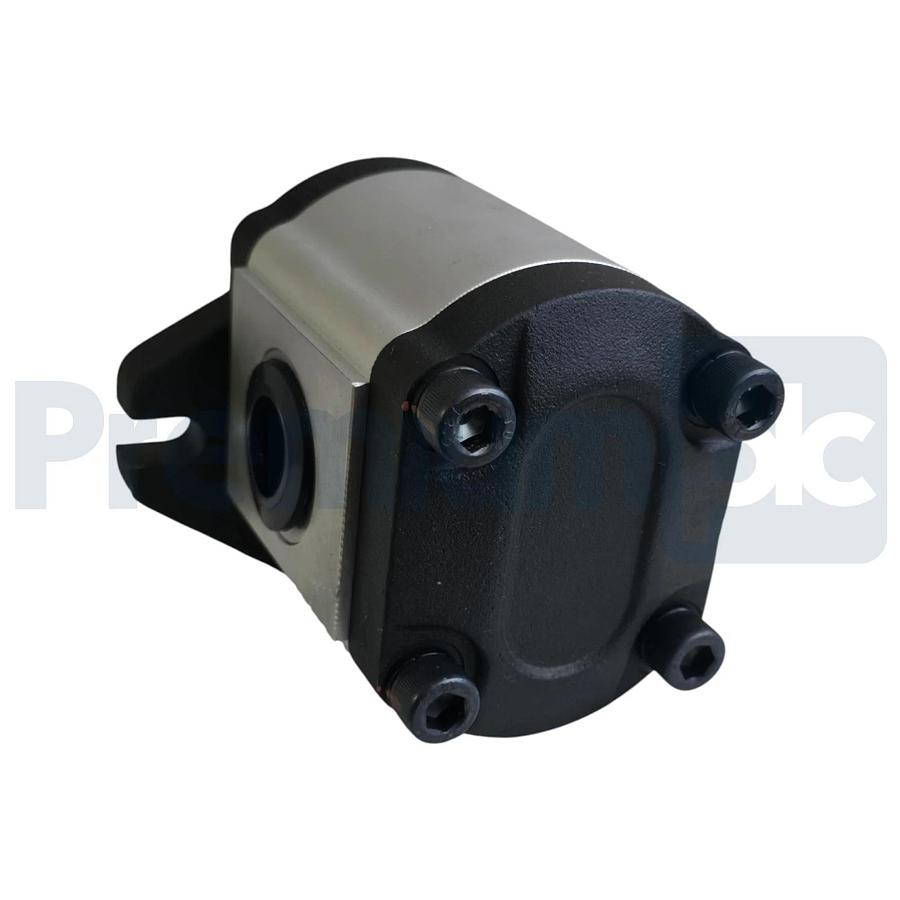

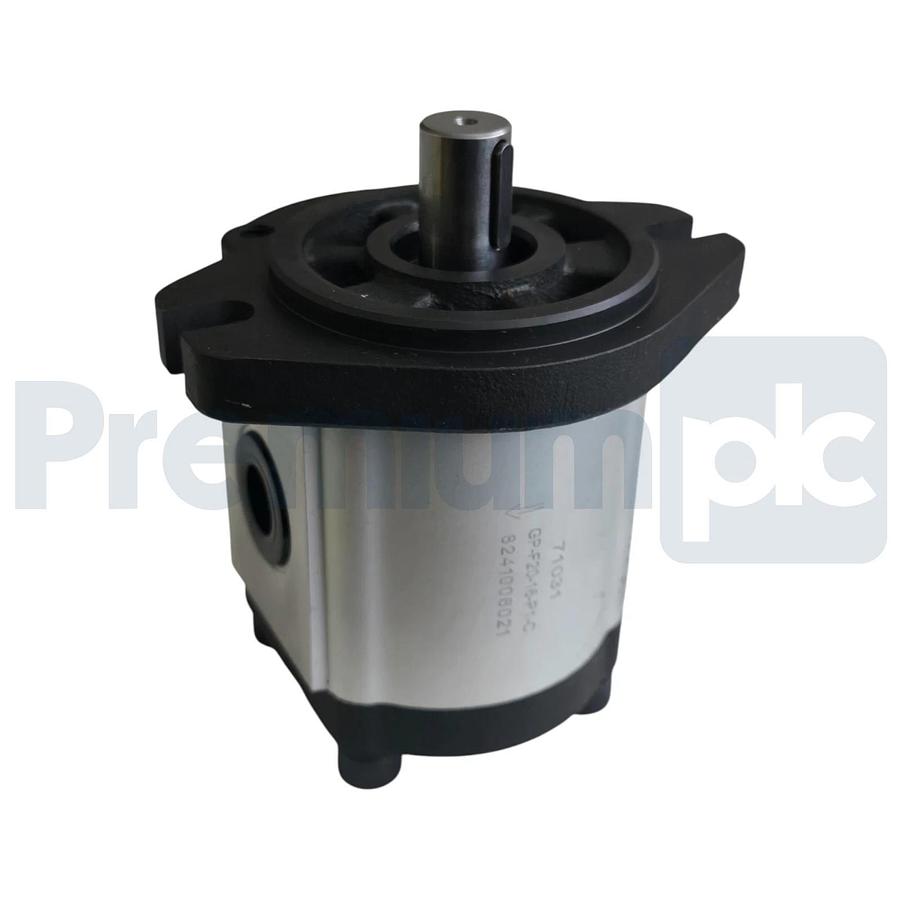

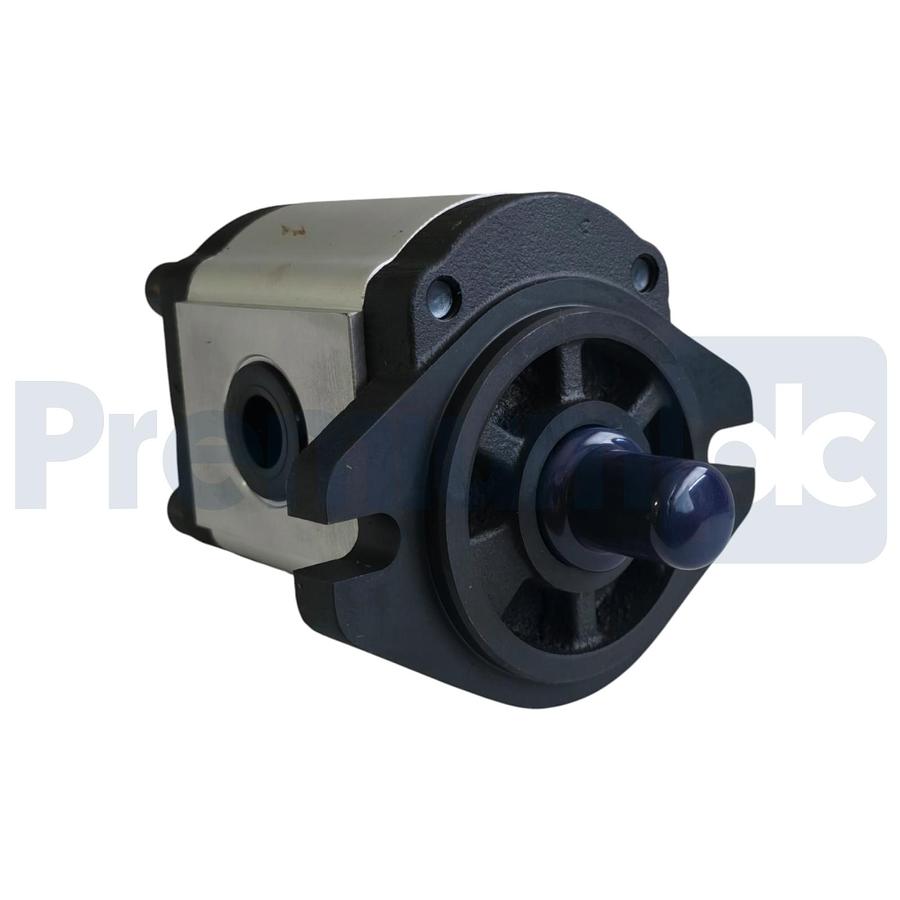

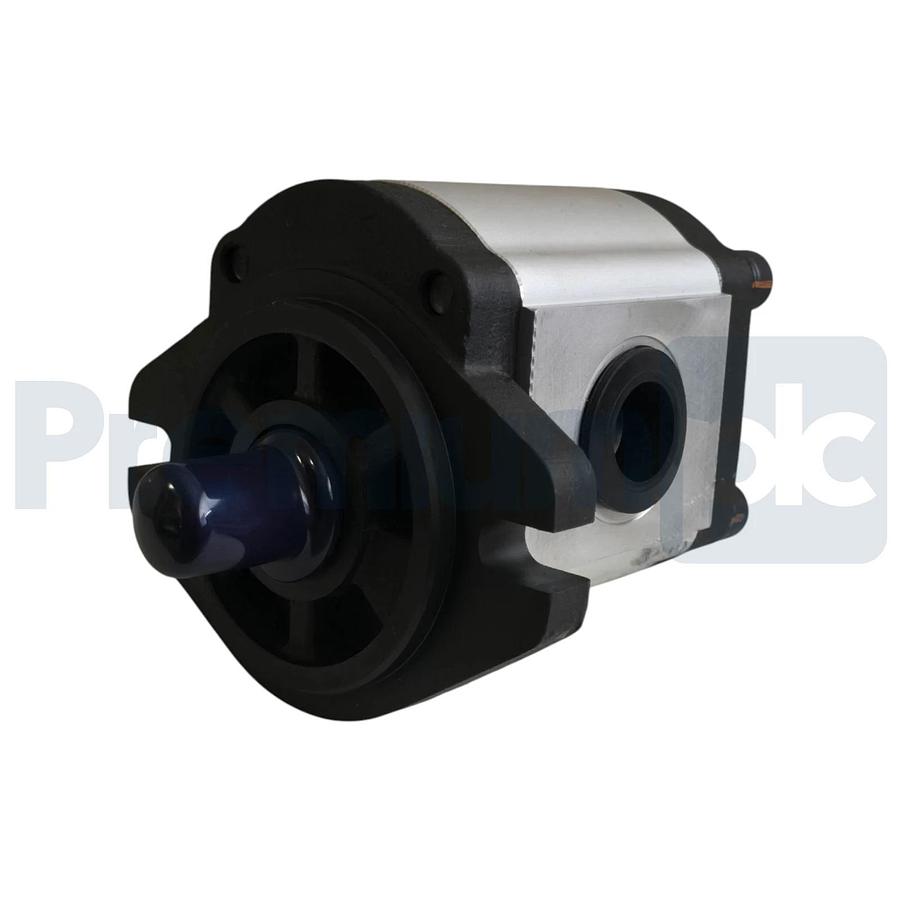

Dynamic Fluid Components GP-F20 Gear Pump 7.5 GPM 3/4” Keyed GP-F20-16-P1-C NSNP
$225
Shipping: US $21.67 delivery in 2–4 days
Description
Dynamic Fluid Components GP-F20 Gear Pump 7.5 GPM 3/4â Keyed Shaft GP-F20-16-P1-C NSN
P
Key Features & Specifications
Brand:
Dynamic Fluid Components
Model:

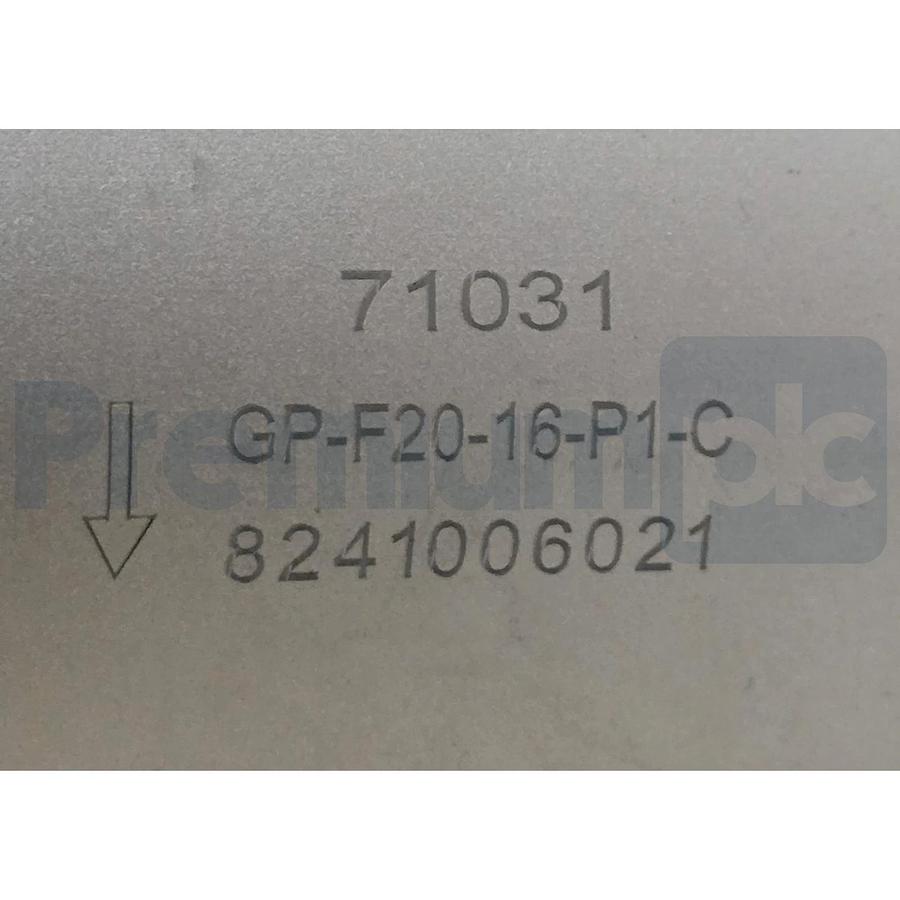

GP-F20-16-P1-C
Type:
Hydraulic Gear Pump
Construction:
Aluminum center housing, cast iron end plates
Displacement:
0.97 cu. in./rev (16 cc/rev)
Max Pressure:
Up to 2900 PSI (200 bar)
Rated Speed:
2000 RPM
Max Speed:
3600 RPM
Mounting Flange:
Standard SAE A - 2 Bolt

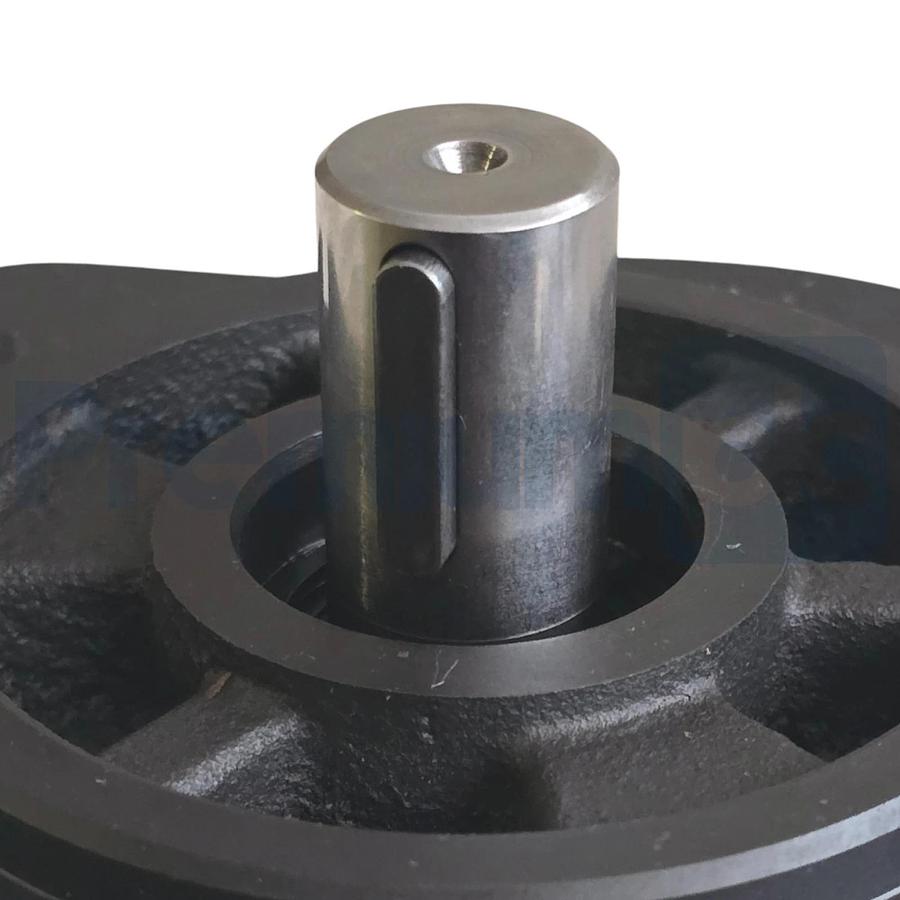

Drive Shaft:
3/4" diameter straight shaft with key
Rotation: Clockwise (CW)
Ports:
Inlet Port: SAE-12 (ORB-12)
Outlet Port: SAE-10 (ORB-10)
Weight:
Approximately 9.35 lbs.
CONDITION:
NSNP - New Surplus No Manufacturer Package (OEM)
(DOES HAVE SOME MINOR SHELF WEAR COMES AS SHOWN IN PHOTOS)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
3020
Specifications
| Manufacturer | Dynamic Fluid Components |
| Model | GP-F20-16-P1-C |
| Condition | New |
| Rated Pressure | 2000 psi (140 bar) |
| Type | Hydraulic |
| Outlet Port Diameter | SAE-10 |
| Inlet Port Diameter | SAE-12 |
| Hydraulic Pump Type | Hydraulic Gear Pump |
