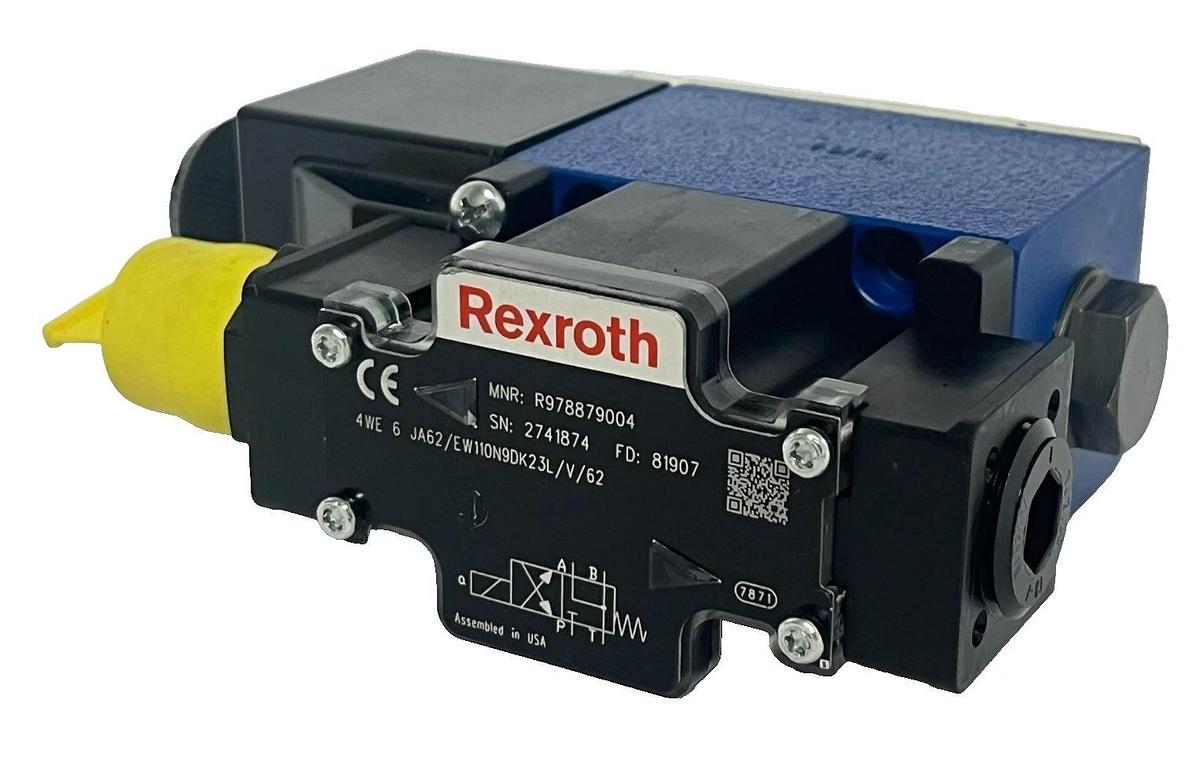

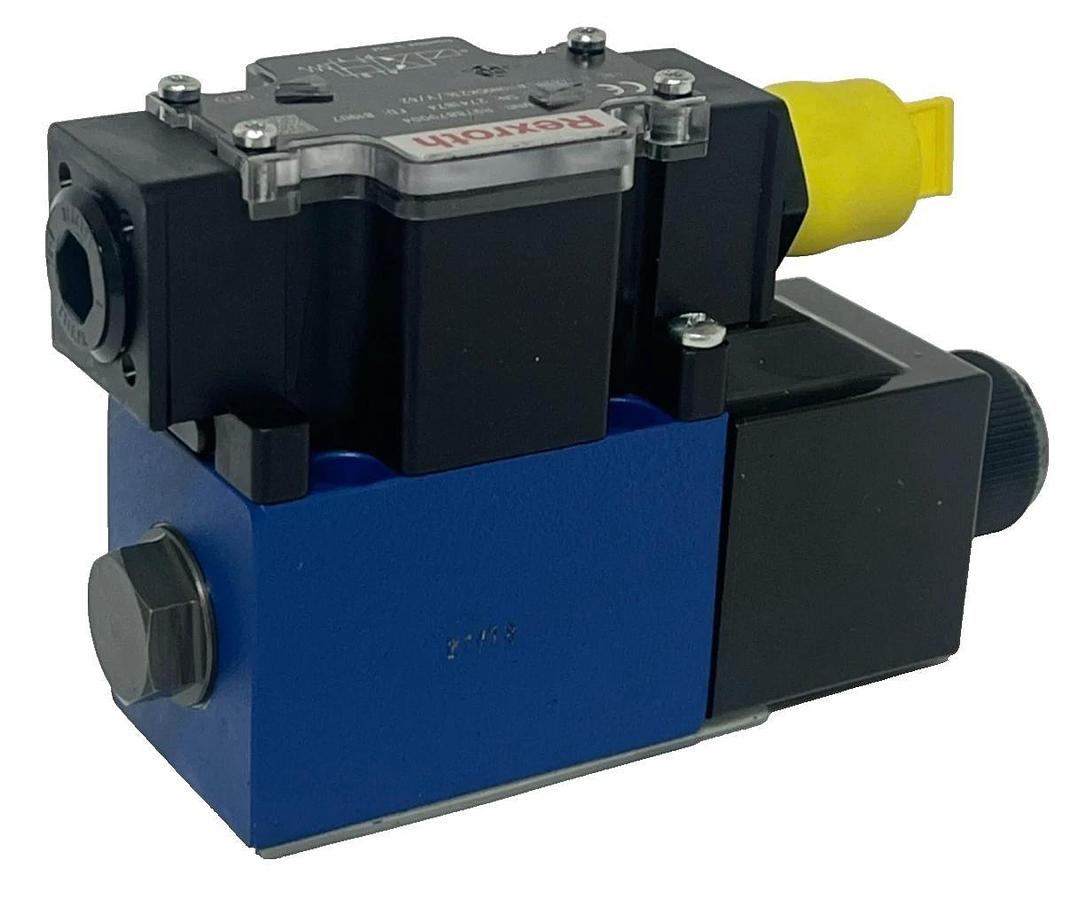

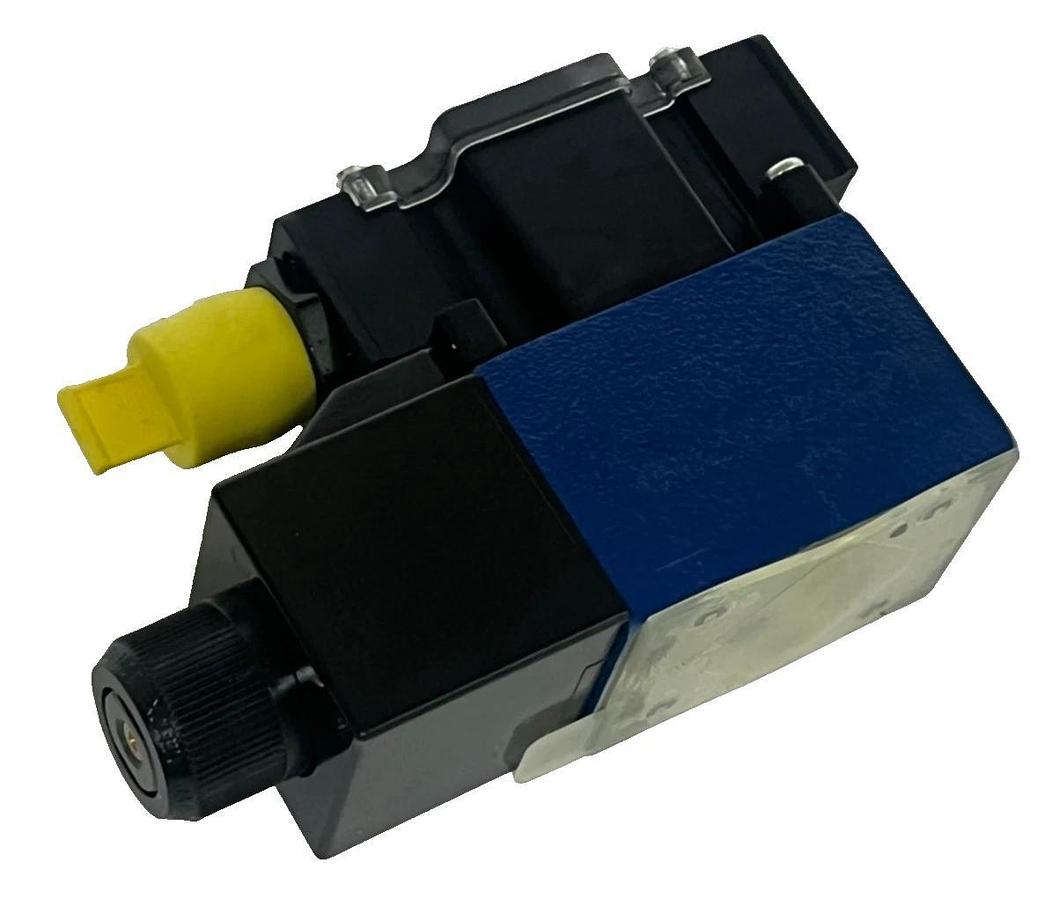

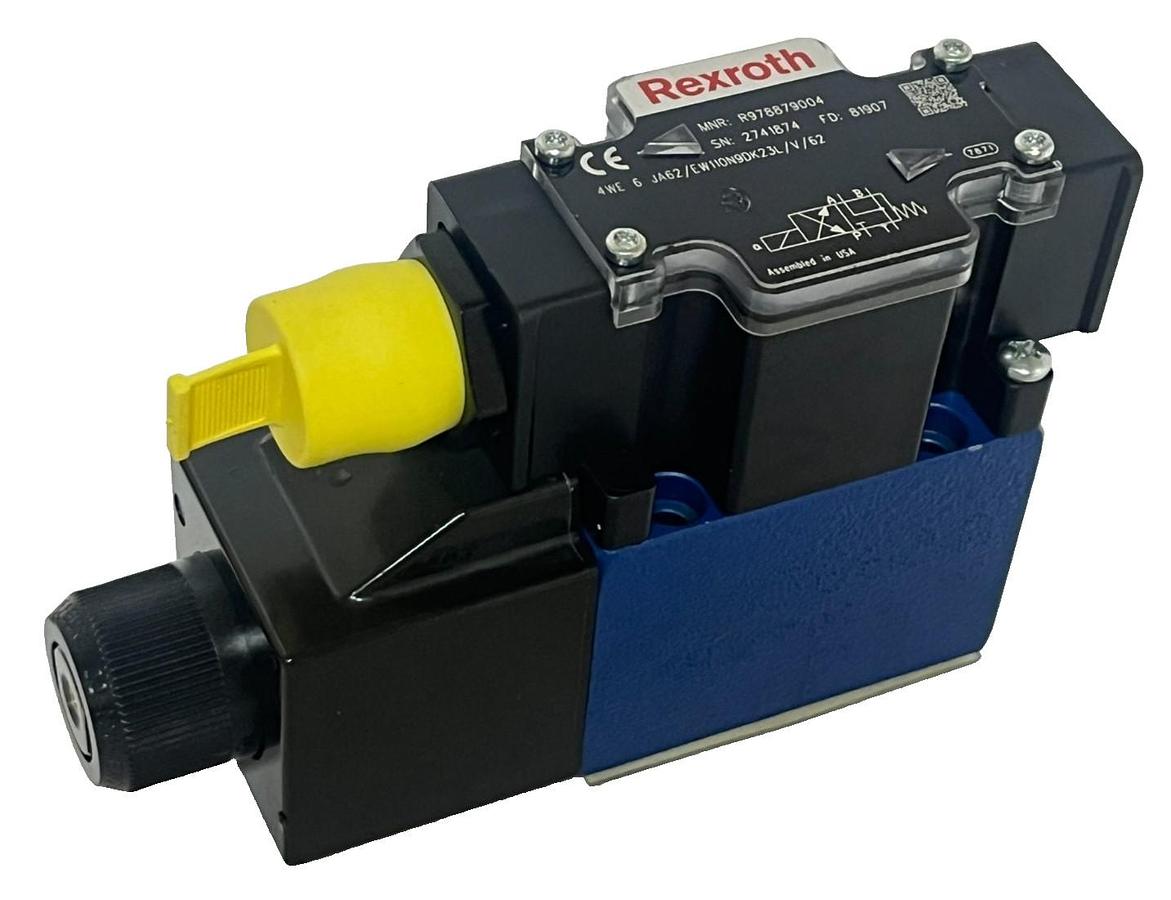

Bosch Rexroth R978879004 Directional Spool Valve - 4WE6JA6X/EW110N9DK23L/V/62
$410
Shipping: US $17.09 delivery in 2–4 days
Description
Bosch Rexroth R978879004 Directional Spool Valve - 4WE6JA6X/EW110N9DK23L/V/62
Technical Specifications:
Part Number:
R978879004
Model Code:
4WE6JA6X/EW110N9DK23L/V/62
Valve Type:
Directional Spool Valve (Direct Actuated)
Size (NG):
6 (CETOP 3 / D03)
Spool Symbol:
Symbol J
Control Voltage:
110V AC (50/60 Hz)
Max Operating Pressure:
350 bar (5076 psi)
Max Flow Rate:
Up to 80 L/min (DC) / 60 L/min (AC)
Seals:
Viton (FKM) â Ideal for high-temperature or specialized fluid applications.
Manual Override:
Included (Concealed "N9" type)
Connection Pattern:
ISO 4401-03-02-0-05
Key Features:
Robust Design:
Featuring wet-pin AC solenoids with detachable coils for easy maintenance.
Reliable Switching:
Proven component series 6X technology for long-service-life industrial applications.
Standardized Mounting:
Fits all standard NFPA D03 / ISO 4401-03 subplates and manifolds.
Environmental Compatibility:
Equipped with Viton seals for enhanced chemical and heat resistance compared to standard NBR.
CONDITION:
NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
2044
Specifications
| Manufacturer | Rexroth |
| Model | R978879004 |
| Condition | New |
| Country of Origin | Germany |
