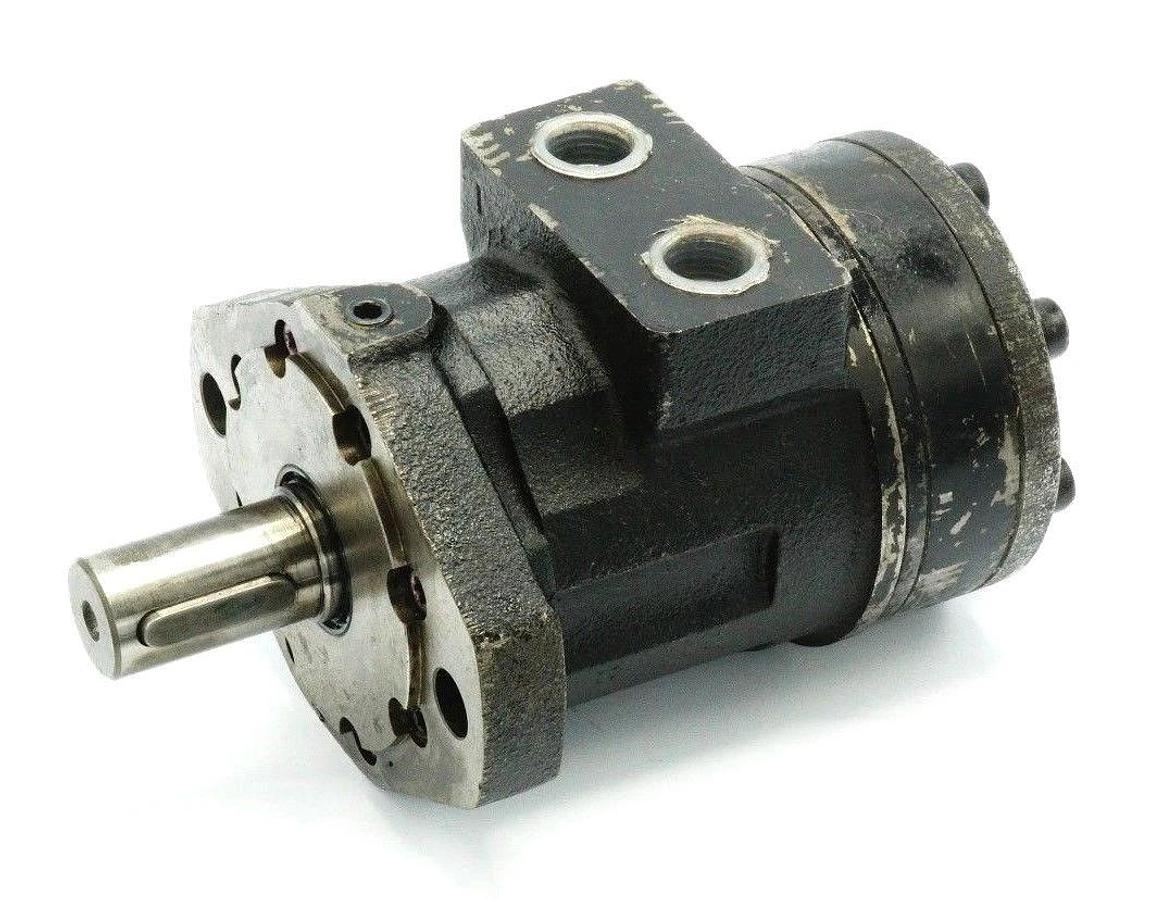

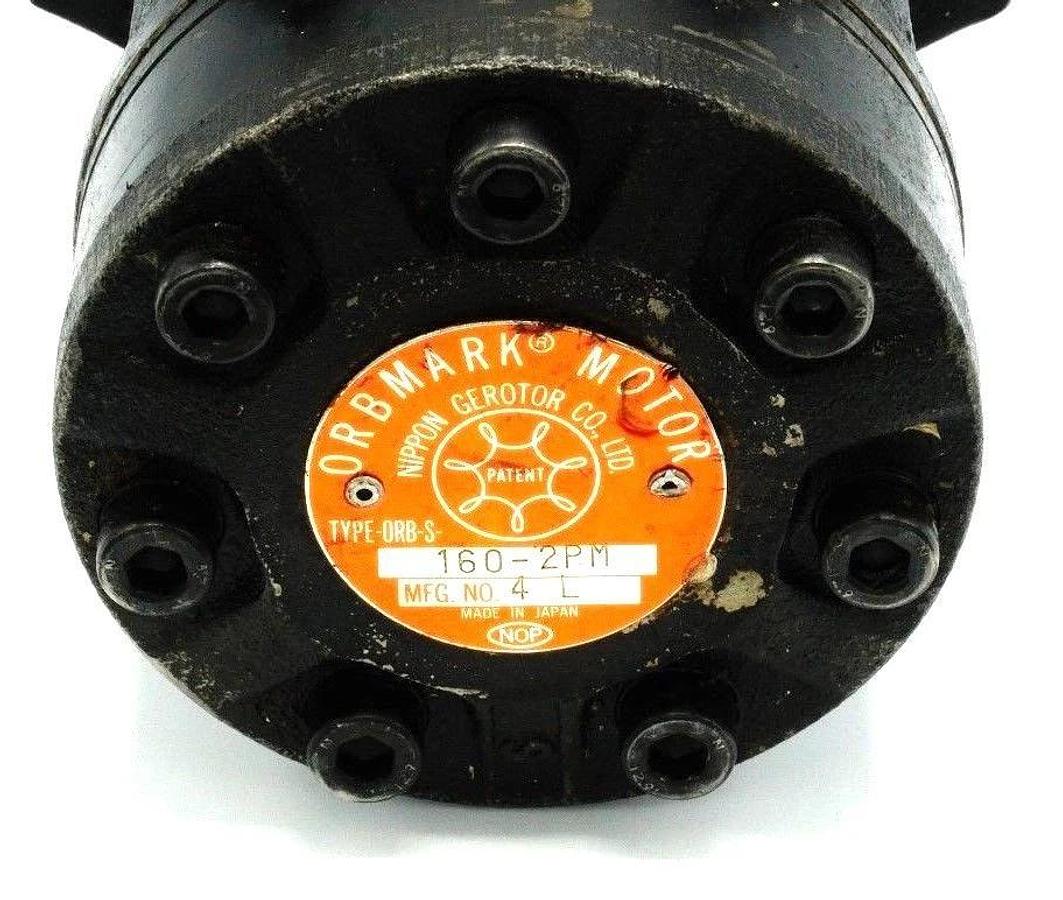

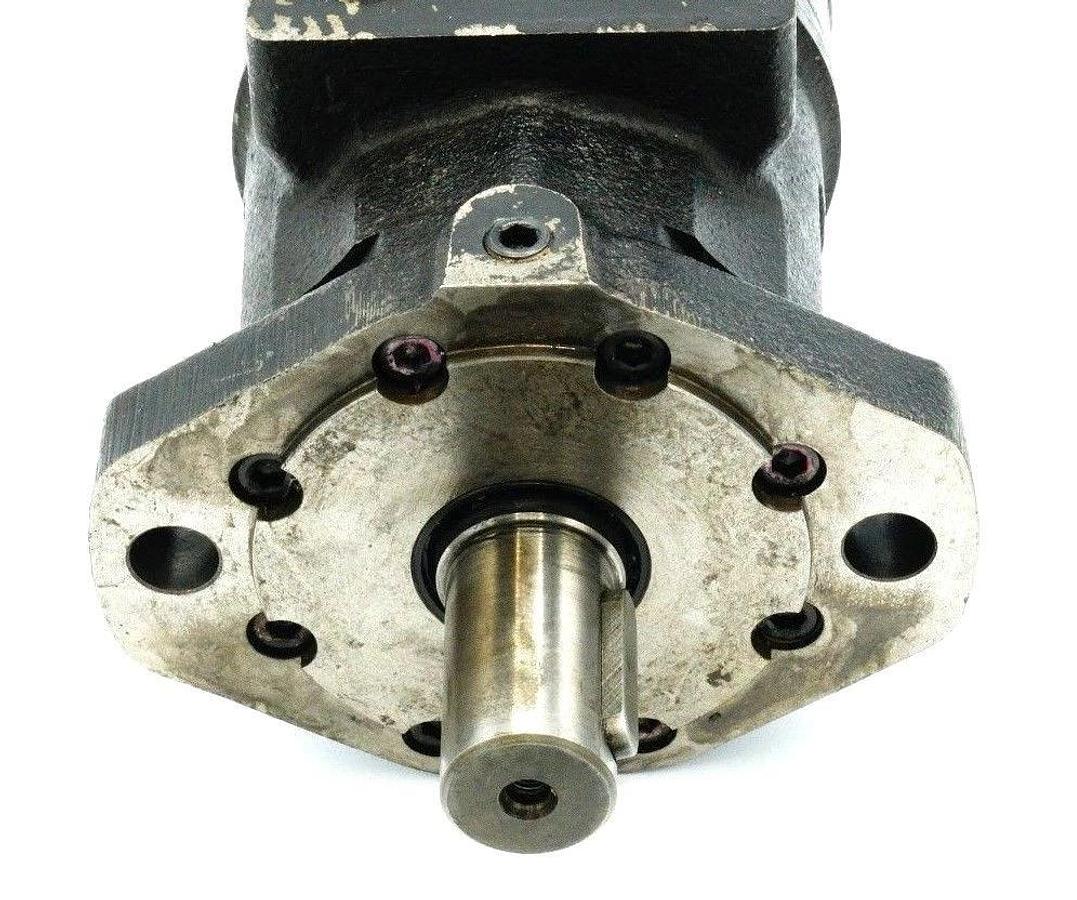

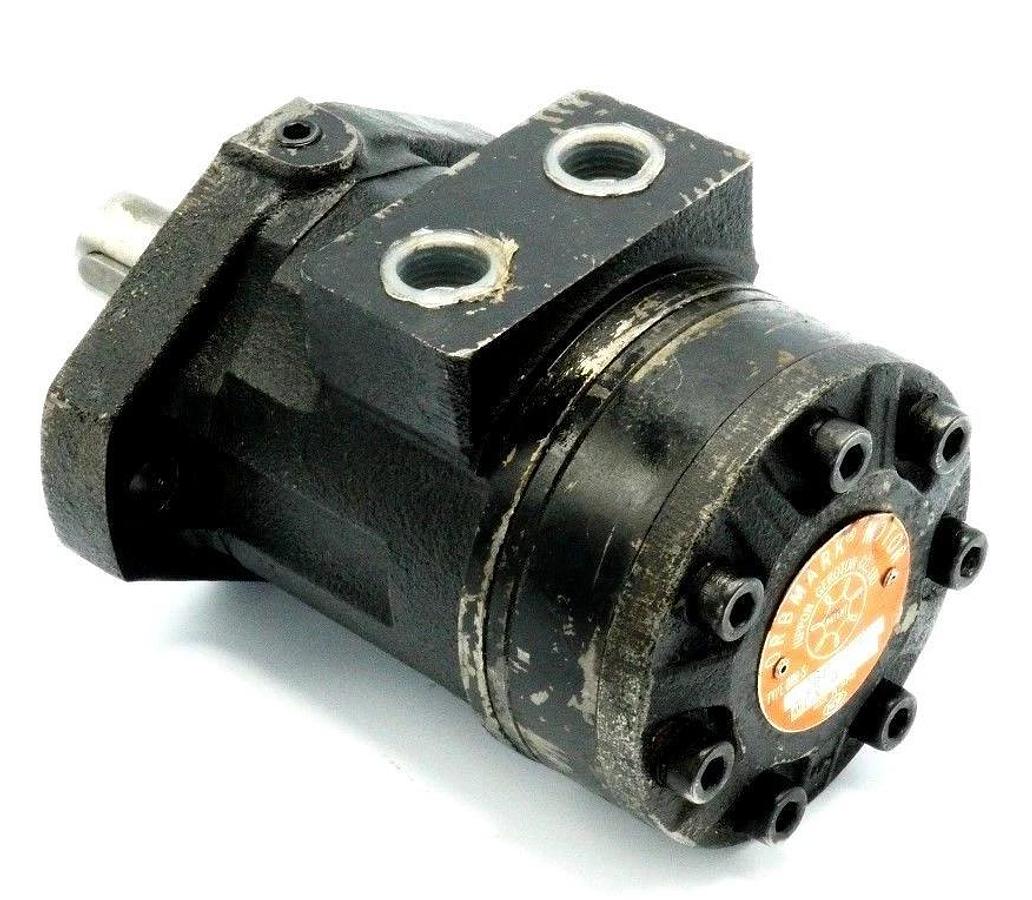

NOP NIPPON OIL PUMP ORB-S-160-2PM S SERIES ORBMARK MOTOR 20600233 ORBS160SPM

NOP NIPPON OIL PUMP ORB-S-160-2PM S SERIES ORBMARK MOTOR 20600233 ORBS160SPM Specifications Item / Model S-050 S-070 S-100 S-120 S-160 S-190 S-240 S-280 S-310 S-380 S-410 Theoretical Displacement (cm3/rev) 54 71.4 96 118.4 163.4 184 235.5 282.5 306.9 376.4 409.9 Max. Revolution (min-1) 990 930 730 590 440 380 300 250 230 200 180 Normal Continuous Torque (Nã»m) 110 155 210 250 330 365 395 410 420 465 470 Max. Instantaneous Torque (Nã»m) 134 183 256 300 375 433 493 483 498 540 554 Normal Continuous Pressure (ÎP MPa) 15.5 15.5 15.5 15.5 14 14 12 10.5 10 9 8.5 Max. Instantaneous Pressure (ÎP MPa) 19 19 19 18.5 17 17 15.5 12.5 12 10.5 10 Permissible Back Pressure (MPa) 7 Radial Load ( N ) 6500 Thrust Load ( N ) 5000 Approx. Weight (kg) 7.1 7.3 7.5 7.7 8.1 8.3 8.7 9.1 9.3 9.8 10.2 _________________________________________________________________________________ PALLET 32
