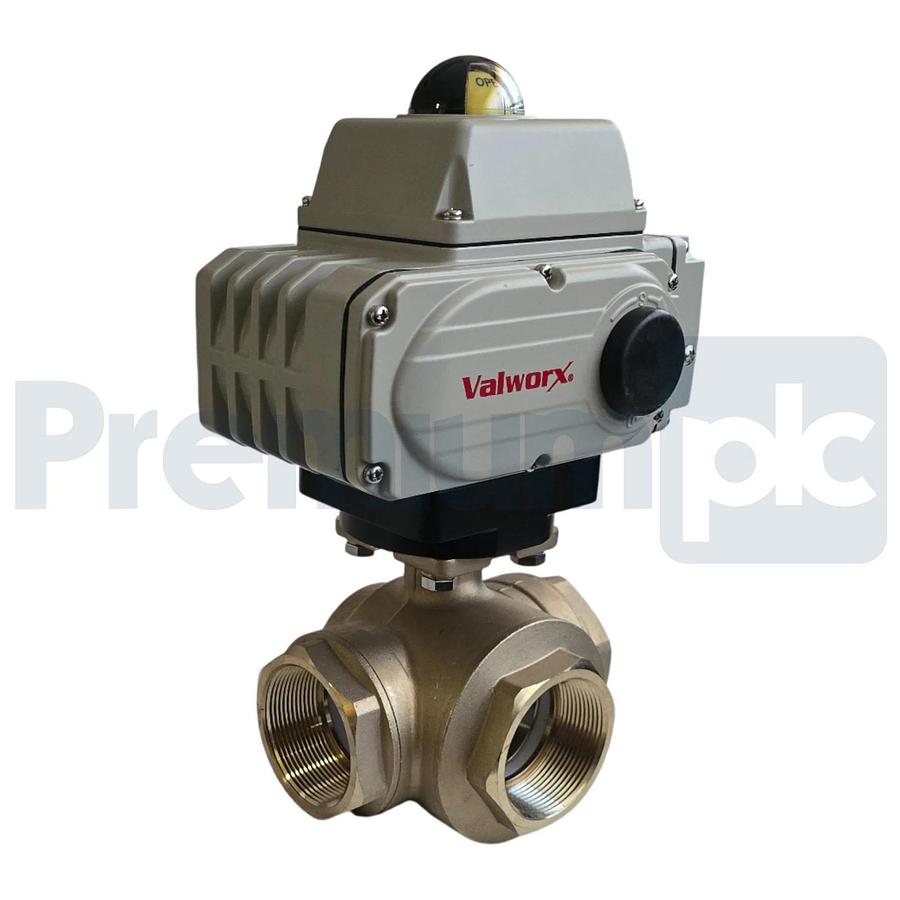

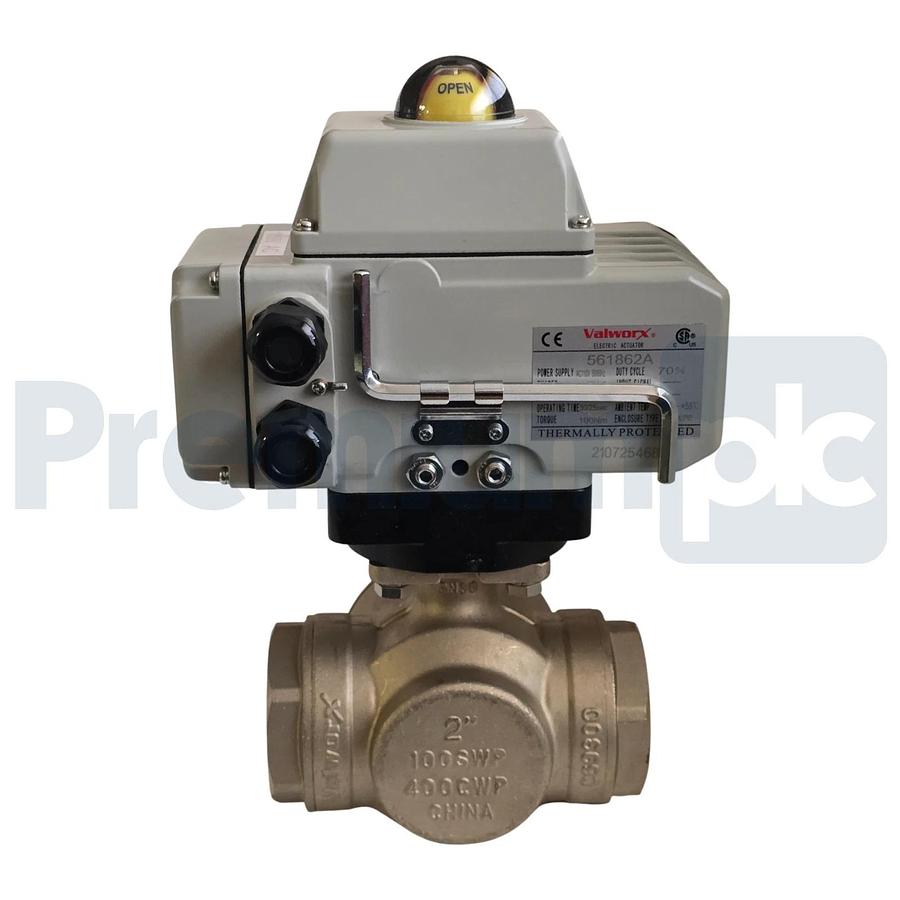

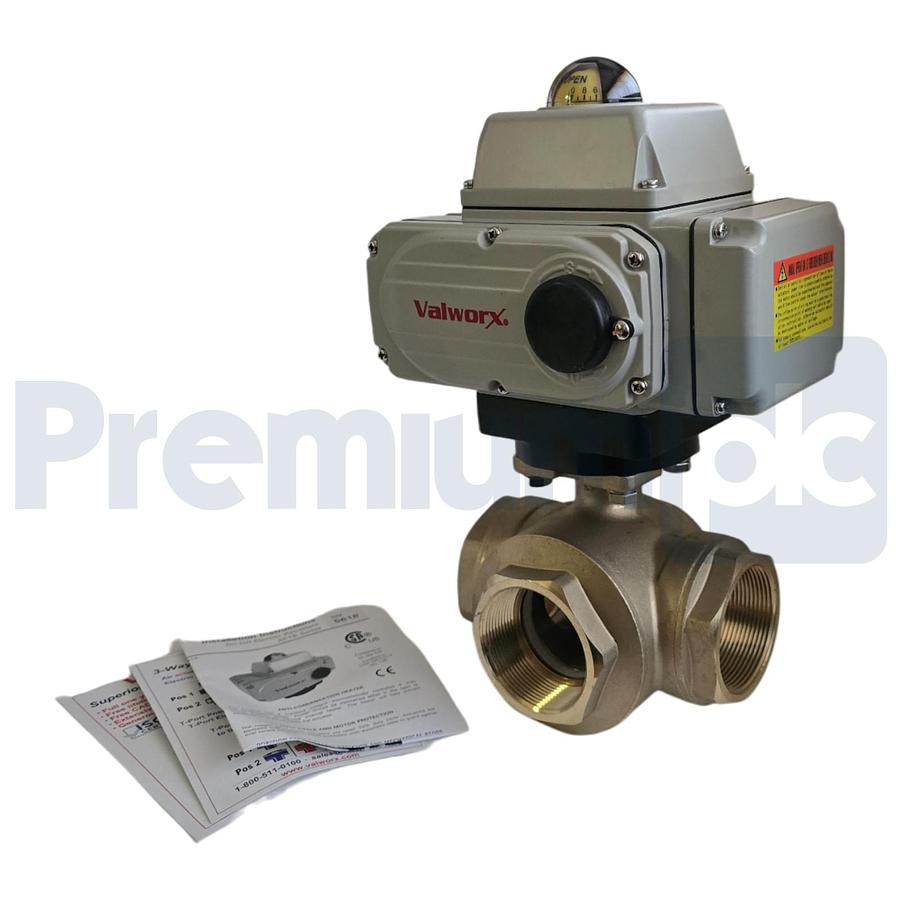

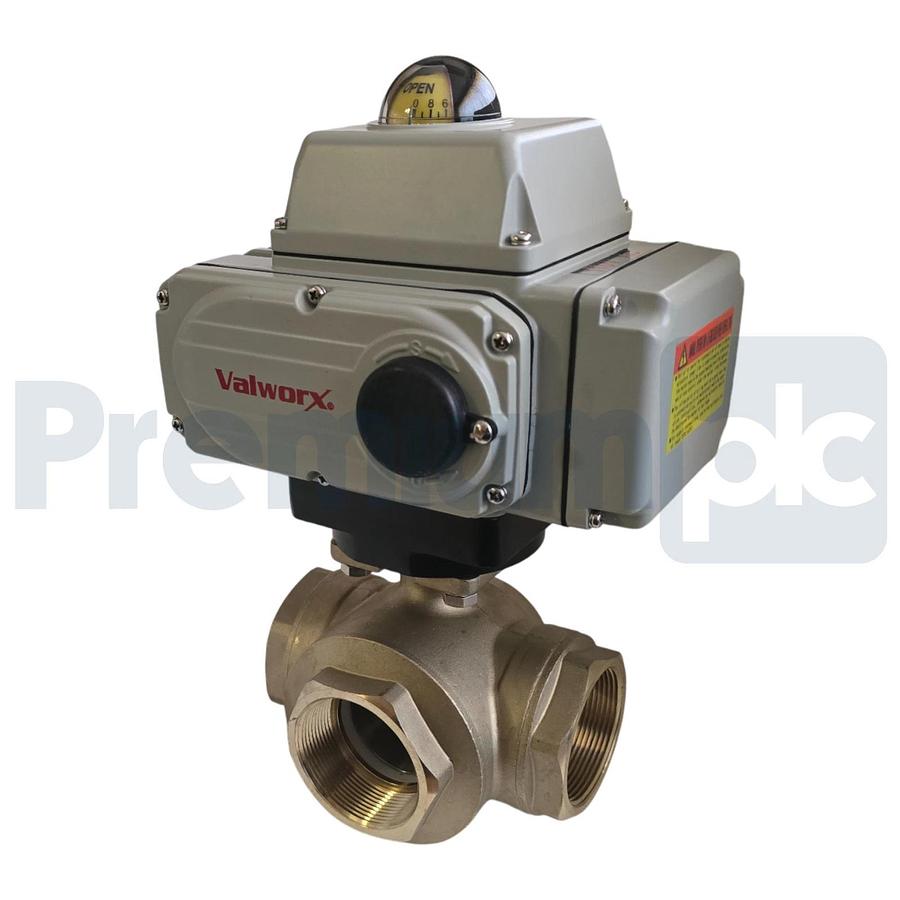

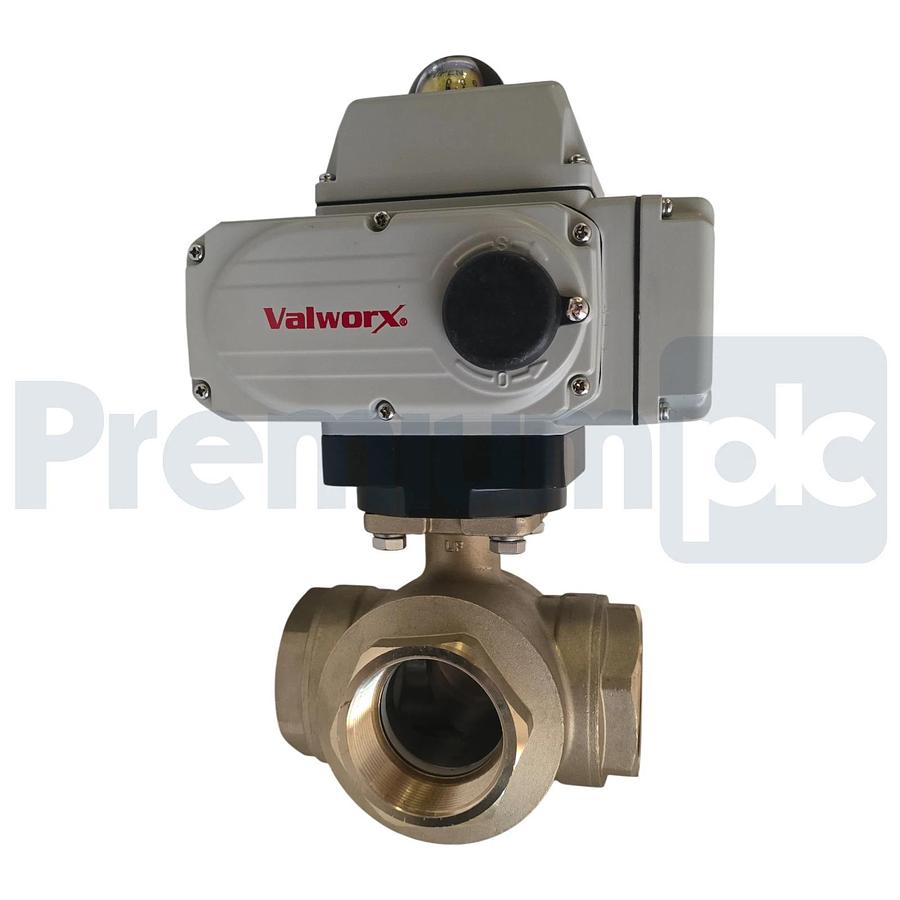

VALWORX 567916A 2" ELECTRIC ACTUATED 3-WAY BRASS T-DIVERTER VALVE 110VAC 561862A

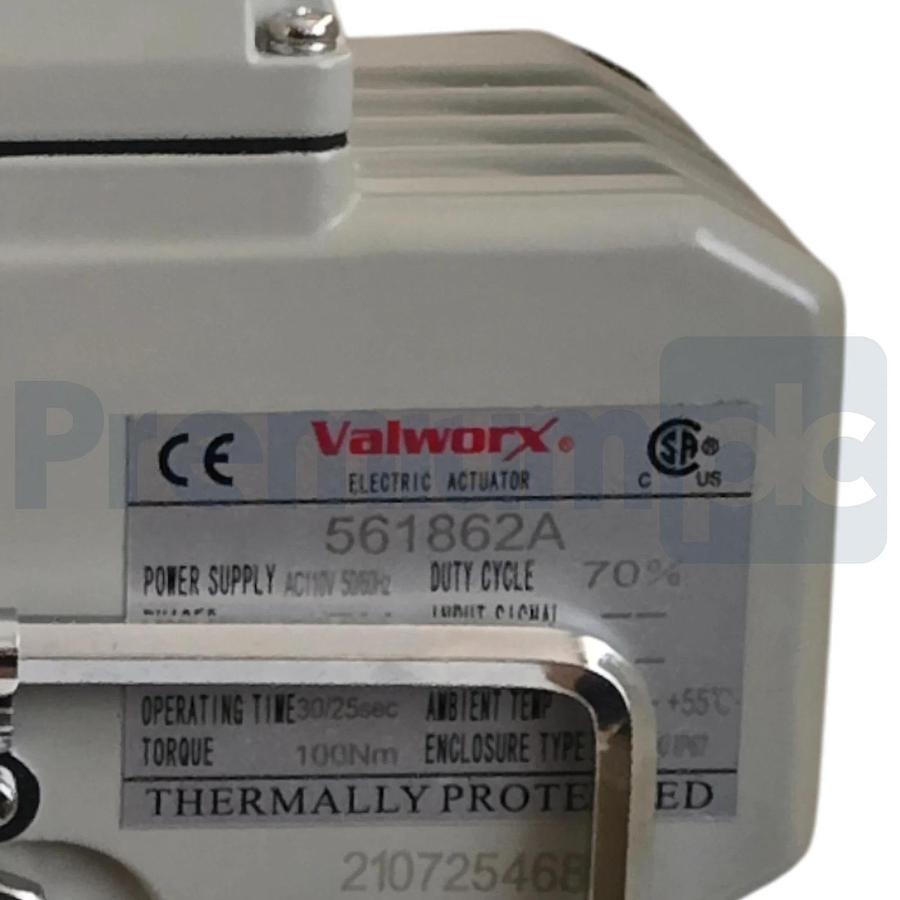

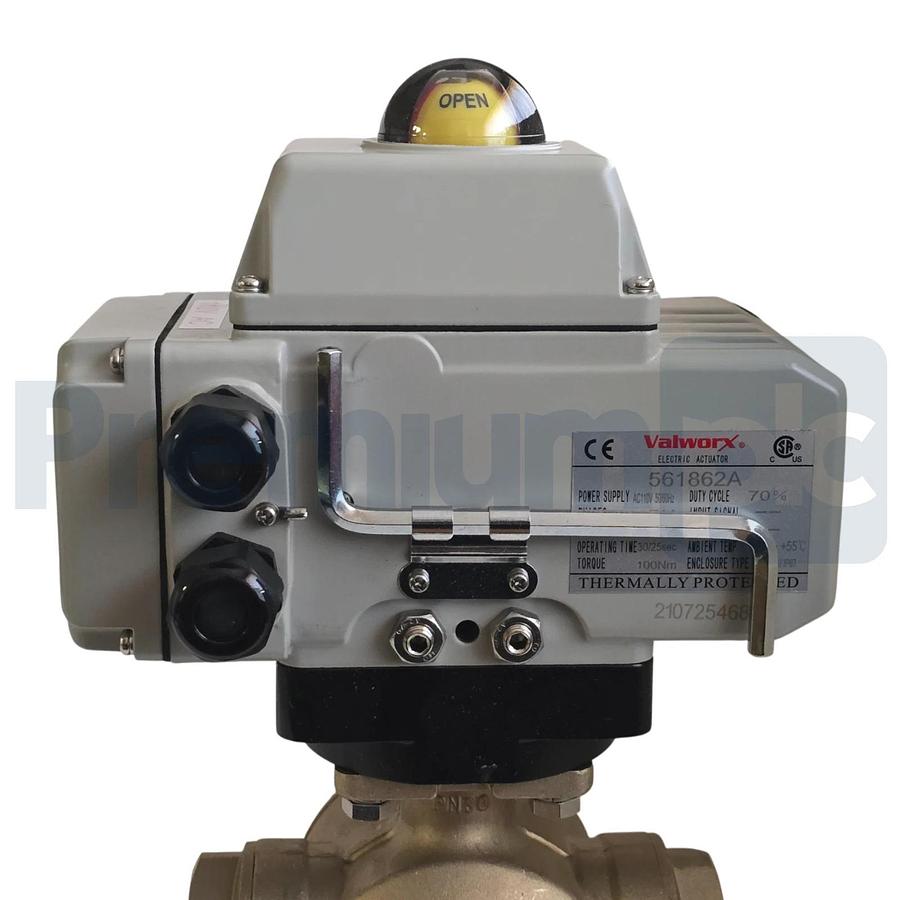

VALWORX 567916A 2" ELECTRIC ACTUATED 3-WAY BRASS T-DIVERTER VALVE 110VAC 561862A 561862A Electric Actuator 885 in.lbs (100Nm), 110 VAC Type Electric Actuated 3 Way Brass Valve- On/Off Voltage 110 VAC 50/60 Hz Current Rating 0.64A (full load amps) Cycle Time 30 seconds per 90° rotation (no load) Pipe Size 2" NPT female Port Size Full Port, orifice 2.0 inches, Cv 82 Pressure (Max) 400 PSI (see P/T chart), 25 PSI saturated steam with high temp. kit, vacuum service to 29" Hg Valve Temperature Range -4 to 344 °F (-20 to +173 °C) Actuator Temperature Range -13 to +131 °F (-25 to +55 °C) Valve Body Lead Free Brass C69300 Ball and Stem 316 stainless steel Stem Seals PTFE (Teflon) with dual FKM (Viton) seals Ball Seats (4) PTFE (Teflon) energized with FKM (Viton) Duty Cycle 70% Enclosure Aluminum alloy, polyester painted, SS fasteners Enclosure Rating Type 4X (IP67) weatherproof Electrical Connections Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) Valve Position Confirmation 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load Manual Override 5mm hex drive with protective cover Motor Protection Thermal overload Anti-Condensation Heater 4 watts thermostatically controlled Max Fluid Velocity 10 feet per second CONDITION: NSMP - New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ pallet 160
