Rosemount 8705 Flanged Magnetic Flowtube 1.5" DN40 #150 8705TSE015P1W0N5Q4 NSNP

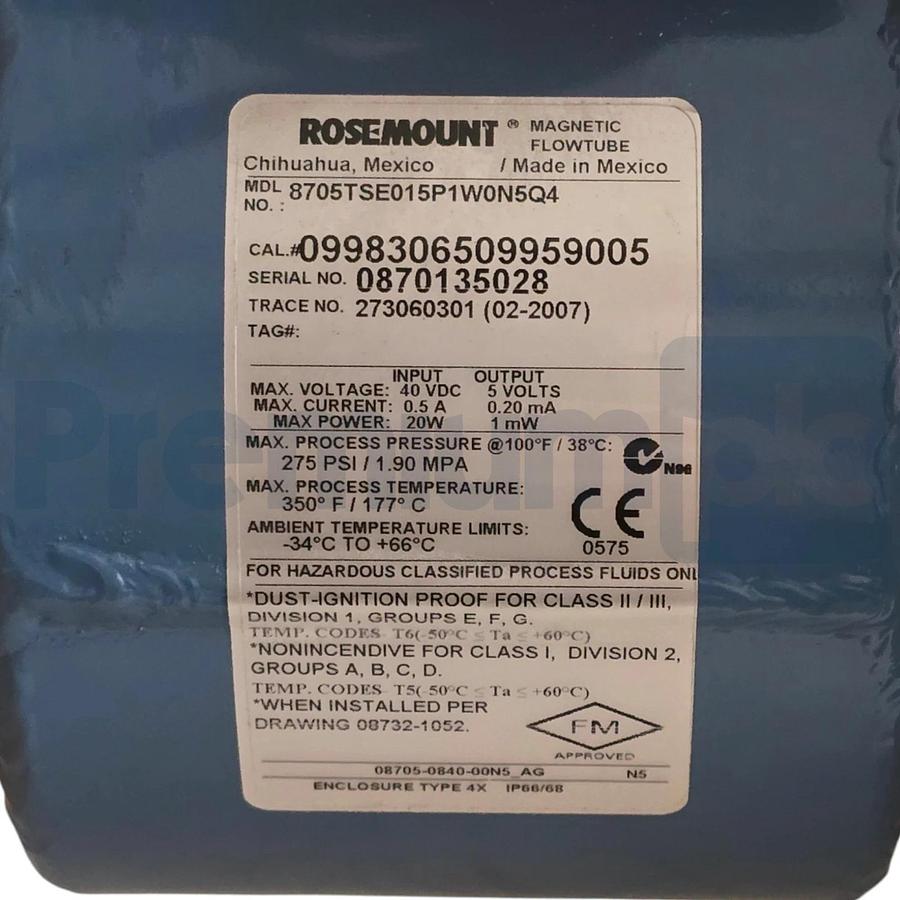

Rosemount 8705 Flanged Magnetic Flowtube/Flow Sensor 1.5" DN40 #150 8705TSE015P1W0N5Q4 NSNP The Rosemount 8705 Flanged Magnetic Flowtube is an industry-standard, high-reliability electromagnetic flow sensor designed for volumetric flow measurement of conductive liquids and slurries. Based on the model code breakdown (015), this unit features a 1.5-inch (DN40) line size configuration with an robust flanged construction, engineered to withstand aggressive processes while maintaining high measurement accuracy. Technical Specifications Manufacturer: Rosemount (Emerson) Model Number (MDL): 8705TSE015P1W0N5Q4 Line Size: 1.5" (DN40) Max. Process Pressure: 275 PSI / 1.90 MPA (@ 100°F / 38°C) Max. Process Temperature: 350°F / 177°C Ambient Temperature Limits: -34°C to +66°C Input Parameters: Max 40 VDC, 0.5 A, 20 W Output Parameters: 5 Volts, 0.20 mA, 1 mW Enclosure Rating: Type 4X / IP66/68 Manufacturing Origin: Chihuahua, Mexico Code Breakdown for ( 8705TSE015P1W0N5Q4( 8705 (Base Model) : Identifies the Rosemount 8705 Flanged Magnetic Flowtube Sensor . T (Liner) : Implements a PTFE (Teflon) inner liner rated up to 350°F (177°C). S (Electrode Material) : Built with corrosion-resistant 316L Stainless Steel hardware. E (Electrode Design) : Outfitted with 2 Measurement and 1 Ground Reference Electrode . 015 (Line Size) : Configured for a 1.5-inch Nominal Bore (DN40) pipe size. P1 (Flange Material, Type and Rating) : 316 Stainless Steel, ASME B16.5 (ANSI), Class 150 W0 (Housing) : Sealed, Welded Housing N 5  ( Hazardous Location Certifications) US Approvals, Class I Div 2, Non-Incendive & Dust with IS Electrodes Q4 (Calibration Certificate) :Per ISO 10474 3.1B/ EN 10204 3.1 (Paperwork has been misplaced) CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) (COMES AS SHOWN IN PHOTOS) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ PALLET 10
