NEW NIRECO M121-AM MK-IV SERVOGUIDE ELECTRO-HYDRAULIC EDGE POSITION CONTROL

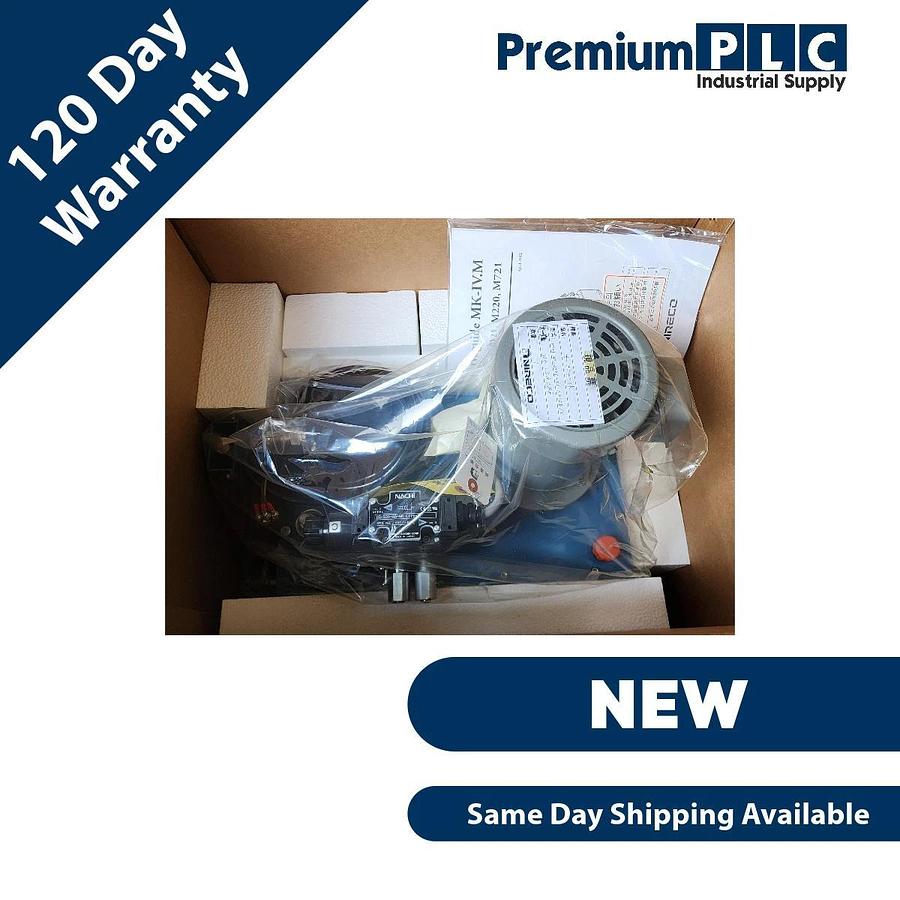

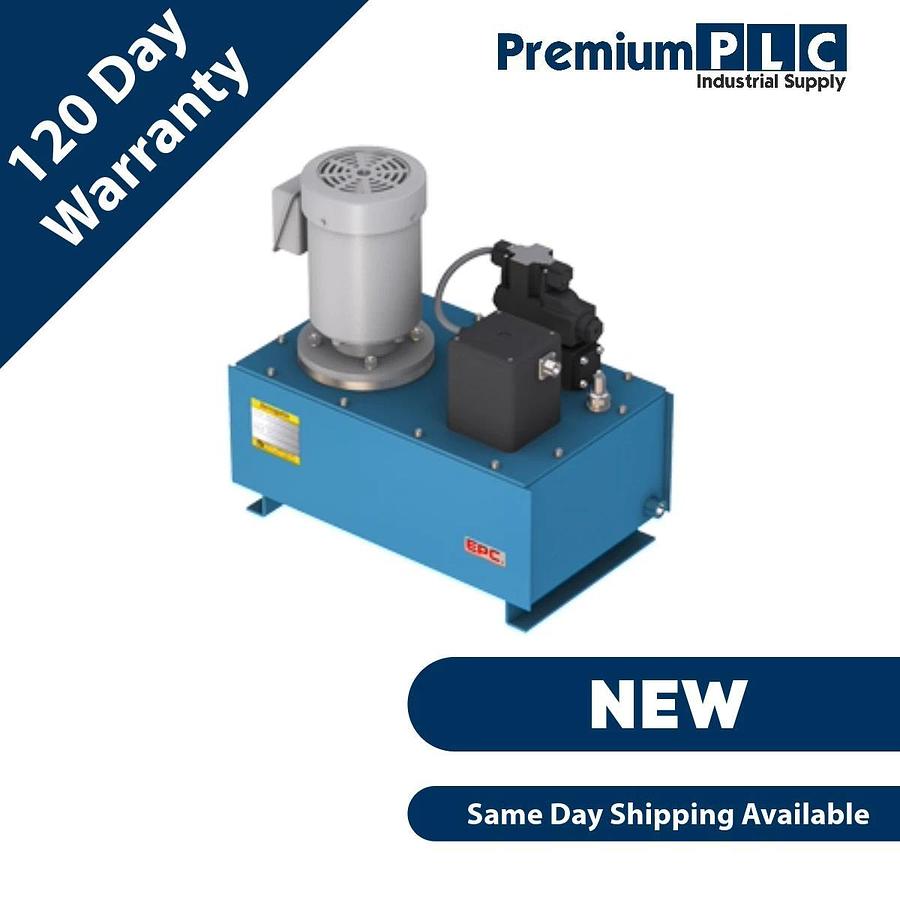

NEW NIRECO M121-AM / M121-AM-0-XY-XY-AB1CD/Y MK-IV SERVOGUIDE ELECTRO-HYDRAULIC EDGE POSITION CONTROL M121-AM Single standard The Model M121-AM receives a signal from the web guide amplifier and converts it into a hydraulic control signal. One Servoguide MK-IV M-series controller is mounted in the hydraulic pump unit. The model is equipped with an AUTO / MAN selecting function, which enables the controller to be switched from automatic to manual operation, and the reel stand to be moved right and left manually. M121-AM SPECS: Type Single standard Max operating pressure (Mpa) 1.5 Pump capacity (L/min) 4.2 Pump type Fix displacement Motor Output (W) 400 Max. operating force (kN) Cylinder bore (mm) 50 ... 2.9 80 ... 7.4 Max. operating speed with no load (mm/s) Cylinder bore (mm) 50 ... 34 80 ... 13 CONDITION: NEW IN BOX WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________
