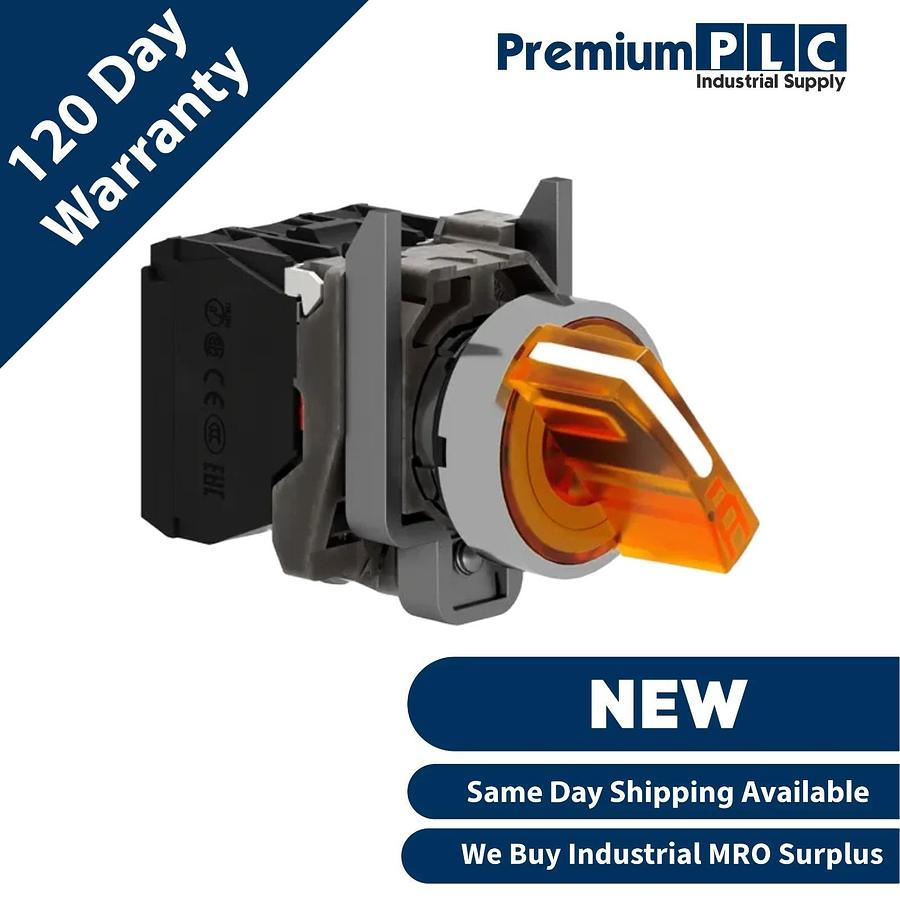

NEW SCHNEIDER ELECTRIC XB4BK125B5 SELECTOR SWITCH 22mm 2-POS, 1NO+1NC, 24V AC/DC

NEW SCHNEIDER ELECTRIC XB4BK125B5 SELECTOR SWITCH 22mm, 2-POS, 1NO+1NC, 24V AC/DC Specifications Main Range of Product Harmony XB4 Product or Component Type Illuminated selector switch device short name XB4 bezel material Chromium plated metal Fixing collar material Zamak Head type Standard Mounting diameter 0.87 in (22 mm) Sale per indivisible quantity 1 Shape of signaling unit head Round Type of operator Stay put Operator profile Orange standard handle Operator position information 2 positions 90° Contacts type and composition 1 NO + 1 NC contact operation Slow-break Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 Light source Universal LED Bulb base Integral LED [Us] rated supply voltage 24 V AC/DC 50/60 Hz Complementary Height 1.85 in (47 mm) Width 1.18 in (30 mm) Depth 2.68 in (68 mm) Terminals description ISO n°1 (13-14)NO (21-22)NC Net Weight 0.24 lb(US) (0.111 kg) Resistance to high pressure washer 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m contacts usage Standard contacts Positive opening With IEC 60947-5-1 appendix K Operating torque 1.24 lbf.in (0.14 N.m) NO changing electrical state Mechanical durability 1000000 cycles Tightening torque 7.08â¦10.62 lbf.in (0.8â¦1.2 N.m) IEC 60947-1 Shape of screw head Cross Philips no 1 Cross pozidriv No 1 Slotted flat à 4 mm Slotted flat à 5.5 mm Contacts material Silver alloy (Ag/Ni) Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1 [Ith] conventional free air thermal current 10 A IEC 60947-5-1 [Ui] rated insulation voltage 600 V 3)IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV IEC 60947-1 [Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C Electrical reliability Î < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Î < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 Signalling type Steady Supply voltage limits 19.2â¦30 V DC 21.6â¦26.4 V AC Current Consumption 18 mA Service life 100000 h at rated voltage and 25 °C Surge withstand 1 kV IEC 61000-4-5 Device presentation Complete product MASS QUANTITY AVAILABLE CONDITION: NEW SURPLUS IN FACTORY BOX WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST _________________________________________________________________________________ 1207 / SHELF A7
