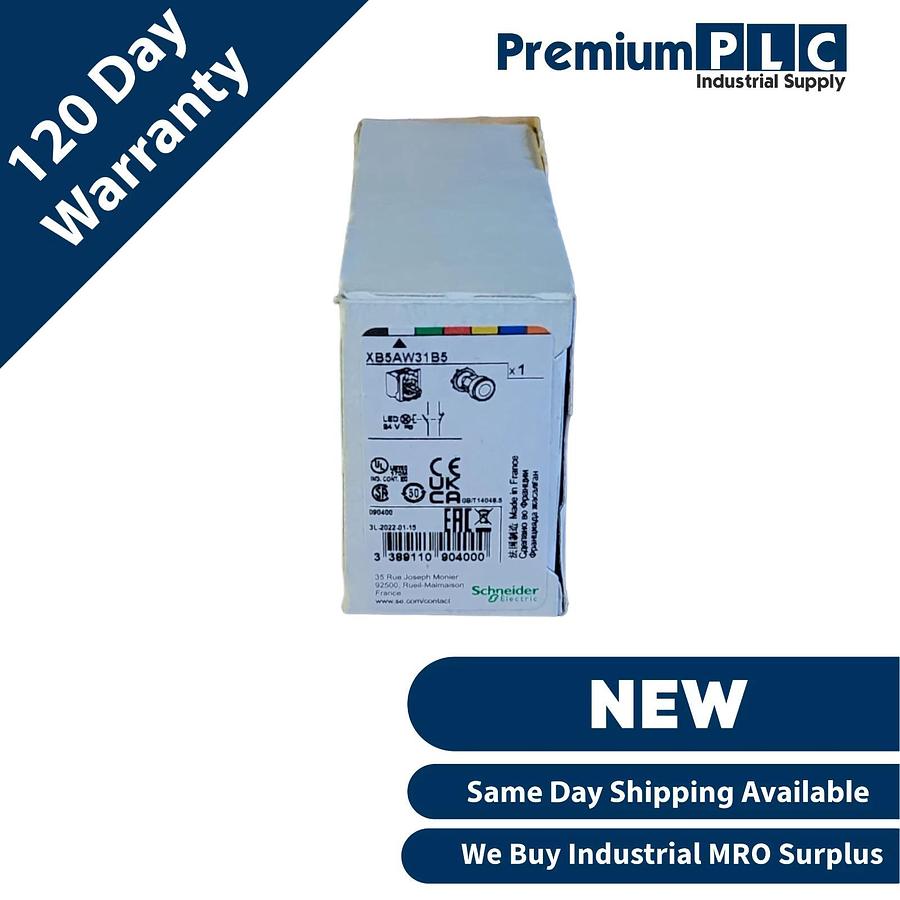

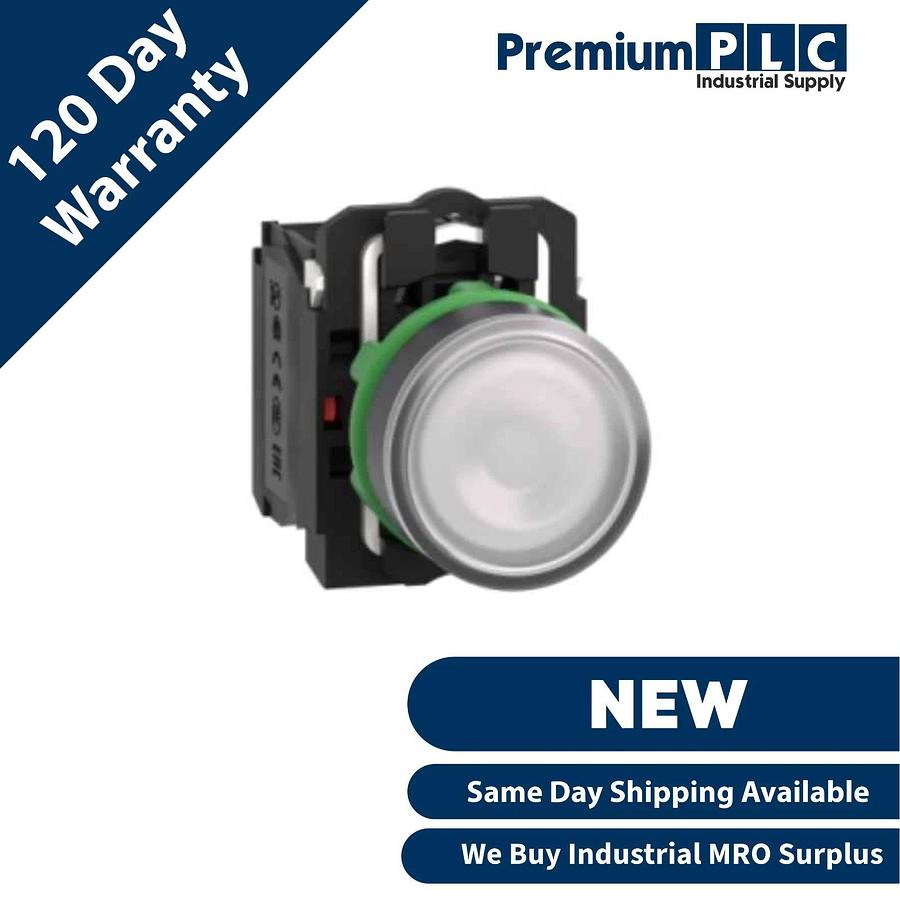

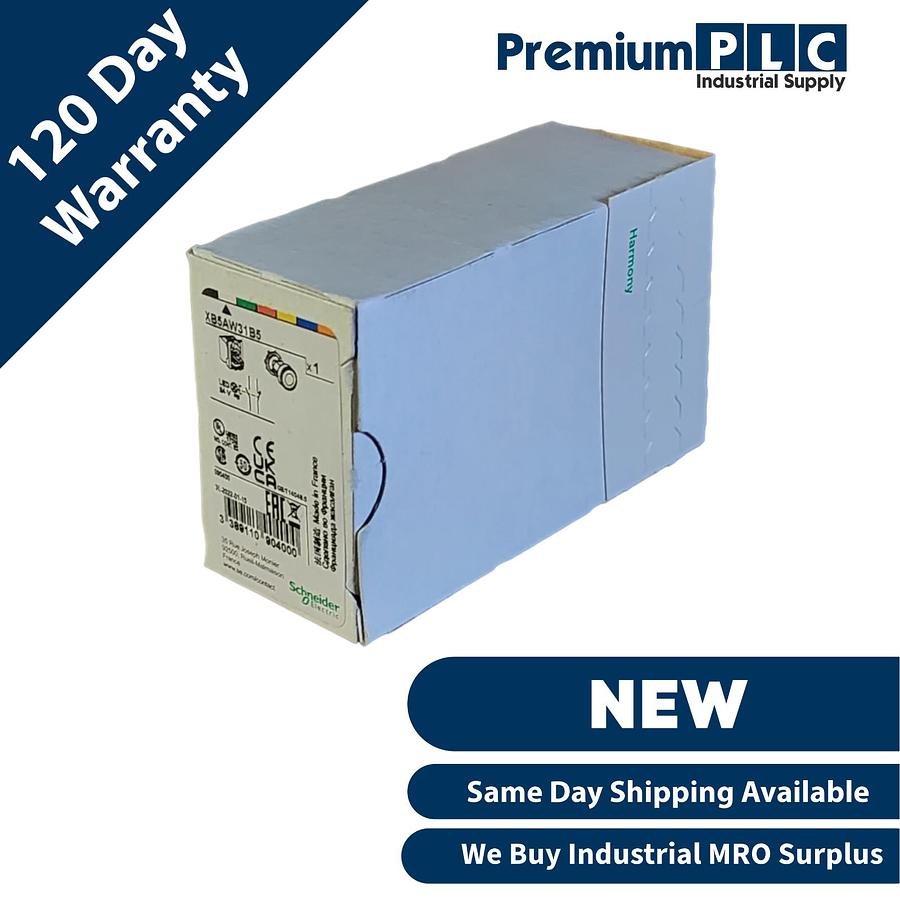

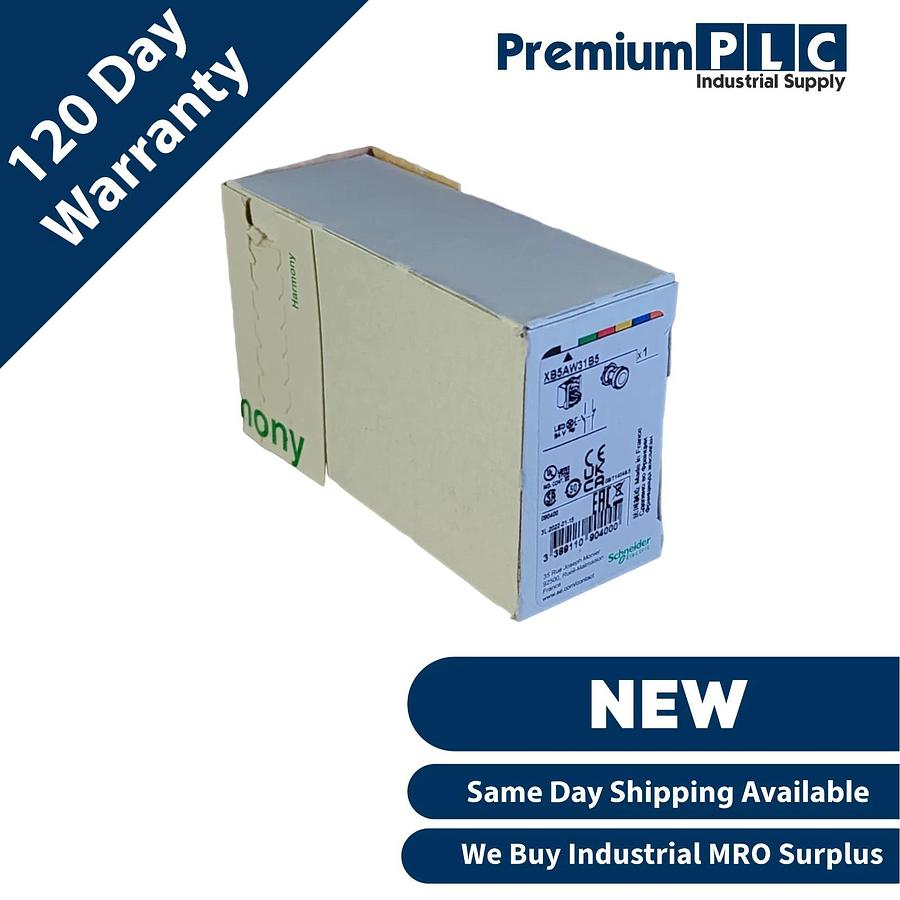

NEW SCHNEIDER ELECTRIC XB5AW31B5 ILLUMINATED PUSH BUTTON 22mm 1NO+1NC, 24V AC/DC

NEW SCHNEIDER ELECTRIC XB5AW31B5 ILLUMINATED PUSH BUTTON 22mm 1NO+1NC, 24V AC/DC Specifications Main Range of product Harmony XB5 Product or component type Illuminated push-button device short name XB5 bezel material Dark grey plastic Fixing collar material Plastic Head type Standard Mounting diameter 22 mm Sale per indivisible quantity 1 Shape of signaling unit head Round Type of operator Spring return Operator profile White flush, unmarked Operator additional information With plain lens Contacts type and composition 1 NO + 1 NC contact operation Slow-break Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 Light source Universal LED Bulb base Integral LED [Us] rated supply voltage 24 V AC/DC 50/60 Hz Cap/operator or lens colour White Complementary height 42 mm Width 30 mm Depth 57 mm Terminals description ISO n°1 (13-14)NO (21-22)NC Net weight 0.056 kg Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m contacts usage Standard contacts Positive opening With conforming to IEC 60947-5-1 appendix K Operating travel 1.5 mm (NC changing electrical state) 2.6 mm (NO changing electrical state) 4.3 mm (total travel) Operating force 3.5 N NC changing electrical state 3.8 N Mechanical durability 10000000 cycles Tightening torque 0.8â¦1.2 N.m conforming to IEC 60947-1 Shape of screw head Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat à 4 mm screwdriver Slotted compatible with flat à 5.5 mm screwdriver Contacts material Silver alloy (Ag/Ni) Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1 [Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1 [Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 [Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C Electrical reliability Î < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 Î < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 Signalling type Steady Supply voltage limits 19.2â¦30 V DC 21.6â¦26.4 V AC Current consumption 18 mA Service life 100000 h at rated voltage and 25 °C Surge withstand 1 kV conforming to IEC 61000-4-5 Device presentation Complete product QUANTITY AVAILABLE CONDITION: NEW SURPLUS IN FACTORY BOX WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST _________________________________________________________________________________ 42
