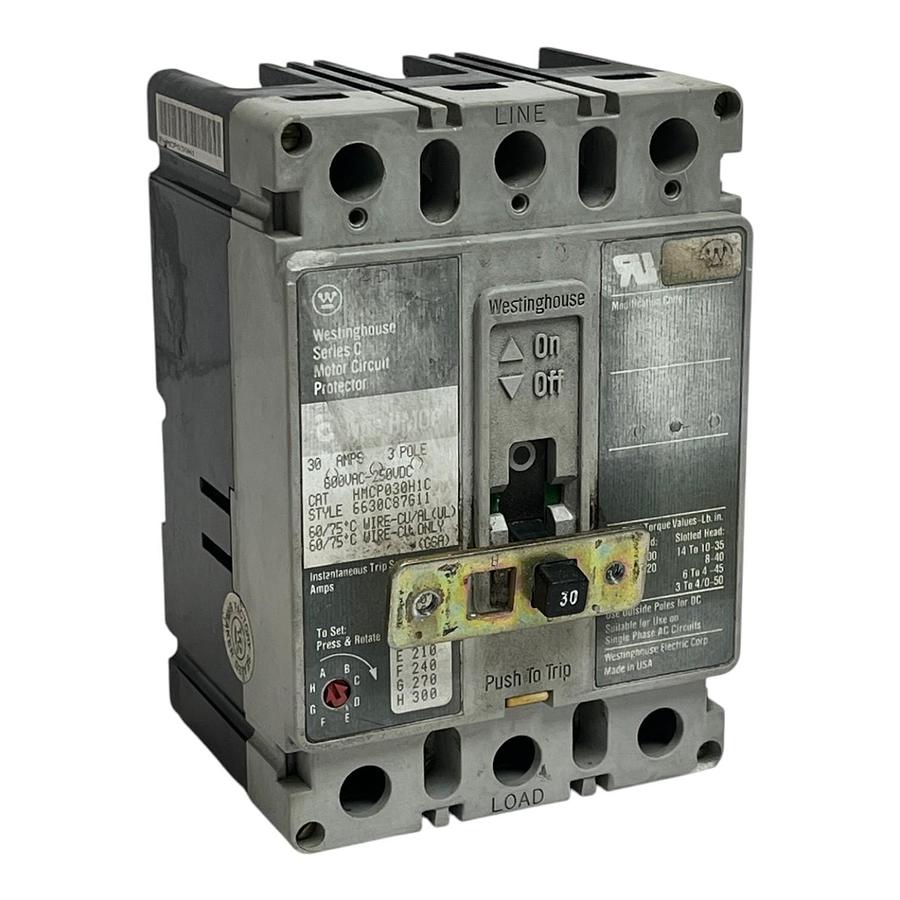

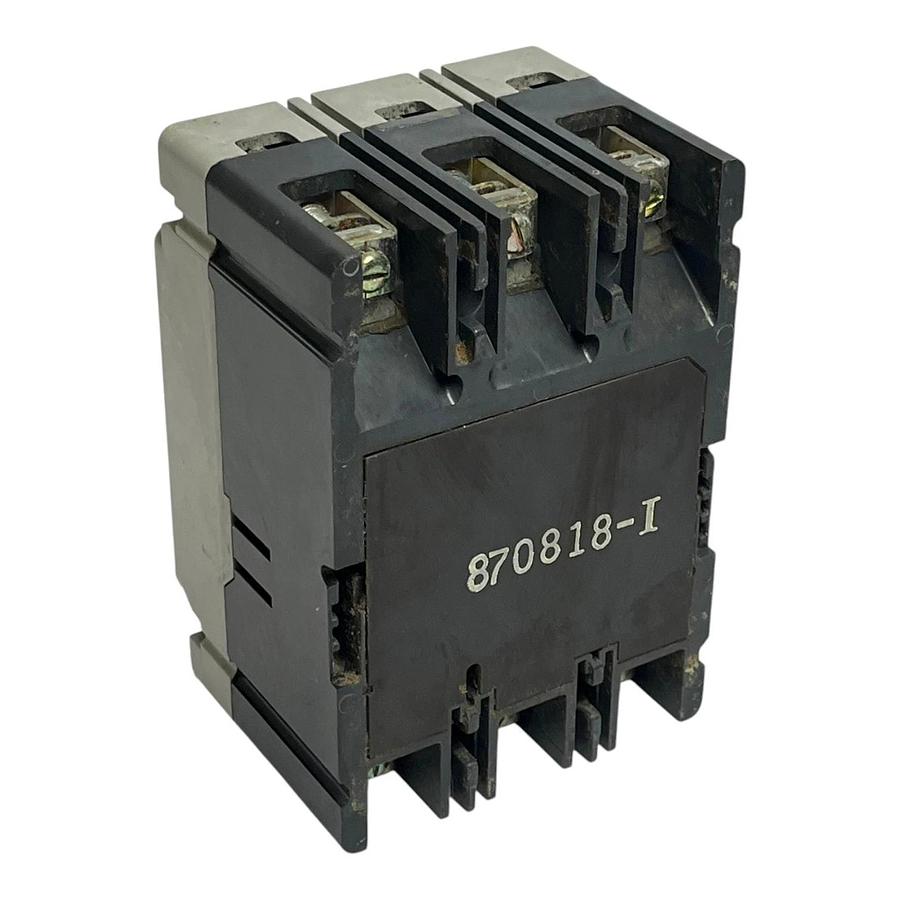

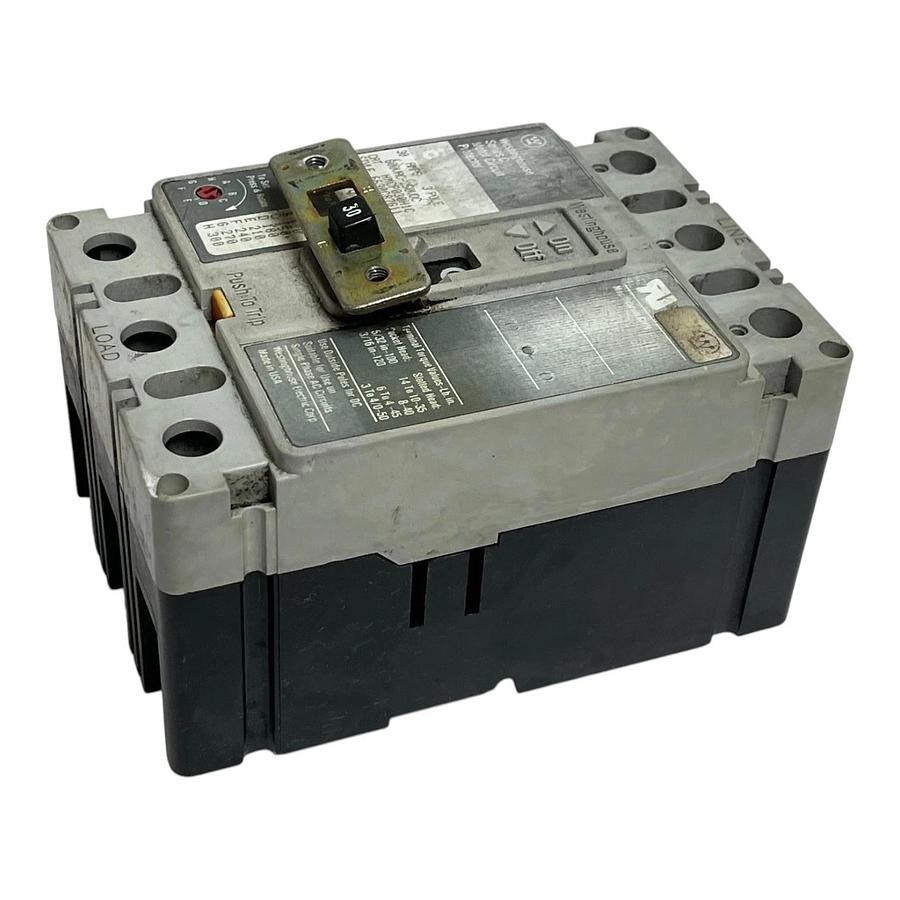

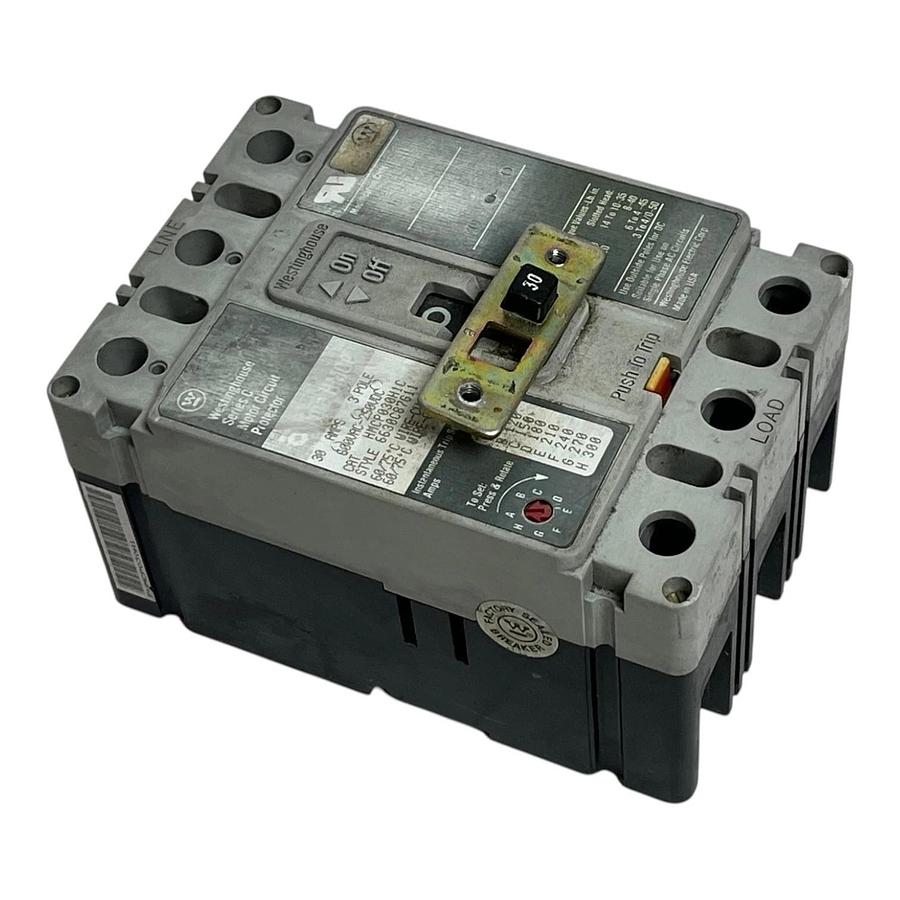

Westinghouse HMCP030H1C Motor Circuit Protector Series C 30A 3P 600V Breaker

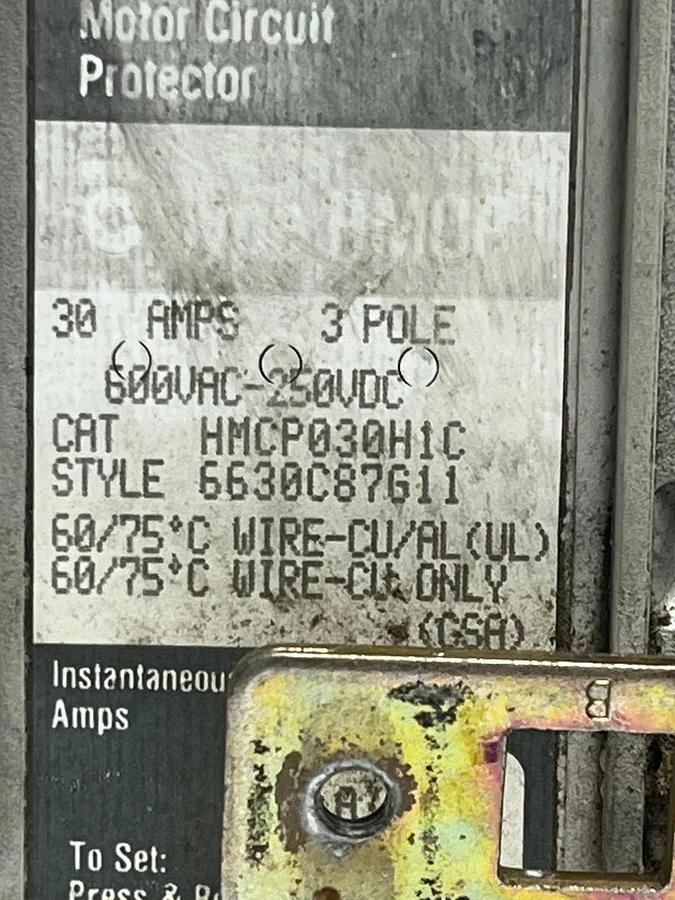

Westinghouse HMCP030H1C Motor Circuit Protector Series C 30A 3P 600V Breaker Up for sale is a genuine Westinghouse Series C Motor Circuit Protector , Catalog Number HMCP030H1C . This F-frame industrial circuit breaker is a magnetic-only instantaneous trip device rated for up to 30 Amps at 600V AC. It is engineered specifically for reliable short-circuit fault protection in motor branch circuits. Product Specifications: Catalog Number: HMCP030H1C Style Code: 6630C87G11 Current Rating: 30A Poles: 3-Pole configuration (Suitable for use on single-phase AC circuits using outside poles) Voltage Thresholds: 600V AC Max | 250V DC Max Adjustable Instantaneous Trip Settings: Adjustable magnetic dial settings from A (90A) through H (300A). Safety Feature Included: Comes equipped with a heavy-duty steel padlock attachment bracket over the front handle mechanism to support OSHA Lockout/Tagout (LOTO) safety protocols. Condition Details: This breaker was cleanly pulled from a decommissioned industrial control panel. It is mechanically soundâthe switch toggles crisp and firm, and the internal spring operates perfectly via the manual "Push to Trip" button test. The housing shows minor surface scuffs and dust from typical warehouse storage. WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ 1342
