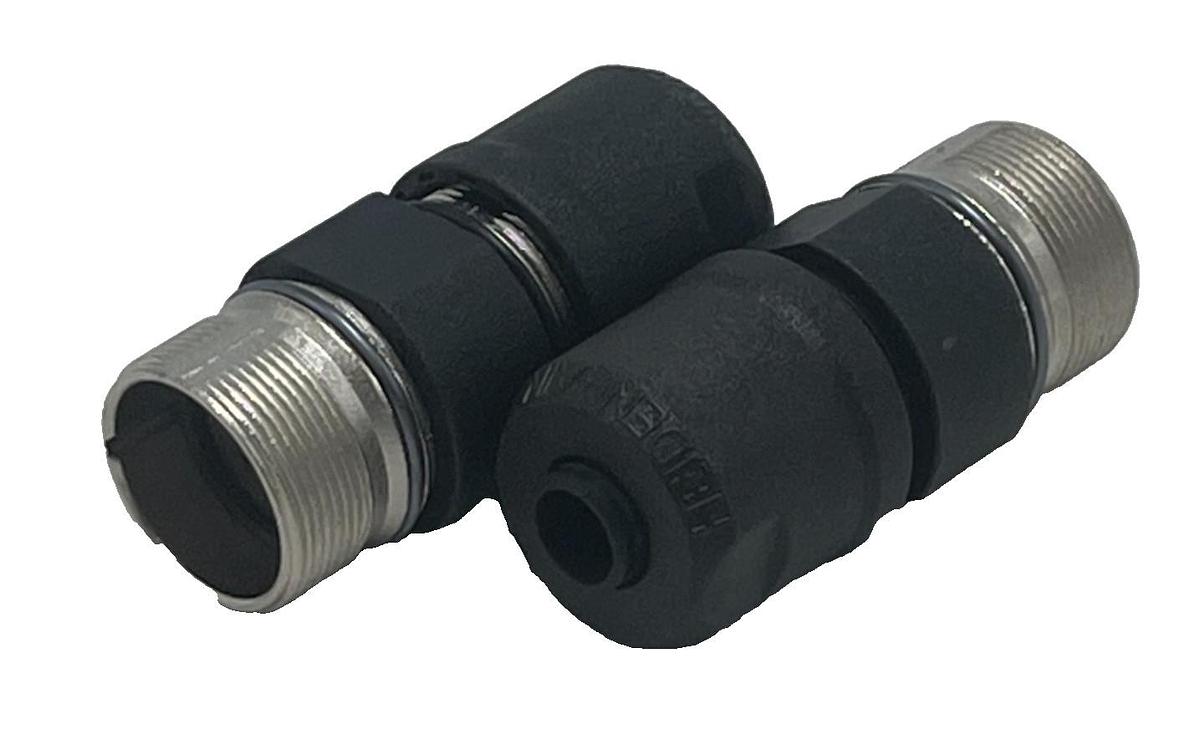

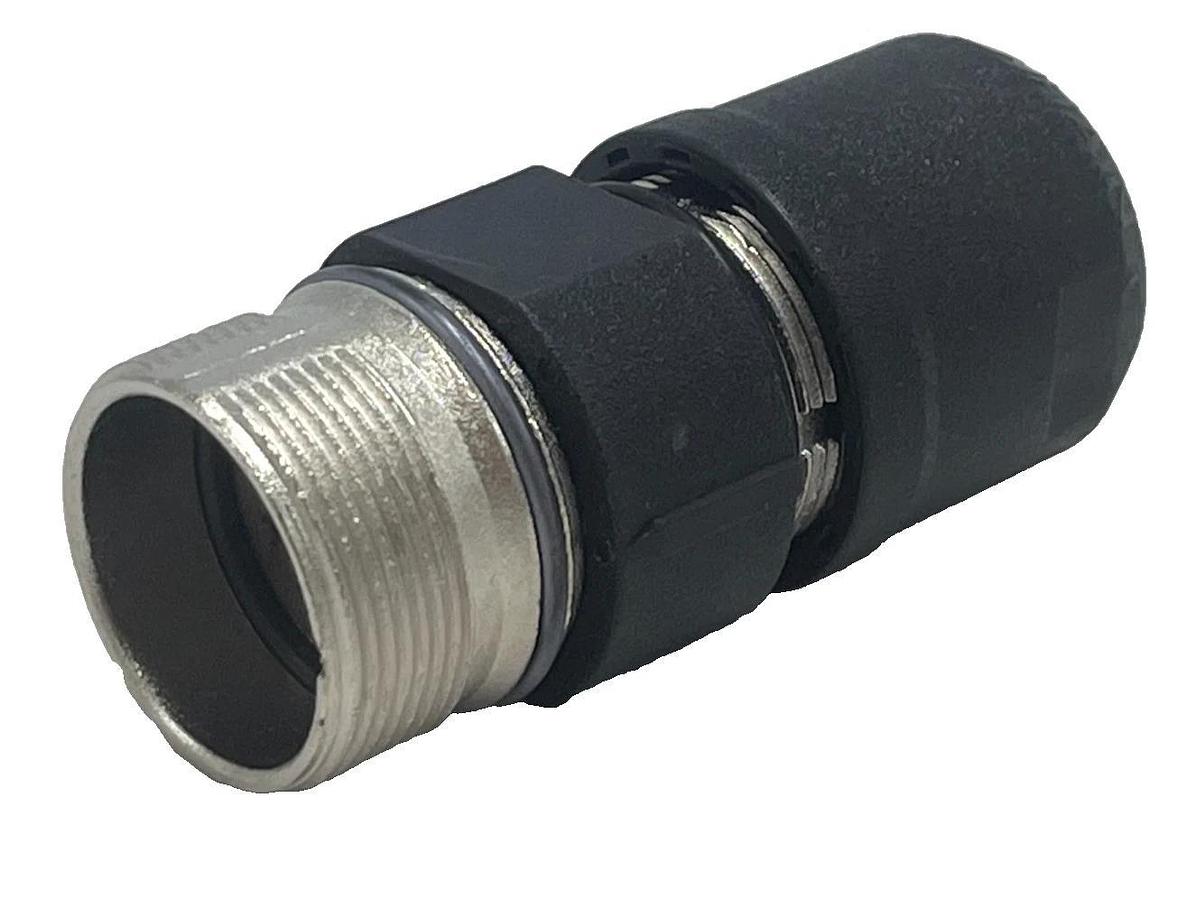

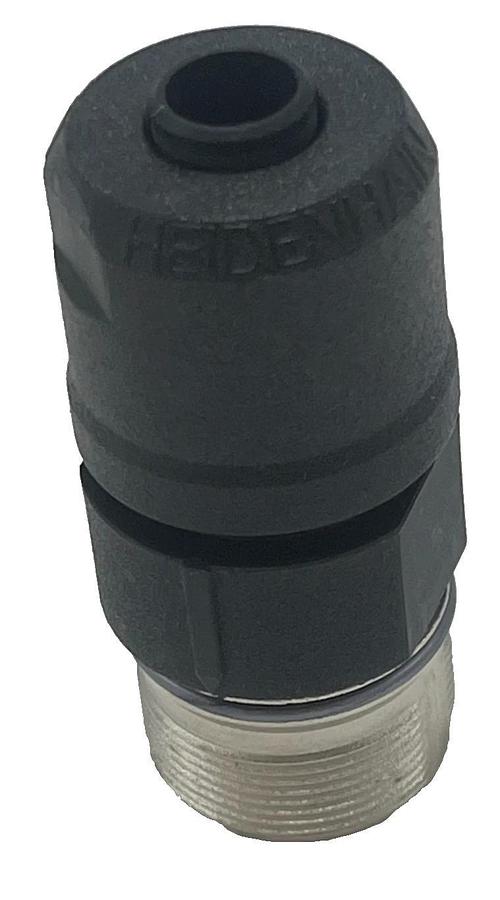

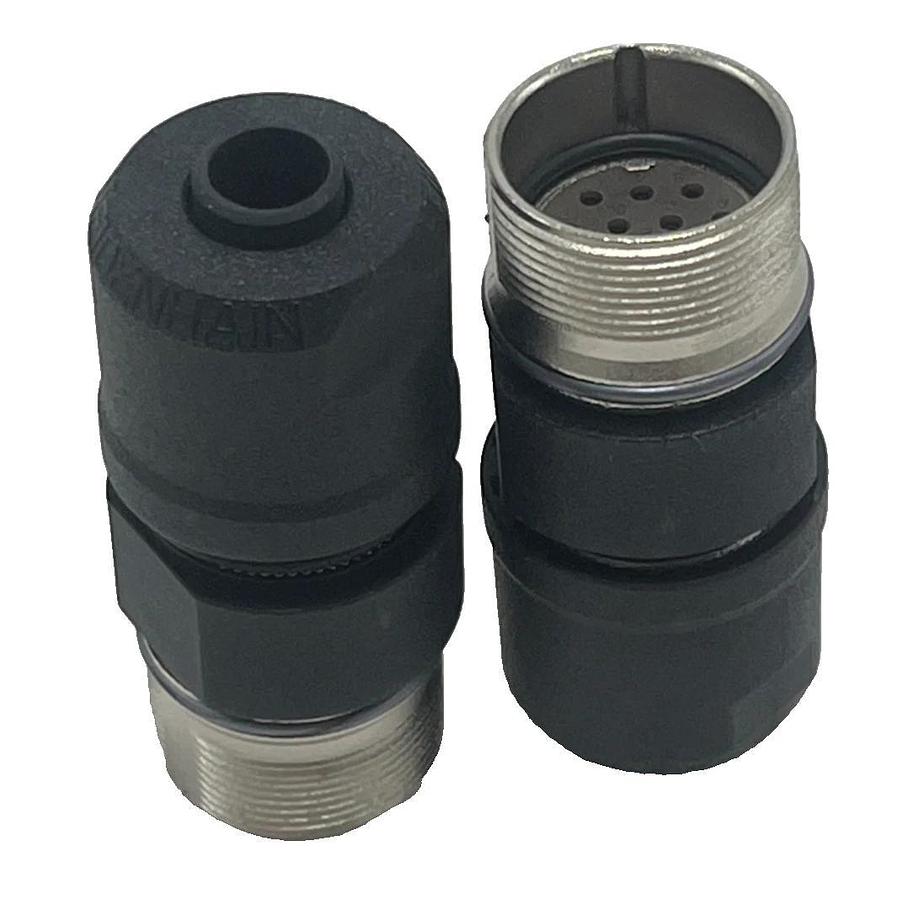

(2) Heidenhain 291698-02 M23 Female Connector 12Pin Circular Coupling Solder New
$99.95
Shipping: US $15.21 delivery in 2–4 days
Description
(2) Heidenhain 291698-02 M23 Female Connector 12Pin Circular Coupling Solder New
Item Description
This listing is for one (1) new
Heidenhain 291698-02
M23 circular cable connector (coupling). This is a female connector with 12 pins designed for use with Heidenhain encoders and linear scales, specifically for connecting cables with an 8 mm outer diameter.
This component is ideal for industrial automation, CNC machinery, and motion control applications. It uses solder contacts for reliable, permanent connection.
Key Features & Specifications
Connector Type:
M23 Circular Coupling (Cable Connector)
Gender:
Female Contacts
Pin Count:
12 positions/pins
Termination Type:
Solder Contacts
Locking Mechanism:
M23 Threaded coupling nut
Cable Compatibility:
Designed for cable outer diameter up to 8 mm (approx. 0.315 inches)
Wire Gauge Max:
1.00 qmm / AWG 18
Contact Plating:
Gold (Au) plated contacts for optimal signal integrity
CONDITION:
NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
2013
Specifications
| Manufacturer | HEIDENHAIN |
| Model | 291698-02 |
| Condition | New |
| Country of Origin | Germany |
