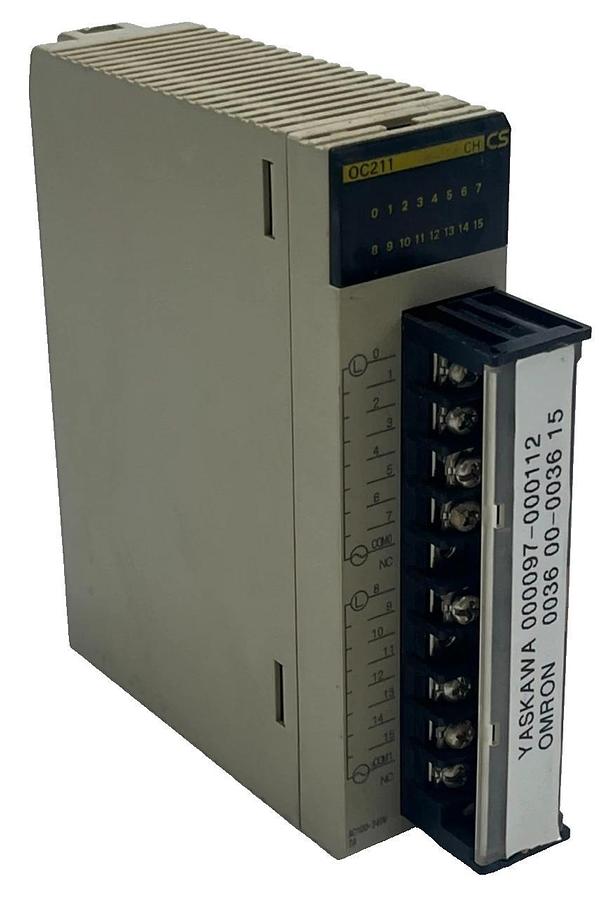

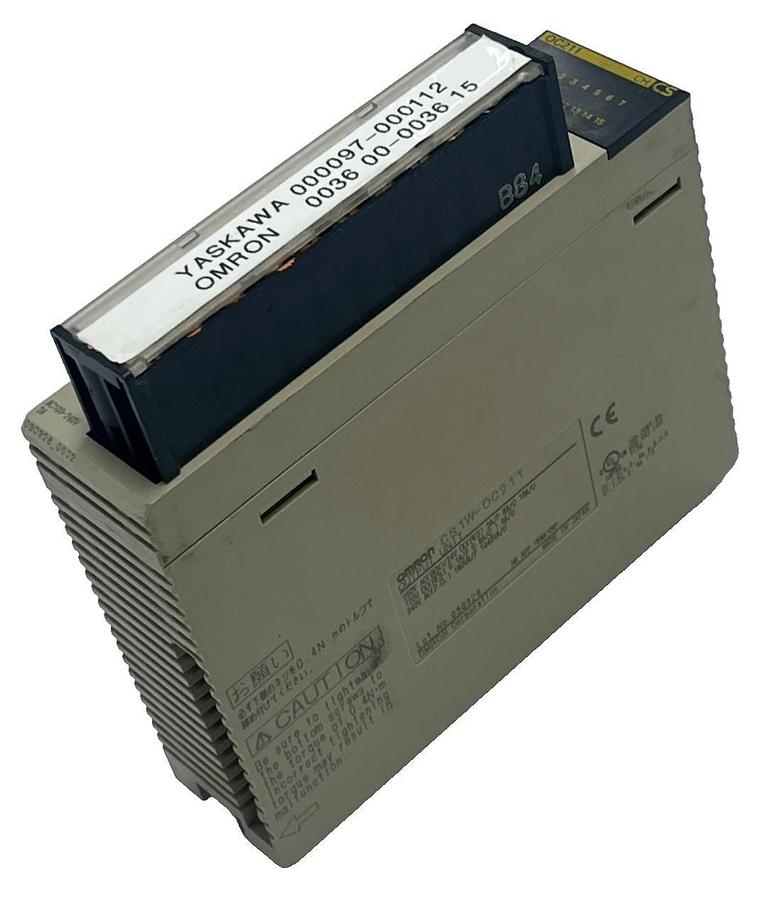

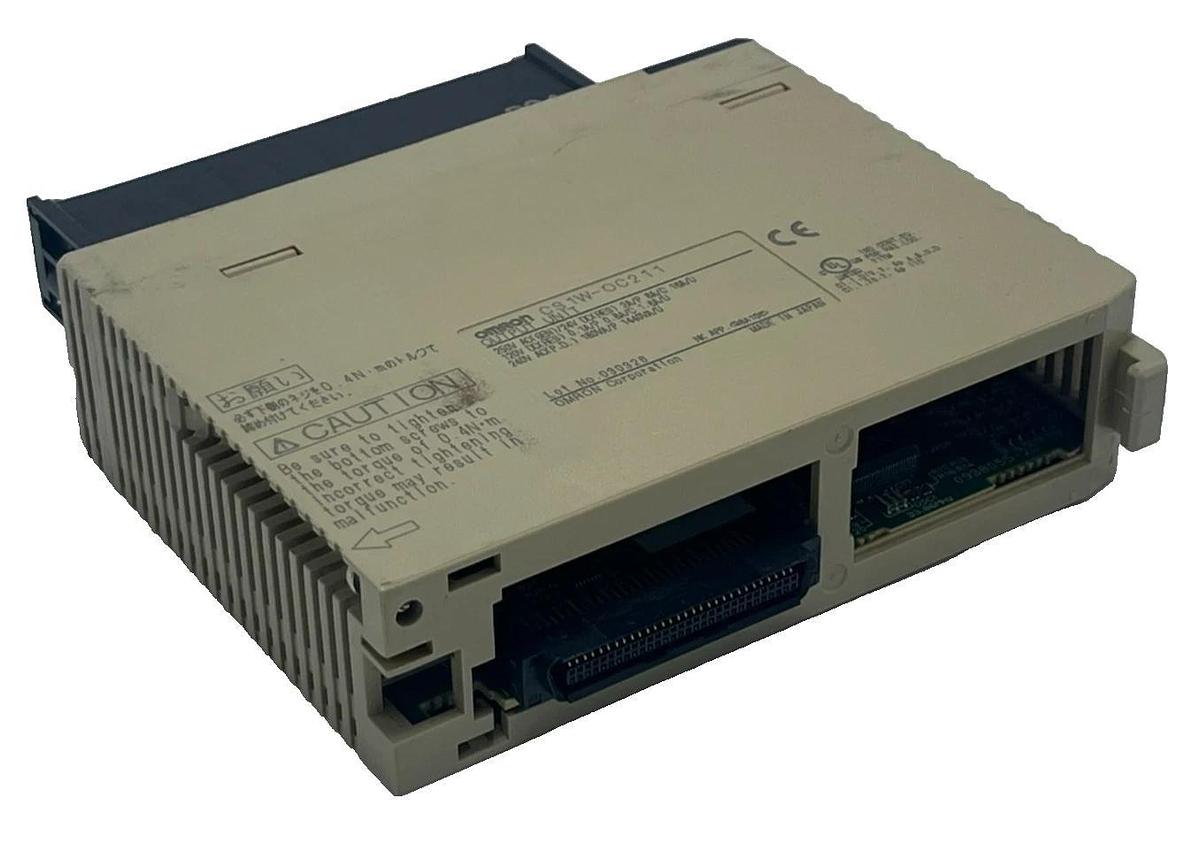

Omron CS1W-OC211 Sysmac CS1 Series Relay Output Unit - 16 Point - 250VAC/24VDC

Omron CS1W-OC211 Sysmac CS1 Series Relay Output Unit - 16 Point - 250VAC/24VDC LIGHTLY USED IN GOOD CONDITION, MISSING 2 TERMINAL SCREWS Key Features & Capabilities High Load Capacity: Supports up to 2A switching per output point, compatible with both AC (up to 250V) and DC (up to 24V/120V) loads. 16 Discrete Channels: Features 16 normally open (NO) relay contacts divided into 2 common circuits (8 points per common). Removable Terminal Block: Equipped with a removable screw terminal block, allowing for easy wiring maintenance without disconnecting individual field wires. Rack Mounted: Designed for seamless integration into any CS1-series backplane/rack system. Isolated Design: Provides 240V isolation between field terminals and the internal PLC logic for superior system protection. Technical Specifications Output Format: Relay Contact (NO) Internal Current Consumption: 130mA at 5V DC Dimensions: 130mm x 34.5mm x 123mm Weight: Approximately 270g (0.6 lbs) CONDITION: USPI -  Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 2042
