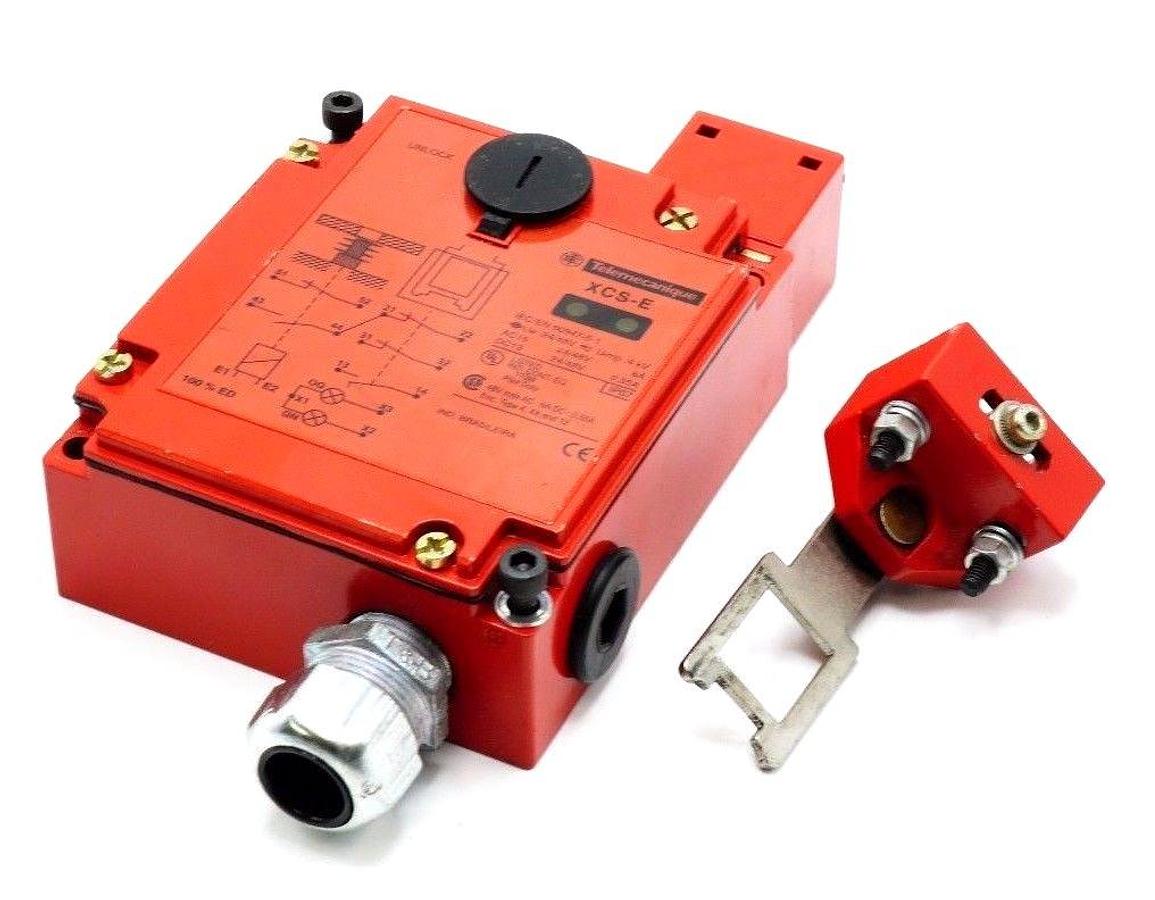

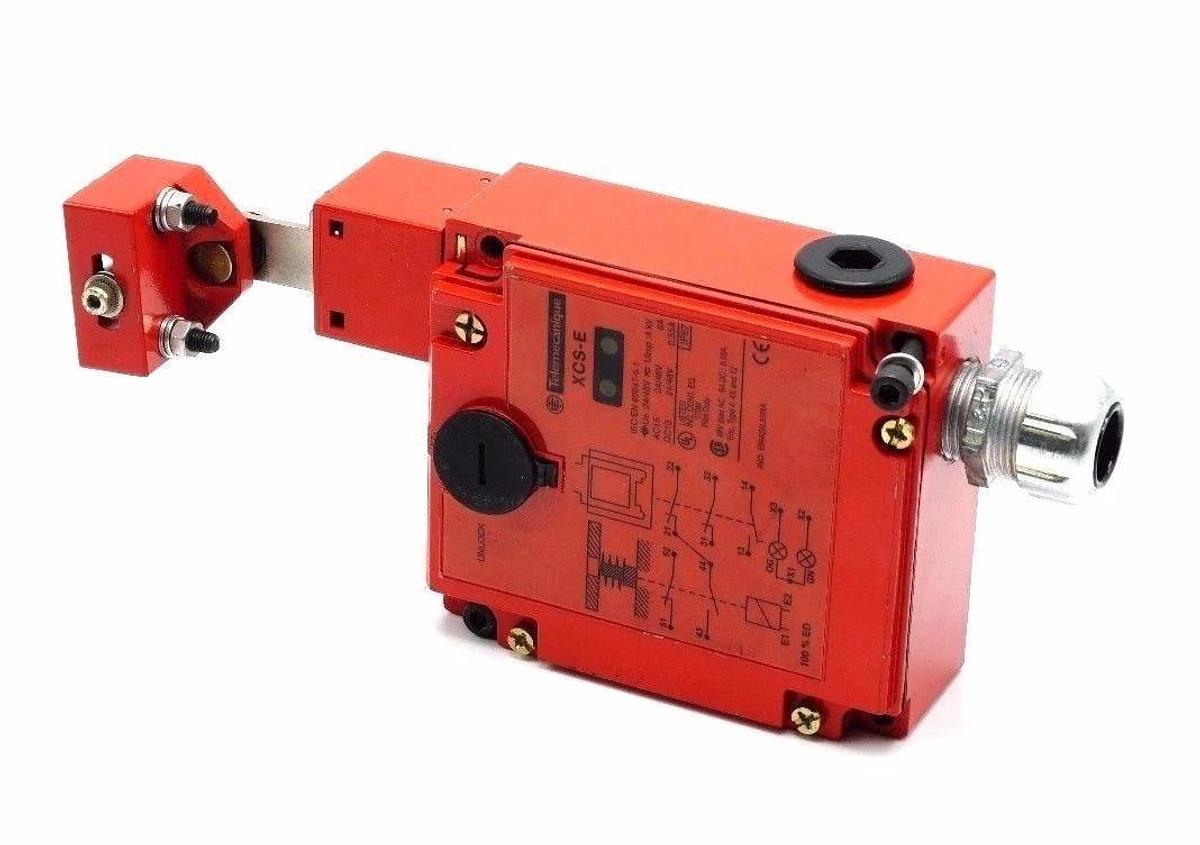

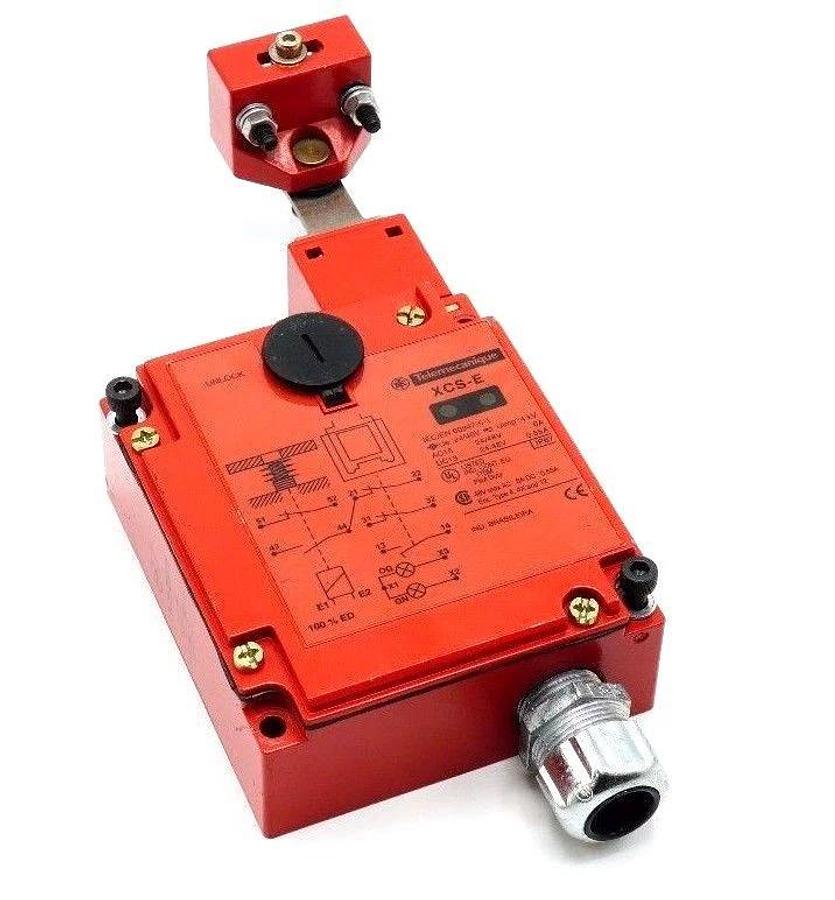

TELEMECANIQUE XCSE7513 SAFETY LIMIT SWITCH XCS-E7513 W/ KEY-TONGUE XCS-Z03

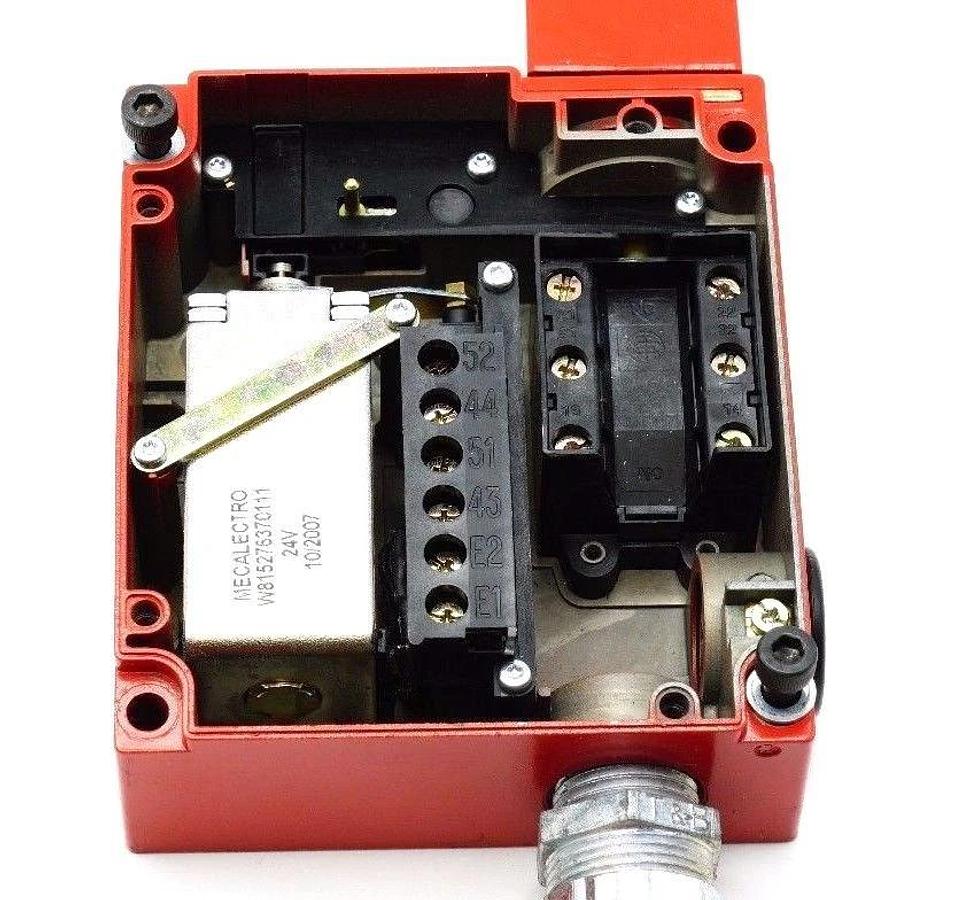

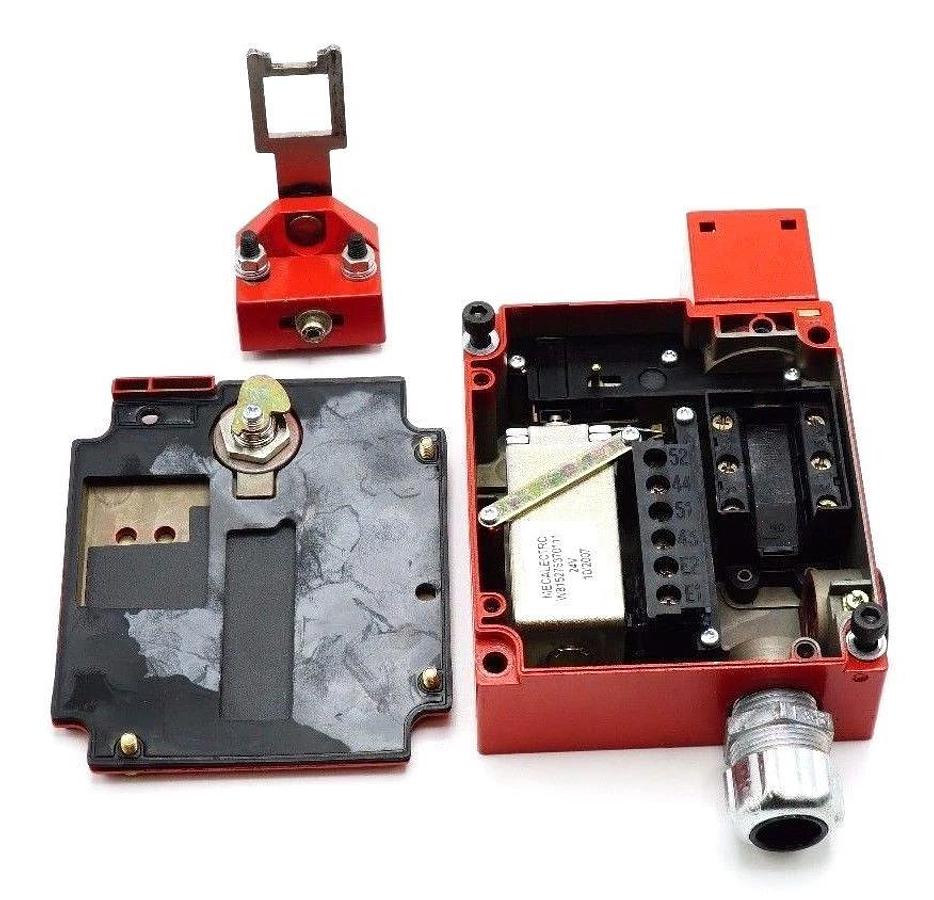

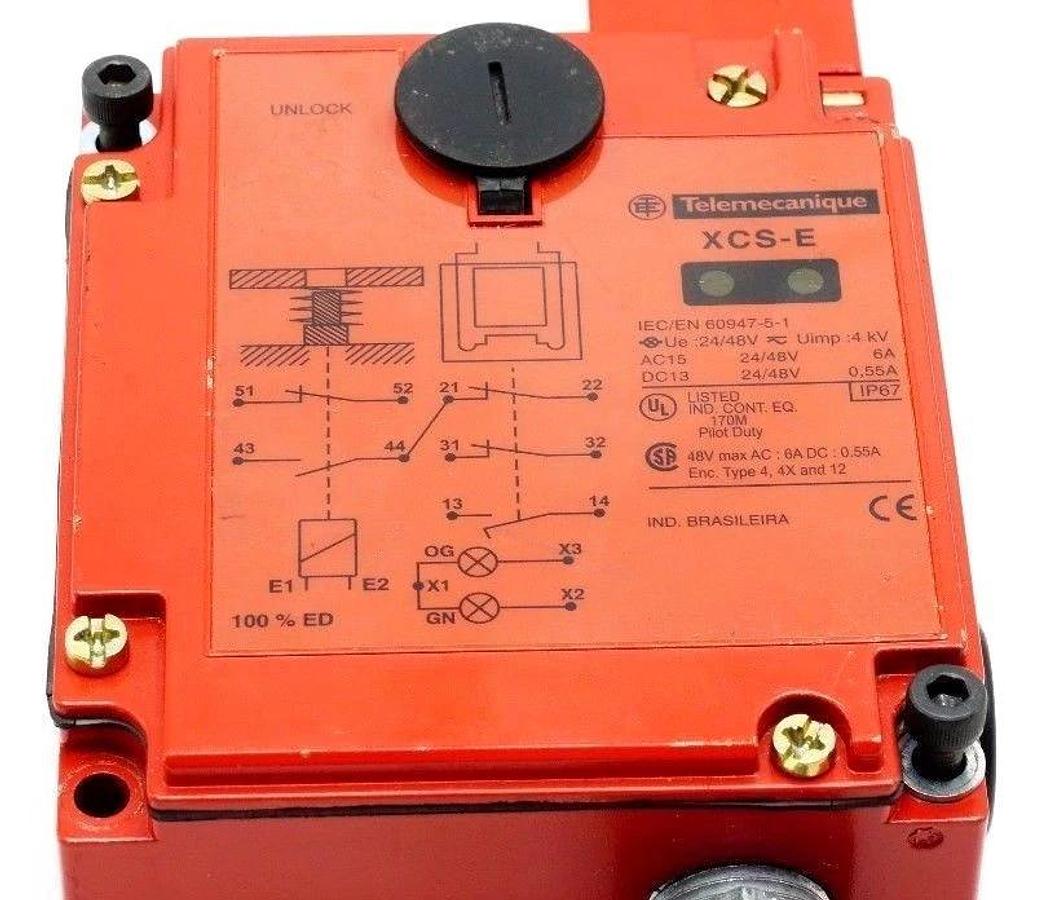

TELEMECANIQUE XCSE7513 SAFETY LIMIT SWITCH XCS-E7513 W/ KEY-TONGUE XCS-Z03 CLEAN SURPLUS ITEM. COMES JUST AS SEEN IN PHOTOS. Characteristics Main range of product Preventa Safety detection product or component type Safety switch component name XCSE design Rectangular material Metal head type Key operated turret head contacts type and composition 2 NC + 1 NO contacts operation Slow-break, break before make solenoid contacts type and composition 1 NC + 1 NO (slow-break, simultaneous) cable entry 2 entries tapped 1/2" NPT electromagnet interlocking Locking on energisation and unlocking on de-energisation of solenoid [Us] rated supply voltage 24 V (- 20...10 %) electrical connection Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end number of poles 3 locking options description With interlocking, locking by solenoid local signalling 2 LEDs green or orange (guard open/guard closed and locked) signalling circuit voltage 24/48 V (voltage limits: 20...52 V) Complementary positive opening With NC contact supply voltage type AC/DC supply frequency 50/60 Hz load factor 1 power consumption in VA 10 VA (inrush) 10 VA (sealed) signalling circuit type AC/DC signalling circuit consumption 7 mA mechanical durability >= 1000000 cycles minimum actuation speed 0.01 m/s maximum actuation speed 0.5 m/s [Ie] rated operational current 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1 1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1 [Ithe] conventional enclosed thermal current 6 A [Ui] rated insulation voltage 50 V for signalling circuit conforming to EN/IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1 protection type Overvoltage protection for signalling circuit short circuit protection 10 A cartridge fuse type gG (gl) actutr forcible withdrawal rtc 2000 N actuator force for extraction >= 20 N operating rate 10 cyc/mn for maximum durability safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 safety reliability data B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear) body material Zamak head material Zamak depth 44 mm height 146 mm width 98 mm product weight 1.14 kg Environment standards EN 1088/ISO 14119 EN/IEC 60204-1 EN/IEC 60947-5-1 EN/ISO 12100 UL 508 CSA C22.2 No 14 product certifications CSA UL protective treatment TC ambient air temperature for operation -25...40 °C ambient air temperature for storage -40...70 °C vibration resistance 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6 shock resistance 10 gn for 11 ms conforming to IEC 60068-2-27 class of protection against electric shock Class I conforming to EN/IEC 60536 IP degree of protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 Offer Sustainability Sustainable offer status Green Premium product RoHS (date code: YYWW) Compliant  - since  1150  -  Schneider Electric declaration of conformity Schneider Electric declaration of conformity REACh Reference not containing SVHC above the threshold _________________________________________________________________ C61
