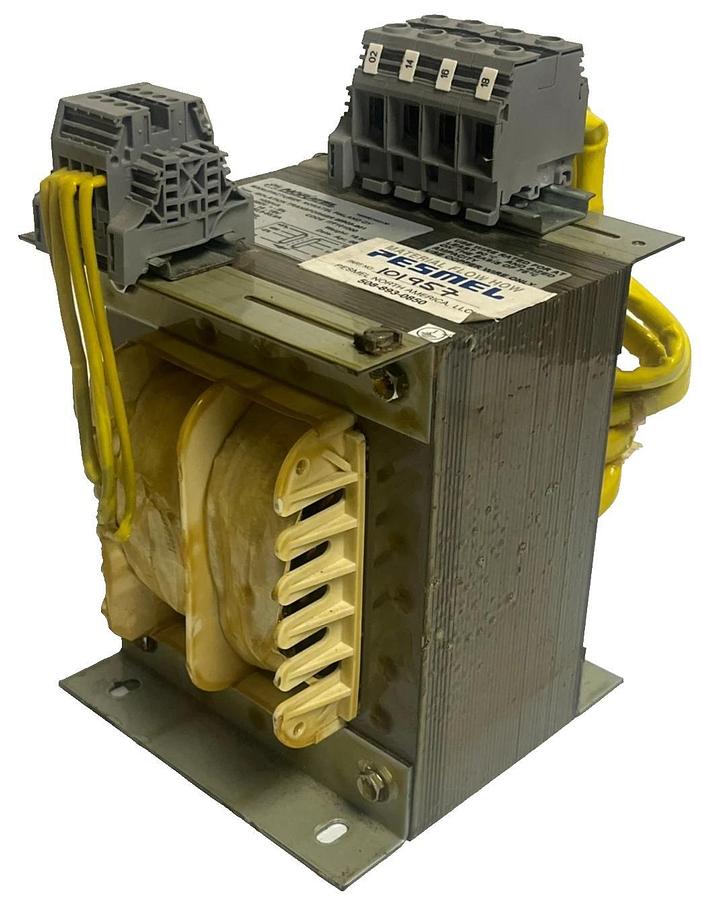

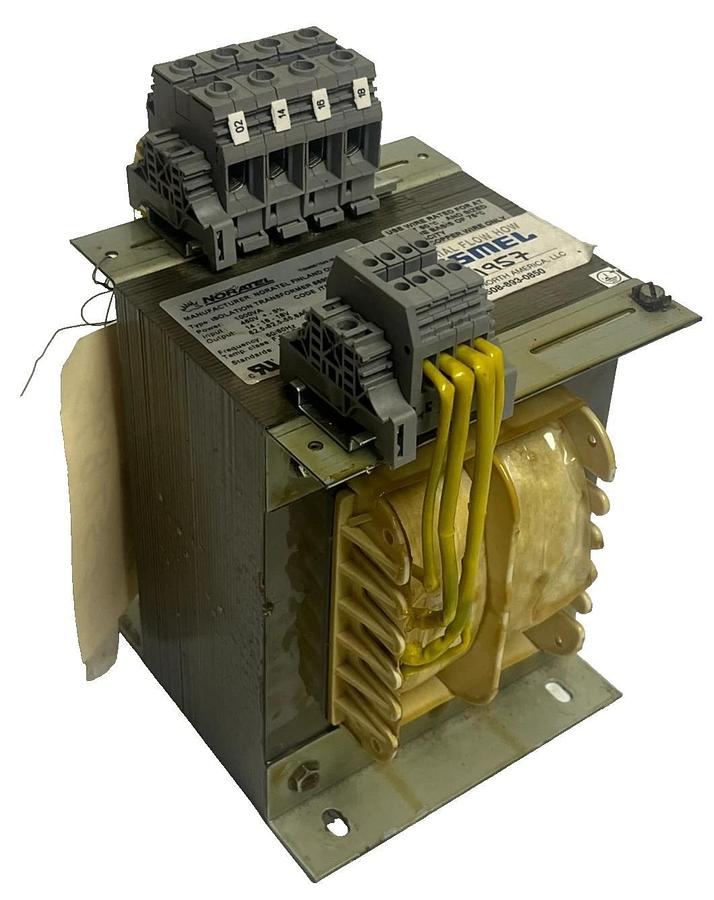

NORATEL 66905-901 Isolation Transformer 1000VA 460V In 14-16-18V Out 6A 50/60Hz
$689.95
Shipping: US $68.90 delivery in 2–4 days
Description
NORATEL 66905-901 Isolation Transformer 1000VA 460V In 14-16-18V Out 6A 50/60Hz
Key Features:
High Current Output:
Capable of delivering up to 62.5 Amps of current at 16V, suitable for heavy low-voltage loads.
Multi-Tap Secondary:
Offers 14V, 16V, and 18V output options for application flexibility.
460V Input:
Designed for standard industrial supply voltages prevalent in North America and globally.
Isolation Function:
Provides galvanic isolation between the input and output, enhancing safety and reducing electrical noise/ground loops.
Robust Construction:
Built with high-quality copper windings and a rugged frame for long-term industrial reliability.
Technical Specifications (2026 Reference Data):
Feature
Detail
Manufacturer
Noratel
Part Number
66905-901
Power Rating
1000 VA (1.0 kVA)
Input Voltage
460 VAC (+/- 5%)
Output Voltage Taps
14 VAC, 16 VAC, 18 VAC
Max Output Current
62.5 A (at 16V tap)
Frequency
50/60 Hz
Phase
Single Phase
CONDITION:
NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
PALLET 136
Specifications
| Manufacturer | Noratel |
| Model | 66905-901 |
| Condition | New |
| Country of Origin | United States |
