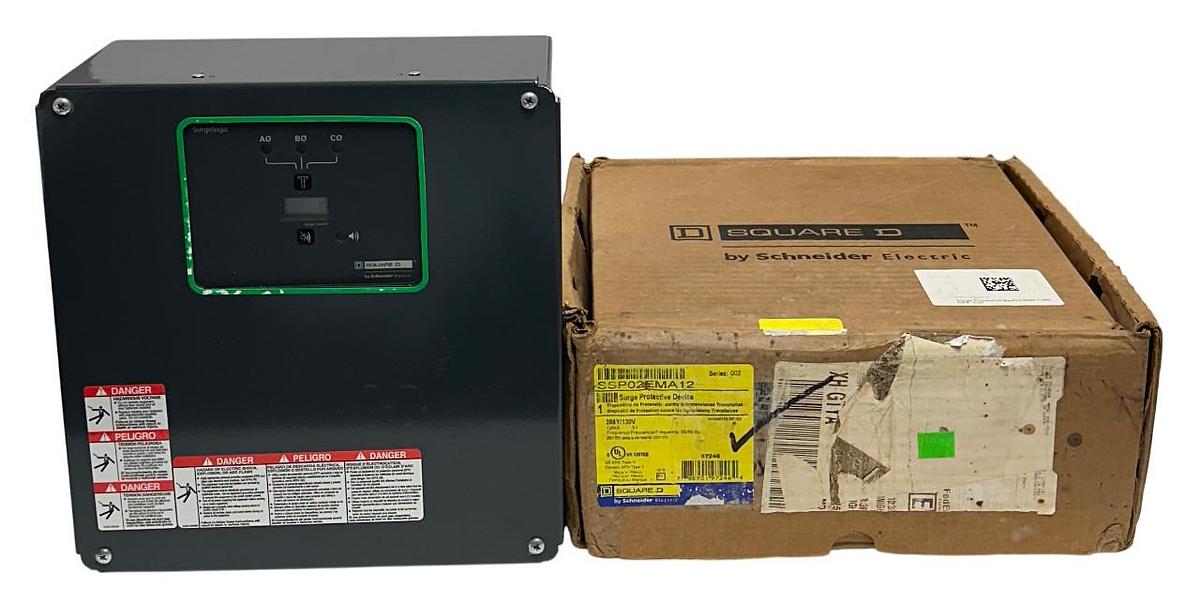

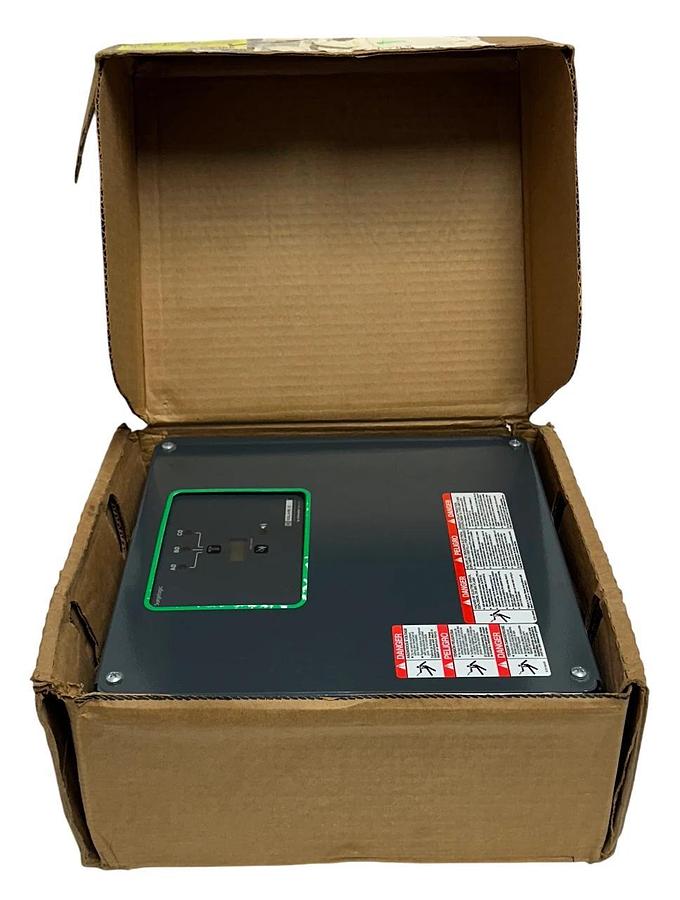

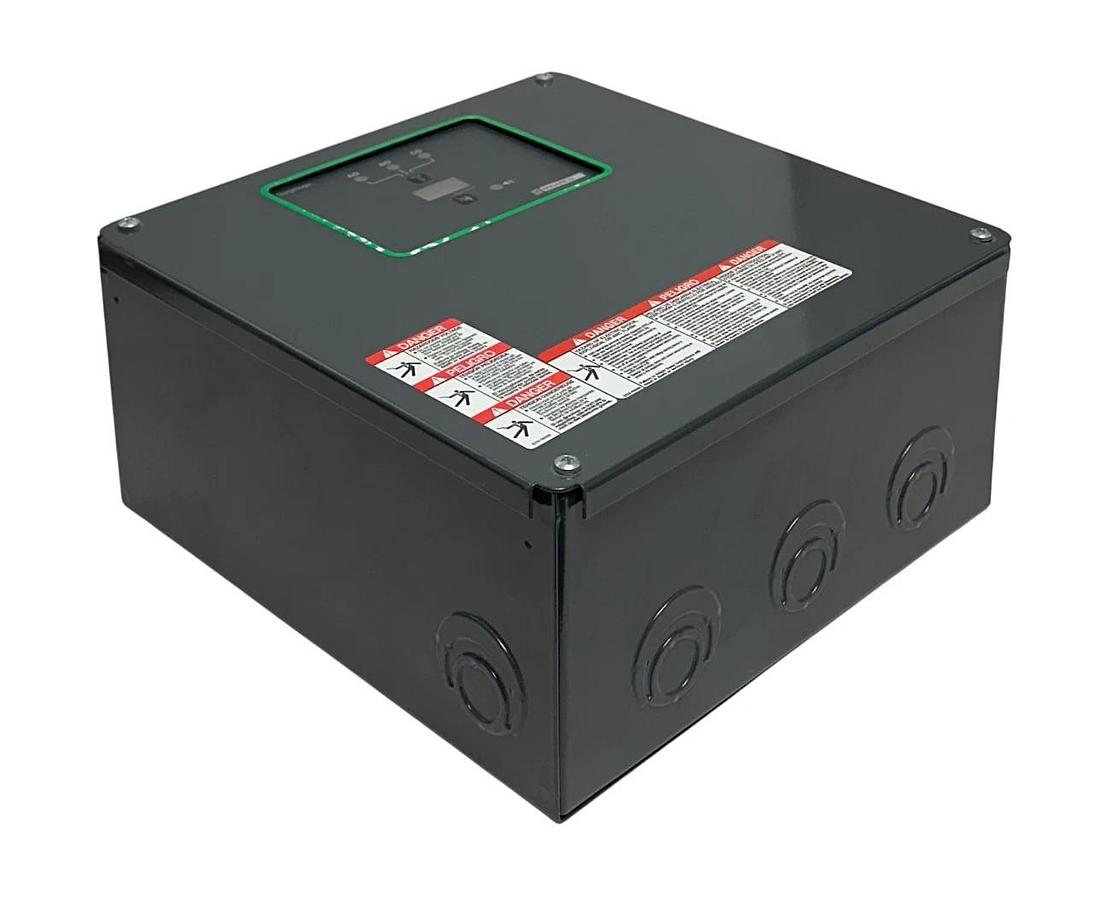

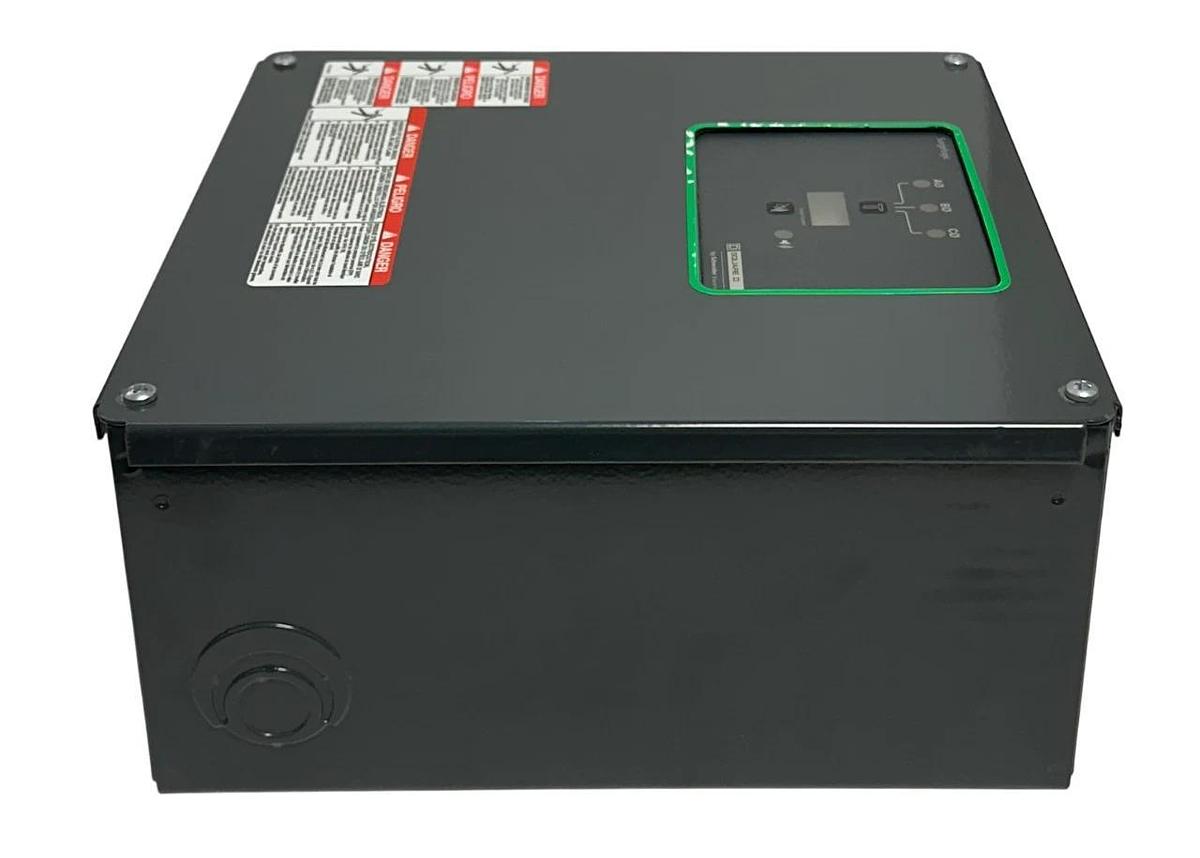

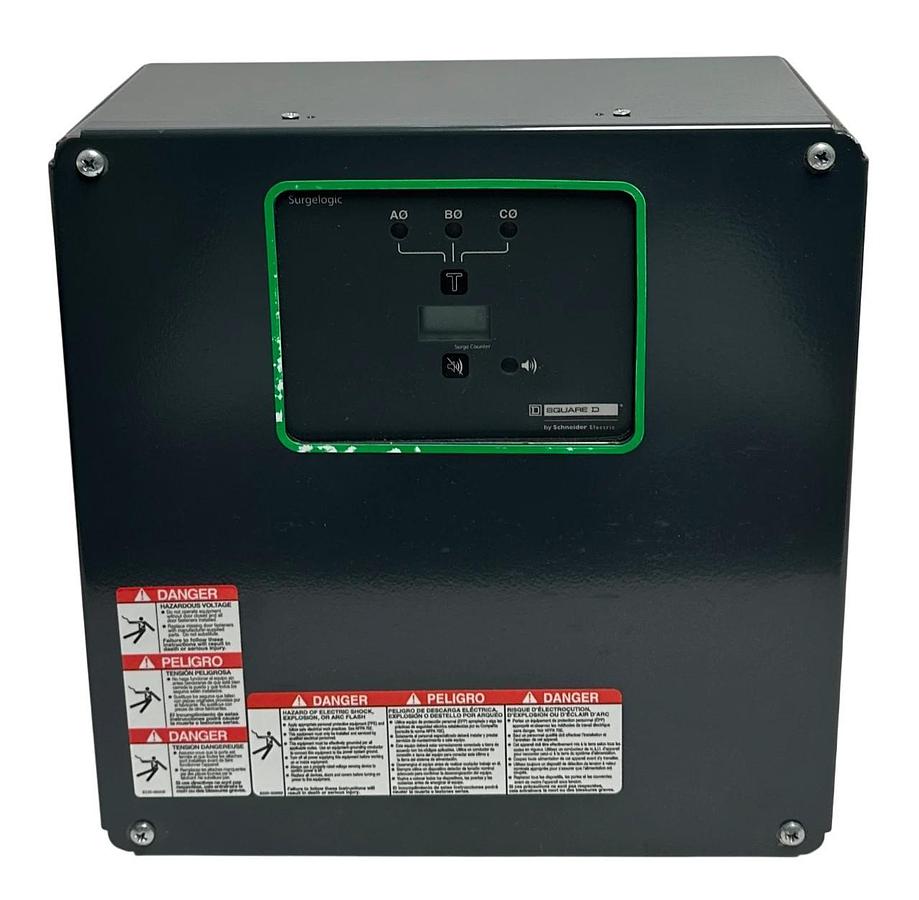

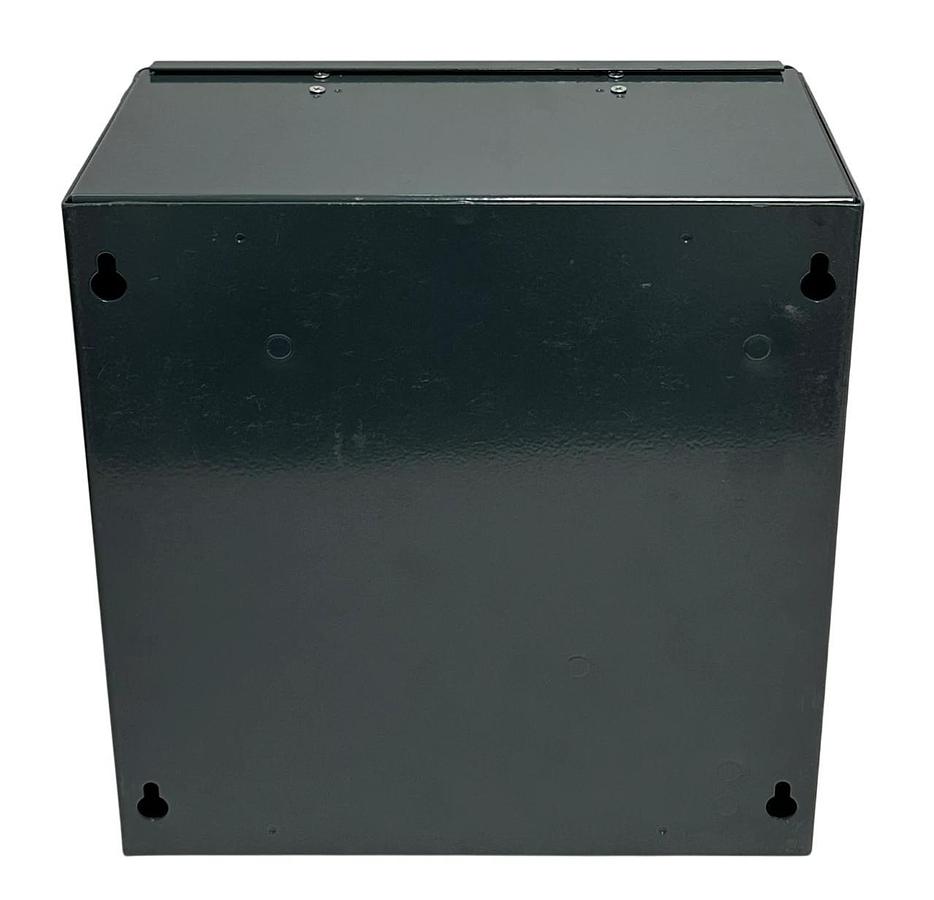

SCHNEIDER SQUARE D SSP02EMA12 Surgelogic PROTECTIVE DEVICE SERIES 002 120V NSMP

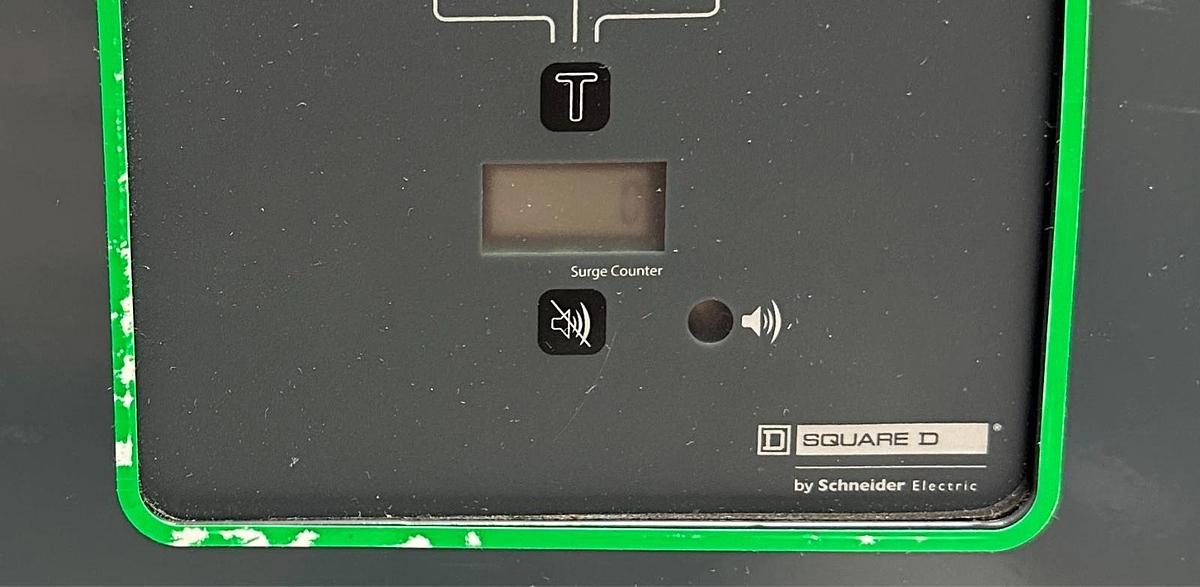

SCHNEIDER SQUARE D SSP02EMA12 Surgelogic PROTECTIVE DEVICE SERIES 002 120V NSMP Main Product Surge protection device Range Surgelogic Device Short Name EMA Complementary Voltage Rating 208Y/120 V AC MCOV 150 V SCCR 200 kA Surge Current 120 kA Nominal Discharge Current 20 kA Number of Phases 3 phase Wiring Configuration 4-wire Connection Lugs AWG 10...AWG 2 copper 35.4 lbf.in (4 N.m) Local Signalling Status LED green per phase normal operation Status LED red per phase fault Provided Equipment Alarm enable/disable switch Surge counter Dry contacts Cable length 19.02 in (483 mm) Device Mounting Surface Height 11.4 in (290 mm) Width 8.2 in (208 mm) Depth 5.3 in (135 mm) Environment Ambient Operating 149 °F (65 °C) Enclosure Rating NEMA 1 Enclosure Material Gray painted sheet steel Standards CSA C22.2 No 8 UL 1449:ed. 4 UL 1283:ed. 5 Ordering and shipping details Category US1DE1B08464 Discount Schedule DE1B GTIN 785901972464 Returnability Yes Country of origin MX Packing Units Unit Type of Package 1 PCE Nbr. of units in pkg. 1 Package 1 Height 6.00 in (15.24 cm) Package 1 Width 13.50 in (34.29 cm) Package 1 Length 12.00 in (30.48 cm) Package weight(Lbs) 15.750 lb(US) (7.144 kg) CONDITION: NEW SURPLUS IN FACTORY BOX, CHIPS ON GREEN PAINT ON COVER WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST ___________________________________________________________________________ PALLET 7
