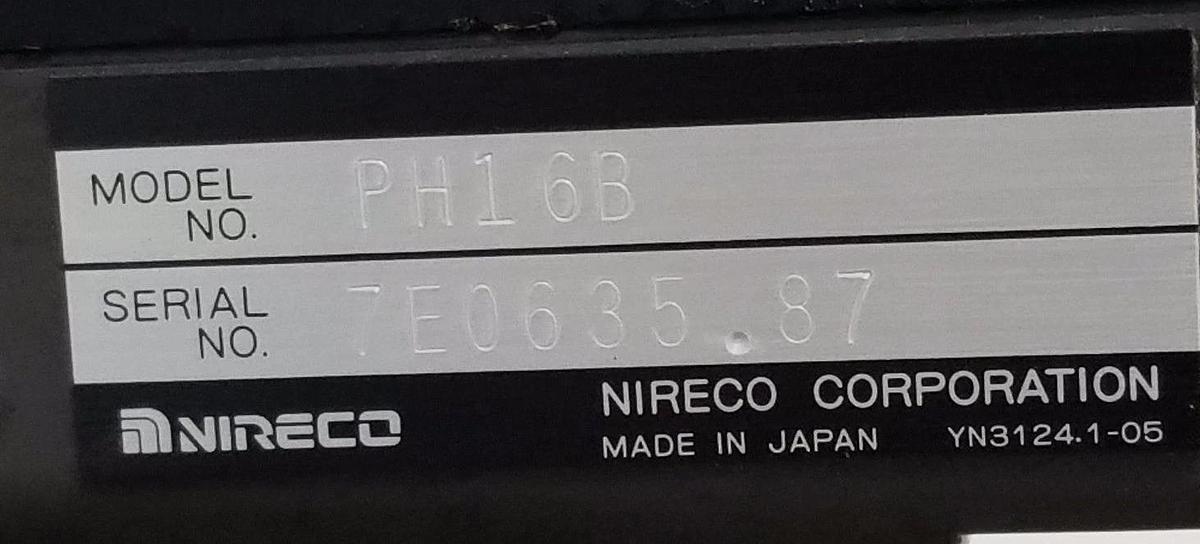

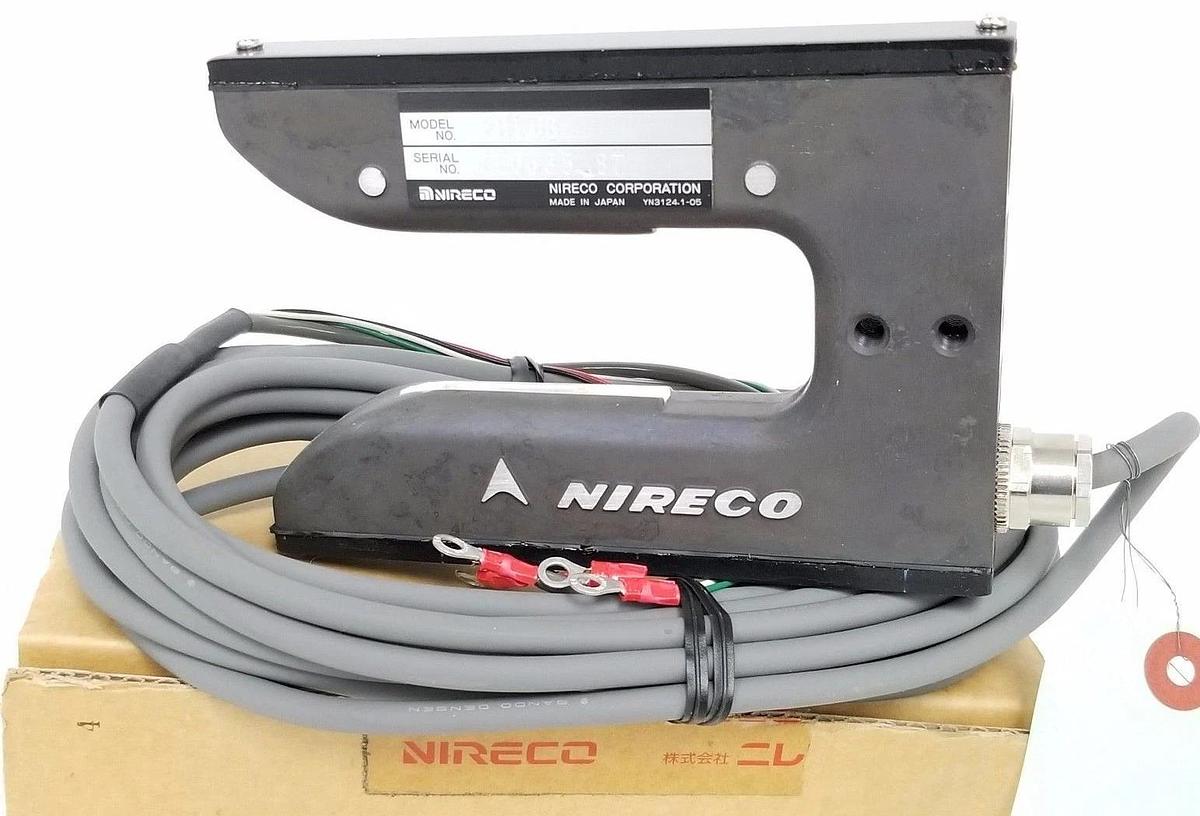

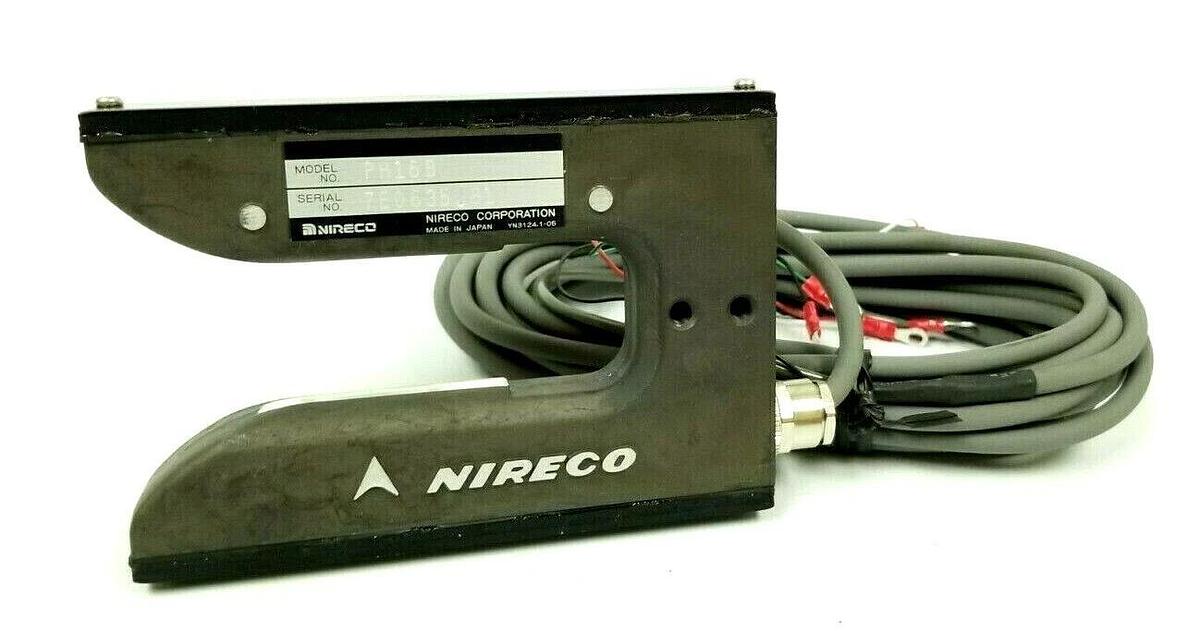

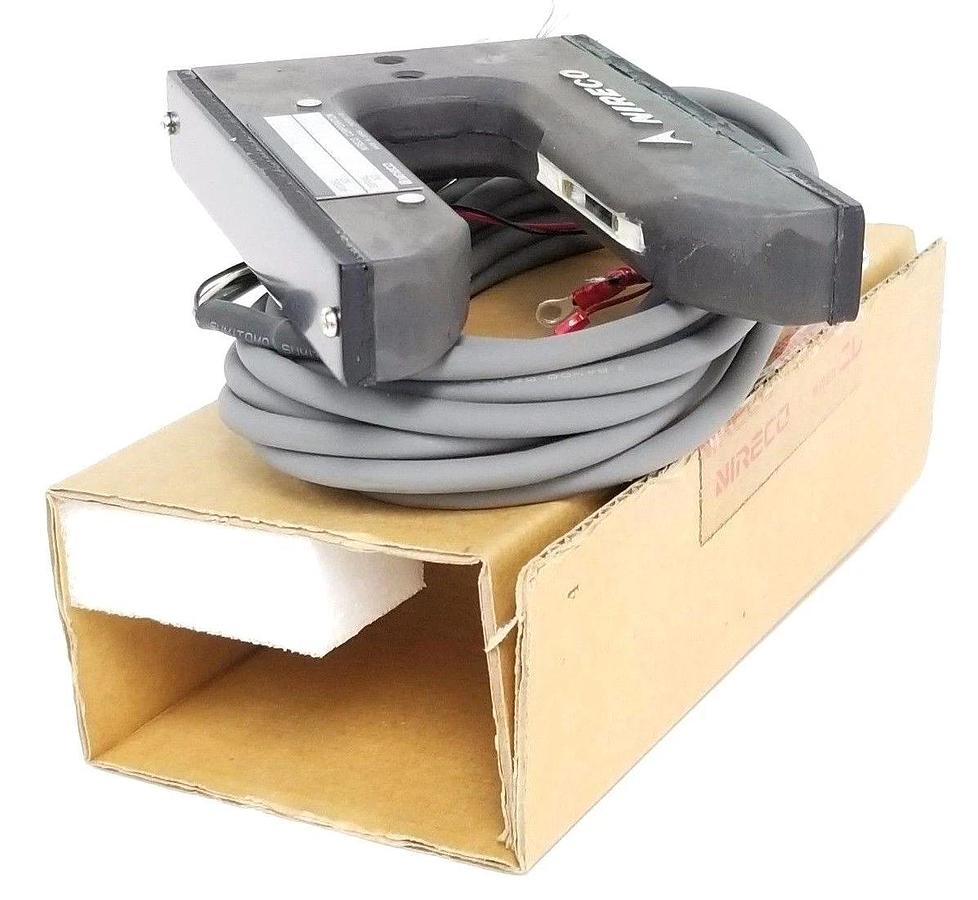

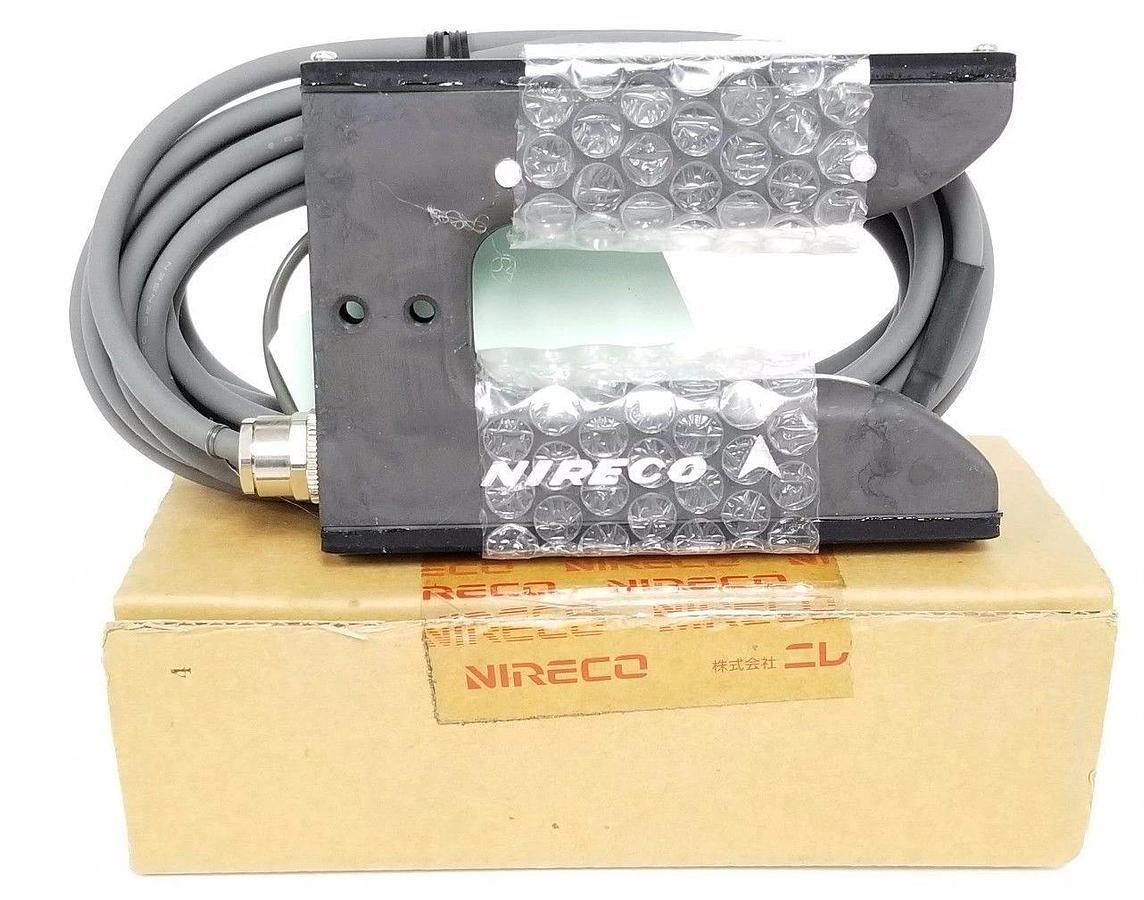

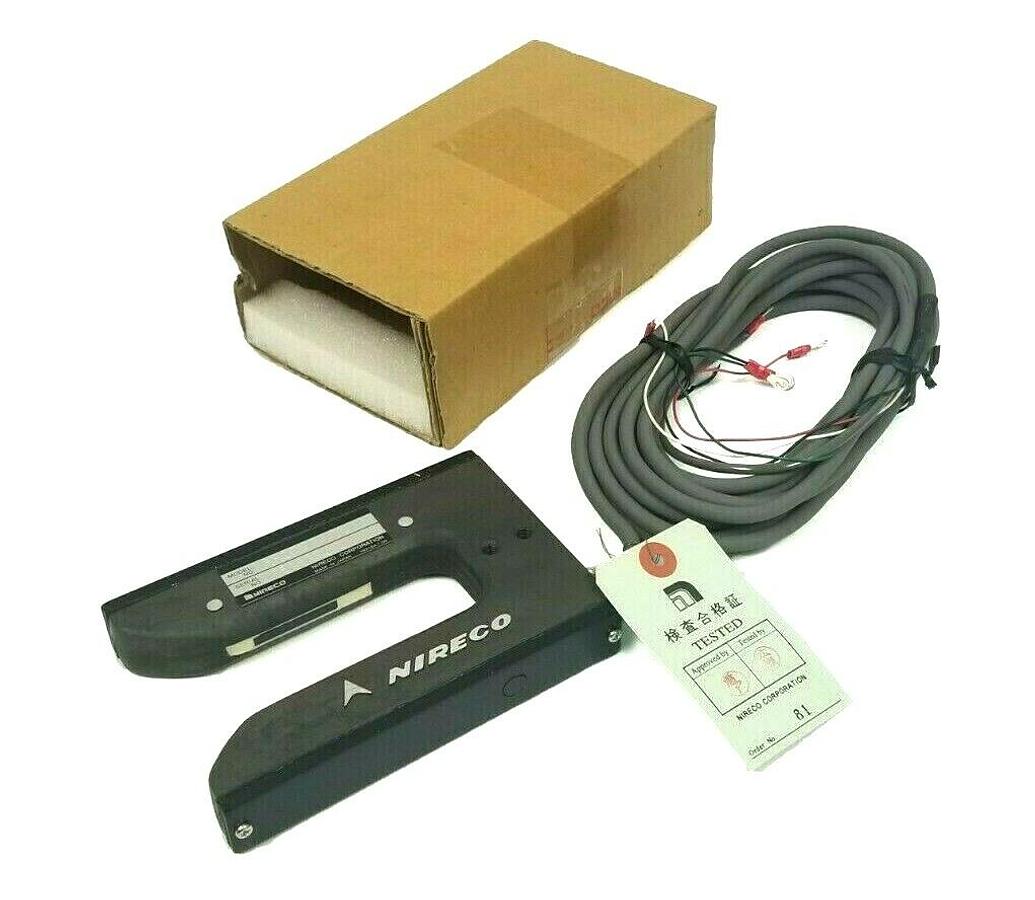

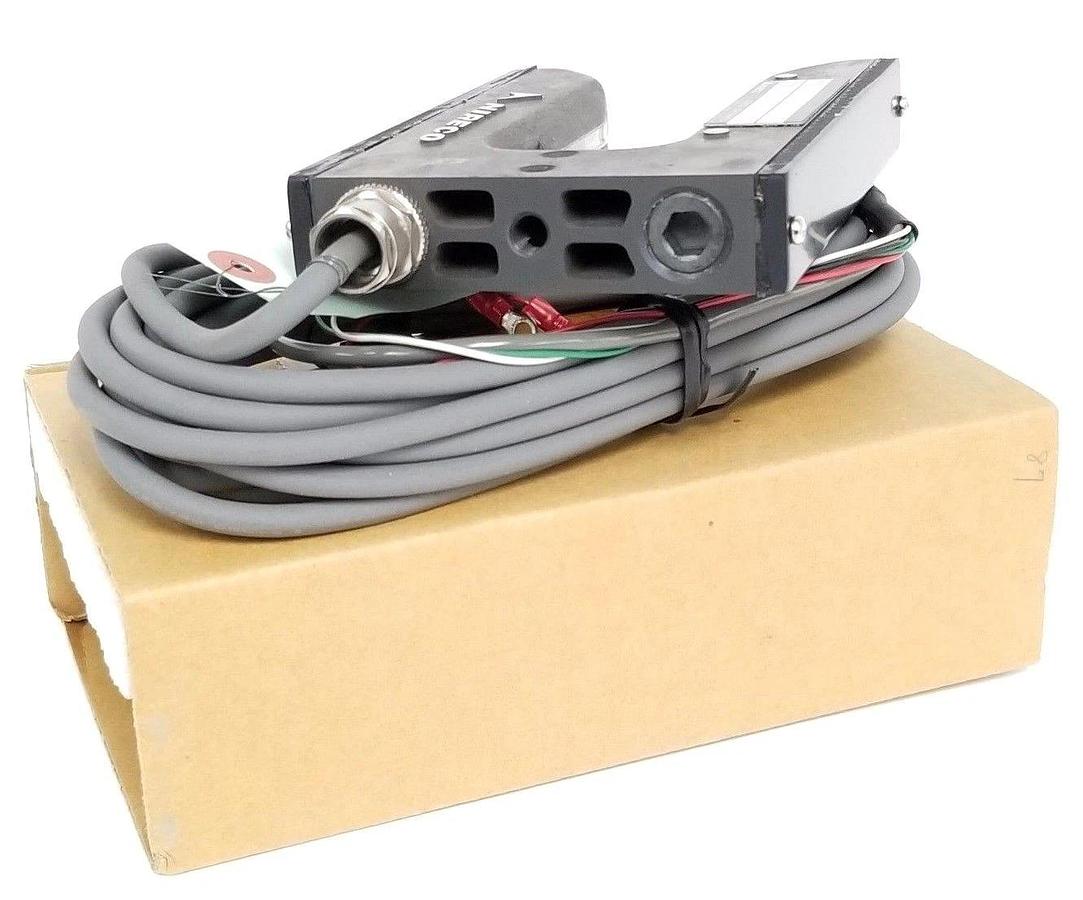

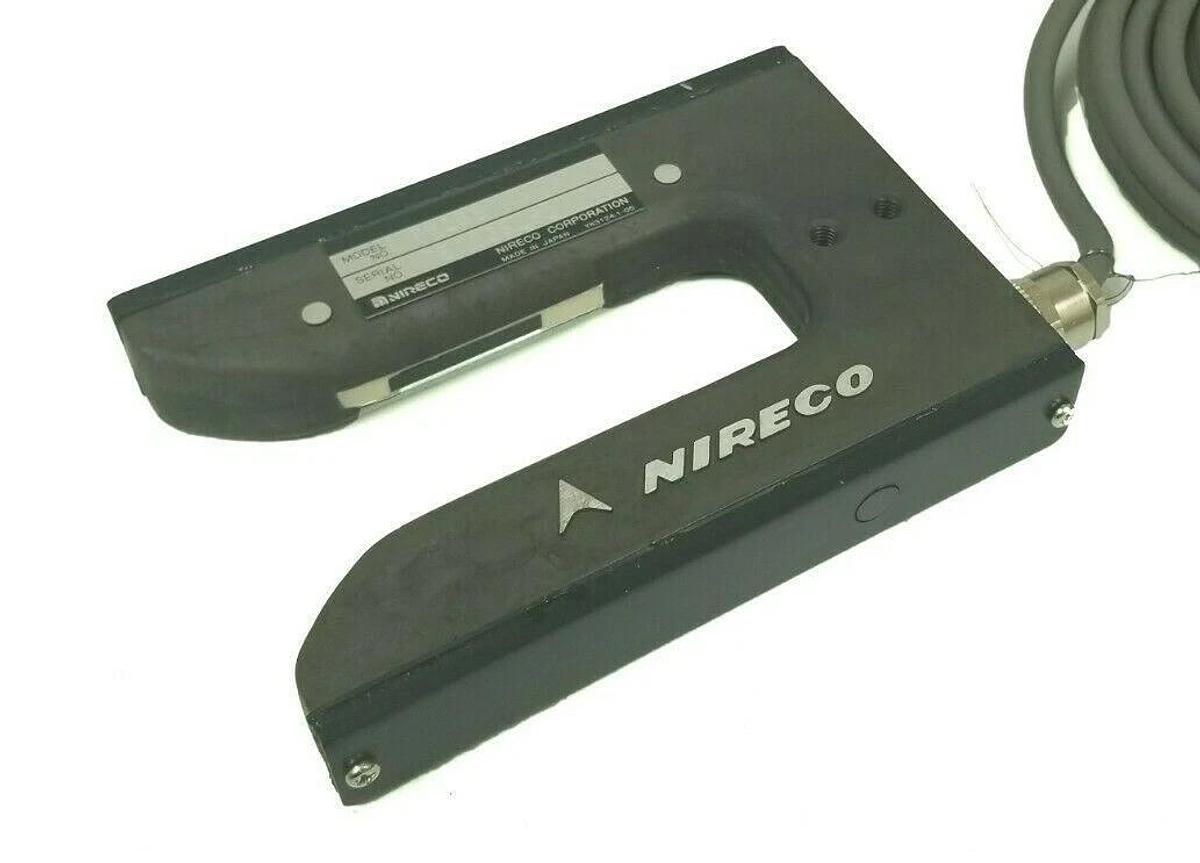

NEW NIRECO PH16B INFRARED EDGE SENSOR PHOTOHEAD

NEW NIRECO PH16B INFRARED EDGE SENSOR PHOTOHEAD SPECIFICATIONS: Sensor gap: 28mm Range of measurement: ±4mm Light source: LED Light source wavelength: 950nm (near infrared) power supply: Power supplied from the Web Guide amplifier: 12 V DC Output: Voltage in proportion to the change in light intensity at the silicon light detection element: 300 mV±20ï¼ when the path is open Sensitivity: 0.1 mm of displacement of opaque web Body material: Aluminum alloy die casting Ambient temperature: 0â to +50â Weight: 1kg (including cable) ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ CAB 1 TOP
