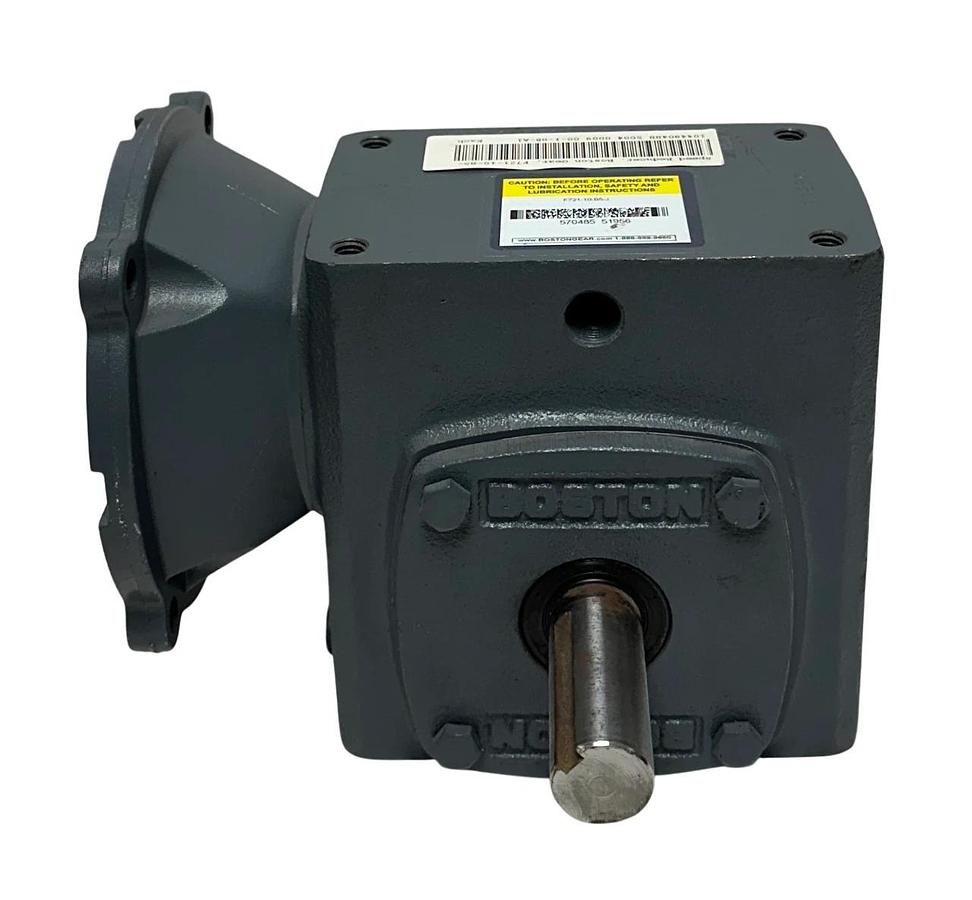

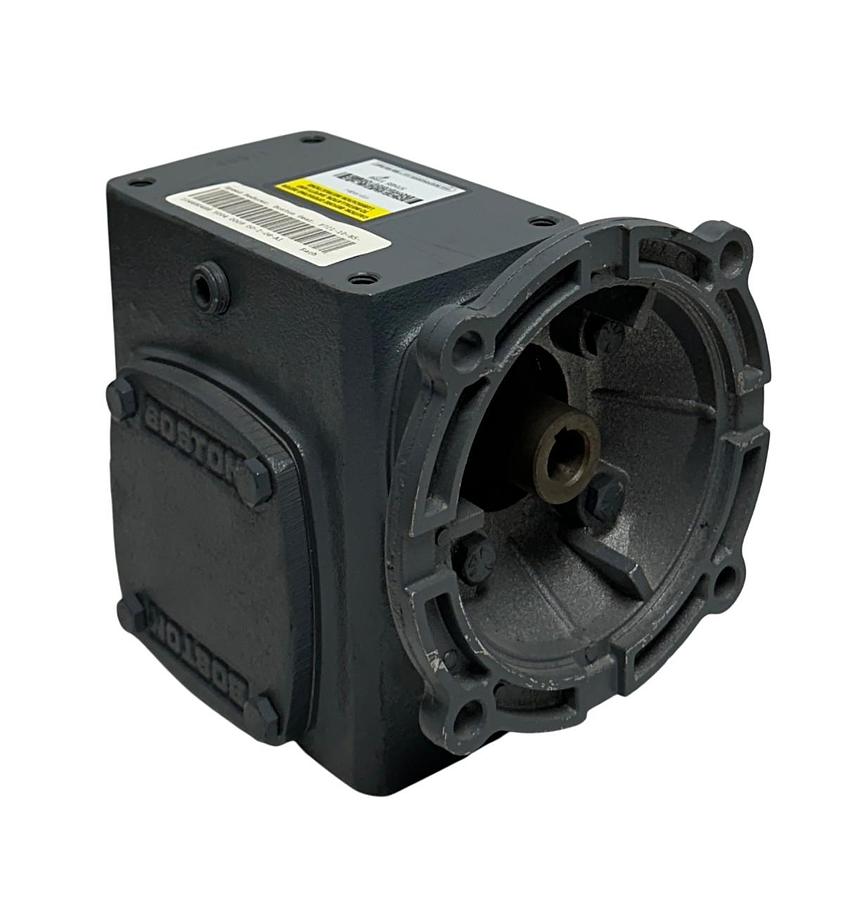

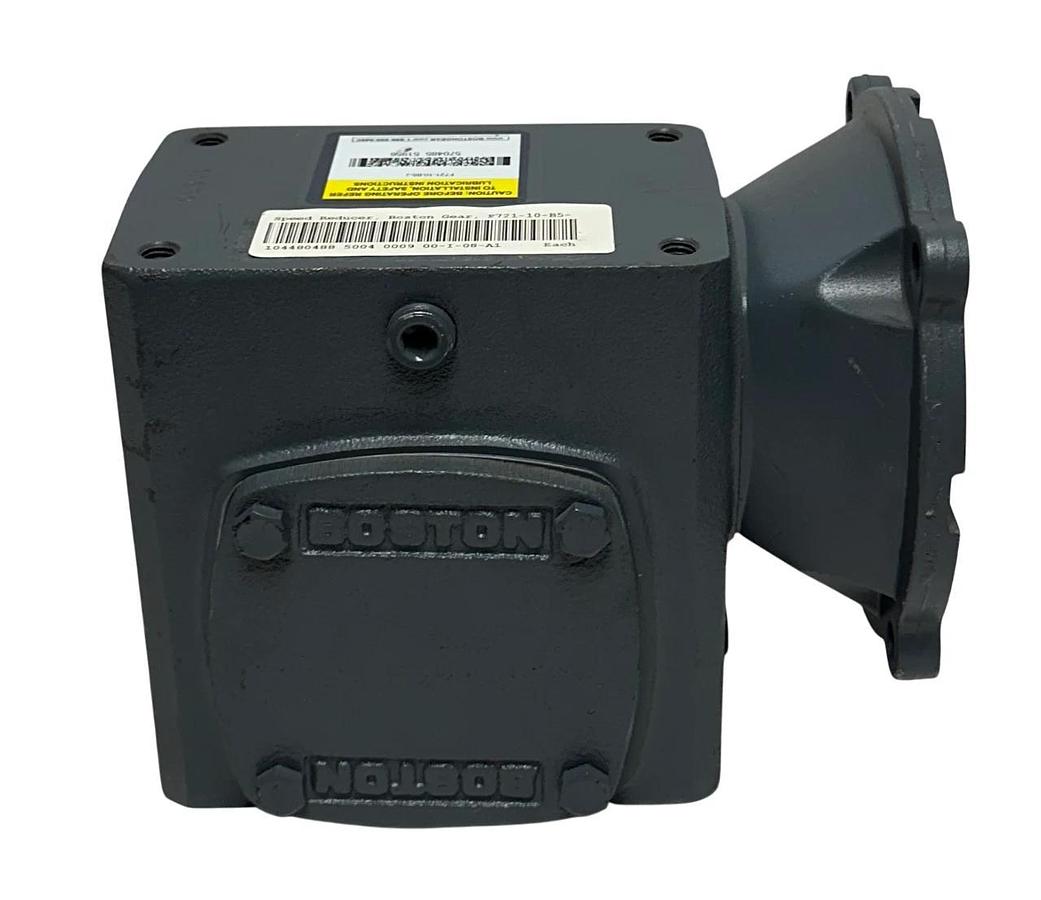

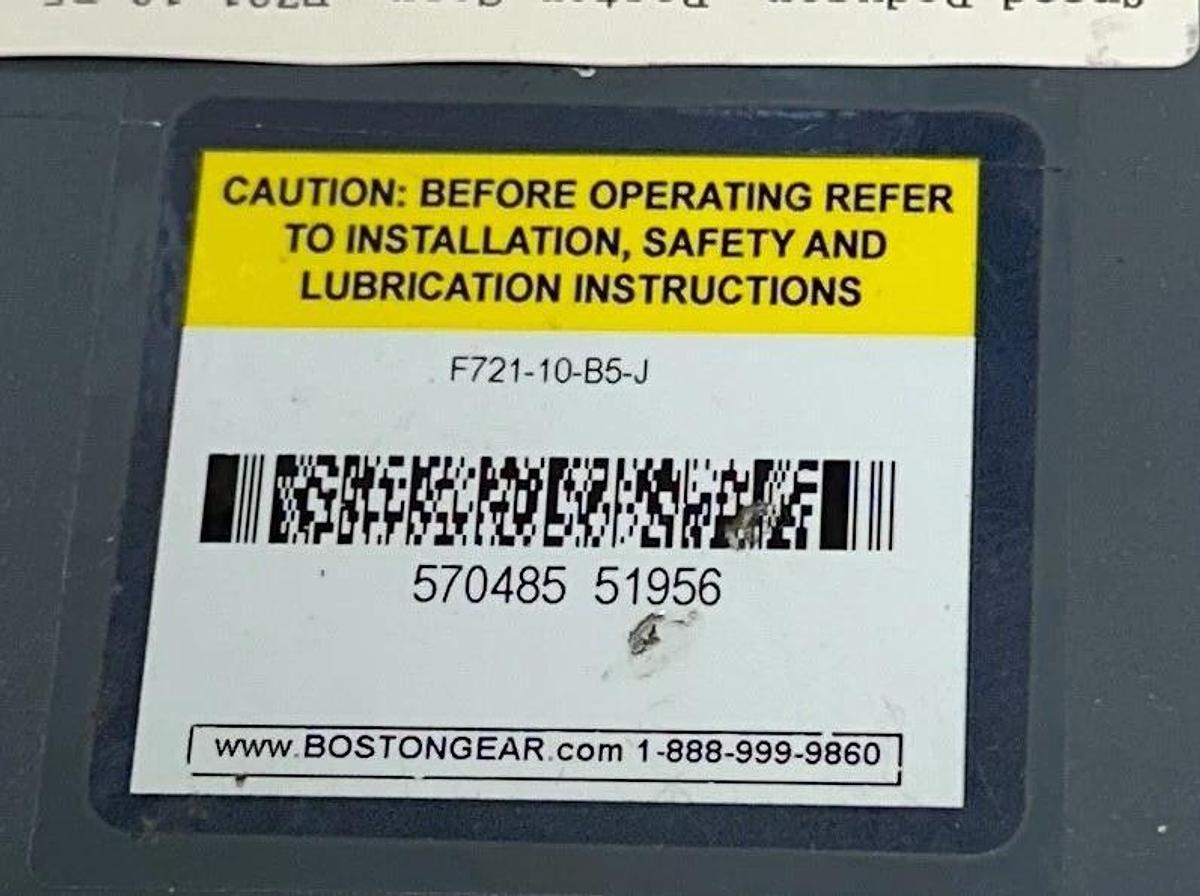

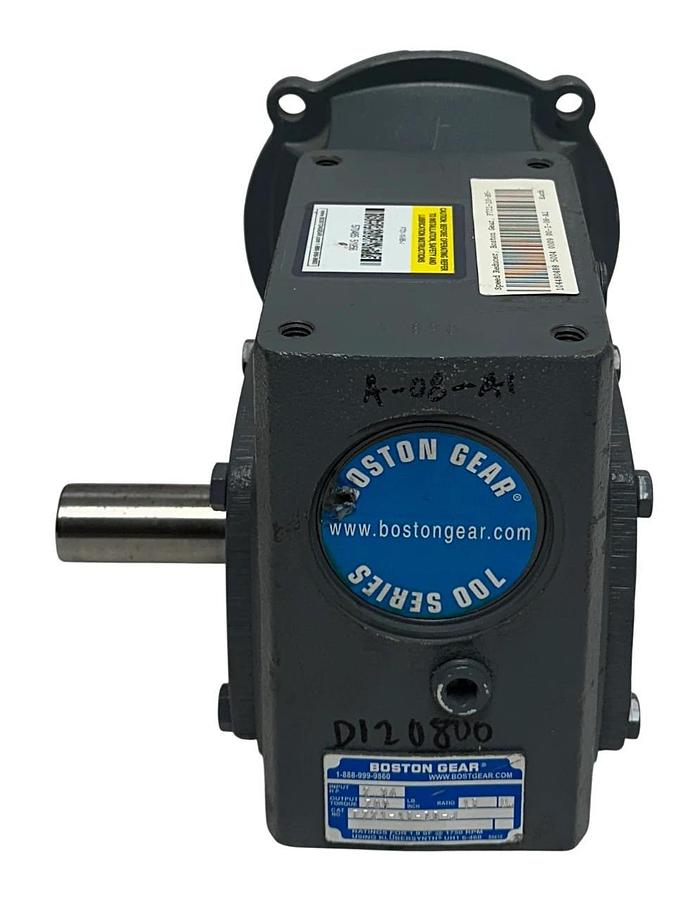

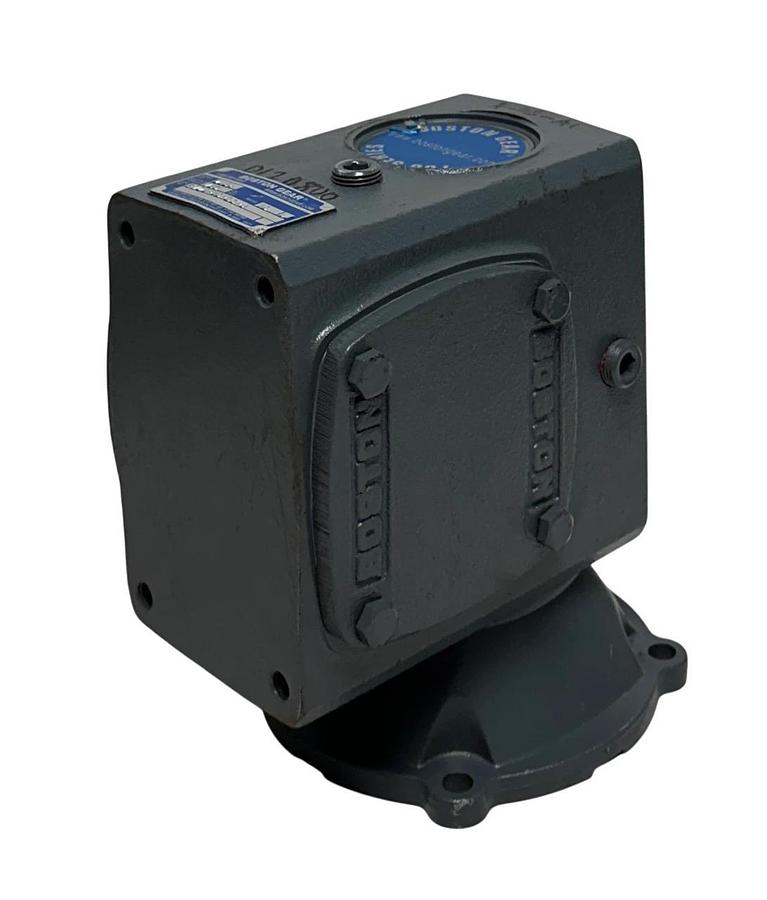

BOSTON GEAR F721-10-B5-J / 51956 RIGHT ANGLE WORM GEAR REDUCER 10:1 RATIO NSNP

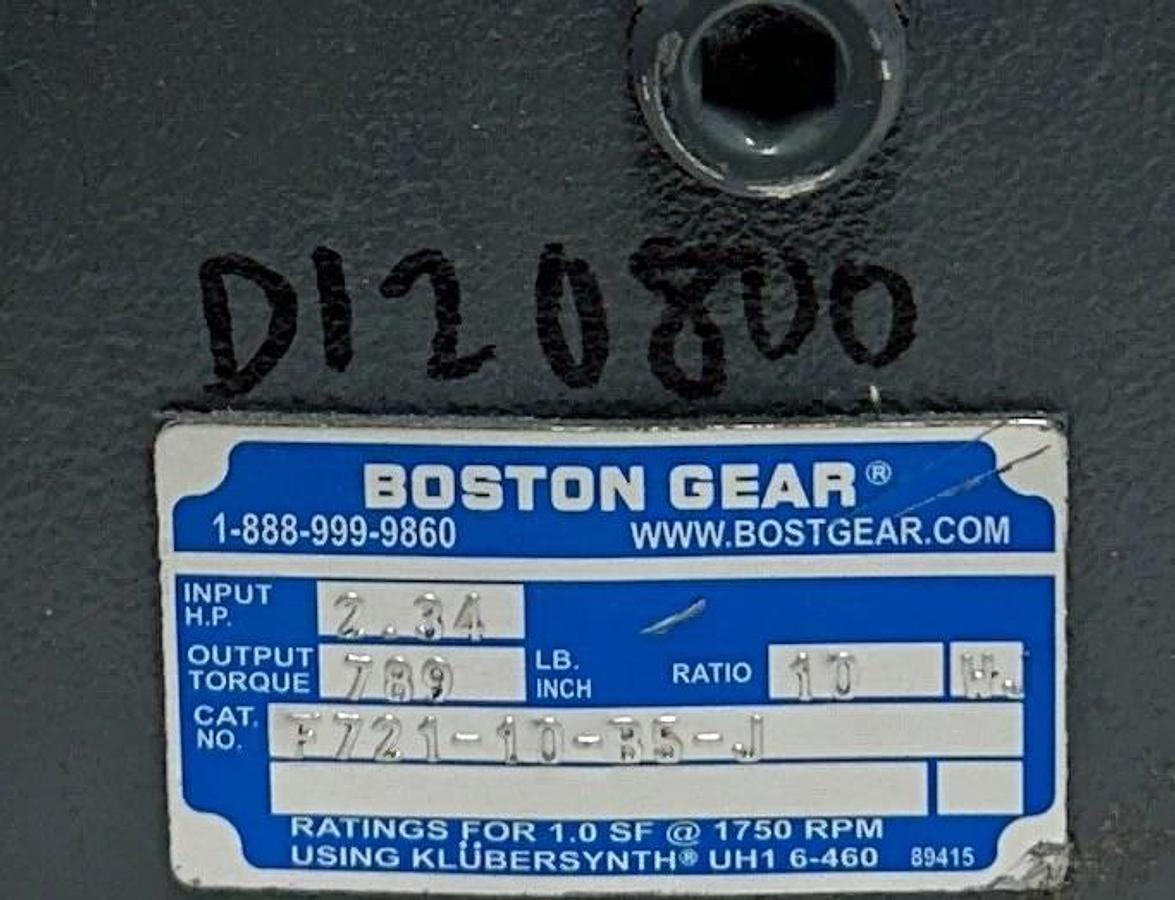

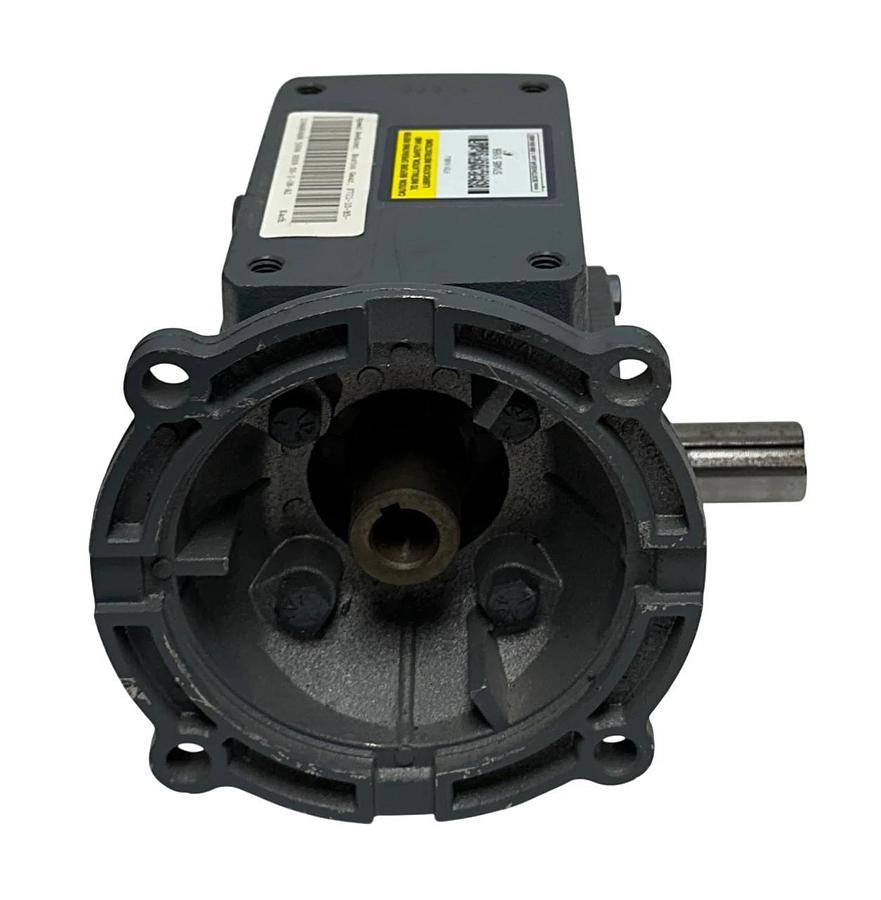

BOSTON GEAR F721-10-B5-J / 51956 RIGHT ANGLE WORM GEAR REDUCER 10:1 RATIO NSNP Center Distance 2.0600 in Reduction Single Ratio 10:1 Max Input Horsepower 2.340 hp @ 1750 rpm Input Type C-Face Quill Input Size 0.6250 in Output Type Solid Output Size 1.0000 in Output Direction Right Hand NEMA / IEC Frame Size 56C Maximum Output RPM 175.000 @ 1750 rpm input Maximum Output Torque 968 in-lbs @ 100 rpm Housing Material Cast Iron Overhung Load Capacity 700 lb Housing Dimensions 6 x 3.81 x 6.38 in Housing Height 6.38 in Housing Length 6.00 in Housing Width 3.81 in Standards Met AGMA Series 700 Manufacturer Reducer Size 721 Mounting Type No Base Manufacturer Upc Number 781711519561 UPC_NO 781711519561 Weight 25.00 lbs CONDITION: NEW SURPLUS NO BOX WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST ____________________________________________________________________________________ PALLET 136
