Filtec 28694 Rev. 0 Servo Controller / Motion Control Module RS485 IN/OUT USED

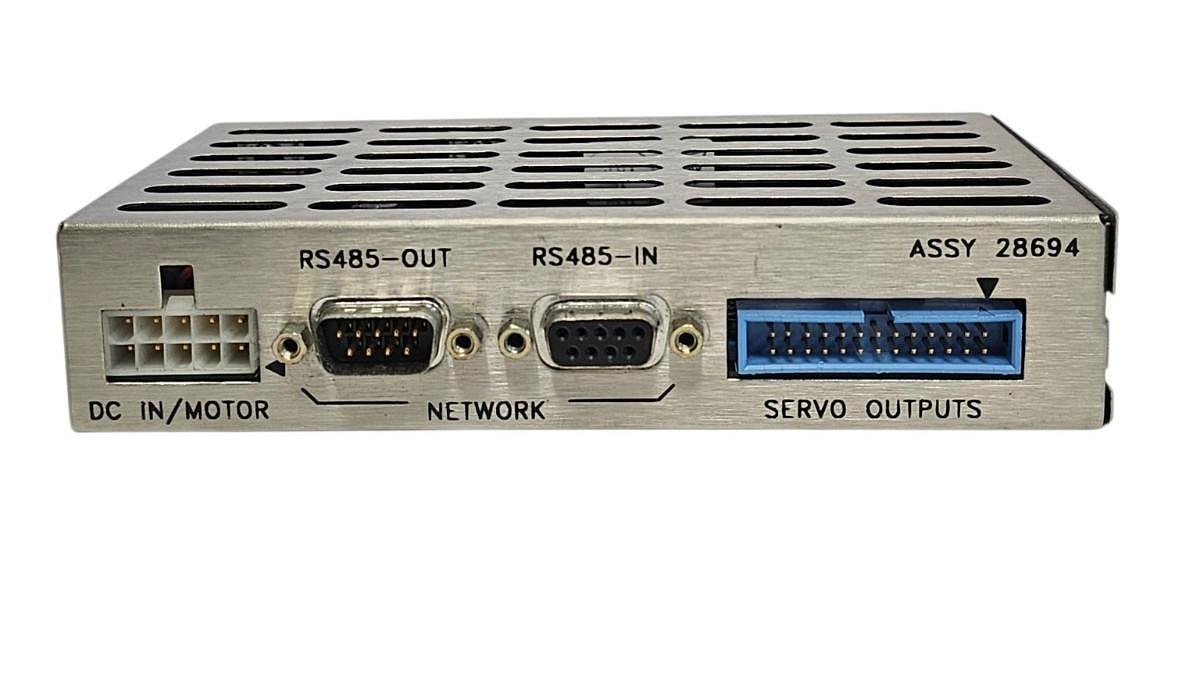

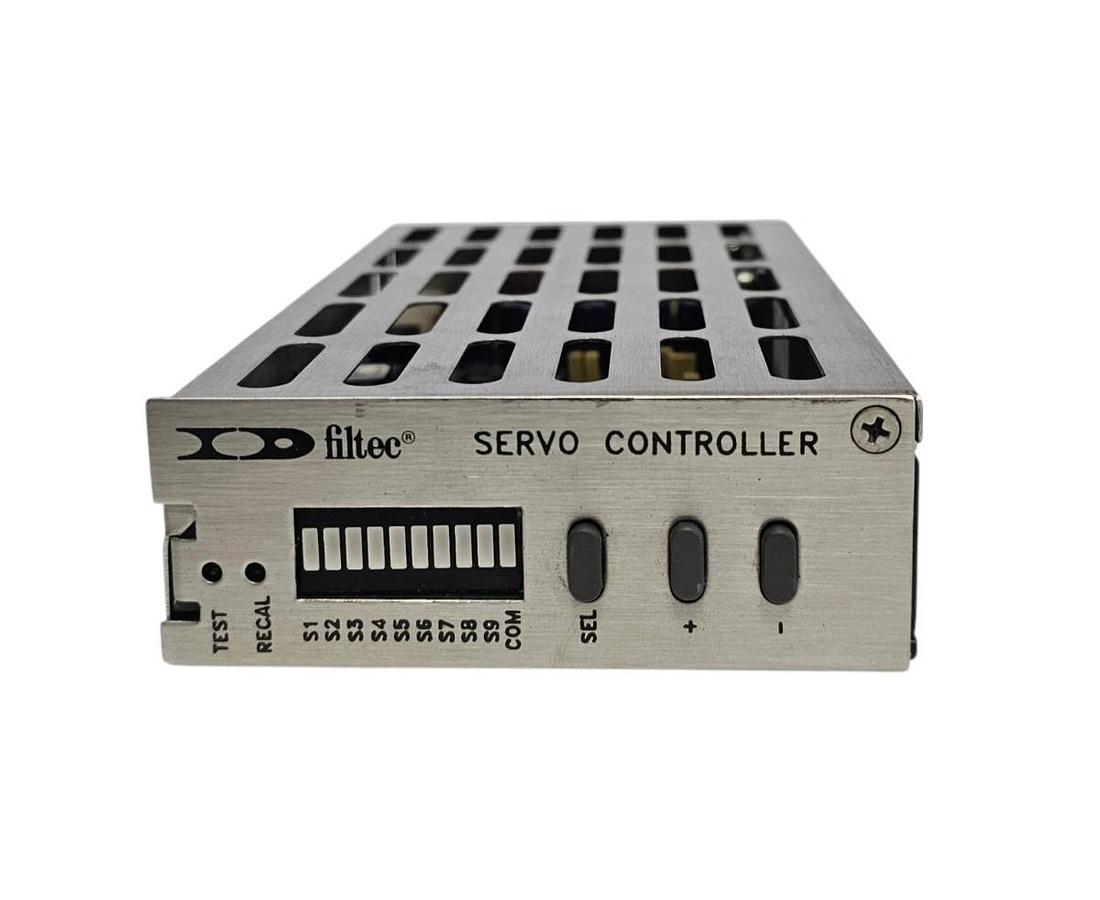

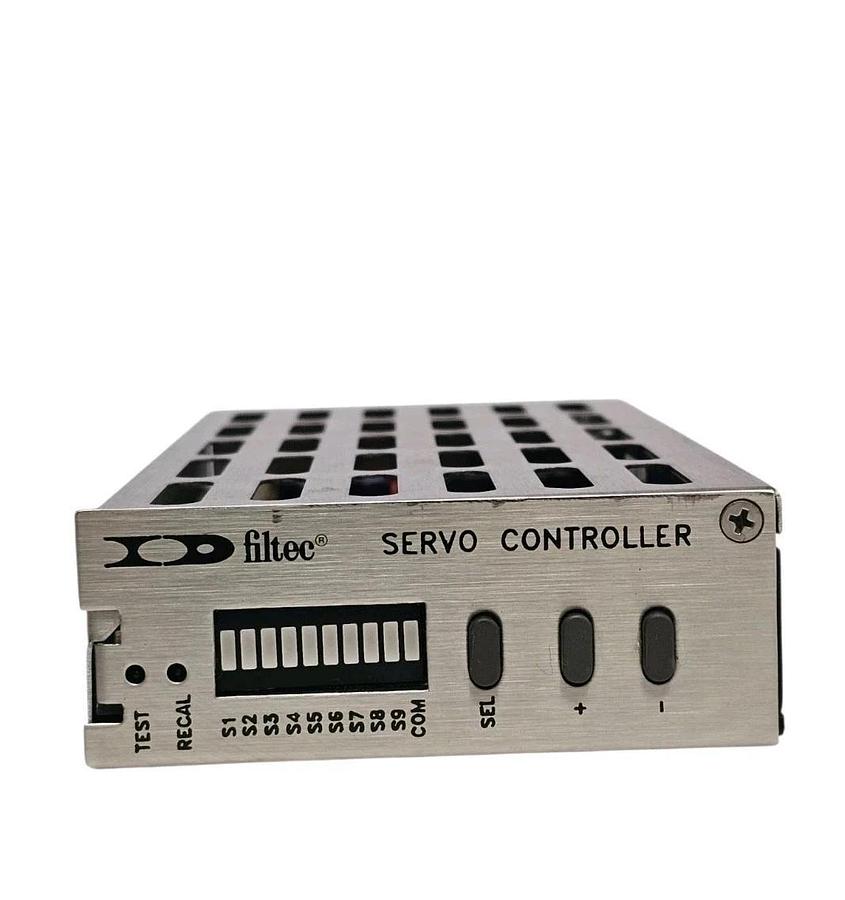

Filtec 28694 Rev. 0 Servo Controller / Motion Control Module RS485 IN/OUT USED ______________________________________________________________________ 2112 This module typically operates as a sub-system within larger FILTEC Fill Level Inspection Systems . It receives tracking data from sensor arrays via the serial network and directly drives linear servos. These servos precisely position inspection heads, physical triggers, or automated FILTEC Slat Rejectors to eject under-filled or improperly sealed containers safely from high-speed conveyor lines. Technical Specifications Manufacturer: FILTEC Assembly Part Number: ASSY 28694 Network Interfaces: One RS485-OUT (9-pin male D-sub) and one RS485-IN (9-pin female D-sub) serial connection. Servo Connections: A 26-pin blue headers interface dedicated to multi-channel servo outputs. Manual Configuration: A 10-position DIP switch bank (labeled S1 through COM) paired with local selection, increment (+), and decrement (-) navigation buttons
