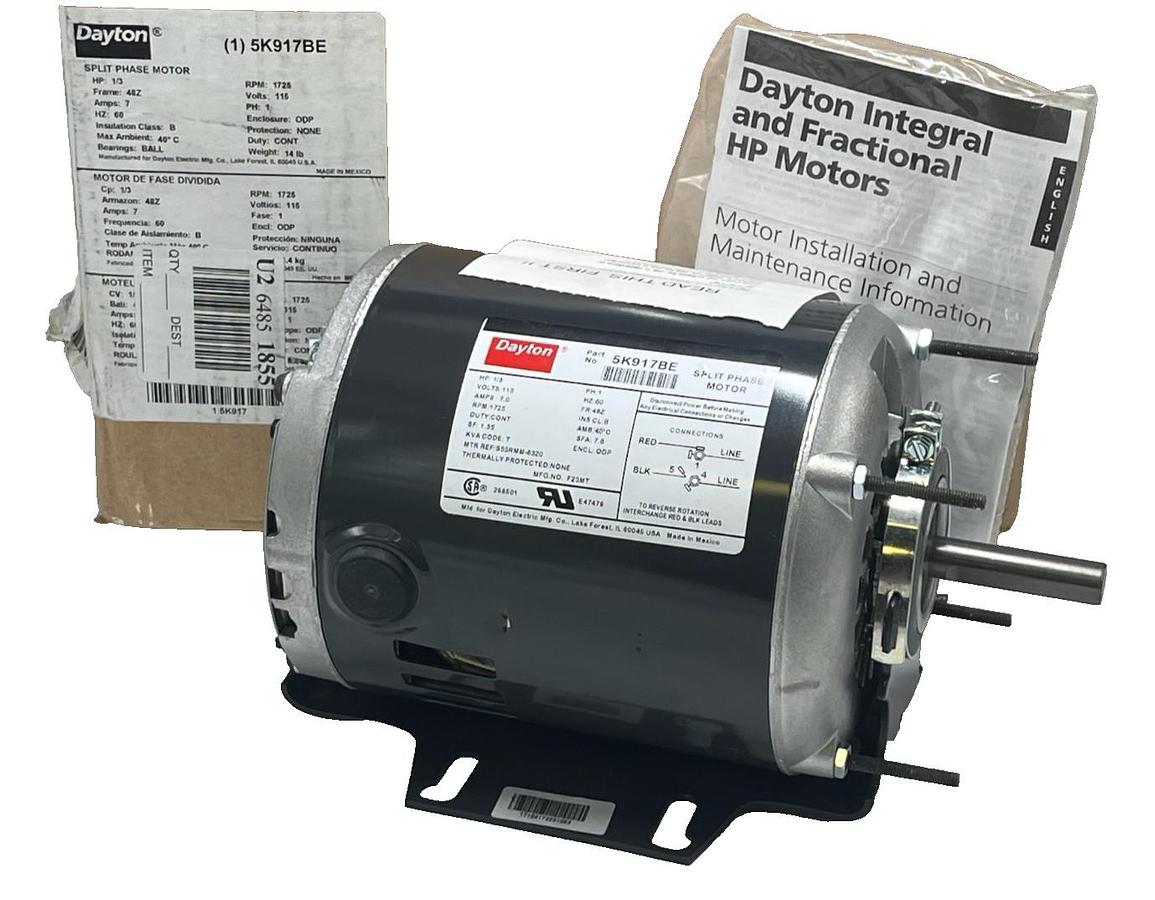

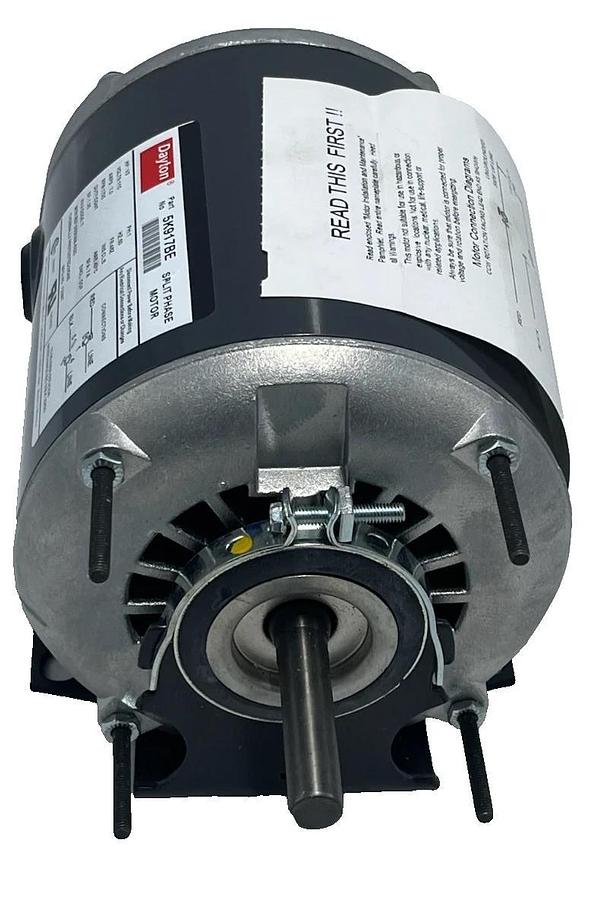

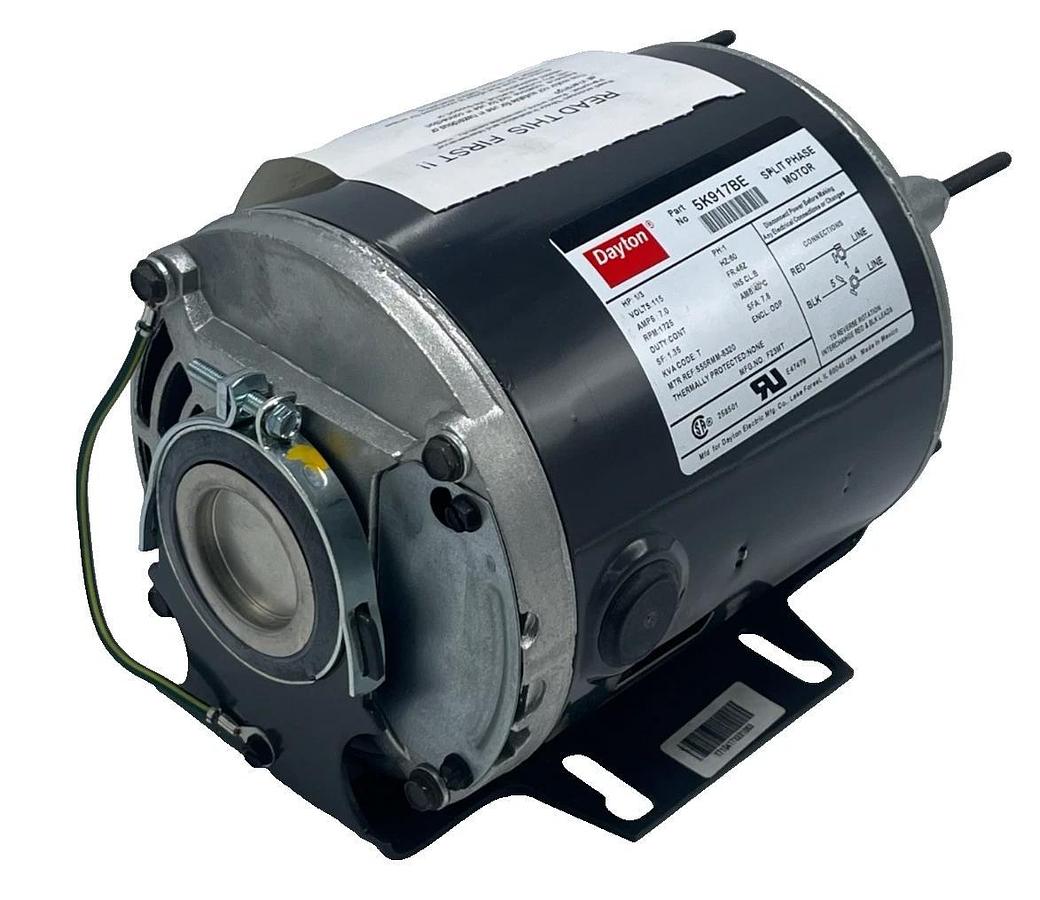

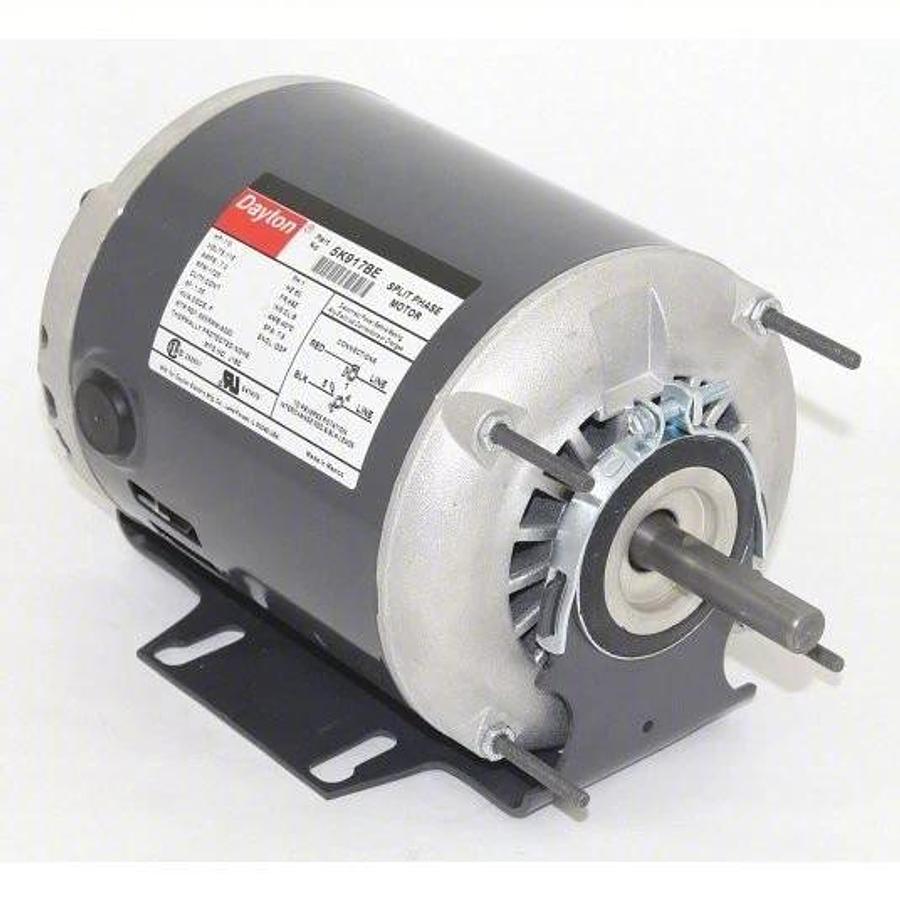

Dayton 5K917BE Split Phase Motor 1/3 HP 1725 RPM 115V 48Z Frame ODP
$225
Shipping: US $26.53 delivery in 2–4 days
Description
Dayton 5K917BE Split Phase Motor 1/3 HP 1725 RPM 115V 48Z Frame ODP
Technical Specifications:
Model Number:
5K917BE (Replacement for standard 5K917)
Horsepower:
1/3 HP
Speed:
1725 RPM
Phase:
Single Phase (1 PH)
Voltage:
115V AC
Full Load Amps:
7.0 A
Frame Size:
48Z
Enclosure:
ODP (Open Dripproof)
Shaft Diameter:
1/2" (Flat shaft design)
Shaft Length:
1-7/8"
Mounting:
Cradle Base / Foot Mounted
Rotation:
Reversible (CW/CCW)
Key Features:
Reliable Performance:
Designed for continuous duty in industrial and laboratory settings.
Ball Bearing Construction:
Ensures quiet operation and a long service life.
Standard Efficiency:
54.3% nominal efficiency, perfect for general applications.
Versatile Fit:
Fits many stirrer assemblies and small machinery requiring a 48Z frame.
CONDITION:
NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
SELL YOUR SURPLUS
PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS
________________________________________________________________________________
PALLET 40
Specifications
| Manufacturer | Dayton |
| Model | 5K917BE |
| Condition | New |
| Actual Rated Input Voltage | 115 V, 115 |
| Full Load Amps | 7.0 |
| Rated Load (HP) | 1/3 |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Base RPM | 1725 |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| Insulation Class | B (Max 266°F) |
| Mounting Type | Base-Mounted |
| Reversible/Non-Reversible | Reversible |
| Current Type | AC |
| Protection Against Liquids | Dripping Water |
| Nominal Rated Input Voltage | 115 V |
| AC Phase | Single Phase |
| NEMA Frame Suffix | Z (Non-Standard NEMA Shaft) |
| Protection Against Solids | Not Protected |
