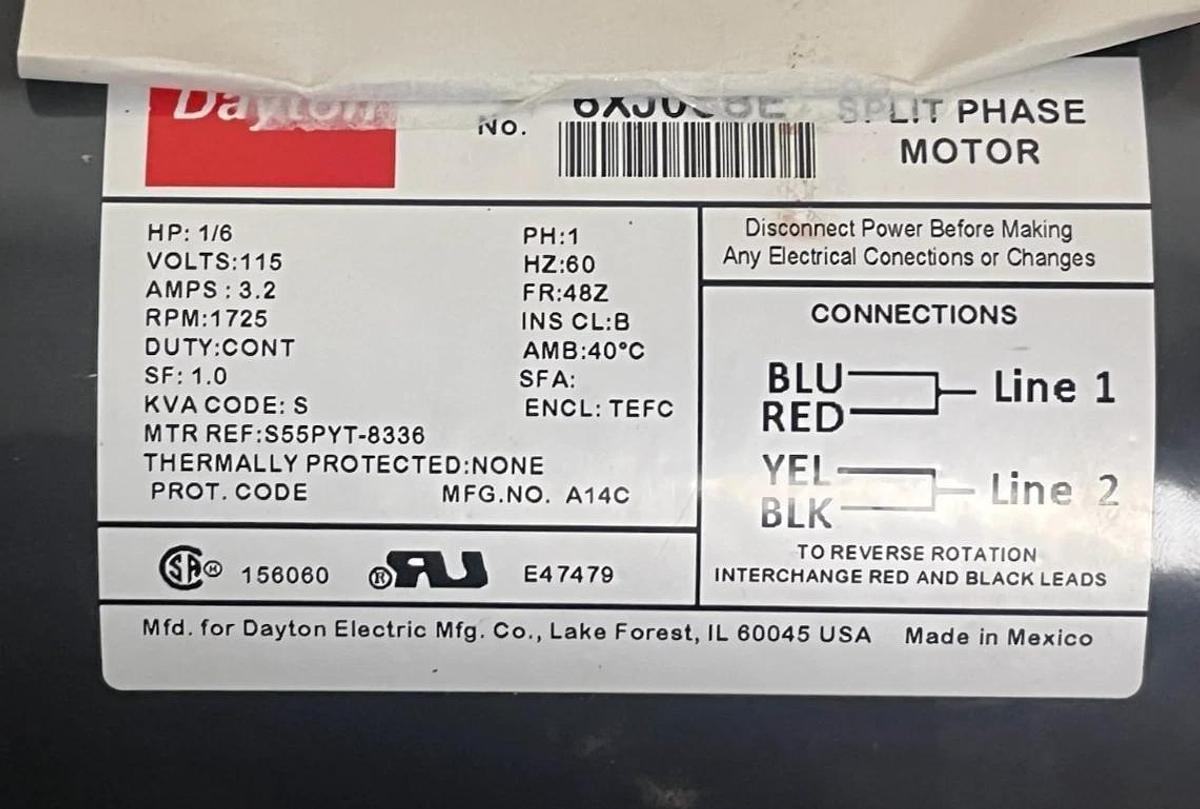

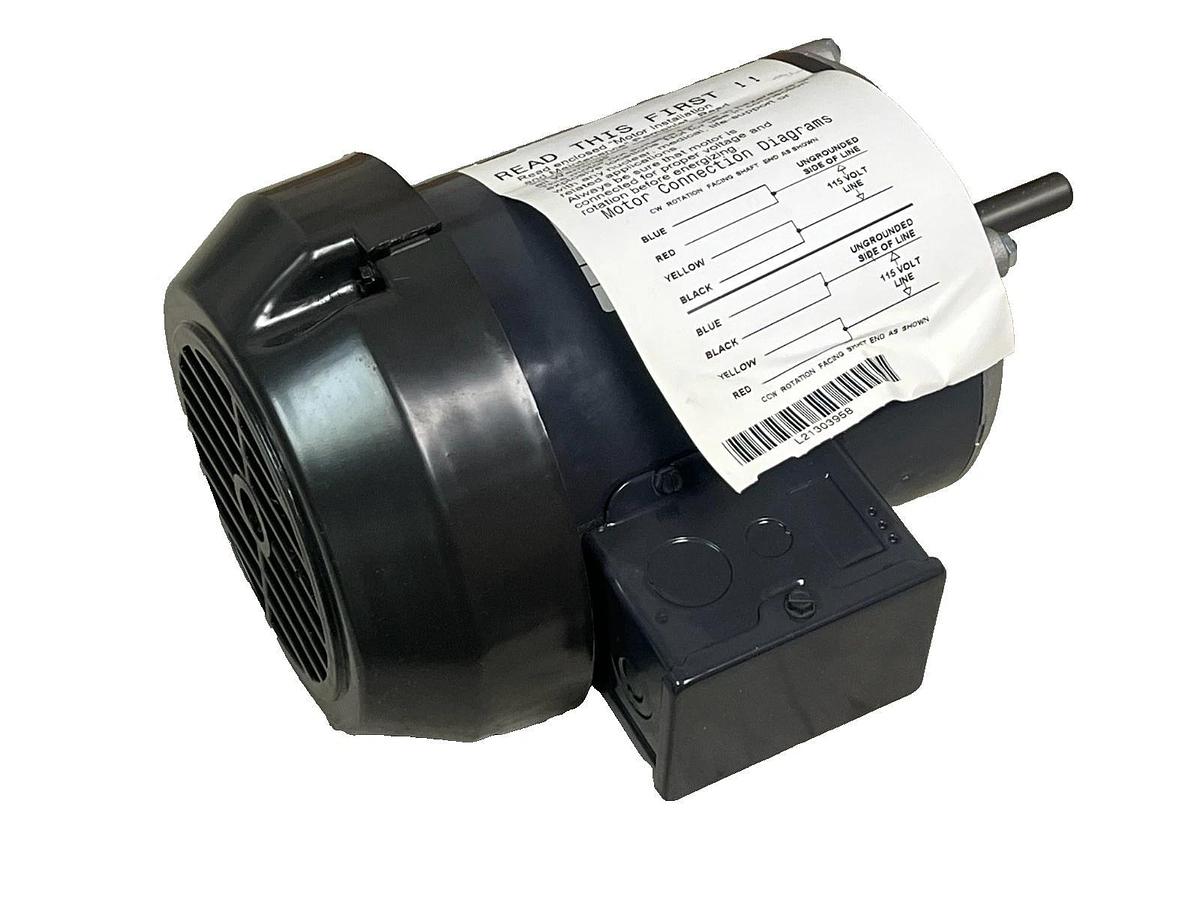

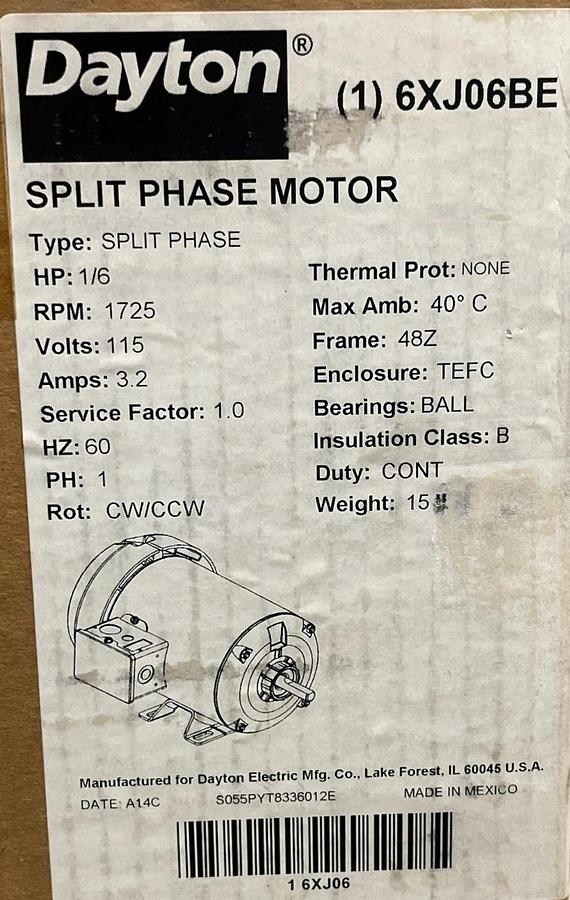

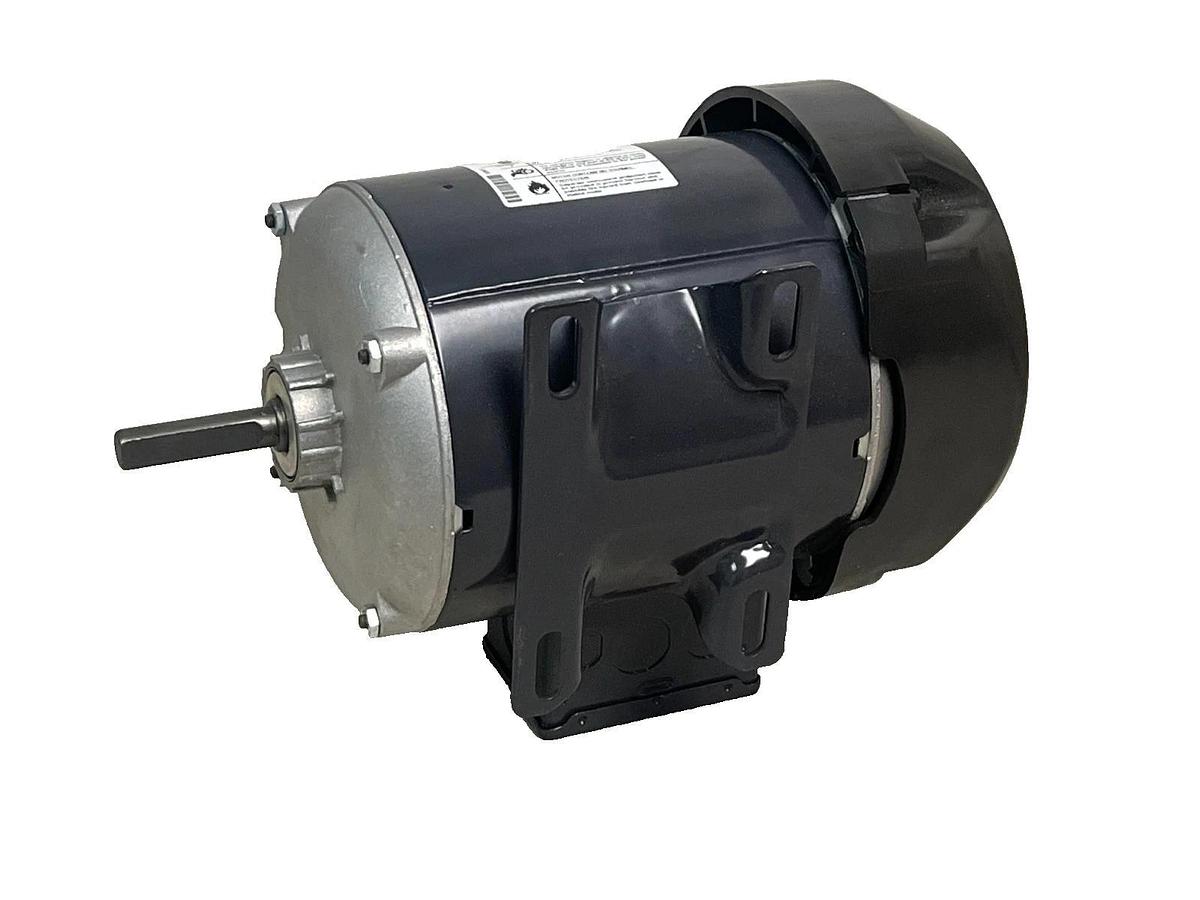

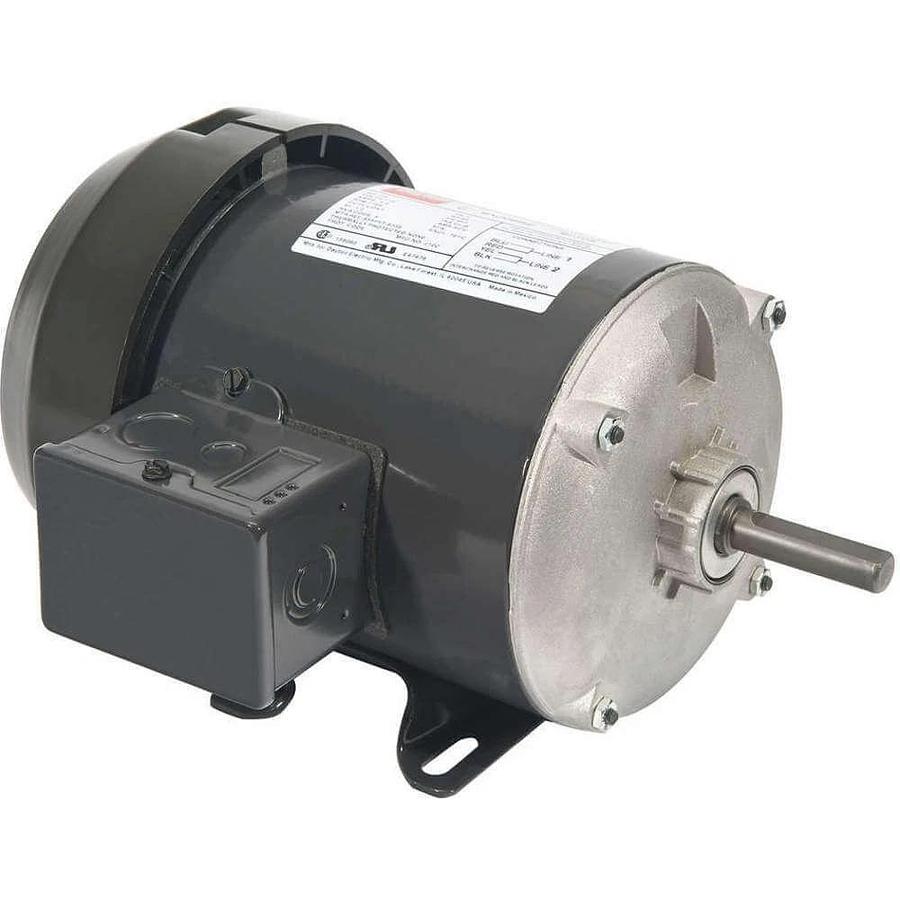

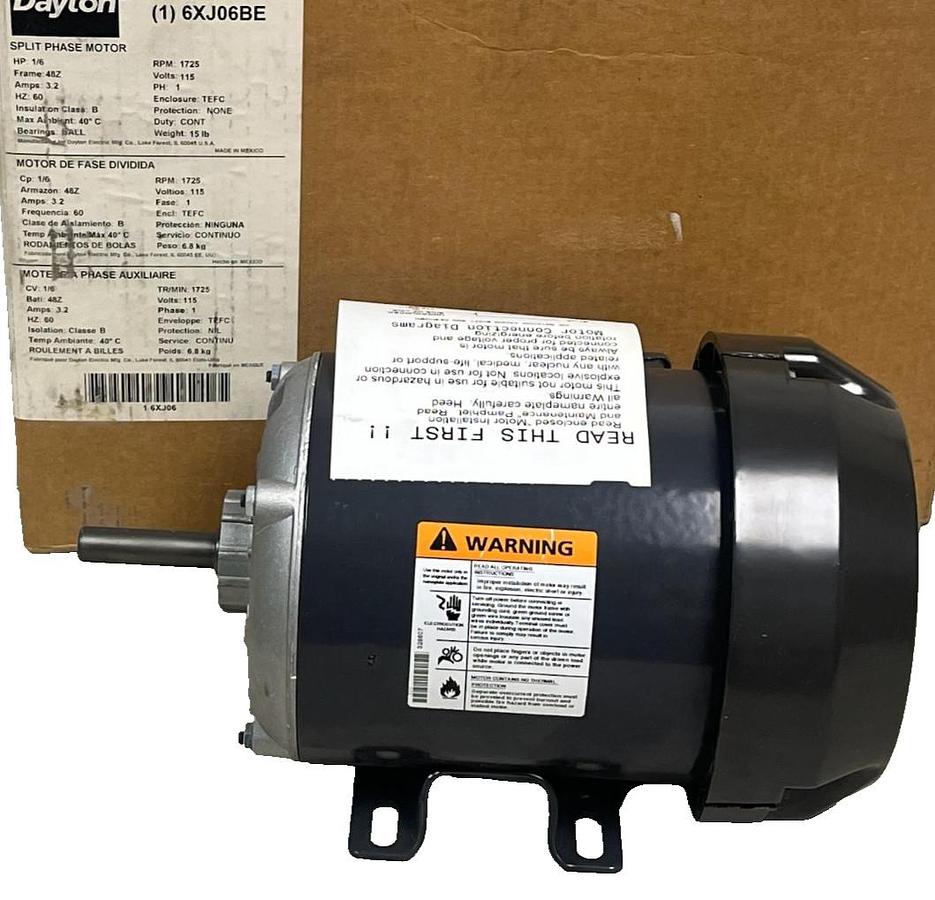

Dayton 6XJ06BE General Purpose Motor | 1/6 HP, 1725 RPM, 115V, 48Z Frame, 6XJ06
$245
Shipping: US $40.65 delivery in 2–4 days
Description
Dayton 6XJ06BE General Purpose Motor | 1/6 HP, 1725 RPM, 115V, 48Z Frame, 6XJ06Key Specifications
Brand:
Dayton
Model:
6XJ06 (or 6XJ06BE)
Horsepower:
1/6 HP
Speed:
1725 RPM (Nameplate)
Voltage:
115V AC
Phase:
Single Phase
Motor Design:
Split-Phase
Enclosure:
TEFC (Totally Enclosed Fan-Cooled)
Frame Size:
48Z
Mounting:
Rigid Base (Foot Mounted)
Full Load Amps:
3.2 A
Rotation:
CW/CCW (Reversible)
Shaft Diameter:
1/2"
Shaft Length:
1-7/8"
Features
TEFC Enclosure:
Keeps internal components protected from dust, dirt, and debris.
Continuous Duty:
Rated for 24/7 operation at ambient temperatures up to 40°C (104°F).
Ball Bearings:
Equipped with high-quality ball bearings for smooth operation and long life.
Easy Installation:
Includes a standard oversized conduit box for simplified wiring.
CONDITION:
NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
SELL YOUR SURPLUS
PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS
________________________________________________________________________________
PALLET 206
Specifications
| Manufacturer | Dayton |
| Model | 6XJ06 |
| Condition | New |
| Reversible/Non-Reversible | Reversible |
| Actual Rated Input Voltage | 115 |
| Rated/Full-Load Torque | 11" |
| Current Type | AC |
| Rated Load (HP) | 1 |
| AC Frequency Rating | 60 Hz |
| Base RPM | 1725 |
| Nominal Rated Input Voltage | 115 V |
| AC Phase | Single Phase |
| Mounting Type | Base-Mounted |
| Country of Origin | Mexico |
