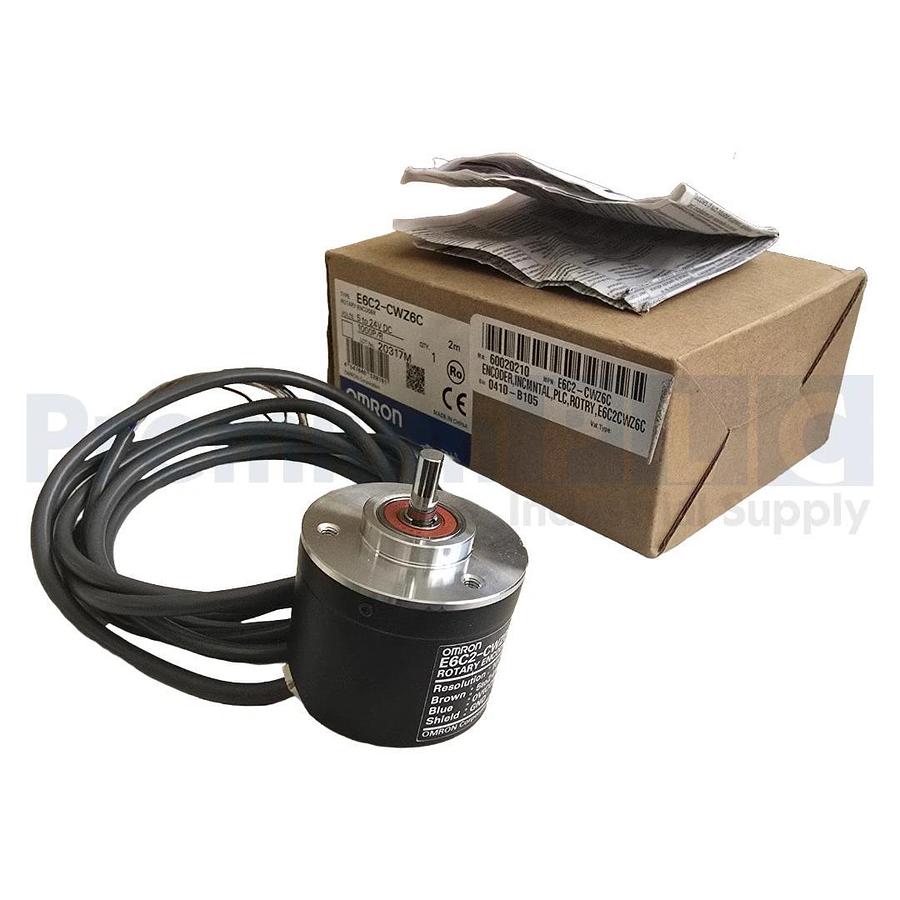

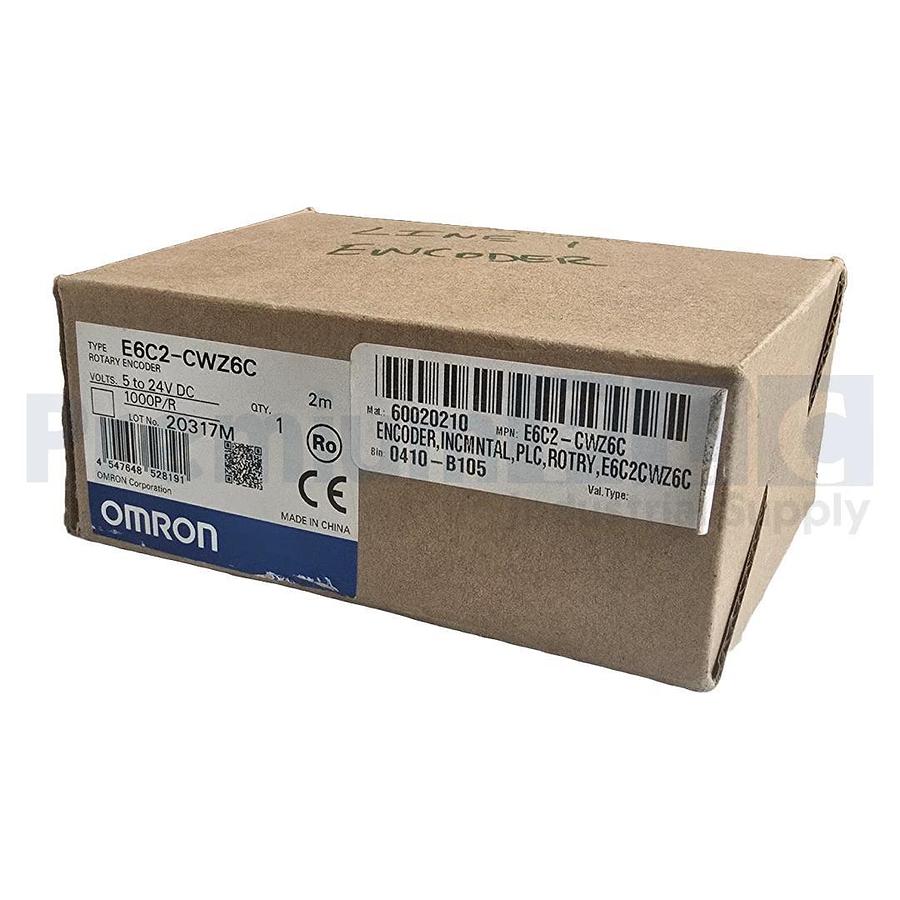

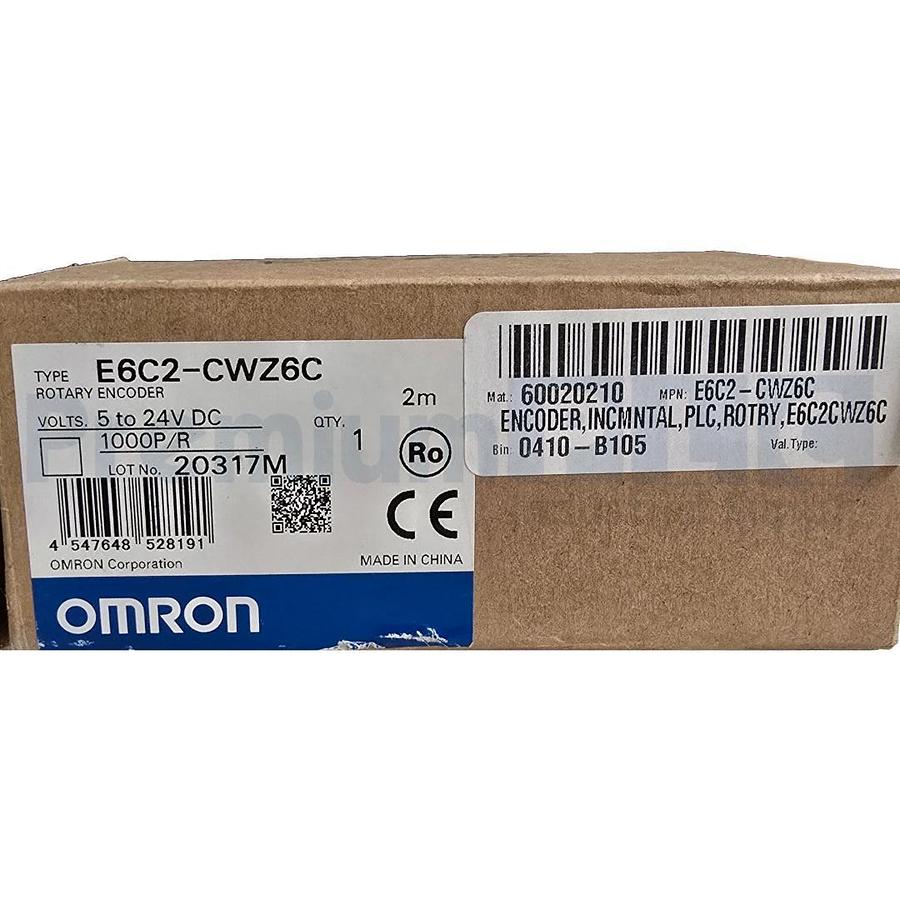

NEW OMRON E6C2-CWZ6C 1000P/R 2M ROTARY ENCODER, INCREMENTAL 5-24VDC D-50mm NSMP

NEW OMRON E6C2-CWZ6C 1000P/R 2M ROTARY ENCODER, INCREMENTAL 5-24VDC D-50mm NSMP Categories Incremental Shaft model Diameter 50 mm dia. Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max. Current consumption 80 mA max. Resolution 1000 P/R Inrush current Approx. 9 A (0.3 ms) Output phases A, B and Z Control output Output type NPN open collector Load power supply voltage 30 V max.DC Sink current 35 mA max. Residual voltage 0.4 V max. (at sink current 35 mA) Starting positional point Equipped Max. response frequency 100 kHz Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T) Rise and fall times of output 1 µs max. (Cable length: 2 m, output voltage: 5 V, load resistance: 1 kΩ) Starting torque 10 mN.m max. Moment of inertia 1 x 10-6 kg.m2 max. Shaft loading Radial: 50 N Thrust: 30 N Max. permissible rotation 6000 r/min Protective circuit Output short-cut protection Power supply reverse polarity protection Ambient temperature Operating: -10 to 70 â (with no icing) Storage: -25 to 85 â (with no icing) Ambient humidity Operating: 35 to 85 % (with no condensation) Storage: 35 to 85 % (with no condensation) Insulation resistance Between charged parts and the case: 100 MΩ min. (at 500 VDC) Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s2 double amplitude for 11 min 3 times each in X, Y, and Z directions Shock resistance Destruction: 1000 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IEC: IP64 Company standard: Oil resistance Connection method Pre-wired models (Cable length: 2 m) Material Case: Zinc alloy Main Unit: Aluminum Shaft: SUS420J2 Weight Package: Approx. 400 g Accessories Instruction manual CONDITION: NSMP - New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ #1-TOP
