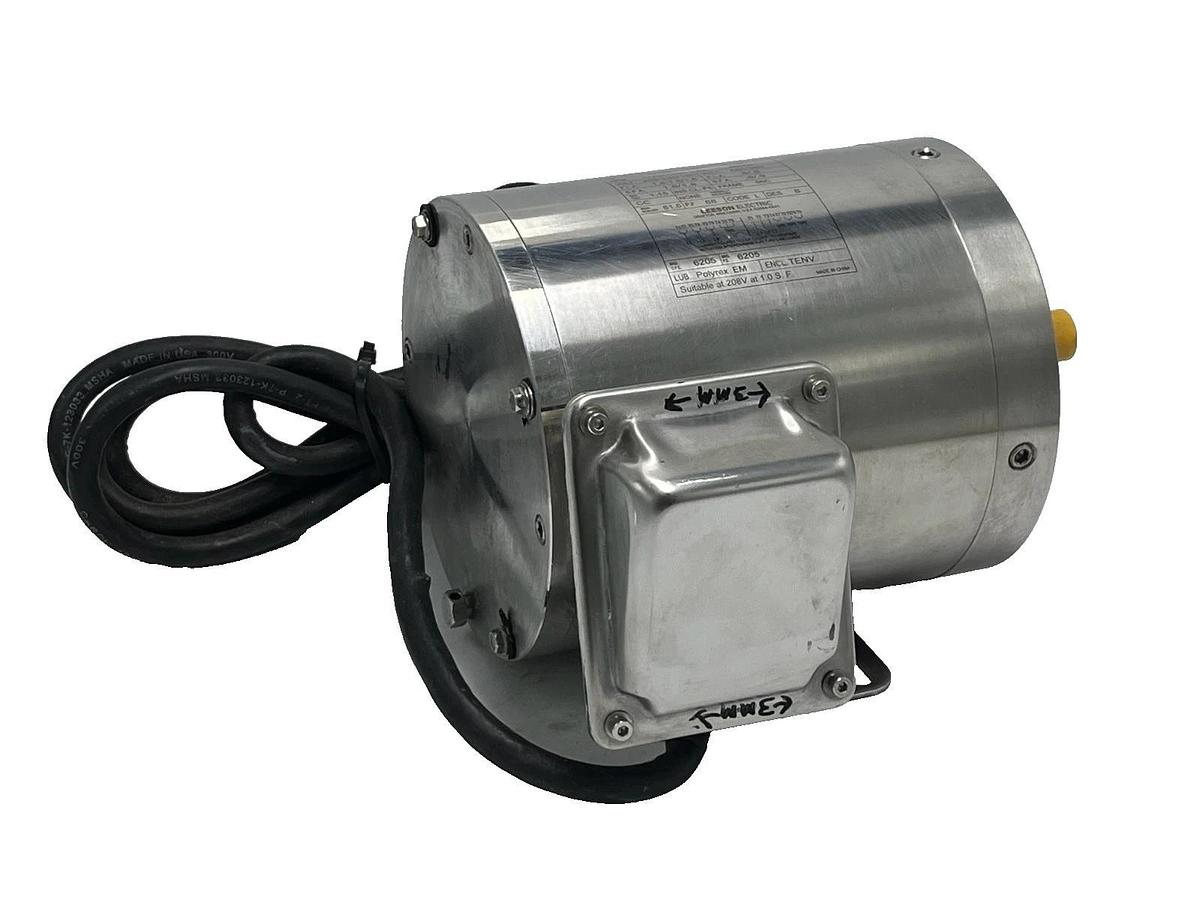

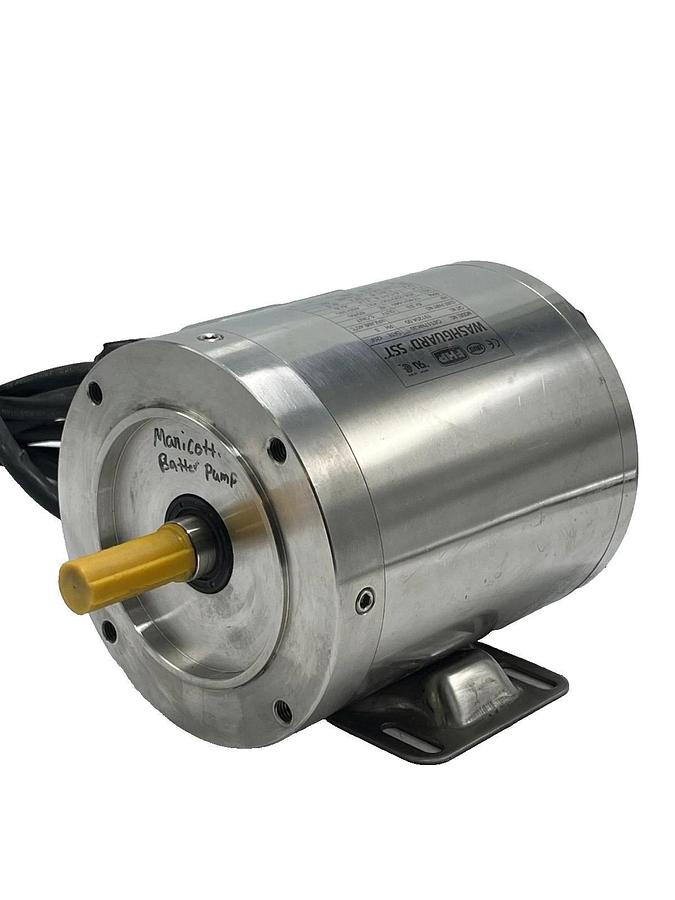

Leeson 191204.00 Washguard SST 1HP 1750RPM 3PH 56C Stainless Motor C6T17NK30
$399.95
Shipping: US $62.84 delivery in 2–4 days
Description
Leeson 191204.00 Washguard SST 1HP 1750RPM 3PH 56C Stainless Motor C6T17NK30
Up for sale is a
Leeson Washguard SST (Stainless Steel)
AC Induction Motor, Model
C6T17NK30
(Catalog No.
191204.00
). This is a premium, all-stainless motor designed for the most demanding food processing and pharmaceutical washdown environments.
Technical Specifications:
Horsepower:
1 HP
Speed:
1750 RPM
Voltage:
208-230 / 460V (3-Phase)
Frame:
56C (C-Face with Base)
Enclosure:
TENV (Totally Enclosed Non-Ventilated)
Material:
Full Stainless Steel Construction
Condition & Wiring:
This unit is
Unused Surplus

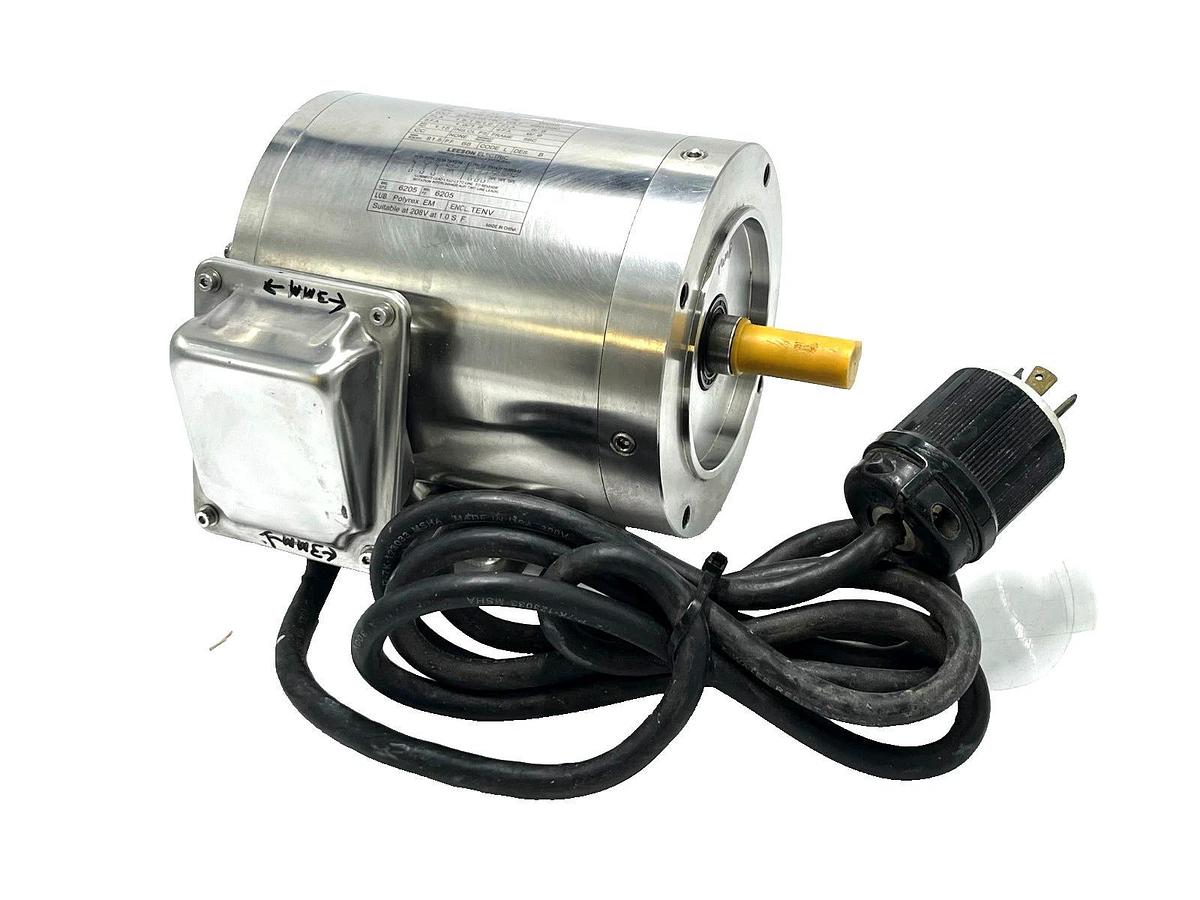

. It appears to have been prepared for installation as it is currently wired with an
8ft power cable
featuring a
Cooper Turn/Pull connector
. It was never put into active production.
Important Note:
When the motor is handled/tilted, there is an
audible rattle
coming from inside the housing. However, the
shaft spins smoothly and freely by hand
. Due to the internal noise, this motor is being sold
AS-IS for parts or repair
. It may simply be a loose internal clip or minor debris, but we have not opened the casing to investigate.
______________________________________________________________________________________________________
PALLET 1
Specifications
| Manufacturer | LEESON |
| Model | 191204.00 |
| Condition | New |
| Inverter/Vector Duty Rating | Inverter Duty |
| NEMA Design Letter | Design B (General Purpose) |
| Rated Load (HP) | 1 |
| AC Frequency Rating | 60 Hz |
| Special Motor Construction | Washdown Duty Motor |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| Insulation Class | F (Max 311°F) |
| Mounting Type | Face-Mounted |
| Reversible/Non-Reversible | Reversible |
| Current Type | AC |
| Service Factor | 1.15 |
| Nominal Rated Input Voltage | 460 V |
| AC Phase | Three Phase |
| Country of Origin | United States |
