FISHER CONTROLS 115-1DP4E22 PRESSURE TRANSMITTER 4-20MA 45VDC 2000PSI 1151DP4E22

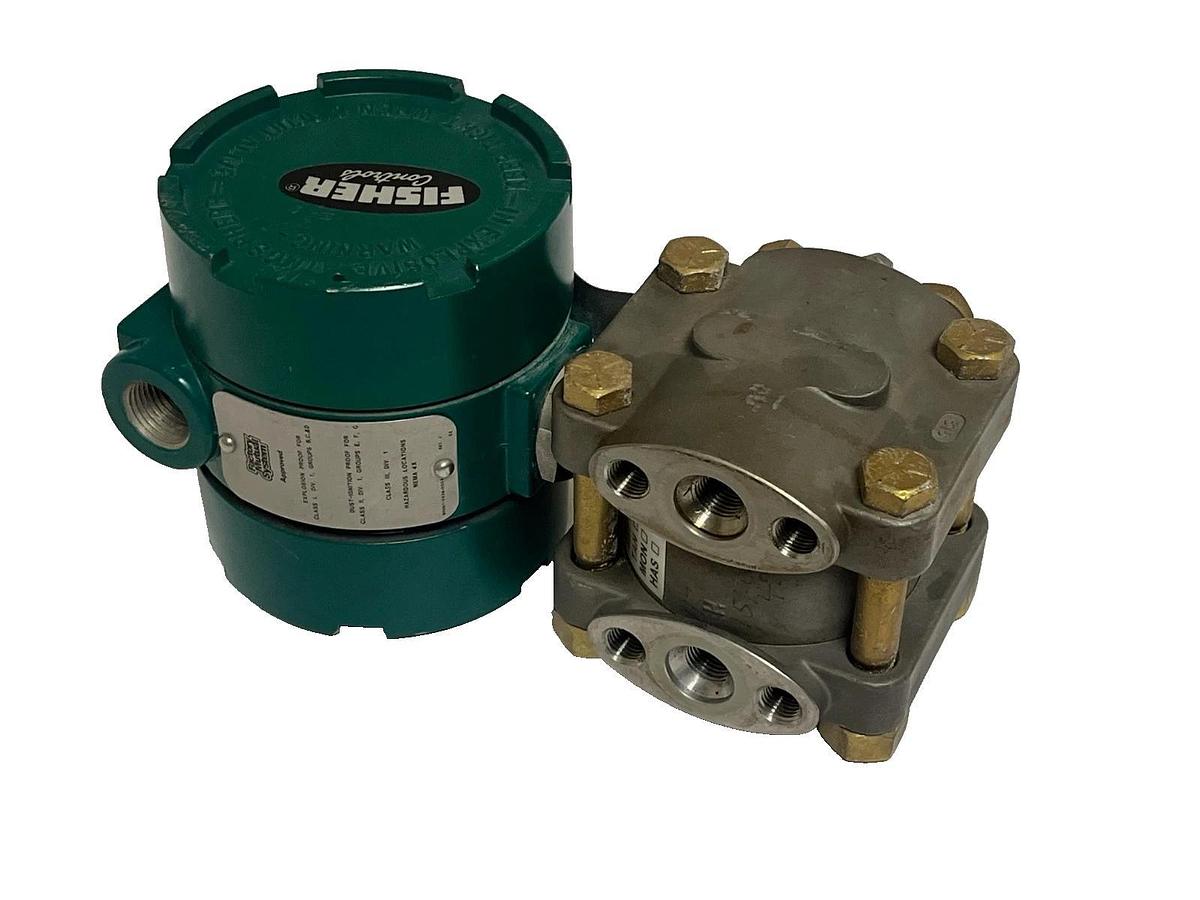

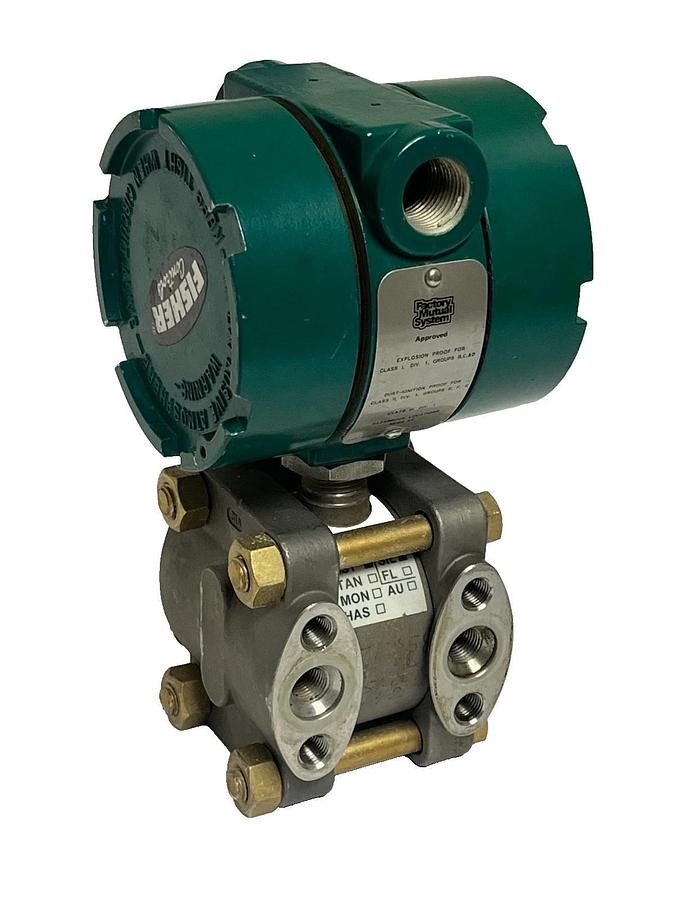

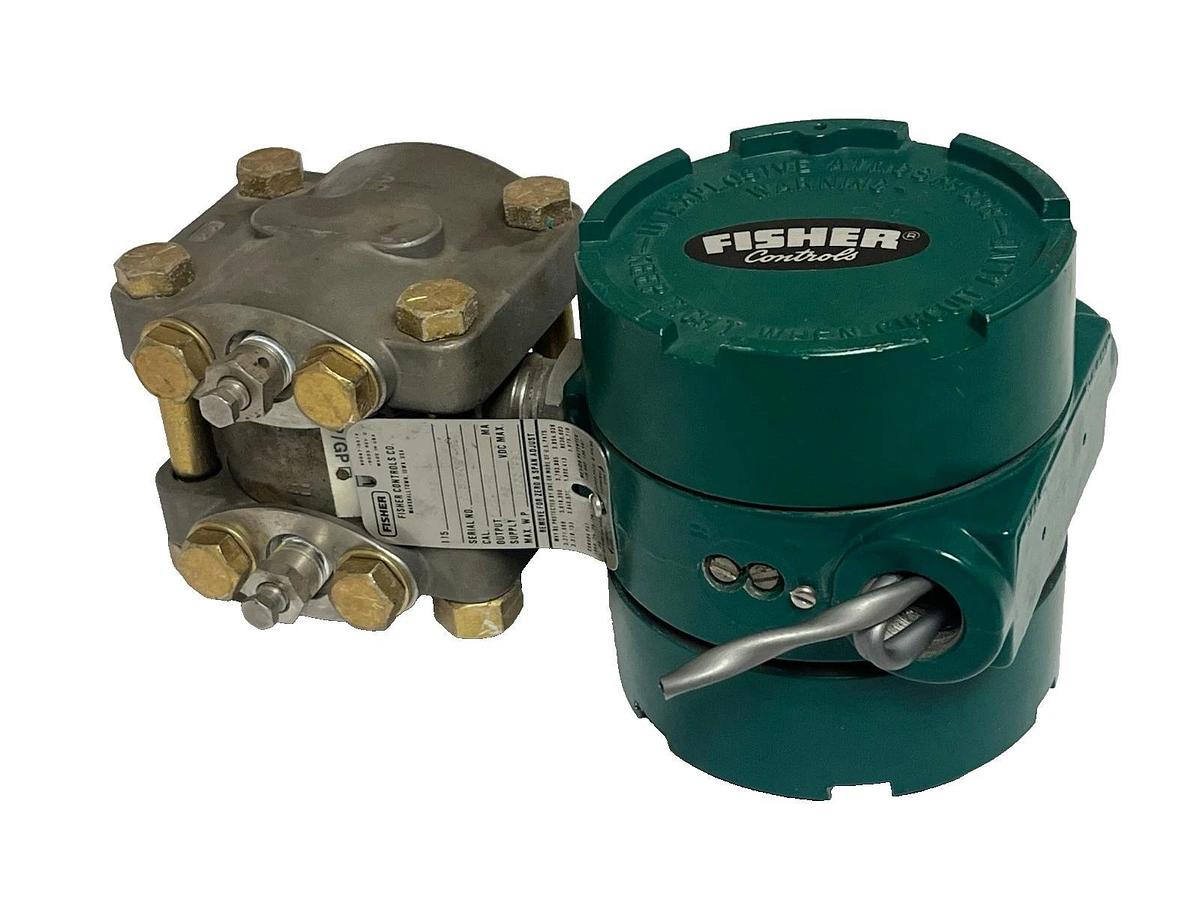

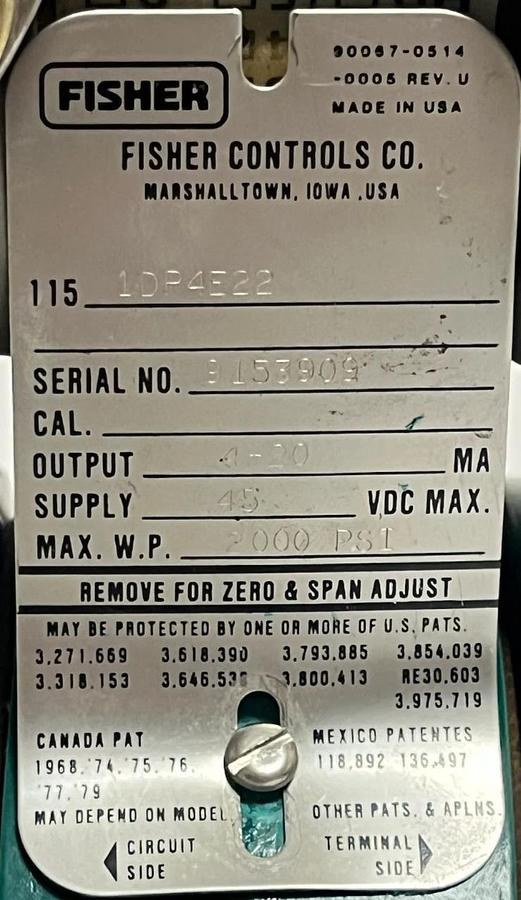

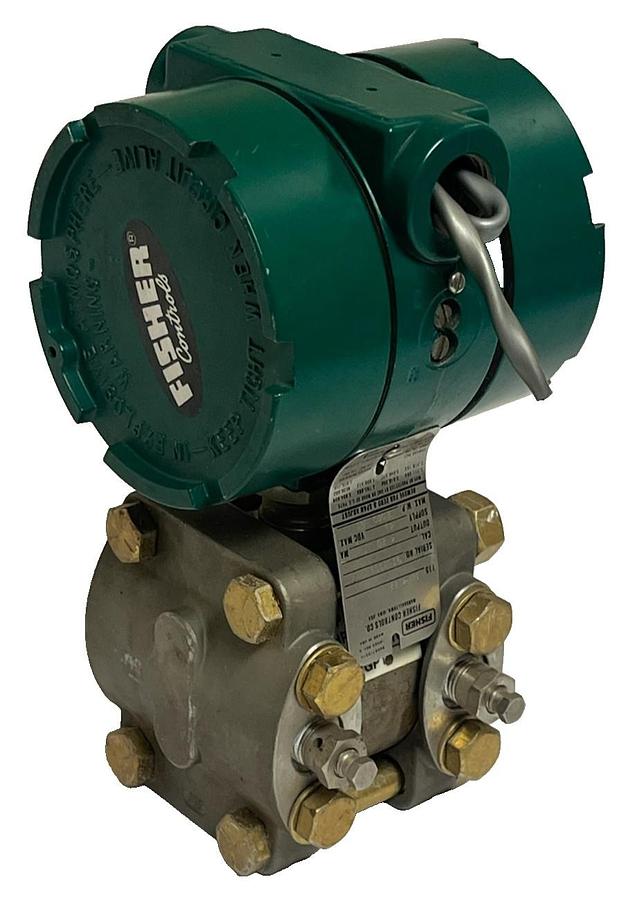

FISHER CONTROLS 115-1DP4E22 PRESSURE TRANSMITTER 4-20MA 45VDC 2000PSI 1151DP4E22 APPEARS TO BE A COMPLETE UNIT, UNABLE TO TEST HOWEVER SO LISTED AND PRICED FOR PARTS/NOT WORKING. WILL NEED TO BE REWIRED AT THE VERY LEAST THE CORD HAS BEEN CUT. Product Identification & Codes Manufacturer: Fisher Controls (Emerson/Rosemount) Model: 1151DP Configuration Code: 4E22 4 (Range): 0-150 inHâO (Standard differential range) E (Output): 4-20 mA DC 22 (Hardware): Stainless steel diaphragms and silicone fill fluid (Typical) Technical Specifications Feature Specification Input Range 0 to 150 inHâO (Adjustable) Output Signal 4-20 mA DC Power Supply 12V to 45V DC Max Working Pressure 2000 PSI (Static Line Pressure) Accuracy ±0.2% of calibrated span Process Connection 1/4-18 NPT (Standard Flange) Housing Low-copper aluminum / NEMA 4X / IP66 ________________________________________________________________________________________________________ 2050
