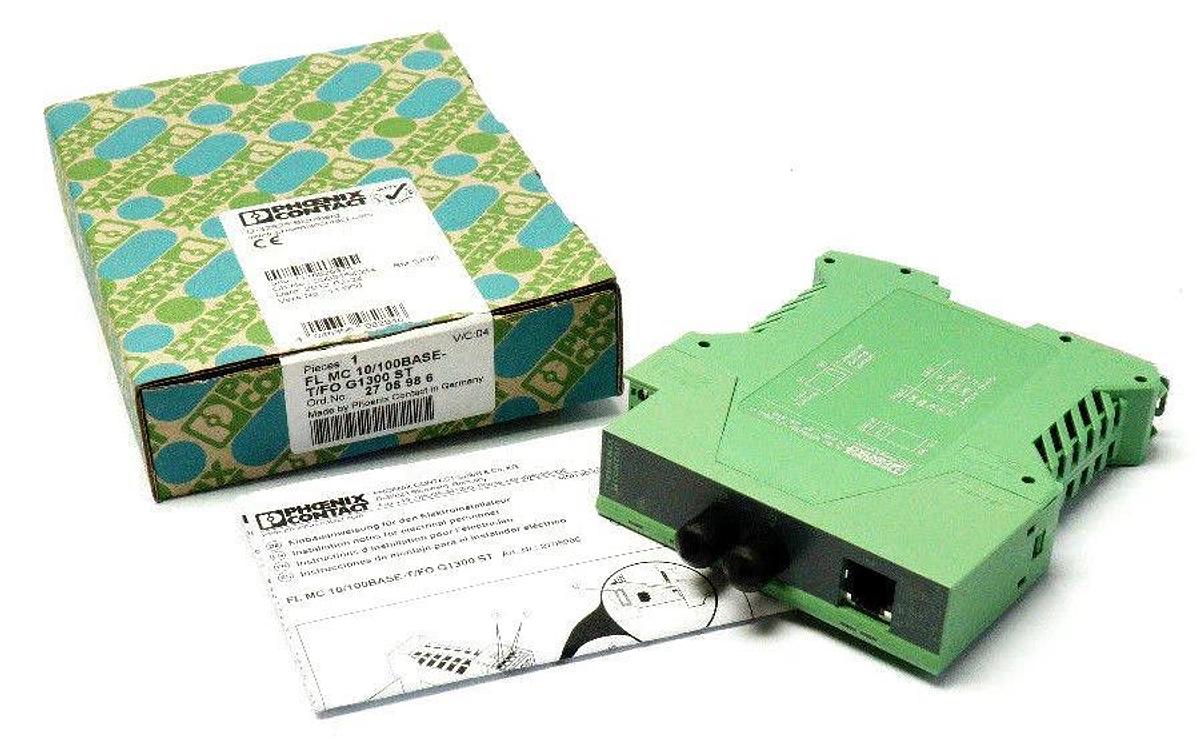

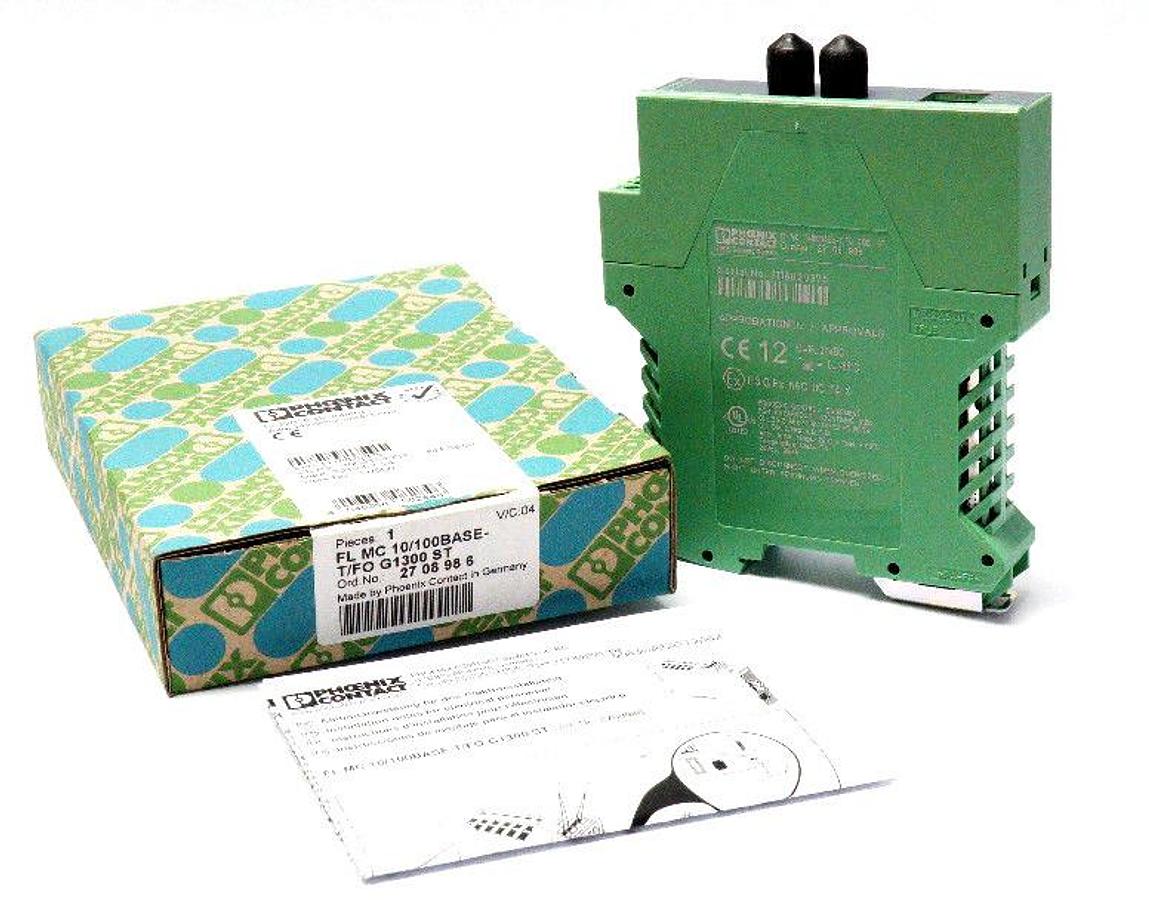

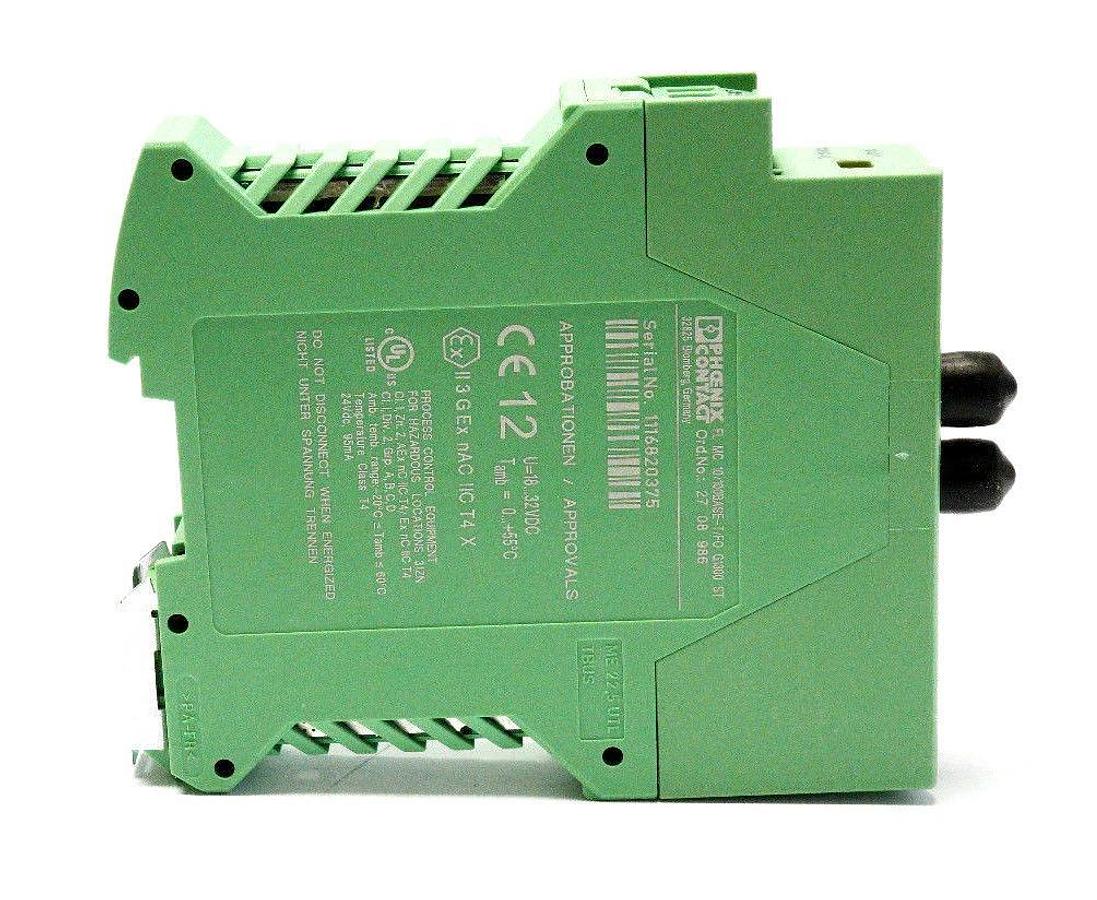

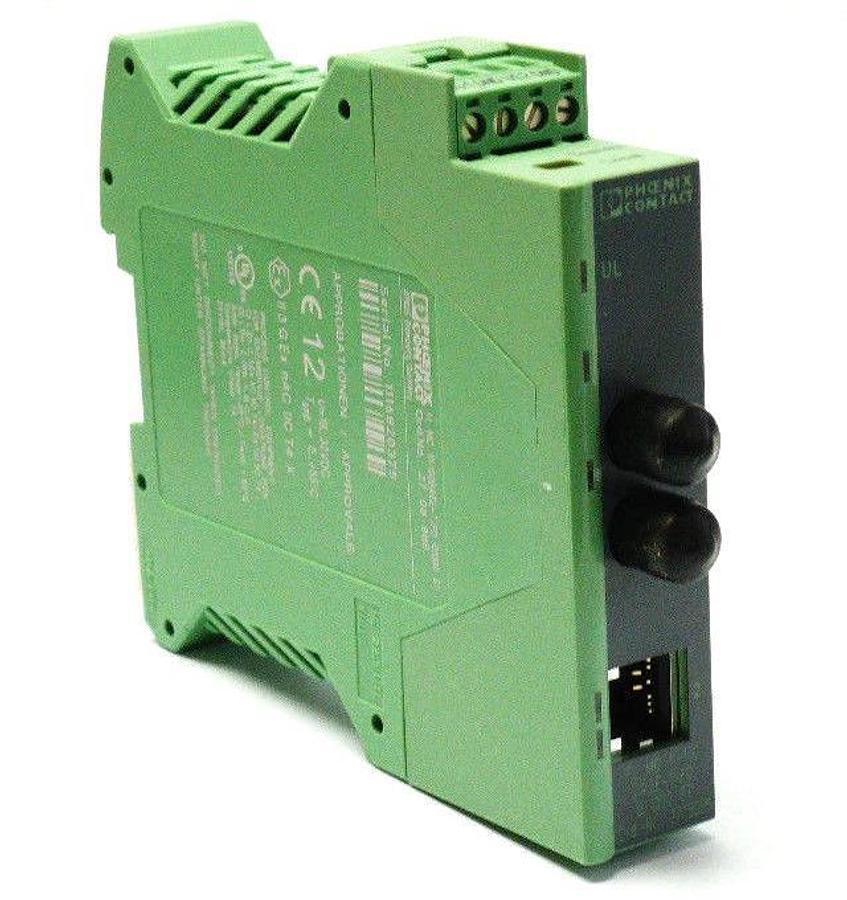

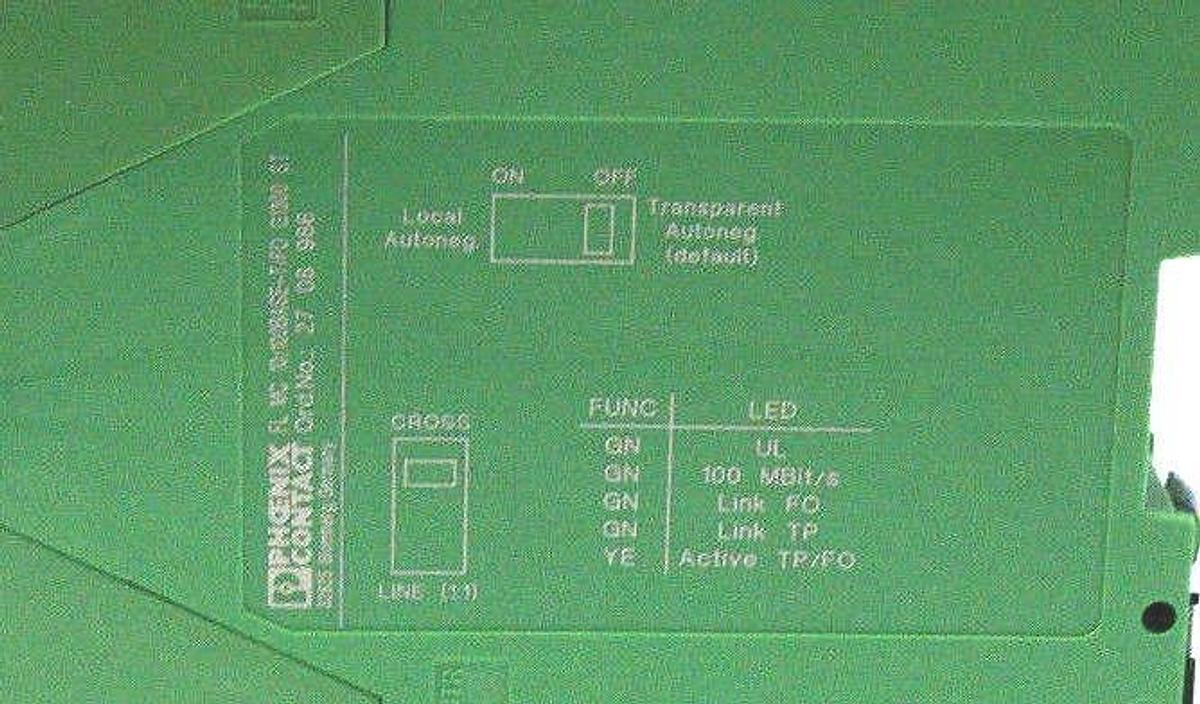

NIB PHOENIX CONTACT FL MC 10/100BASE-T/FO G1300 ST - 2708986 FO CONVERTER V/C 04

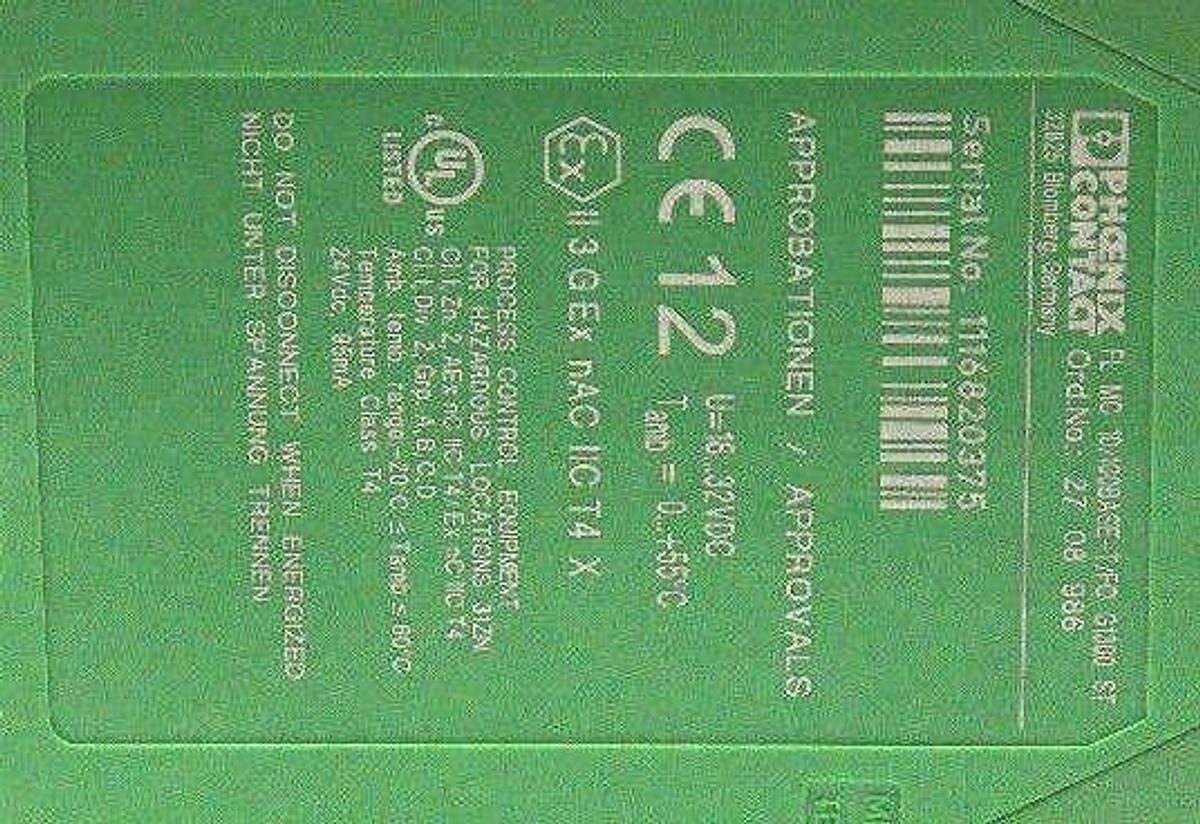

NIB PHOENIX CONTACT FL MC 10/100BASE-T/FO G1300 ST - 2708986 FO CONVERTER V/C 04 Dimensions Width 22.5 mm Height 99 mm Depth 123 mm Ambient conditions Ambient temperature (operation) 0 °C ... 55 °C Permissible humidity (operation) 30 % ... 95 % (non-condensing) Degree of protection IP20 Noise immunity EN 61000-6-2:2005 General Electrical isolation VCC // Ethernet Test voltage data interface/power supply 1500 V 1.5 kVrms (50 Hz, 1 min.) Electromagnetic compatibility Conformance with EMC directive 89/336/EC Noise emission EN 50081-2 Net weight 171.7 g Housing material PA V0 Color green MTBF 573 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) 138 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) ATEX ï II 3 G Ex nAC IIC T4 X (Please follow the special installation instructions in the documentation!) UL, USA/Canada Class I, zone 2, AEx nc IIC Power supply Nominal supply voltage 24 V DC ±20 % (via pluggable COMBICON screw terminal block) 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply) Typical current consumption ⤠95 mA (24 V DC) Protective circuit Reverse polarity protection Connection method Plug-in screw terminal block (COMBICON), redundancy possible Serial interface Interface 1 Ethernet interface, 10/100BASE-T(X) in acc. with IEEE 802.3u Connection method RJ45 socket, shielded Transmission medium Copper Transmission length 100 m (shielded twisted pair) Auto-negotiation modes Optionally transparent via TP and FO (default) or locally on TP Link through Link down is automatically forwarded to the second connection MDI-/MDI-X switchover Built-in switch for line (1:1) and crossover connection Signal LEDs Activity (yellow), Link status (green), 100 Mbps (green) Serial transmission speed 10/100 Mbps Optical interface FO Transmit capacity, minimum min. -23.5 dBm ((50/125 µm) dynamic in link mode (average)) min. -20 dBm ((62,5/125 µm) dynamic in link mode (average)) min. -20.5 dBm ((50/125 µm) static) min. -17 dBm ((62,5/125 µm) static) Transmit capacity, maximum max. -14 dBm ((50/125 µm) dynamic in link mode (average)) max. -14 dBm ((62,5/125 µm) dynamic in link mode (average)) max. -11 dBm ((50/125 µm) static) max. -11 dBm ((62,5/125 µm) static) Minimum receiver sensitivity min. -31 dBm (dynamic in link mode (average)) min. -28 dBm (static) Wavelength 1300 nm Transmission length incl. 3 dB system reserve 6.4 km (with F-G 50/125 0,7 dB/km F 1200) 2.8 km (with F-G 50/125 1,6 dB/km F 800) 10 km (with F-G 62,5/125 0,7 dB/km F 1000) 3 km (with F-G 62.5/125 2.6 dB/km F 600) 2 km (with 2GK200/230 GI-HCS) Transmission medium Multi-mode fiberglass GI-HCS fiber Connection method B-FOC (ST) Standards and Regulations Electromagnetic compatibility Conformance with EMC directive 89/336/EC Noise emission EN 50081-2 Noise immunity EN 61000-6-2:2005 ATEX ï II 3 G Ex nAC IIC T4 X UL, USA/Canada Class I, zone 2, AEx nc IIC FOR ANY FURTHER QUESTIONS CALL 810-531-0356 OR 810-531-6228
